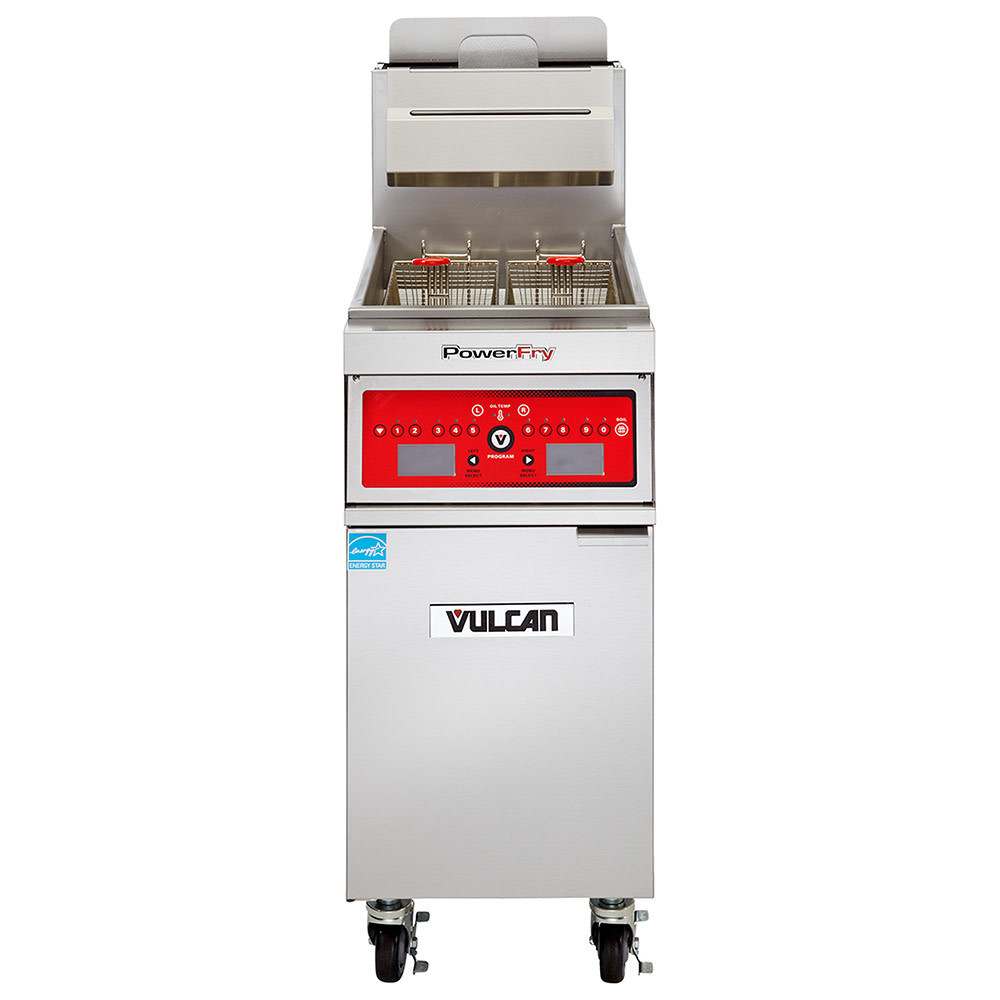

Vulcan VFRY18F Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

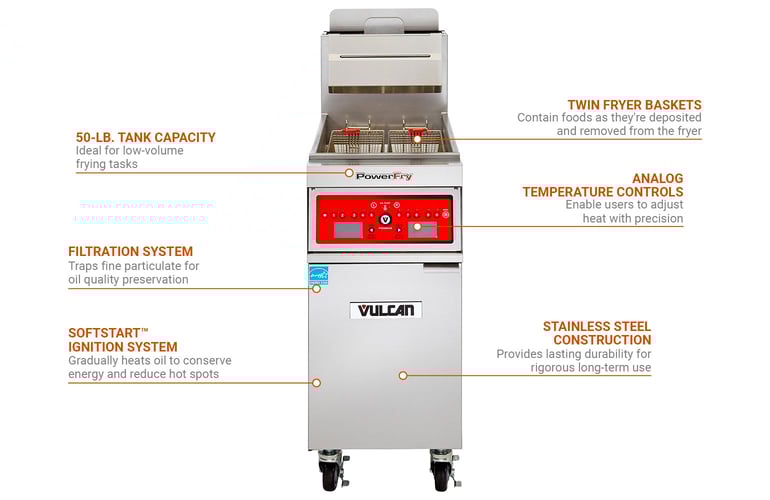

User can adjust the temperatures of the Vulcan VFRY18F V-series fryer using the solid-state analog control knob, which is enclosed in the base cabinet. The unit is activated through an electronic, SoftStart™ ignition system that conserves energy at startup and minimizes oil scorching. For thorough, even temperature distribution, this natural gas fryer uses a ThreePass™ heat transfer system, and to prevent the unit from exceeding maximum temperatures, it sports a hi-limit shutoff feature. Oil quality is preserved over extended periods with the integrated filtration system, which circulates oil at 8 gallons per minute using a push-button-activated motor and pump. Polluted oil is then gathered in the 18-gauge stainless steel filter pan; for enhanced safety, users should activate the drain valve interlock switch prior to draining.

For low-volume fryer tasks, the Vulcan VFRY18F fryer features one vat that can support as much as 50 pounds of oil. Its heavy-duty stainless steel front, front top ledge, sides, tank, base, and stub back withstand rigorous use in high-traffic kitchens. This unit includes two fry baskets with plastic-coated basket handles to contain food as it’s submerged into and removed from hot oil. To establish comfortable working conditions, the fry tank has a 36-inch working height. After service, users can drain oil through the ¹⁄₄-inch port ball-type drain valve and utilize the Boil Out Bypass™ system to streamline boil-out solution removal. Overall, this unit measures 18 inches wide by 40 inches deep by 48³/₈ inches high and is mounted on 6-inch legs.

Product Details

• Featured in the V Series
• 45-50-lb. fry tank capacity
• Front, front top ledge, sides, fry tank, base, and stub back are stainless steel
• 2 fry baskets with plastic-coated handles
• 36-in. working height
• Solid-state analog control knob located behind cabinet door
• Electronic ignition with SoftStart technology
• Hi-limit shut off enhances safety
• ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
• 1¹⁄₄-in. port ball-type drain valve
• Boil Out Bypass system
• Mounted on 6-in. legs
• 70,000 BTU per hour

Filtration System

• 18-ga. stainless steel filter pan
• Drain valve interlock switch
• ¹⁄₃-HP motor and pump circulate frying compound at 8 GPM
• Pump and motor activated with simple push button

Dimensions and Utilities

• 18 in. W x 40 in. D x 48³⁄₈ in. H
• 120V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• ³⁄₄-in. rear gas connection
• 1¹⁄₄-in.-dia. front gas manifold

Product Features

*Free shipping on Vulcan VFRY18F within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range Match Fryer with filter, gas, 18", 45-50 lb. fat capacity, electronic ignition, 3/4" regulator, stainless steel exterior finish, 6" adjustable legs, 70,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan VFRY18F Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
