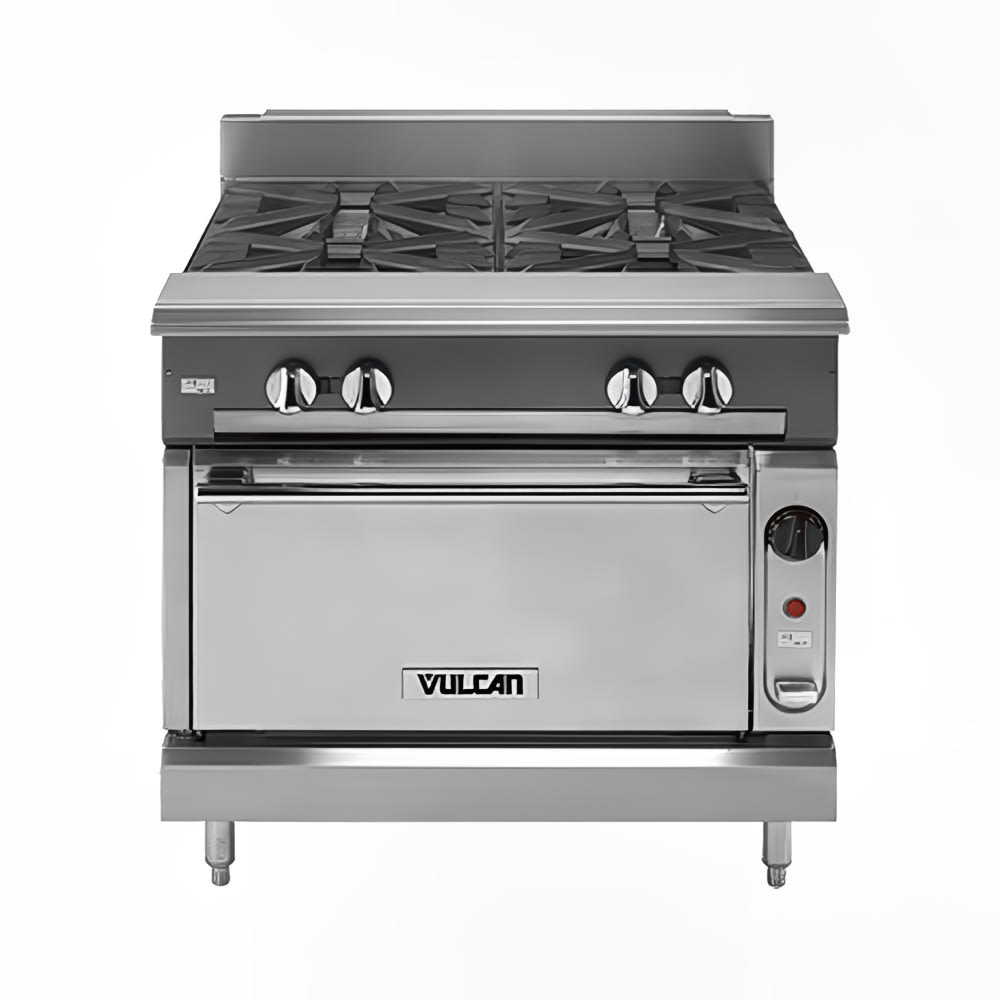

Vulcan VCBB36C 36" Gas Range w/ Charbroiler & Convection Oven, Liquid Propane

So chefs can sear, grill, broil, and roast different ingredients simultaneously, the Vulcan VCBB36C heavy-duty gas range is built with a 36-inch-wide charbroiler top and convection oven base. The 99,000-BTU charbroiler is lined with six burners that have separate pilot lights and controls so staff can adjust each burner's heat independently. For uniform heat distribution across the grates, the charbroiler features char radiants with stainless steel supercharger burner dividers. Each burner has a corresponding cast iron grate that's slanted to facilitate fat runoff and minimize the risk of flare-ups. To ease cleaning between uses, the grates can be lifted off, while the extra-deep crumb tray collects food debris.

The convection oven base relies on a circulating fan that generates heat to cook dishes quickly and evenly, and operators can adjust the temperature from 175 to 550 degrees Fahrenheit with the thermostat. Its 27-inch-wide by 27-inch-deep by 13-inch-tall interior comes with two oven racks that can be raised or lowered in three rack positions. So users can simply insert and retrieve food pans, the heavy-duty oven door features a counterweight hinge. Because the oven's cavity is porcelain, it's simple to wipe clean.

The Vulcan VCBB36C LP-gas-powered commercial range measures 36 inches wide by 41⁷⁄₈ inches deep by 40¹/₂ inches high overall to save space in compact kitchens. So the unit doesn't rock or wobble during operation, its 6-inch legs can be raised or lowered to stabilize the unit on irregular flooring. Its front, front top ledge, burner box, sides, base, and stub back are made of stainless steel—a rugged metal that resists denting, scratching, and rusting to prolong its service life.

Range Details

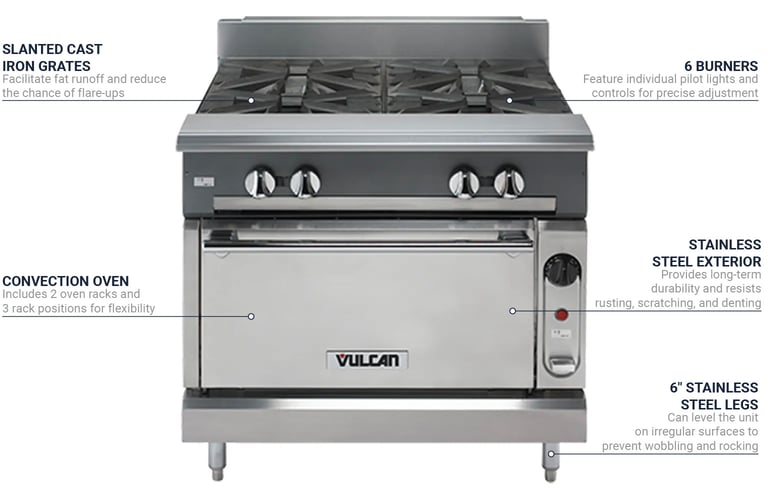

• Part of Vulcan's V series
• Stainless steel front, front top ledge, sides, base, and stub back
• 36-in.-wide charbroiler
• 6 burners with individual pilots and controls
• Char radiants and stainless steel supercharger burner dividers
• 6 sloped, lift-off, heavy-duty cast iron grates
• Extra-deep stainless steel crumb tray
• 99,000 BTU

Convection Oven Details

• Operating temperature: 175-550 degrees F
• Porcelain base, sides, and interior door panel
• Includes 2 racks that can be placed in 3 positions
• 1 hinged, counterweight door
• 6-in. adjustable stainless steel legs
• 32,000 BTU

Dimensions & Utilities

• Oven interior: 27 in. W x 27 in. D x 13 in. H
• Overall: 36 in. W x 41⁷⁄₈ in. D x 40¹/₂ in. H
• 4 A
• 115 V/60 Hz/1 ph, 6-ft. cord with plug
• Powered by LP gas
• 1¹⁄₄-in. diameter front gas manifold
• 1¹⁄₄-in. rear gas connection
• 131,000 BTU

Product Features

*Free shipping on Vulcan VCBB36C within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, gas, 36", charbroiler, cast iron grates & radiants, convection oven, stainless steel front, front top ledge, side, base, burner box & stub back, 6" adjustable legs, 131,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCBB36C Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
