Vulcan VC6GC Single Full Size Natural Gas Convection Oven - 50,000 BTU

Good for bakeries and establishments serving high volumes of product, the Vulcan VC6GC single-deck gas convection oven’s interior is deeper than other Vulcan ovens. The porcelain enamel interior measures 29 inches wide by 26¹⁄₈ inches deep by 20 inches high, and it’s furnished with five nickel-plated oven racks, each of which has a 28¹⁄₄-inch wide by 24¹⁄₂-inch-deep frame. Powered by natural gas, it’s heated with a 50,000-BTU burner, and it has an electronic spark igniter to kickstart operation. A two-speed, ¹⁄₂-horsepower oven blower motor helps move hot air around product, and the top, rear, sides, bottom, and doors are insulated to retain heat for back-to-back use.

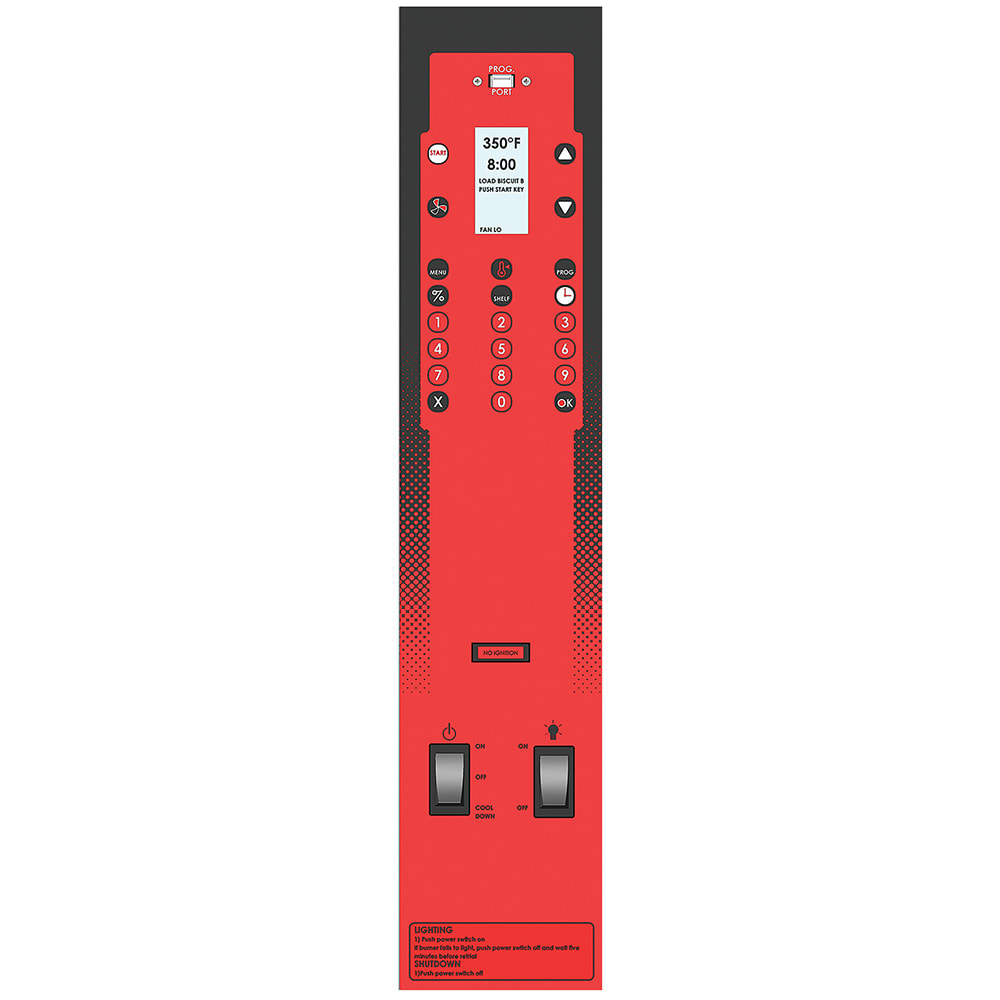

Users can streamline operation with the Vulcan VC6GC single-deck convection oven’s computer controls. Its digital time and temperature readouts are easy to read, and it has a 99-hour timer with an audible alarm. As many as 100 menu selections can be programmed to quicken the preparation process for baking certain foods. This oven has a 40-inch-wide by 46¹⁄₄-inch-deep by 54³⁄₄-inch-high structure and is supported by 23³⁄₄-inch painted legs for stability. To supply direct access to product, it has two separately operating stainless steel doors that reduce heat loss when opened one at a time. They have built-in, double-paned windows, enabling users to check on food as it bakes.

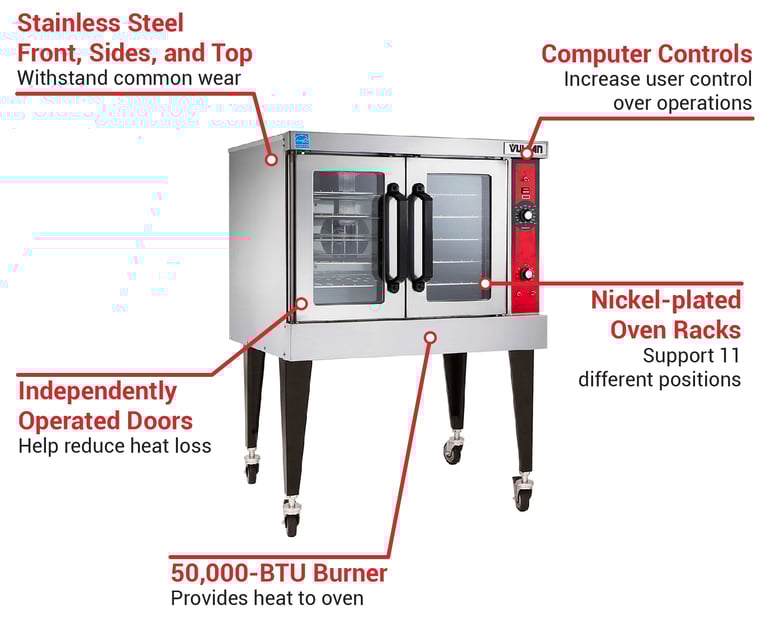

Product Details

• Part of the VC6G series
• Deeper than other Vulcan convection ovens
• Stainless steel front, top, and sides
• Non-sagging insulation is built into top, rear, sides, bottom, and doors
• 5 nickel-plated oven racks with 11-position rack guides and positive rack stops
• Heated with (1) 50,000-BTU burner
• Computer controls streamline operation
• 2-speed, ¹⁄₂-horsepower oven blower motor
• 2 independently operated stainless steel doors with double-paned windows
• Porcelain enamel is built into oven’s interior
• Oven cool switch
• 2 interior oven lights
• 23³⁄₄-in. painted legs
• Right side clearance: 2 in.
• Left side clearance: 1 in.
• 50,000 BTU

Dimensions & Utilities

• Oven racks: (5) 28¹⁄₄ in. W x 24¹⁄₂ in. D
• Oven interior: 29 in. W x 26¹⁄₈ in. W x 20 in. H
• Overall: 40 in. W x 46¹⁄₄ in. D x 54³⁄₄ in. H
• 7.7 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph with a 6-ft. cord and plug
• Uses natural gas
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan VC6GC within the 48 contiguous states.

From The Manufacturer

Convection Oven, gas, single-deck, bakery depth, computer controls, electronic spark igniter, 99-hour timer, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 50,000 BTU, NSF, CSA Star, CSA Flame, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC6GC Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
