Vulcan VC6GC Single Full Size Liquid Propane Gas Convection Oven - 50,000 BTU

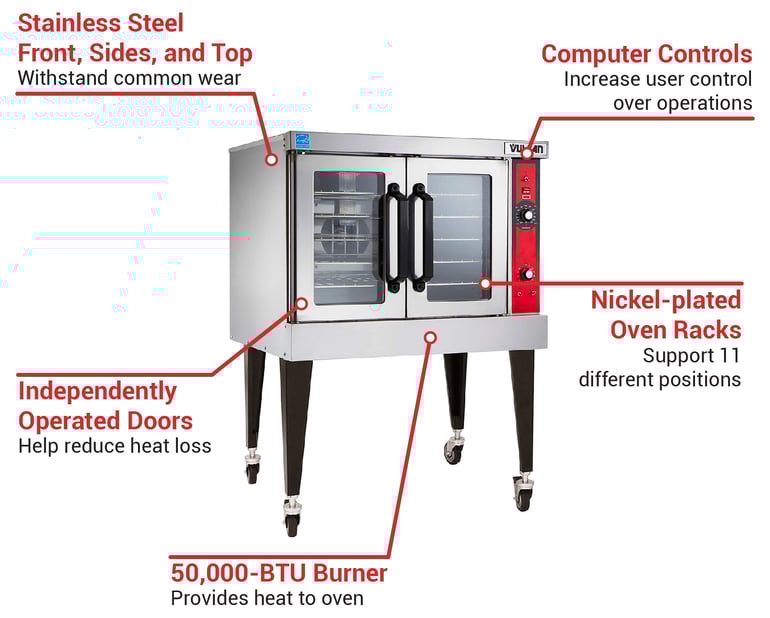

The Vulcan VC6GC single-deck gas convection oven has a 29-inch-wide by 26¹⁄₈-inch-deep by 20-inch-high interior, which is deeper than other Vulcan convection ovens to support high-volume loads. It’s heated with a 50,000-BTU burner, and computer controls enable users to program as many as 100 menu selections for streamlined operation. It’s furnished with five nickel-plated oven racks that measure 28¹⁄₄ inches wide by 24¹⁄₂ inches deep. Each of the racks can be positioned on one of the 11 rack guides and is secured in place with positive rack stops. Inside the oven, its porcelain enamel construction is smooth and easy to wipe down.

To withstand common wear, the Vulcan VC6GC single-deck convection oven’s front, sides, and top are made of stainless steel. Heat is retained through non-sagging insulation built into its top, rear, sides, bottom, and doors, and its two doors open separately to reduce heat loss. Double-paned windows are built into the doors, enabling users to peer into the oven to manage baking progress. Measuring 40 inches wide by 46¹⁄₄ inches deep by 54³⁄₄ inches high, it sits atop 23³⁄₄-inch-high painted legs for stabilization.

Product Details

• Part of the VC6G series
• Single deck with bakery depth
• Stainless steel front, top, and sides
• 5 nickel-plated oven racks with 11-position rack guides and positive rack stops
• Heated with (1) 50,000-BTU burner

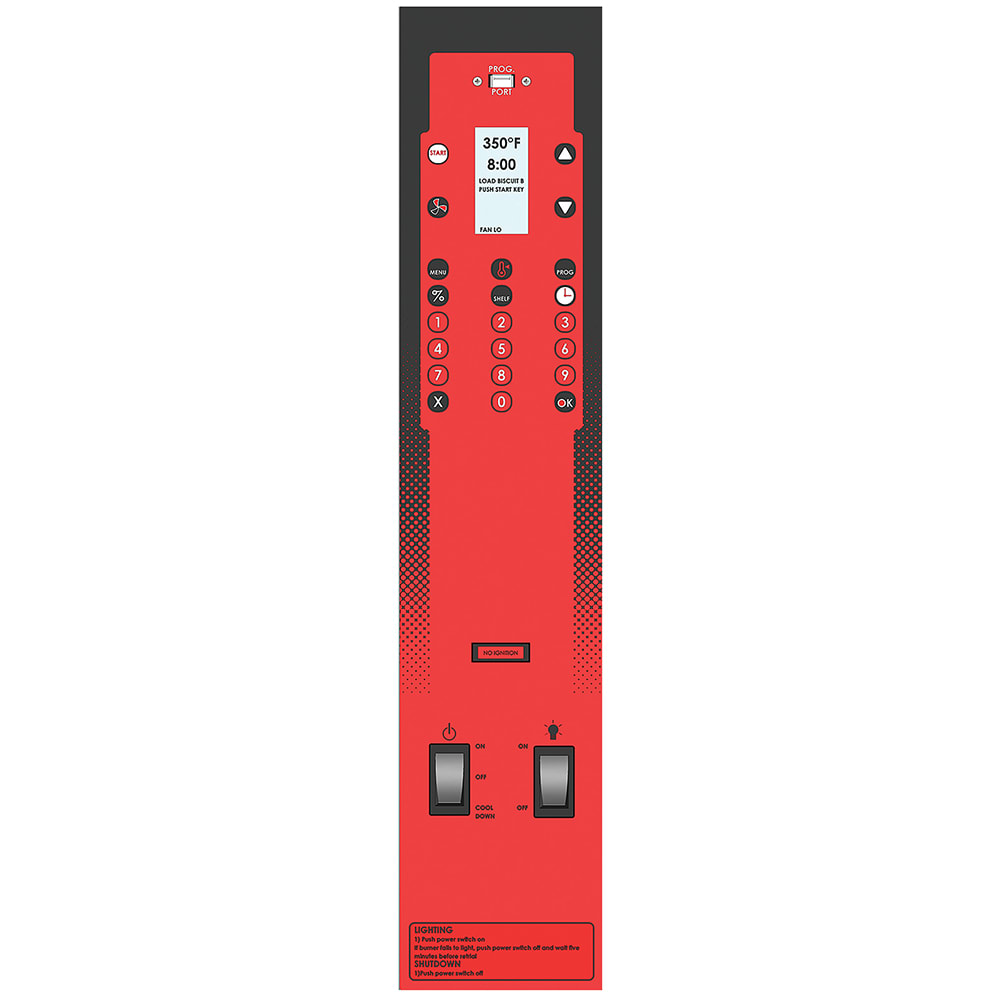

• Computer controls include digital time and temperature readouts, 99-hour timer with an audible alarm, roast and hold cycle, and 100 programmable menu selections
• 2-speed, ¹⁄₂-horsepower oven blower motor
• Top, rear, sides, bottom, and doors are constructed with non-sagging insulation
• 2 independently operated stainless steel doors
• 2 double-paned windows
• Porcelain enamel is built into steel oven interior
• Oven cool switch
• 2 interior oven lights
• 23³⁄₄-in. painted legs
• Right side clearance: 2 in.
• Left side clearance: 1 in.
• 50,000 BTU

Dimensions & Utilities

• Oven racks: (5) 28¹⁄₄ in. W x 24¹⁄₂ in. D
• Oven interior: 29 in. W x 26¹⁄₈ in. W x 20 in. H
• Overall: 40 in. W x 46¹⁄₄ in. D x 54³⁄₄ in. H
• 7.7 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph with a 6-ft. cord and plug
• Uses LP gas
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan VC6GC within the 48 contiguous states.

From The Manufacturer

Convection Oven, gas, single-deck, bakery depth, computer controls, electronic spark igniter, 99-hour timer, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 50,000 BTU, NSF, CSA Star, CSA Flame, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC6GC Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
