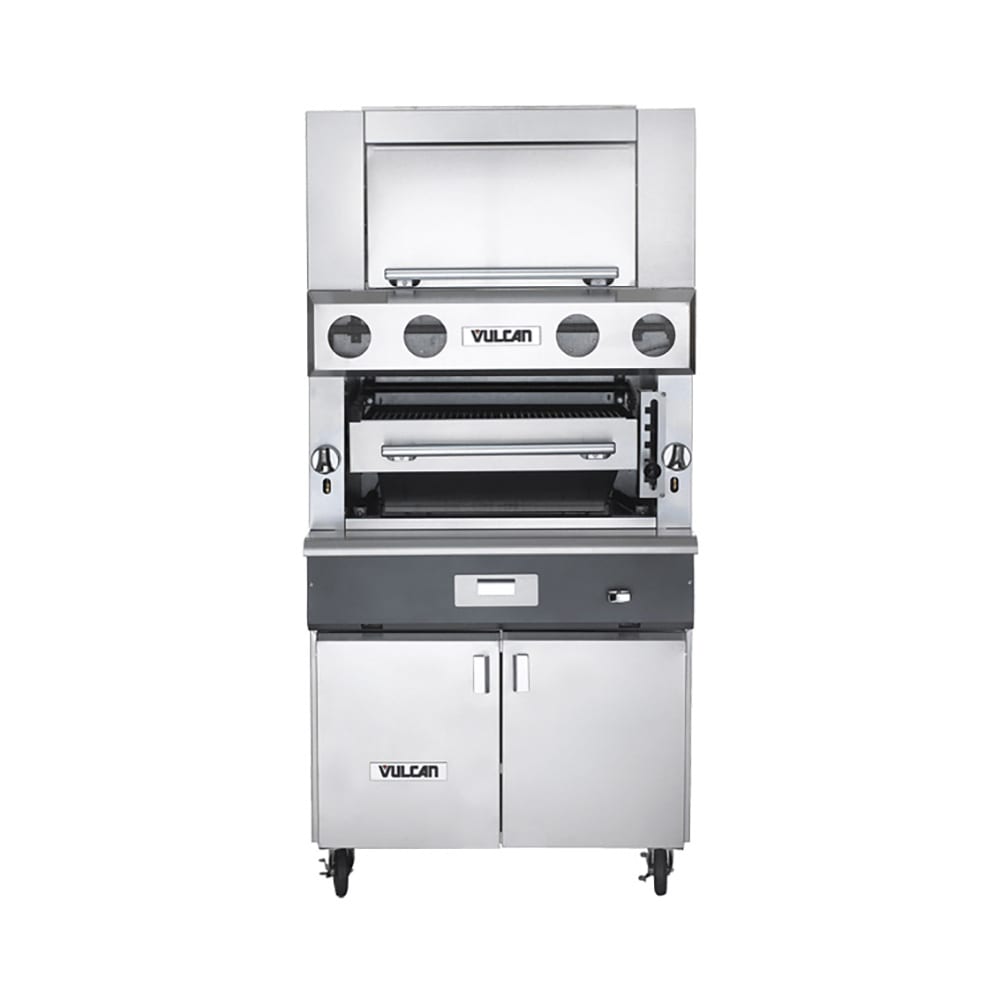

Vulcan VBB1F 36" Upright Broiler w/ (3) Burners - For Refrigerated Base, Natural Gas

Durable to support high-volume use, the Vulcan VBB1F V Series upright broiler is constructed primarily of stainless steel. This heavy-duty metal resists rust, scratches, and corroding, and it's simple to clean. To streamline cleaning further, it's equipped with a full-width, floating stainless steel drip pan. Facilitating precise temperature adjustment, this unit features infinite heat controls.

The Vulcan VBB1F heavy-duty broiler is powered by natural gas and uses a pilot ignition system. Heat is provided by three ceramic radiant burners; their grates are made of strong cast iron to support rigorous use. Designed for a refrigerated base mount, it has a flat bottom without legs; the Vulcan base is required for operation and sold separately. Overall, this unit measures 36 inches wide by 42⁵/₈ inches deep by 77¹/₈ inches high.

Product Details

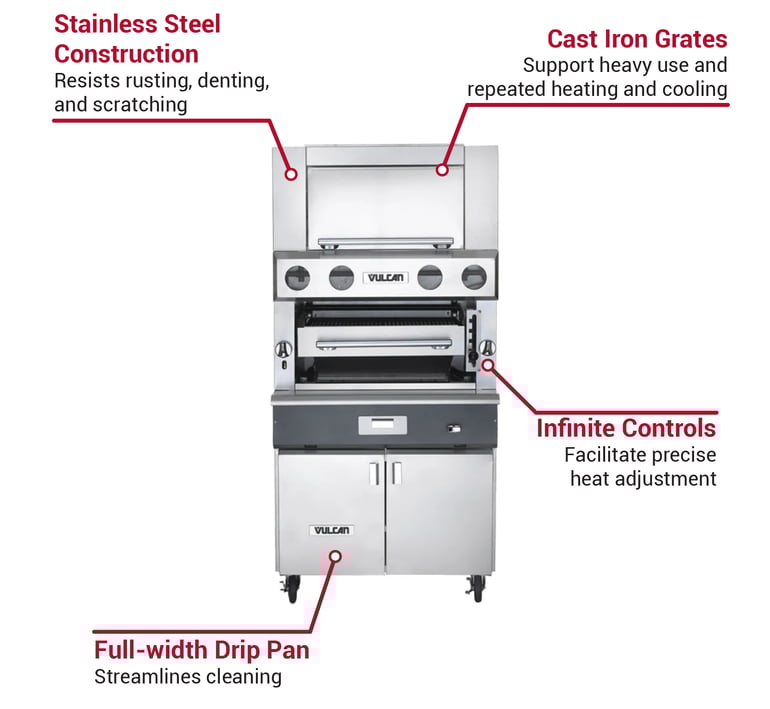

• Heavy-duty stainless steel sides, front, front top ledge, base, burner box, and stub back

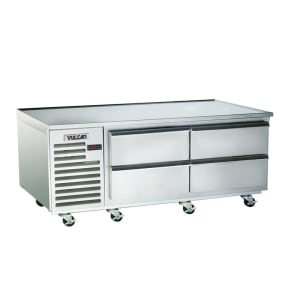

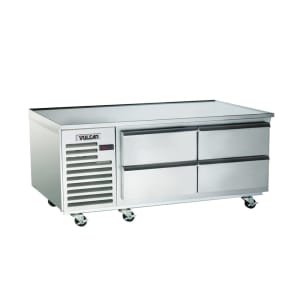

• Modular base for refrigerated mount only (VSC36 Vulcan refrigerated base sold separately)
• 3 ceramic radiant burners with cast iron grates
• Infinite heat controls
• Pilot ignition system
• Full-width, floating stainless steel drip pan expedites cleaning
• 99,000 BTU

Dimensions & Utilities

• 36 in. W x 42⁵/₈ in. D x 77¹/₈ in. H
• Powered by natural gas
• 1¹⁄₄-in. front gas manifold

Product Features

*Free shipping on Vulcan VBB1F within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Broiler, 36", Gas, (3) 33,500 BTU ceramic radiant burners, cast iron grates, modular base, stainless steel front, front top ledge, sides, base, burner box & stub back, 1-1/4" front gas manifold, 100,000 BTU, NSF, CSA Star, CSA Flame

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VBB1F Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

Documents

Spec Sheet

Warranty

Service Manual

Catalog
