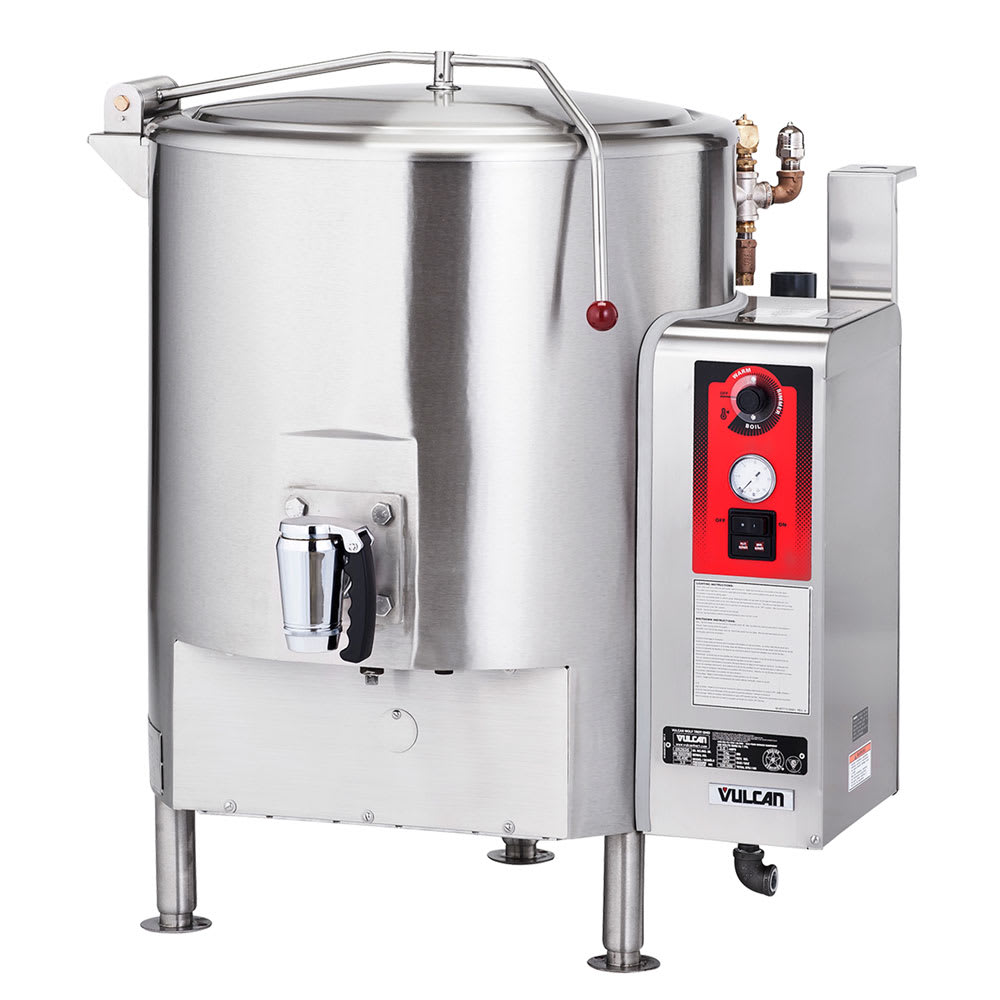

Vulcan ST100 100 gal Steam Kettle - Stationary, Full Jacket, Direct Steam

Designed with a fully steam-jacketed construction, the Vulcan ST100 direct steam stationary kettle ensures uniform heat distribution for large-scale cooking. With a 100-gallon capacity, this unit is built for high-volume food preparation. A sloped interior bottom promotes smooth product flow, while a 2-inch plug drawoff valve with a perforated strainer allows for controlled dispensing. The graduated measuring rod provides precise portioning, and a faucet bracket is positioned for added convenience. The main and simmer steam supply valves help regulate cooking conditions, while the thermostatic steam trap maintains pressure efficiency. Supported by 2-inch-diameter stainless steel legs with adjustable flanged feet, this unit ensures stability.

Product Details

• 100-gal. capacity
• Stainless steel construction
• Fully steam-jacketed design
• Sloped interior bottom
• Spring-assist, hinged cover with condensate ring
• Drop-down lift handle with heavy-duty pivot assembly
• 2-in. plug drawoff valve with perforated strainer
• Graduated measuring rod
• Faucet bracket
• Stainless steel jacket liner
• Mounted on 2-in.-diameter legs with adjustable flange feet
• Vacuum pressure relief valve
• Main and simmer steam supply valve
• Steam pressure gauge
• Thermostatic steam trap
• 15 PSI relief valve

*Free shipping on Vulcan ST100 within the 48 contiguous states.

From The Manufacturer

Fully Jacketed Stationary Kettle, Direct, 100-gallon capacity, stainless steel spring assisted cover, 2" plug draw-off valve with perforated strainer, graduated measuring rod, faucet bracket, stainless steel construction with 316 series stainless steel liner, flanged feet, 4.0 BHP

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan ST100 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
