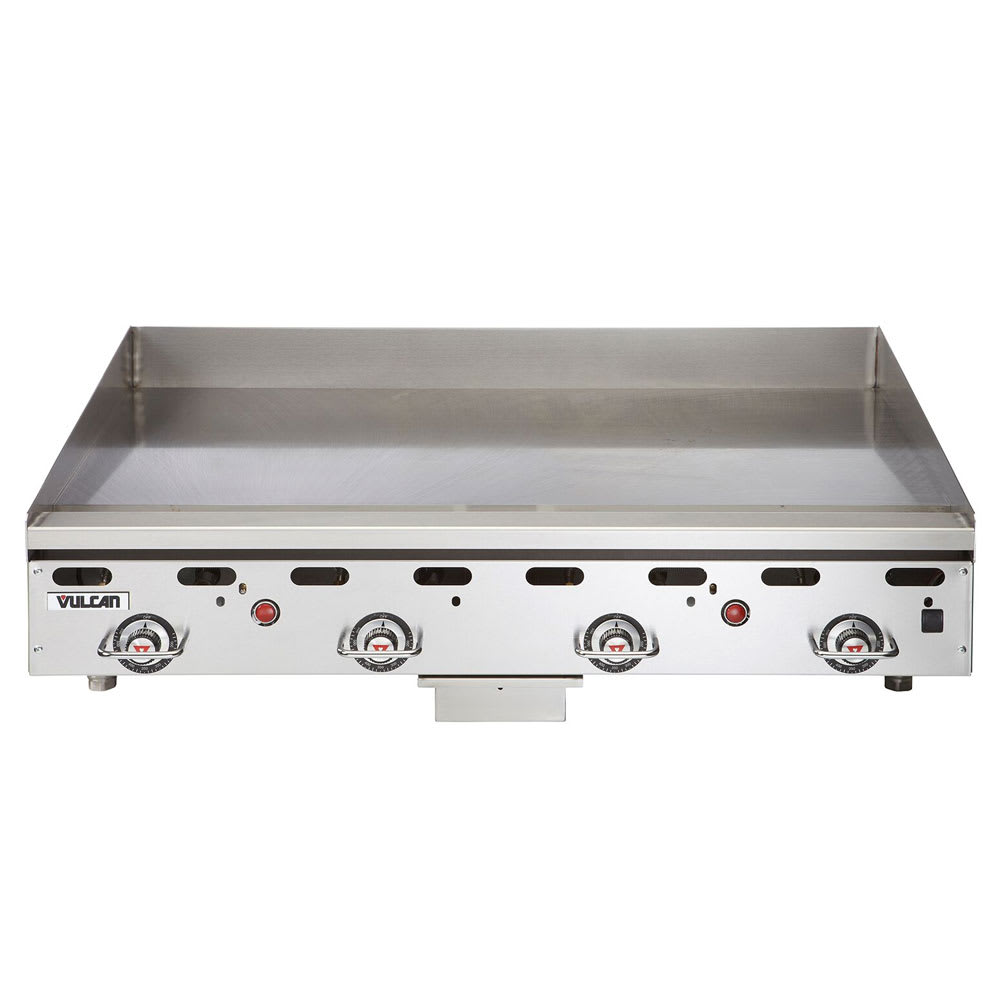

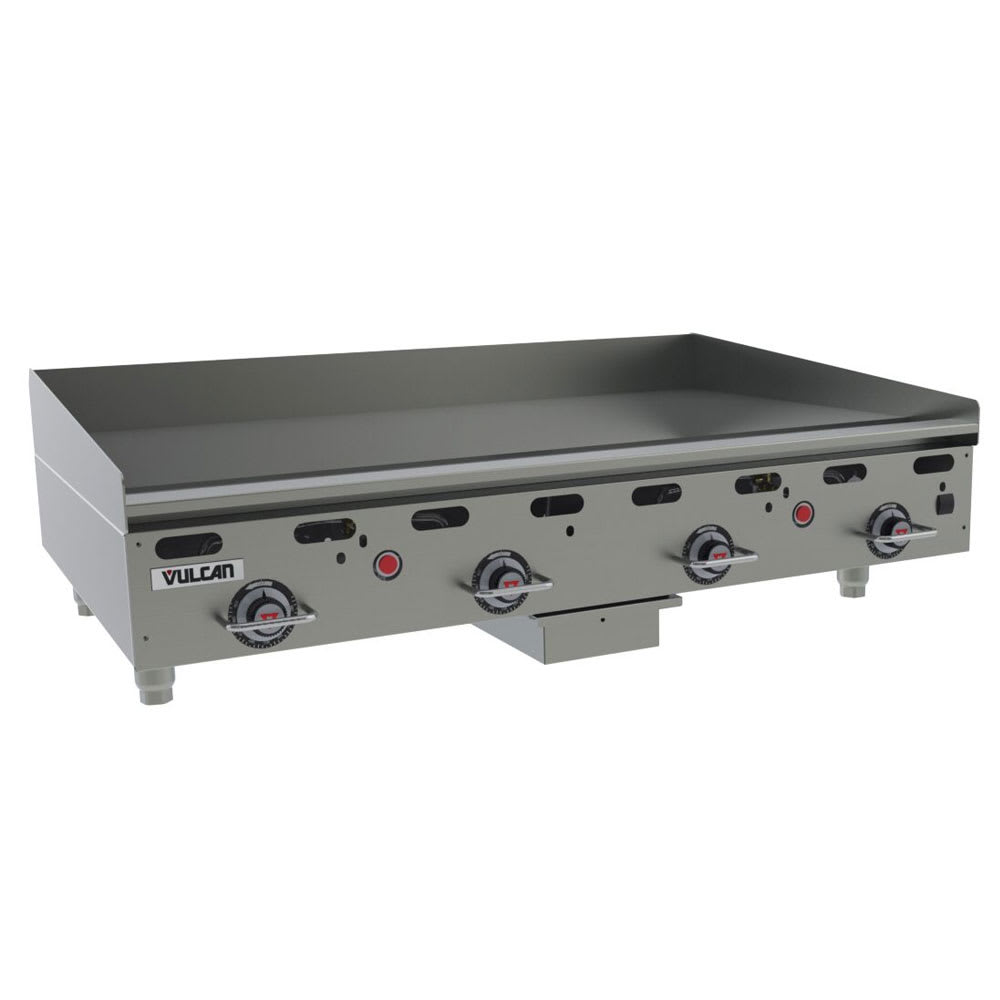

Vulcan MSA48-30 48" Gas Griddle - Thermostatic, 1" Steel Plate, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 207-MSA4830LP • MPN: MSA48-30 LP
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $7,215.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Vulcan MSA48-30 Description


Many of your breakfast, lunch, and dinner items can be cooked using Vulcan-Hart's MSA48-30 LP 48-inch heavy duty propane gas countertop griddle. This MSA Series model has a one-inch thick steel griddle plate made from polished 12-gauge metal and a 4-inch stainless steel back and tapered sides splashes control grease. It has a manual ignition with a stainless steel front, sides, and front-top ledge featuring a "cool bull nose" design. The heavy duty gas griddle also has a one-pilot safety valve for every two burners that shuts off the gas to the pilot and burners if pilot ever extinguishes.

Product Details:

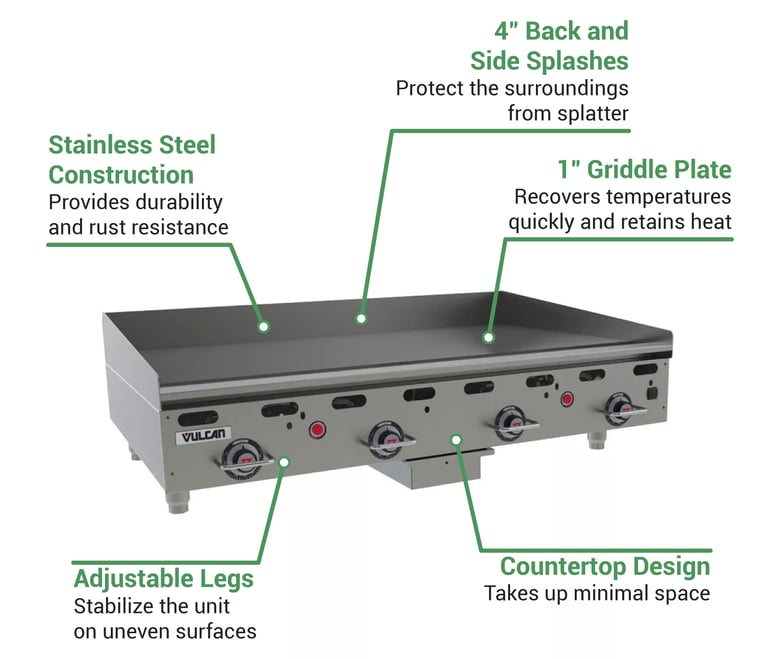

  • 1-in. thick steel griddle plate for quick temperature recovery and even heating
  • Stainless steel back and tapered side splashes help avoid messy work areas and promote worker safety
  • Manual ignition makes unit easy to operate
  • Includes stainless steel front, sides and front-top ledge with "cool bull nose" design for more durability
  • 1-pilot safety valve for every two burners shuts off gas to the pilot and burners if pilot extinguishes
  • Spatula-wide 3-1/2 in. grease gutter and chute are fully welded for simple cleaning and stopping migration of grease
  • 27,000-BTU U-shaped aluminized steel burner for every 12-in. of griddle width for distributing heat for even cooking
  • 1 snap action thermostat per burner for 200 to 550 degree temperature adjustment
  • 6-qt. stainless steel grease drawer holds loose grease and keeps area safer
  • Heavy-duty chromed thermostat knob guard is easy to use
  • Bottom heat shields for more protection
  • 3/4-in. gas connection and gas pressure regulator
  • 108,000 total BTUs per hour
  • Overall Dimensions: 48-in. W x 31-1/2 in. D x 15-1/4 in. H
  • CSA-Design, CSA-Gas, NSF Certified

Heavy Duty Griddle, countertop, LP gas, 48" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 108,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan MSA48-30 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Gas
Gas Type LP
BTU / Burner 27000
Overall Width (in) 48
Cooking Area Depth (in) 30
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 1 year limited warranty
Overall Depth (in) 31.50
Product Type Countertop Cooking Equipment
Product Griddle
Weight 525.00
Vulcan MSA48-30 Certifications
  • NSF
