Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

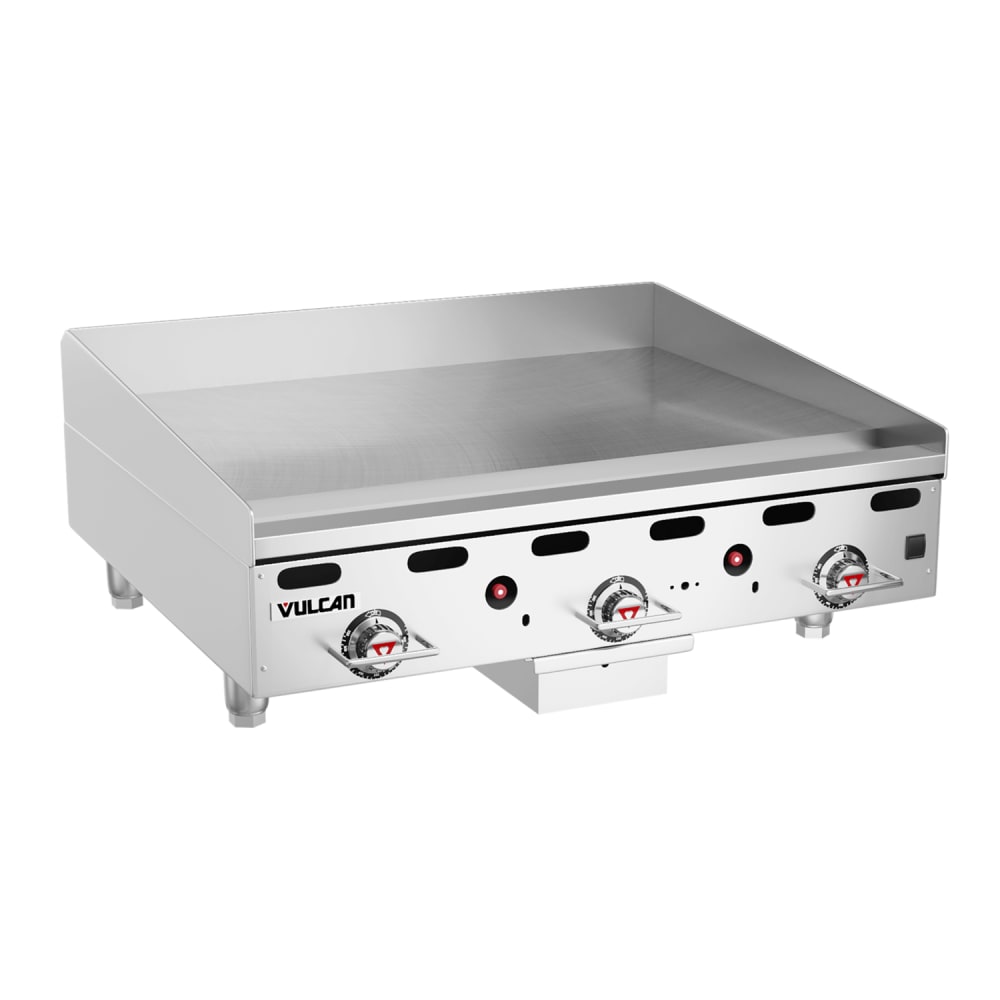

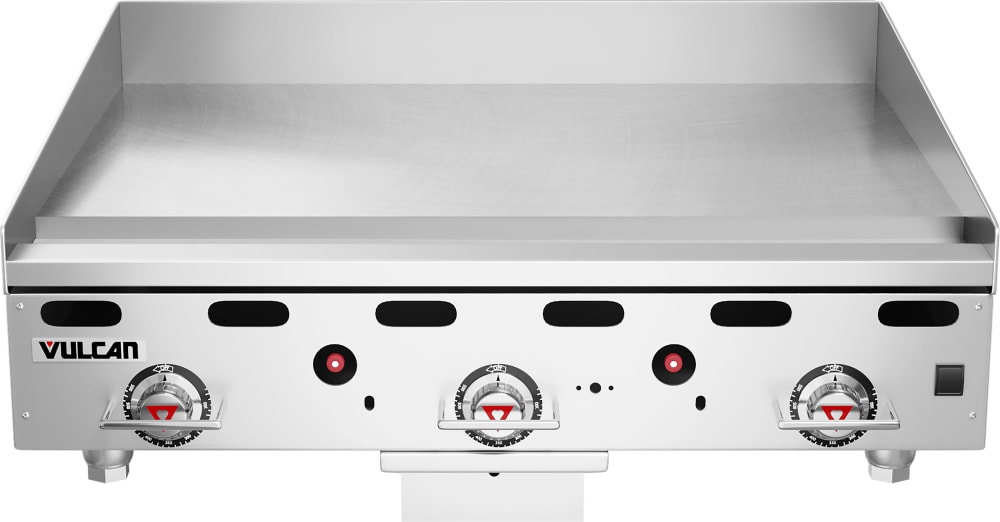

Vulcan MSA36-30 36" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $25,641.20
$12,179.57 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan MSA36-30 Description
For durability, the Vulcan MSA36-30 countertop griddle is made of stainless steel, helping it withstand dents and scratches through high-volume use. So it retains heat and provides uniform cooking, the griddle plate is made of 1-inch-thick polished steel. To cook different items at the same time, it has mechanical snap-action thermostats embedded every 12 inches, creating three cooking zones. This unit operates using manual ignition and has knobs on the front for temperature adjustment.
For cleaning underneath, the Vulcan MSA36-30 gas griddle is positioned on 4-inch adjustable legs. It has a 4-inch backsplash and tapered side splashes to keep its surroundings clean and has a front grease trough that holds 6 quarts of oil and food particles. To prevent unwanted temperature changes, the knobs have guards to protect them, and to prohibit overheating, this unit features millivolt pilot safety valves.
Product Details
- Countertop design
- Low profile
- Manual ignition
- Front knobs with knob guards
- 1-in.-thick polished griddle plate made of steel
- Stay-cool bull-nose design increases comfort during use
- 3 U-shaped aluminized steel burners
- 3 cooking zones with mechanical snap-action thermostats embedded every 12 in.
- Temperature range: 200-550 degrees F
- Protected with millivolt pilot safety valves
- Fully welded aluminized and stainless steel chassis frame
- Resilient stainless steel construction
- 6-qt. front grease trough captures crumbs
- 4-in. backsplash and tapered sides
- Sits on 4-in. adjustable legs
- 81,000 BTU

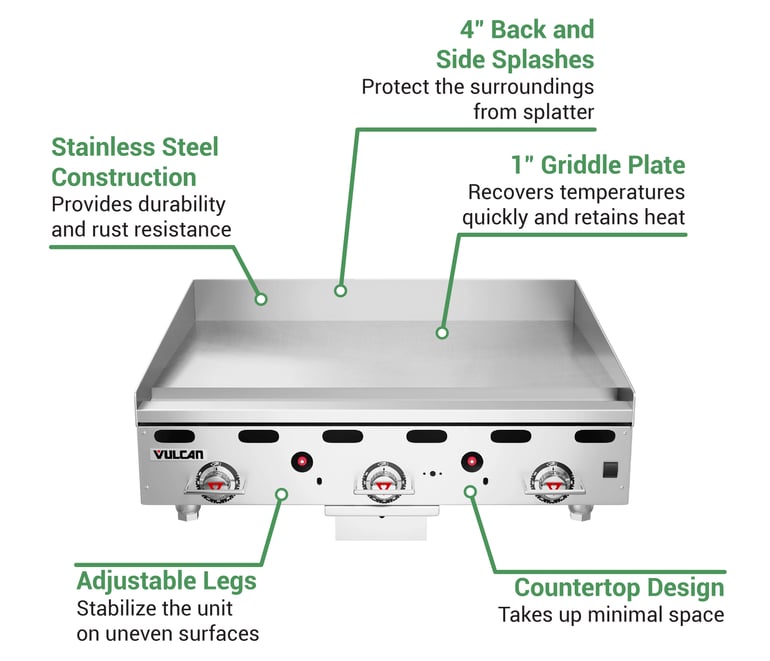

Product Features
Dimensions & Utilities
- Cooking surface: 36 in. W x 30 in. D
- Overall: 36 in. W x 371/2 in. D x 151/4 in. H
- Uses natural gas
- 3⁄4-in. rear gas connection
*Free shipping on Vulcan MSA36-30 within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, natural gas, 36" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 81,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan MSA36-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 36 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 36 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | MSA Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 395.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
Equivalent Items

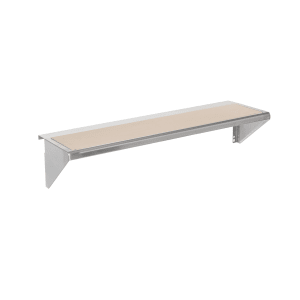

Vulcan MSA36-30 Accessories
