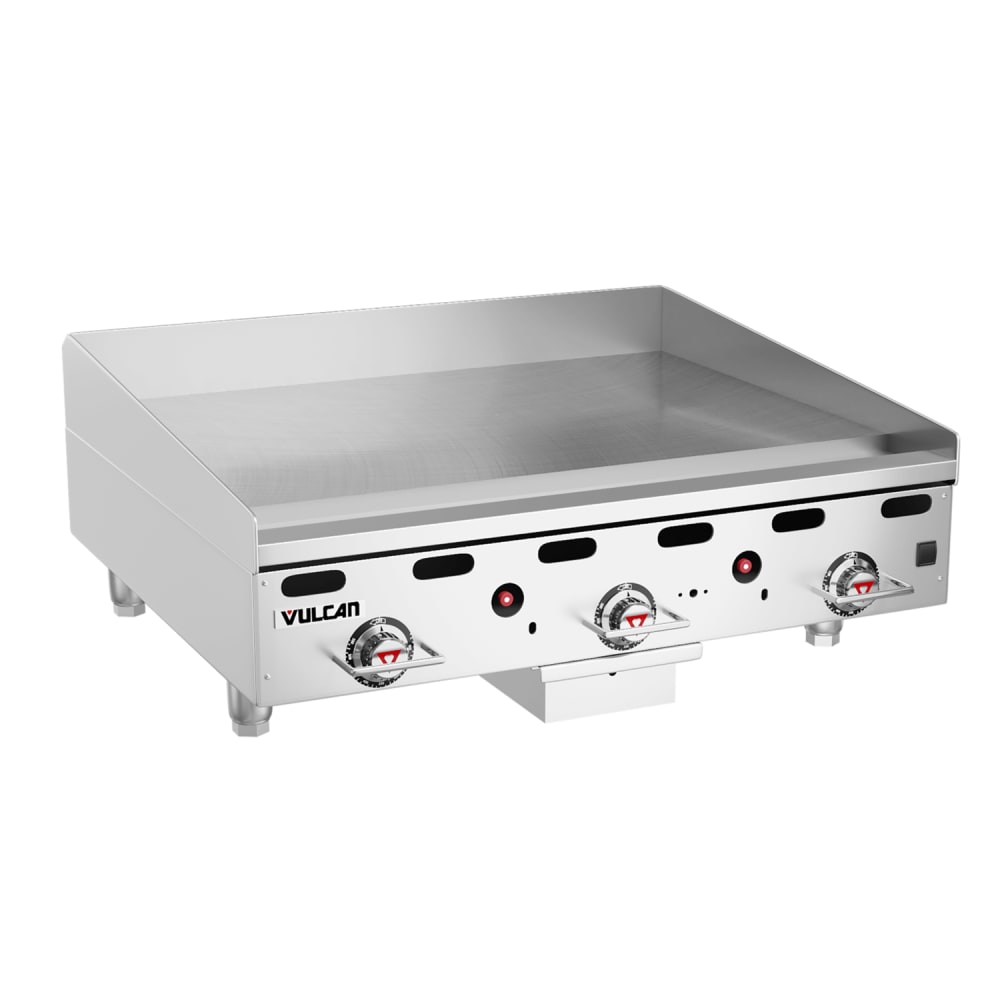

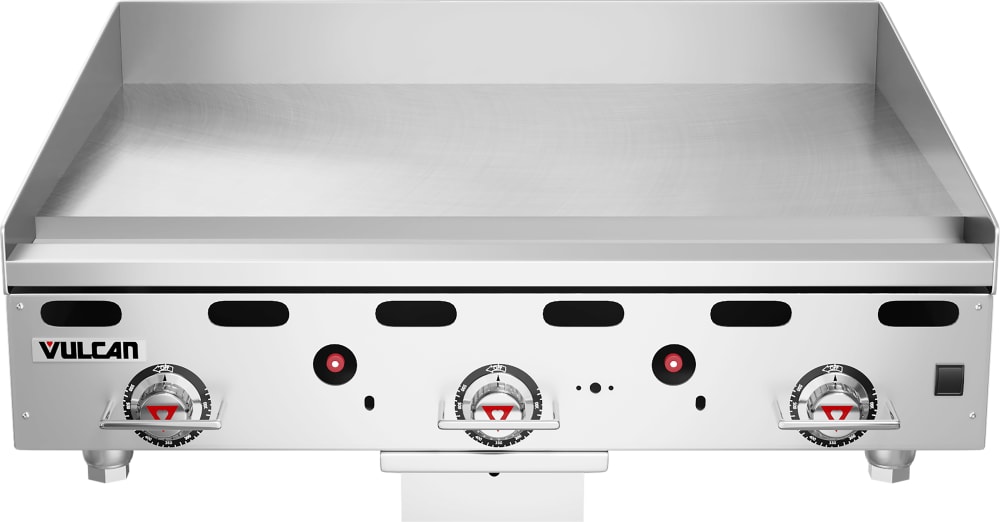

Vulcan MSA36-30 36" Gas Griddle - Thermostatic, 1" Steel Plate, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 207-MSA3630LP • MPN: MSA36-30 LP
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $5,986.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Vulcan MSA36-30 Description


Vulcan-Hart's MSA36-30 LP 36-inch heavy duty propane gas countertop griddle would be a great solution to serving up items such as pancakes, eggs, breakfast meats, hash browns, burgers, hot dogs, and other products. This MSA Series model has manual ignition with a stainless steel front, sides and front-top ledge featuring a "cool bull nose" design. It includes a one-inch thick steel griddle plate made from polished 12-gauge metal, and has a 4-inch stainless steel back and tapered sides splashes to reduce the risk of messes and promote a safer work area. A spatula-wide 3-1/2 in. grease gutter and chute on this heavy duty gas griddle is fully welded for simpler cleaning and stopping the migration of grease.

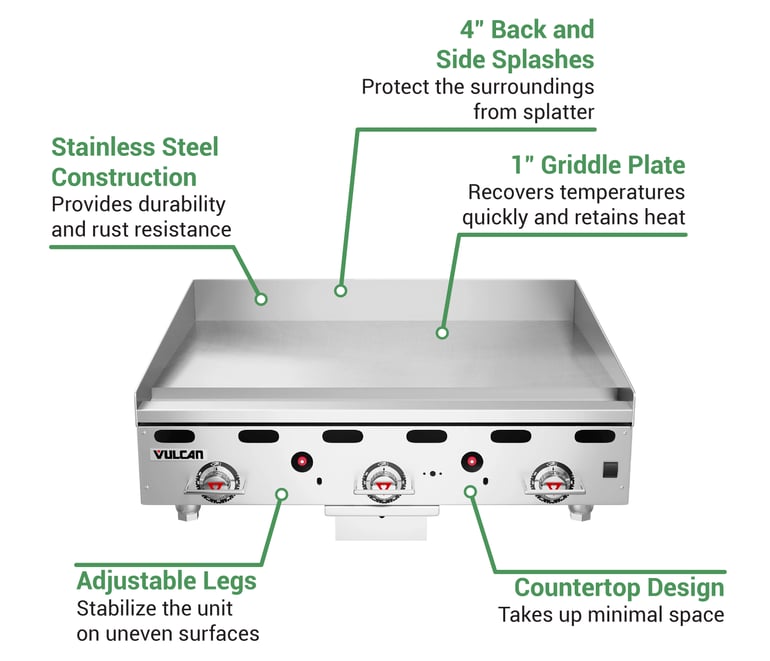

Product Details:

  • Manual ignition for easy operation
  • Stainless steel front, sides and front-top ledge with "cool bull nose" design
  • 1-in. thick steel griddle plate and stainless steel back and tapered side splashes help prevent messes and promote better safety
  • Spatula-wide 3-1/2 in. grease gutter and chute fully welded for better cleaning and stopping migrating grease
  • 27,000-BTU U-shaped aluminized steel burner for every 12-in. of griddle width for distributes heat for improved cooking performance
  • 1 snap action thermostat per burner adjusts temperature 200 to 550 degrees
  • 6-qt. stainless steel grease drawer holds griddle grease and reduces chance of accidents
  • Heavy-duty chromed thermostat knob guard is simple to use
  • 1-pilot safety valve for every two burners shuts off gas to the pilot and burners if pilot extinguishes
  • Bottom heat shields for extra protection
  • 3/4-in. gas connection and gas pressure regulator
  • 81,000 total BTUs per hour
  • Overall Dimensions: 36-in. W x 31-1/2 in. D x 15-1/4 in. H
  • CSA-Design, CSA-Gas, NSF Certified

Heavy Duty Griddle, countertop, LP gas, 36" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 81,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan MSA36-30 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Gas
Gas Type LP
BTU / Burner 27000
Overall Width (in) 36
Cooking Area Depth (in) 30
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 1 year limited warranty
Overall Depth (in) 31.50
Product Type Countertop Cooking Equipment
Product Griddle
Weight 395.00
Vulcan MSA36-30 Certifications
  • NSF
