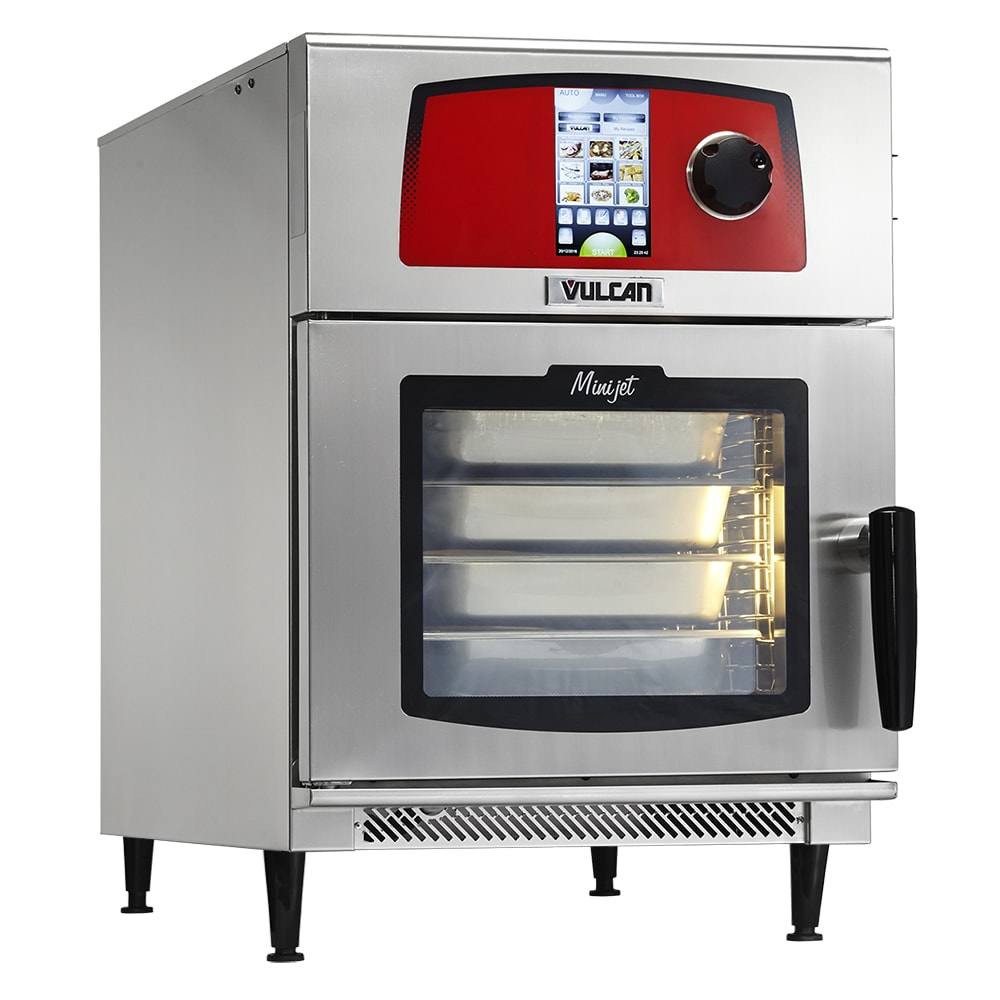

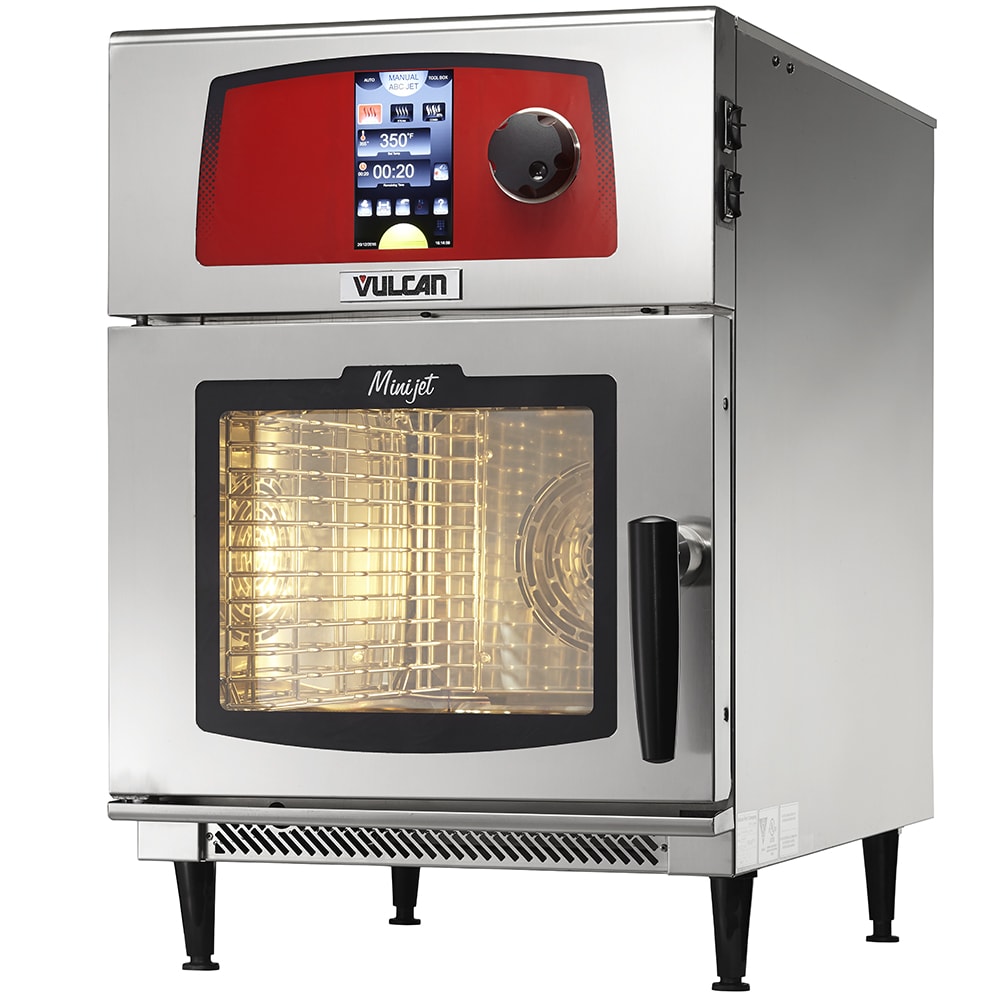

Vulcan MINI-JET Full Size Combi-Oven - Boilerless, 208v/3ph

The Vulcan MINIJET electric boilerless combi oven is a multifunctional unit that can perform various cooking and reheating tasks. It can combine two separate convection heat transfer methods into one piece of equipment, offering users the choice of three different cooking modes. This versatility suits a wide range of bakery and food products, ideal for institutions as well as commercial operations, where production kitchen ovens are shared.

This combi oven’s small size allows it to fit into most foodservice and bakery operations. The unit mirrors a convection oven in size, pan capacity, and style. Its combination oven-steamer can be used to reheat, stew, thaw, simmer, poach, and steam foods. Pressureless steam is directed into its cavity and rapidly circulated by a powerful blower, which reduces cooking time and speeds heat transfer.

Bakeries can use the Vulcan MINIJET combi oven to create delicate deserts. The unit also has a hot air mode wherein hot air is circulated on all sides, ensuring fast and thorough baking, grilling, and roasting, intended for intensive browning. Controlling the unit is simple with the control panel, which has a knob and touchscreen to increase functionality. Operators can set the unit to run in ABC mode—a simple display that lets users set the temperature and time, with automatic humidity settings based on the temperature. In JET mode, highly skilled chefs can enjoy full control over the settings.

Product Details

• Boilerless unit does not have to be connected to an external boiler

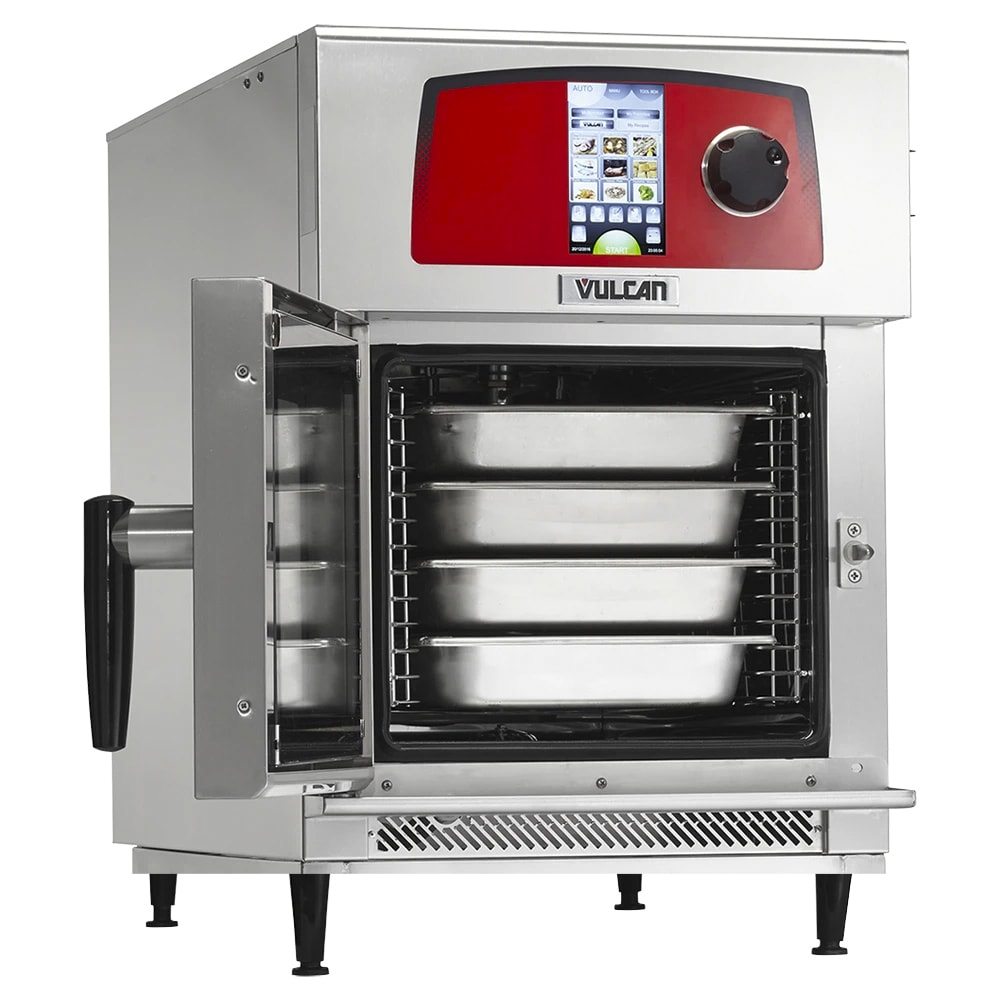

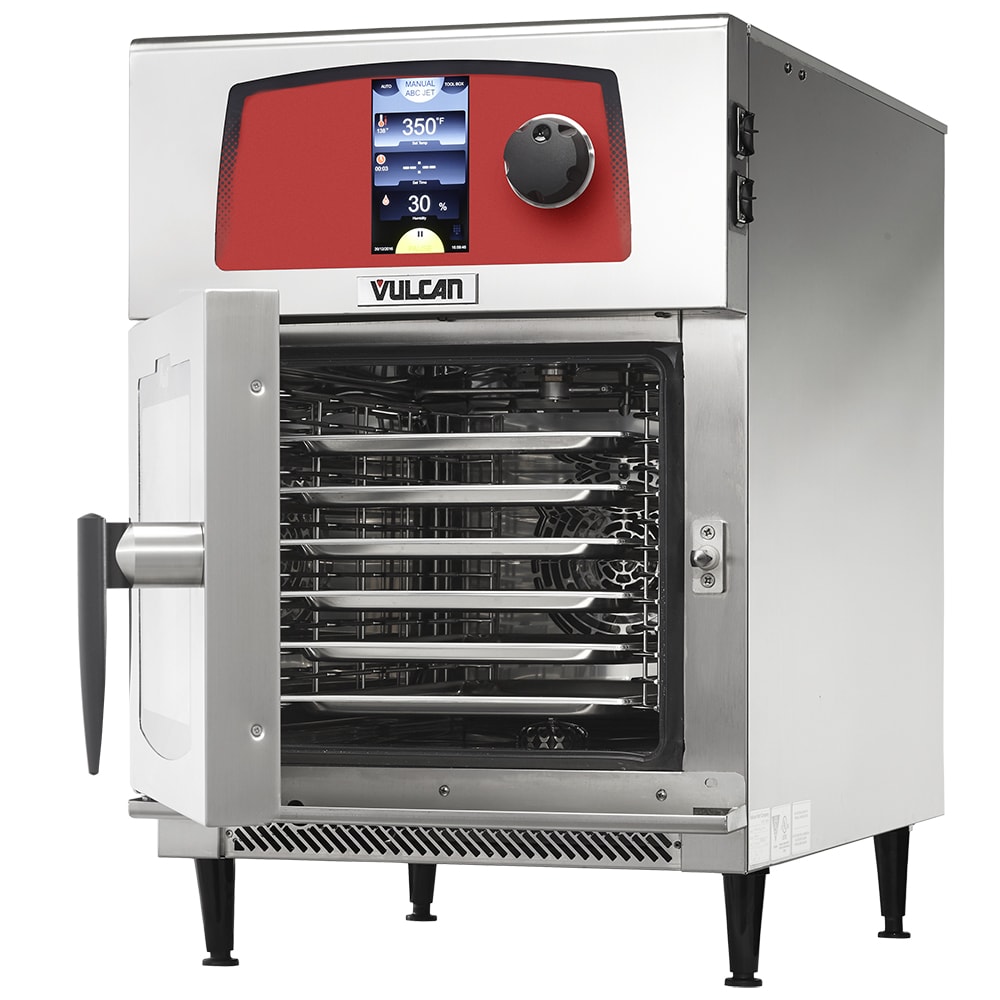

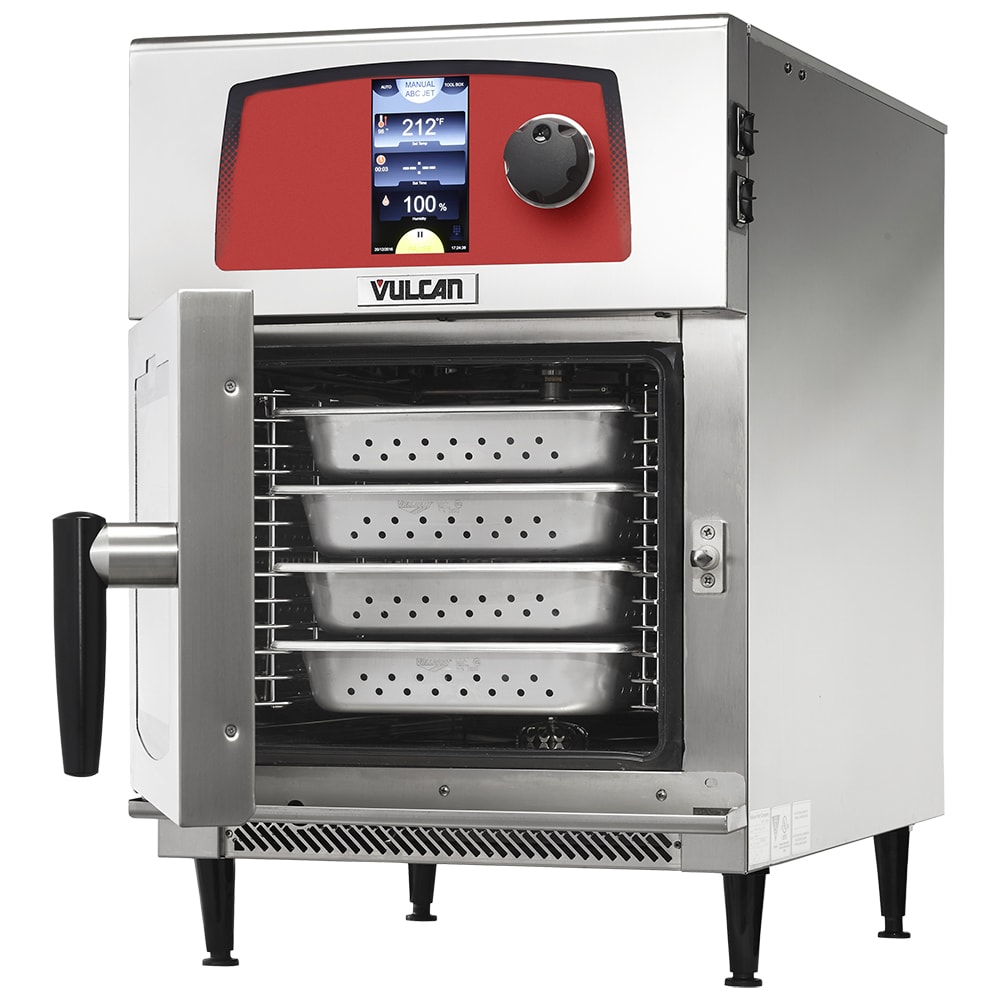

• Holds (4) 12-in. x 20-in. x 2¹/₂-in. or (6) 12-in. x 20-in. x 1-in. pans
• Capable of baking, steaming, roasting, grilling, and more
• Toolbox interface for manual and auto cleaning wash systems

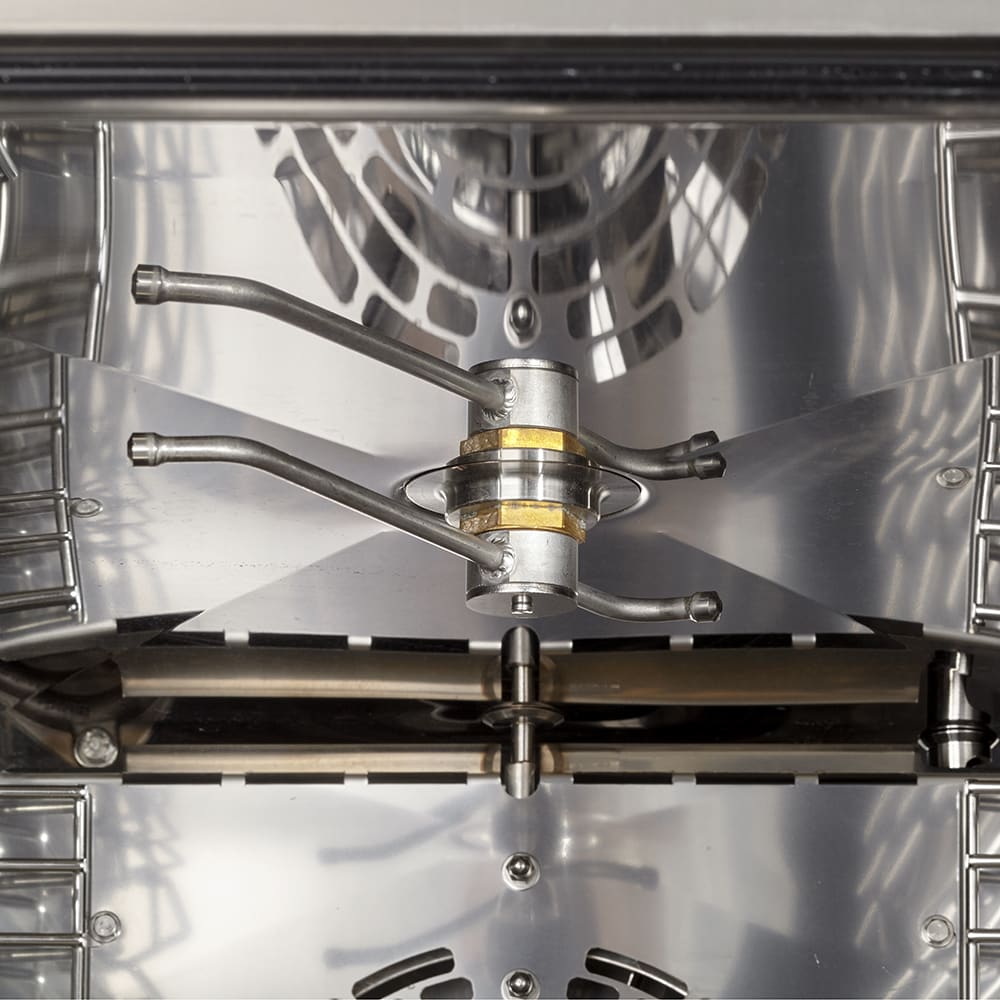

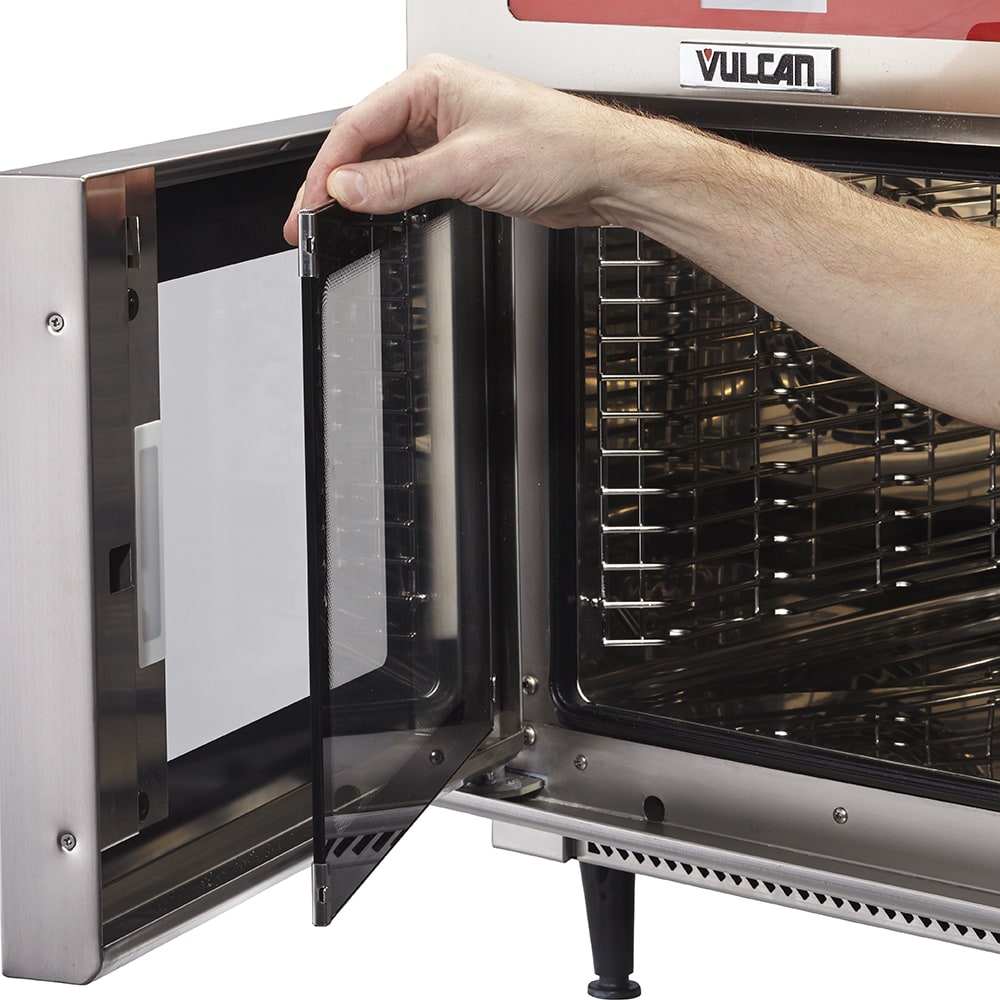

• Auto-reversing fan and LED light strip with flashing identification in the cool-touch door

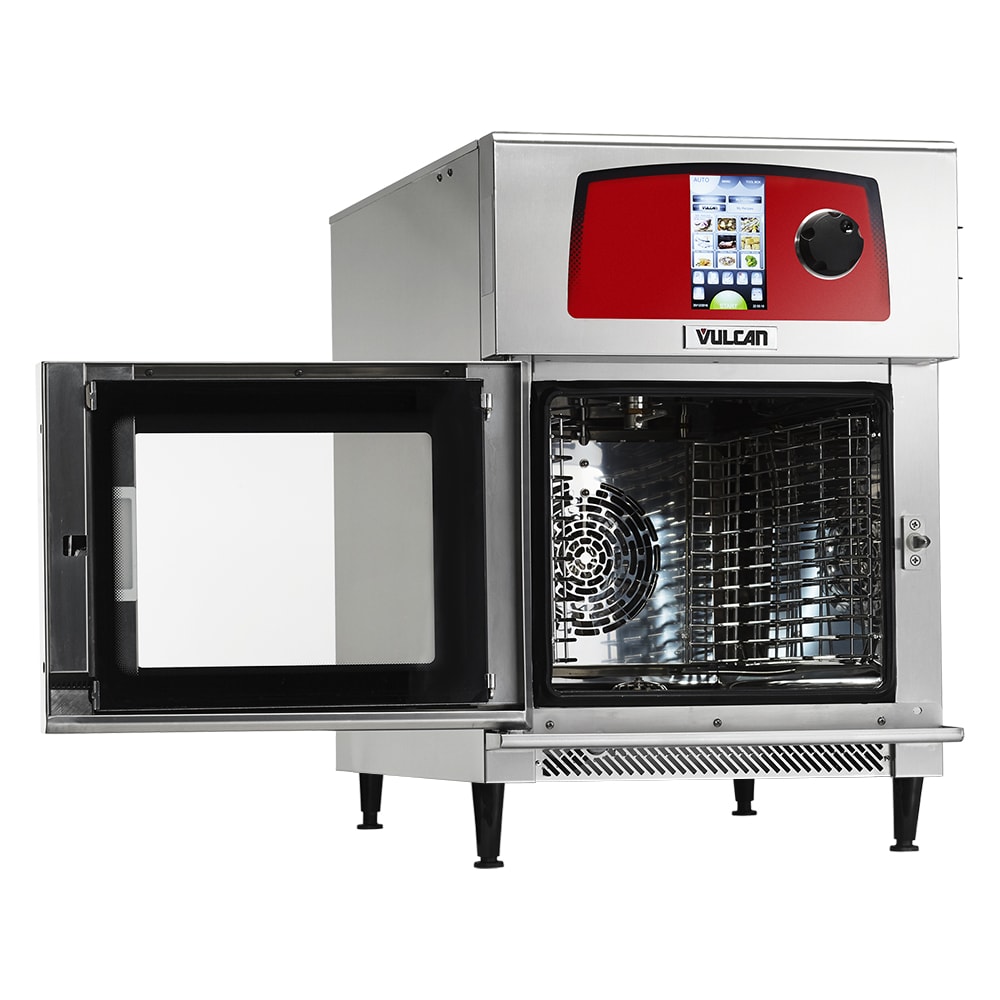

• Left-hinged door

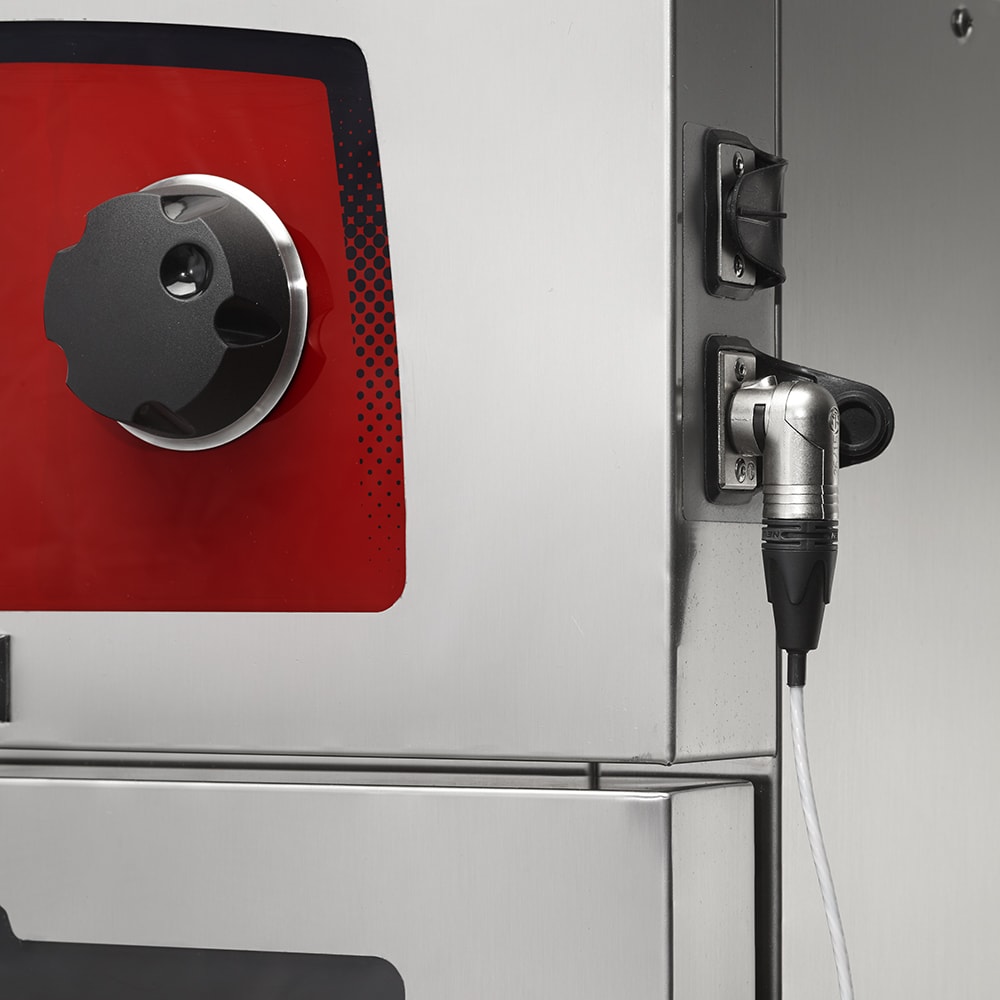

• USB and food probe connection port

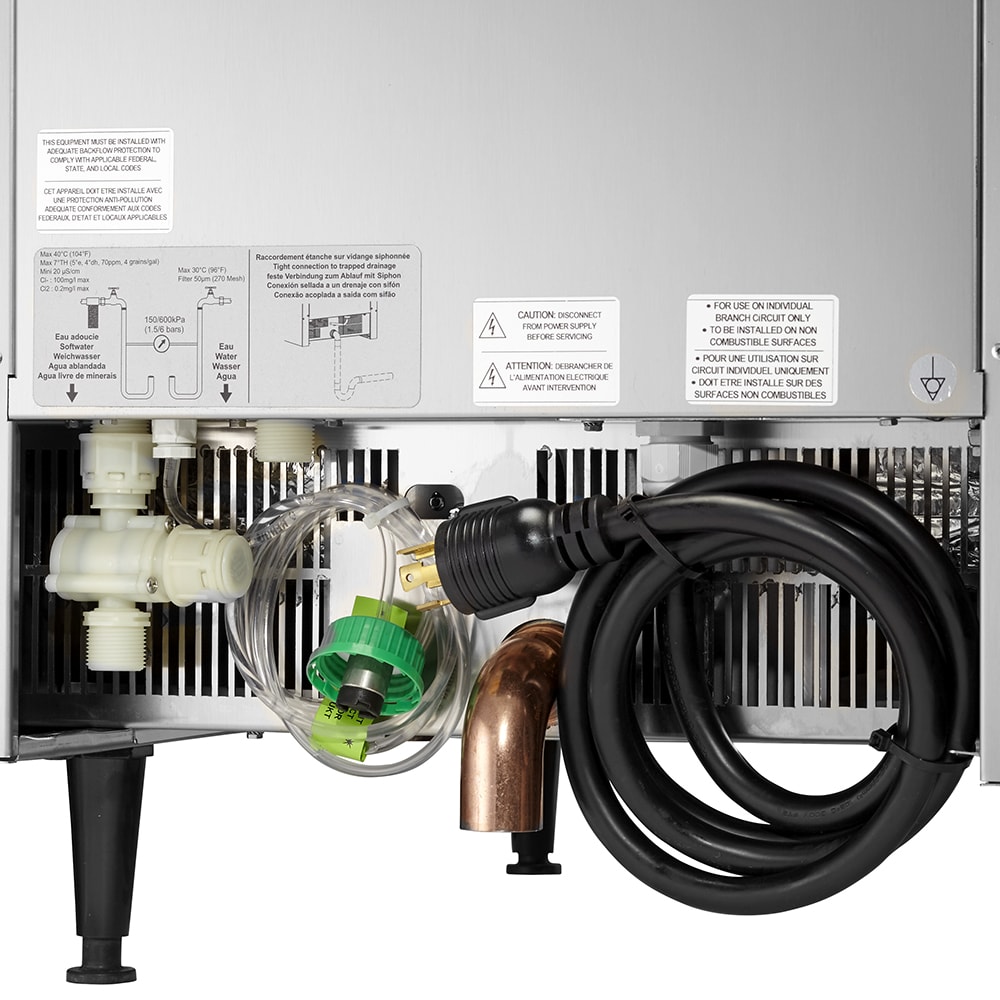

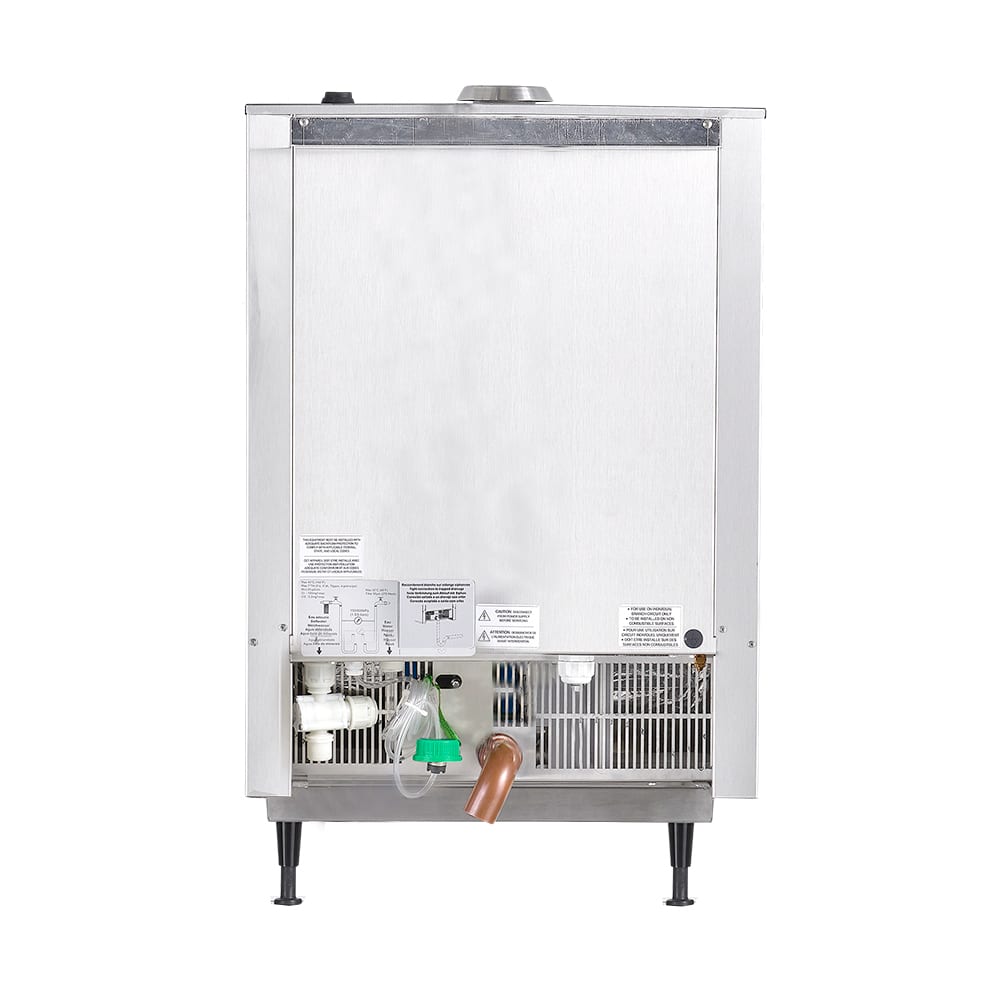

• Comes with 4-in. legs, detergent hose, and drain water tempering
• Cooking capability optimized through minimal water and energy consumption

Control System

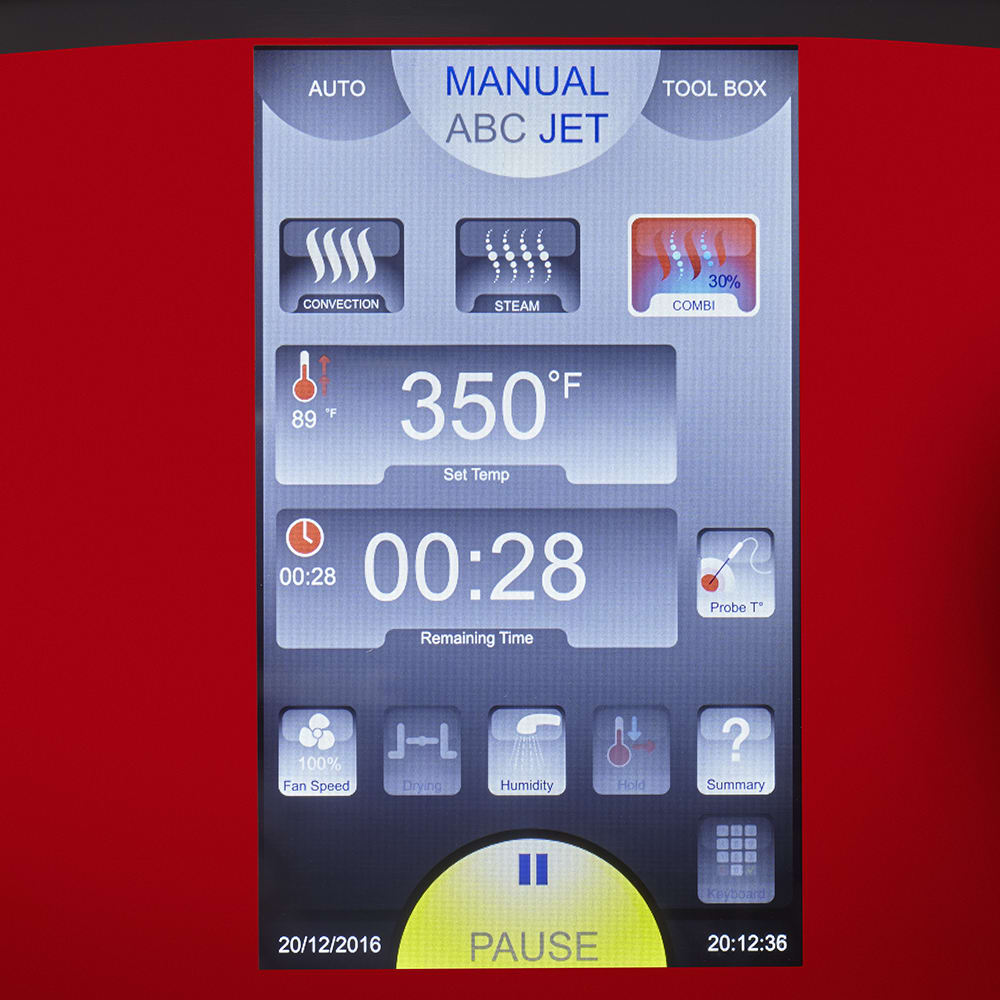

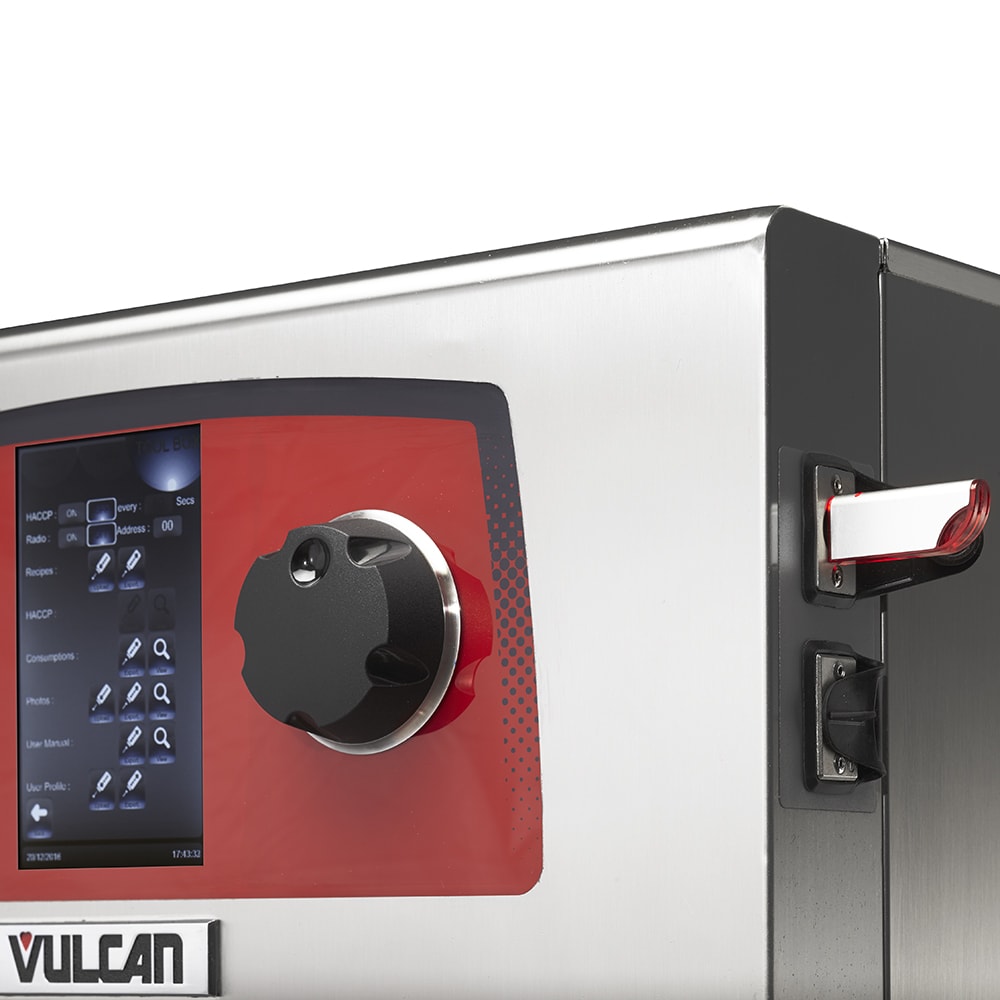

• Push knob and LCD touchscreen display
• User interface includes manual displays for ABC, JET, or ECO operator functions
• ABC function automatically adjusts humidity after setting temperature
• JET function operates in convection, steam, and combination settings
• ECO function maximizes energy savings during unit operation

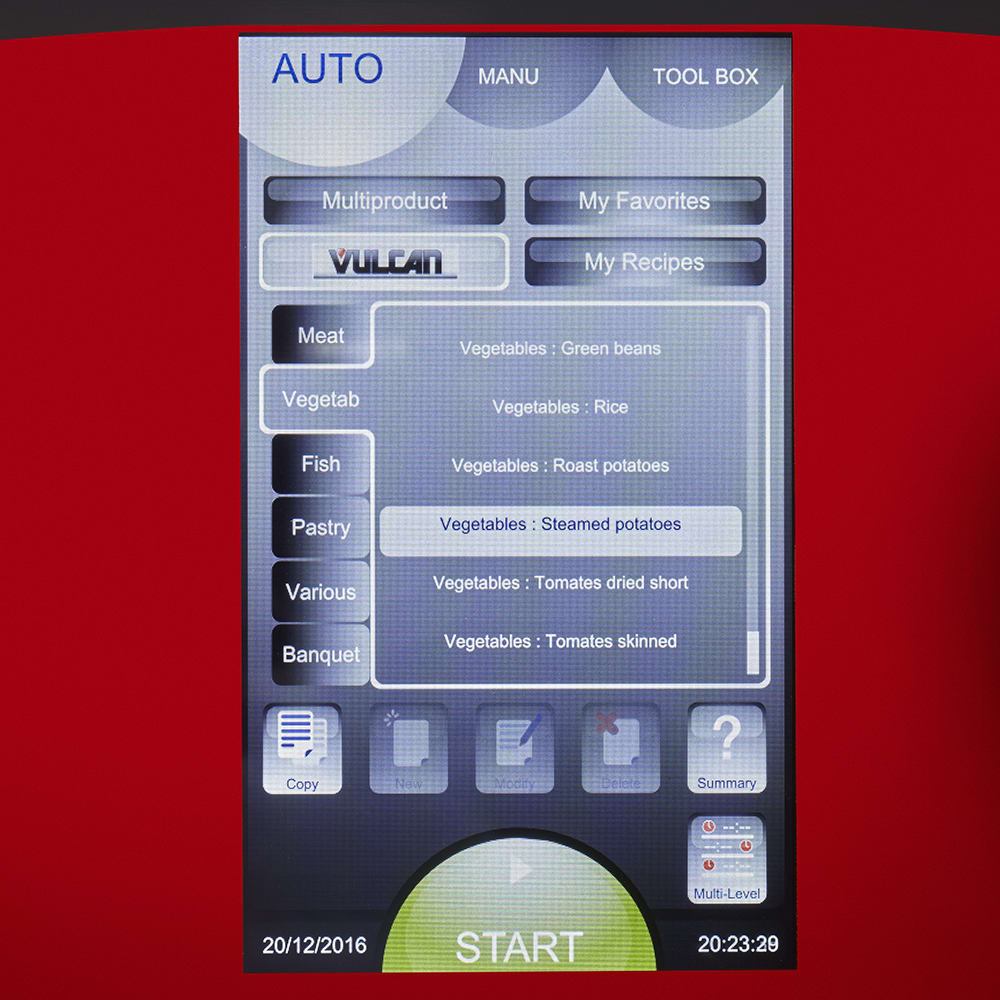

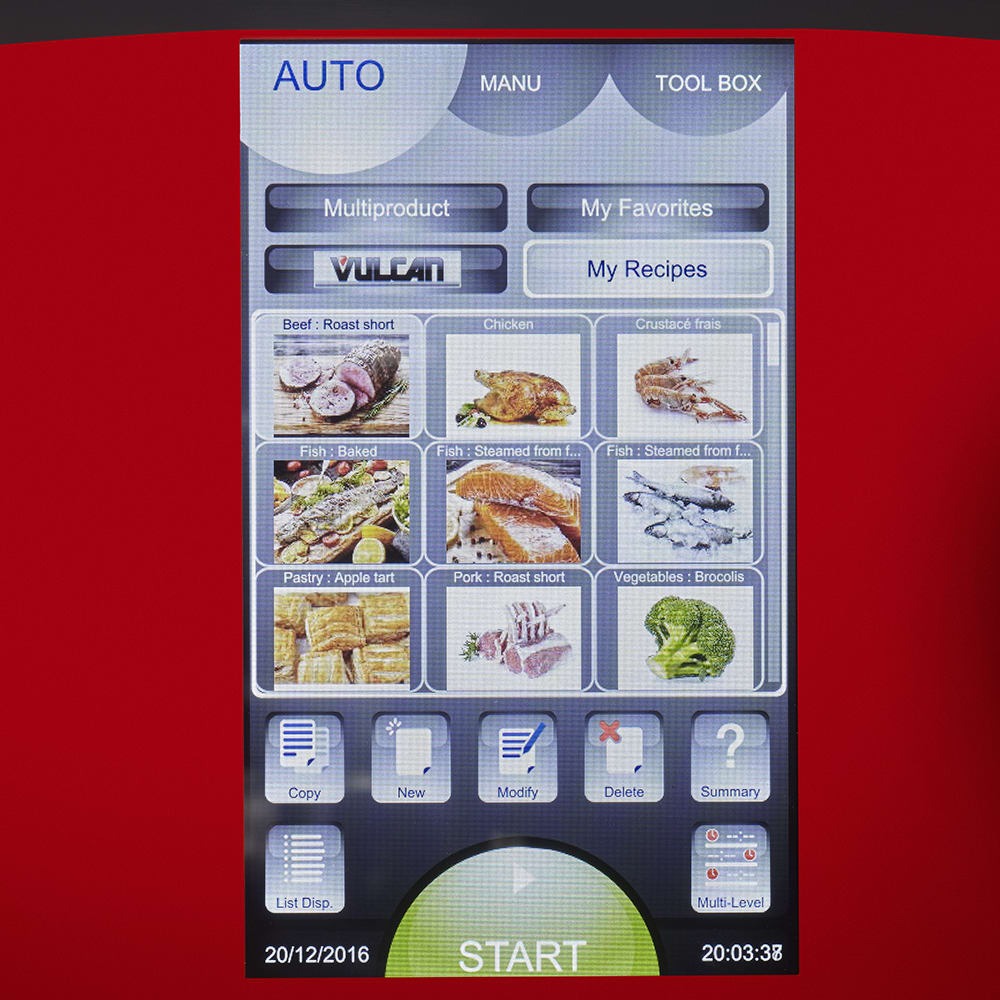

• Automatic interface has more than 80 preloaded and programmable recipes with picture or text display

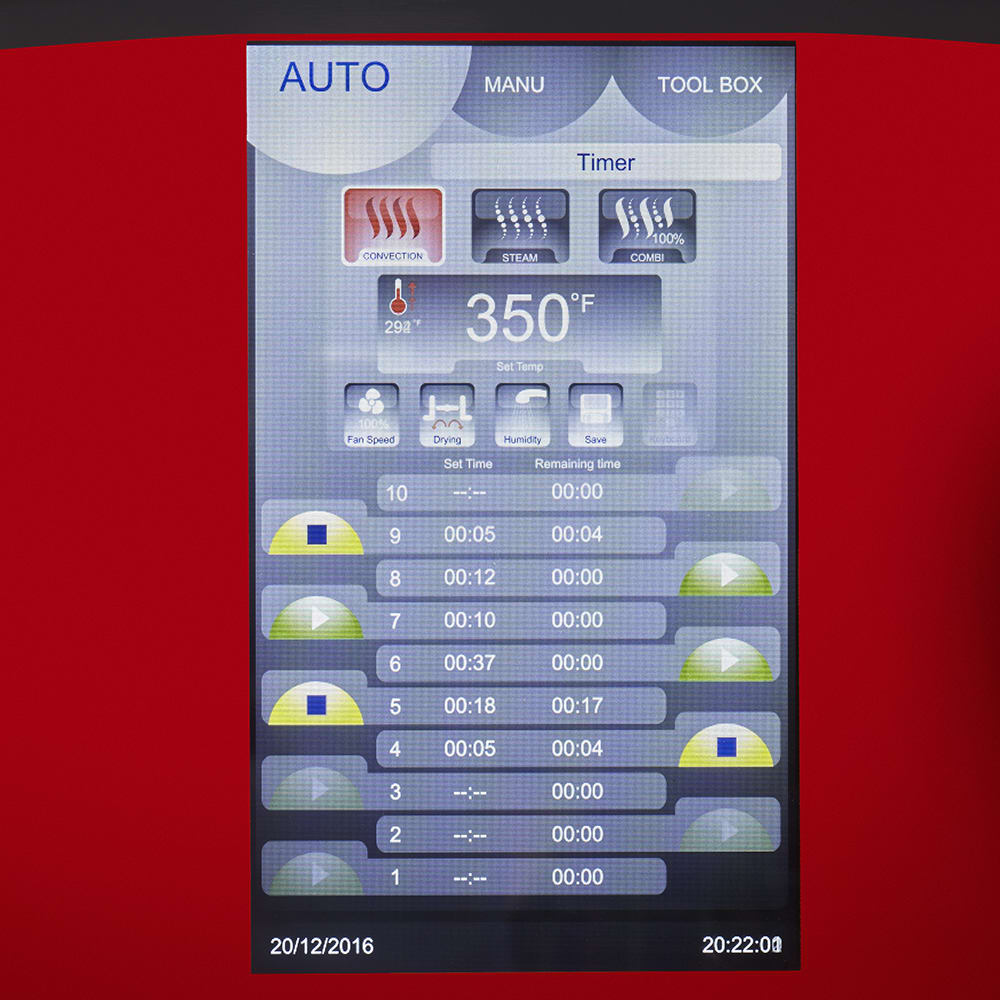

• Additional automatic options with My Recipes, My Favorites, Multi-Level Shelf Timers, and Multi-Product interface functions
• Visual and interactive service diagnostics
• Customized parameter settings and data collection with operator instructions
• Video training available directly from LCD display

Dimensions & Utilities

• 21²/₅ in. W x 37 in. D x 32⁹/₁₆ in. H
• 14.9 A, 5.2 kW
• 208 V/60 Hz/3 ph, 6-ft. cord with a NEMA L15-30P plug

*Free shipping on Vulcan MINI-JET within the 48 contiguous states.

From The Manufacturer

(V2MF061E-86) Mini-Jet Combi Oven Steamer V2, electric, boilerless, left-hinged door, (4) 12"x 20"x 2.5", (6) 13”x18”x1”, or(6) 12"x 20"x 1" pan capacity, twin control touch & knob, LCD display, ABC, JET & AUTO controls interface, customizable recipes & factory pre-programed, automatic cleaning, auto-reversing fan, LED light strip, cool touch door, USB & food probe ports, drain water tempering, 4" legs, ventless capable, 208v/60/3-ph, cord, NEMA L15-30P, NSF, cULus (Field convertible to 208v/60/1-ph, 240v/60/1-ph or 240v/60/3-ph)

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan MINI-JET Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
