Vulcan K60ELT 60 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 240v/3ph

The Vulcan K60ELT floor model steam kettle has a working capacity of 60 gallons, so it can cook a large amount of food at once. Because of the jacket's two-thirds design, steam cooks food on the sides, heating it more evenly than a stove. Staff members can adjust the temperature with the controls, ensuring food cooks to the right level, and when cooking cycles are done, operators can use the 90-degree manual tilt to pour contents into separate containers. Product efficiently moves out of the rounded bottom to reduce waste. For user safety, the kettle locks in place as it tilts, minimizing the chance of sloshing contents or splashing users.

For cleanability and durability, the Vulcan K60ELT steam kettle is made of stainless steel. Its rounded bottom is convenient to wipe out, while its controls are in a protective, side-mounted enclosure. When the pressure gets too high, a relief valve lowers the intensity, and when the water level in the jacket gets too low, the unit shuts off to prevent permanent damage. A low-water light tells staff when the water needs to be refilled, and because this model does not require a direct water hookup, staff members must refill the water manually.

Product Details

• 60-gal. working capacity
• Two-thirds jacket does not need a water connection
• Rounded bottom eliminates food-trapping crevices
• Embossed markings show measurements in liters and gallons
• 316 and 304 series stainless steel construction is very rust resistant
• Rim bar and welding reinforces the structure
• 90-degree manual tilt for pouring out contents
• Self-locking tilt mechanism reduces the risk of product sloshing
• Stable tri-base has 3 stainless steel legs with flanged feet

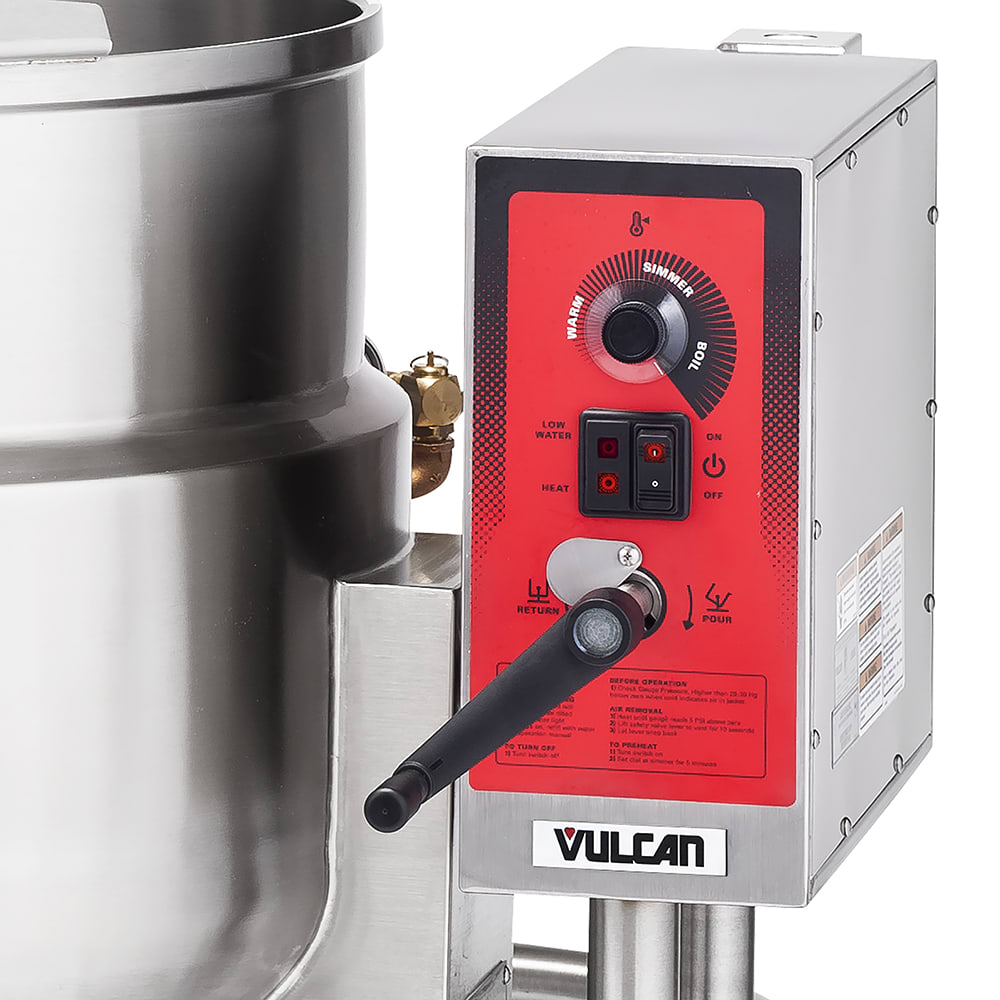

• Stainless steel enclosure protects controls
• Power switch and power-on light
• Solid-state temperature control
• Low-water light
• 50-PSI rating provides hot cooking temperatures
• Low-water shut-off prevents overheating
• Vacuum/pressure gauge and relief valve ensure pressure stays at the correct level
• Faucet bracket for adding water

Product Features

Dimensions & Utilities

• 47.5 in. W x 49.1 in. D x 43.1 in. H (76.6-in. H with cover fully open)
• 43.3 A, 18 kW
• 240 V/60 Hz/3 ph

From The Manufacturer

Tilting Kettle, Electric, 60-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, cULus, UL EPH, ANSI/NSF 4, ASME

*Not as Shown - Model K40EL Shown

Vulcan K60ELT Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Base	Tri Leg
Capacity (gallons)	60
Design	2/3 Jacket
Heat	Electric
Hertz	60
Type	Floor Model
Voltage	240
Warranty	1-year Limited Parts & Labor
Series	KELT Series
Phase	3
No. of Kettles	1
Tilt Mechanism	Crank
Weight	417.00
