Vulcan K20ELT 20 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 240v/3ph
Typically ships in 6 - 8 weeks
Free Shipping Item
Retail Price: $74,642.88
$30,727.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

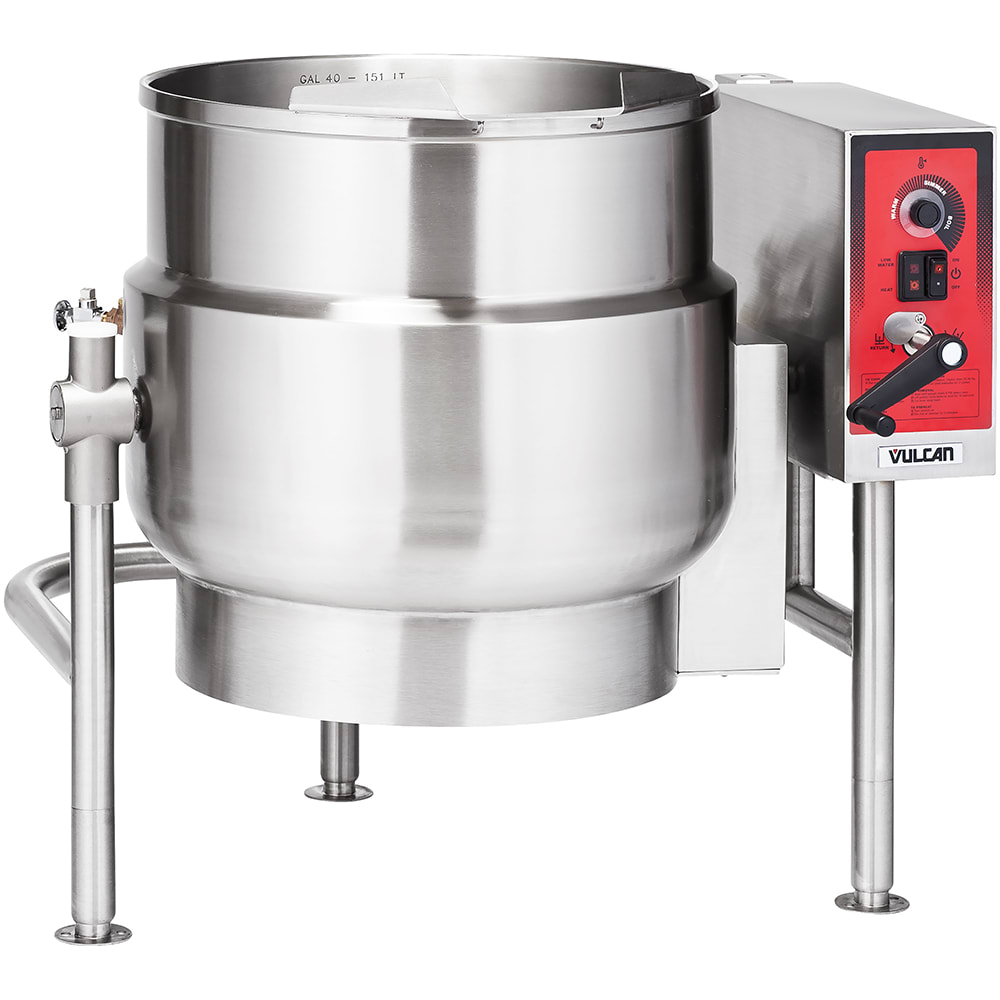

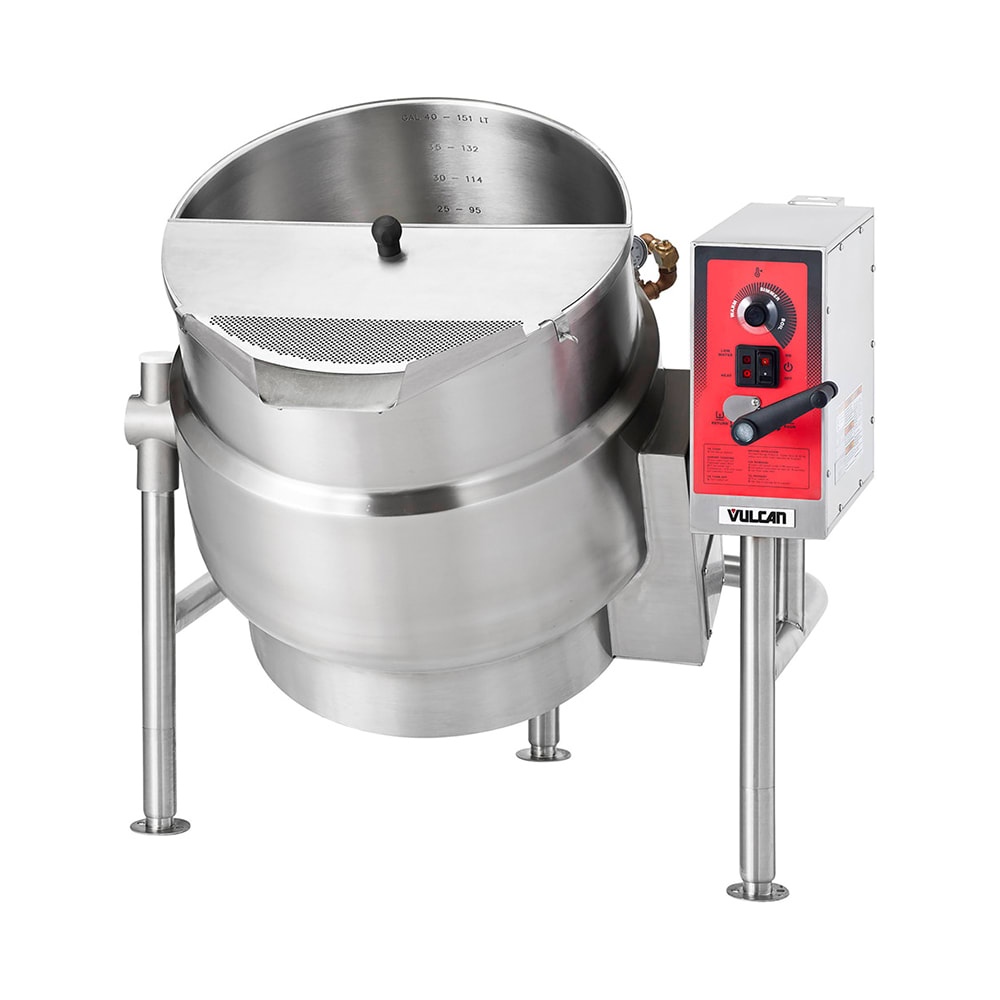

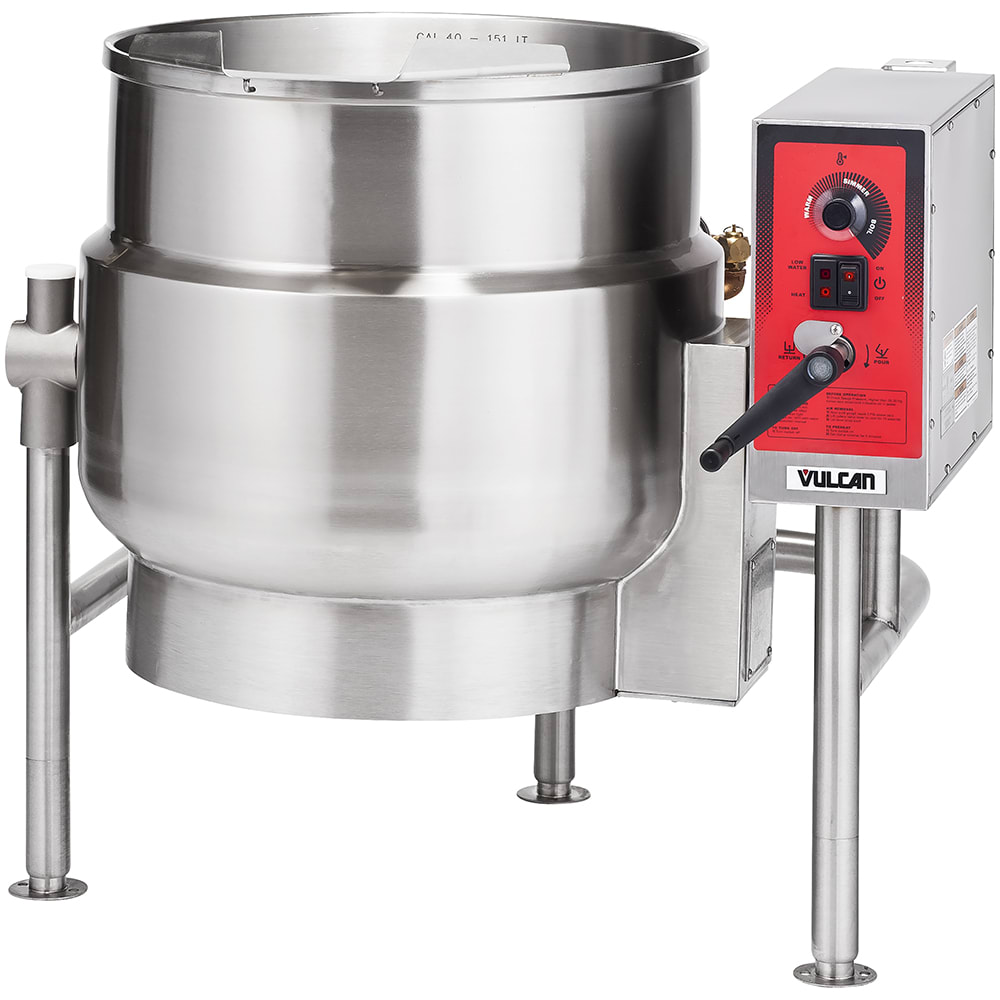

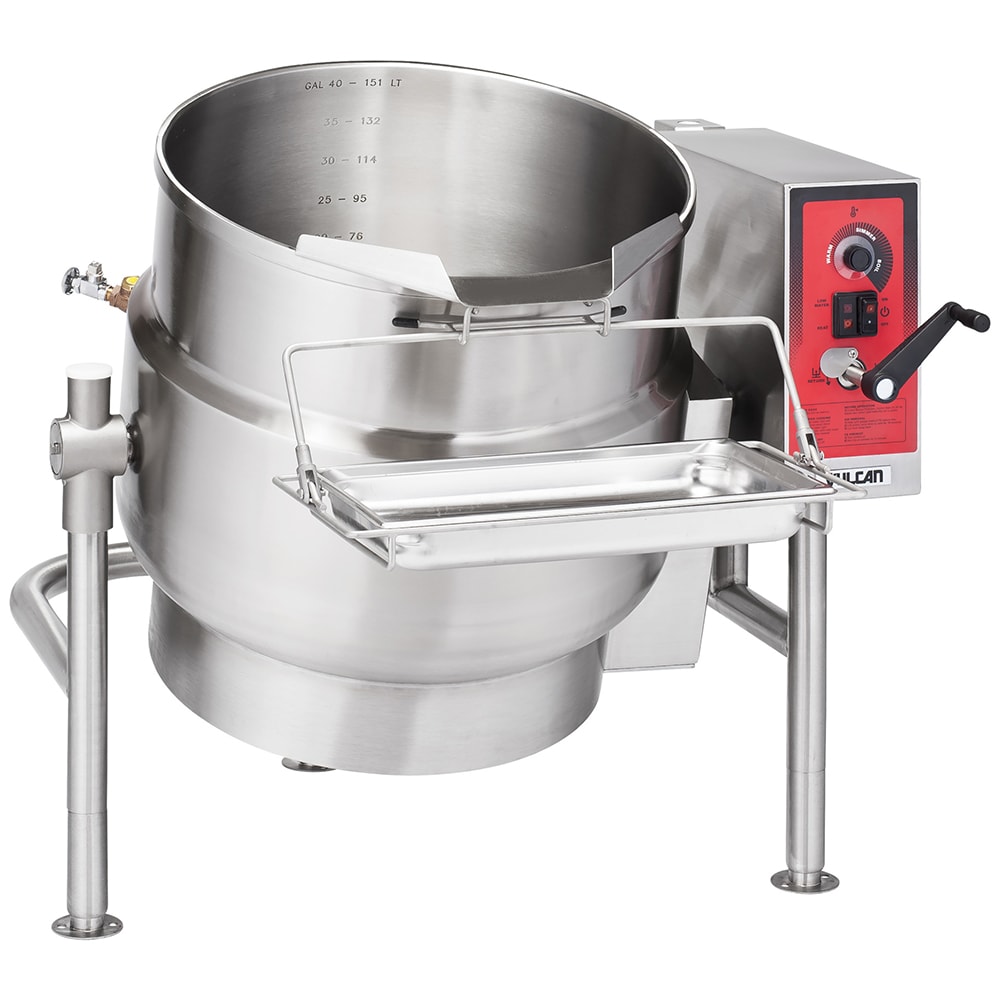

Vulcan K20ELT Description
Supported by a tri-leg base, the Vulcan K20ELT electric tilting kettle remains stable during operation while facilitating easy access for cleaning after use. Designed for high-volume food preparation, its 20-gallon true working capacity and 2⁄3-jacketed construction provide even steam distribution. A spring-assisted, hinged stainless steel cover with a condensate ring and a drop-down lift handle helps retain heat and moisture, while the manual tilt mechanism enables smooth pouring.

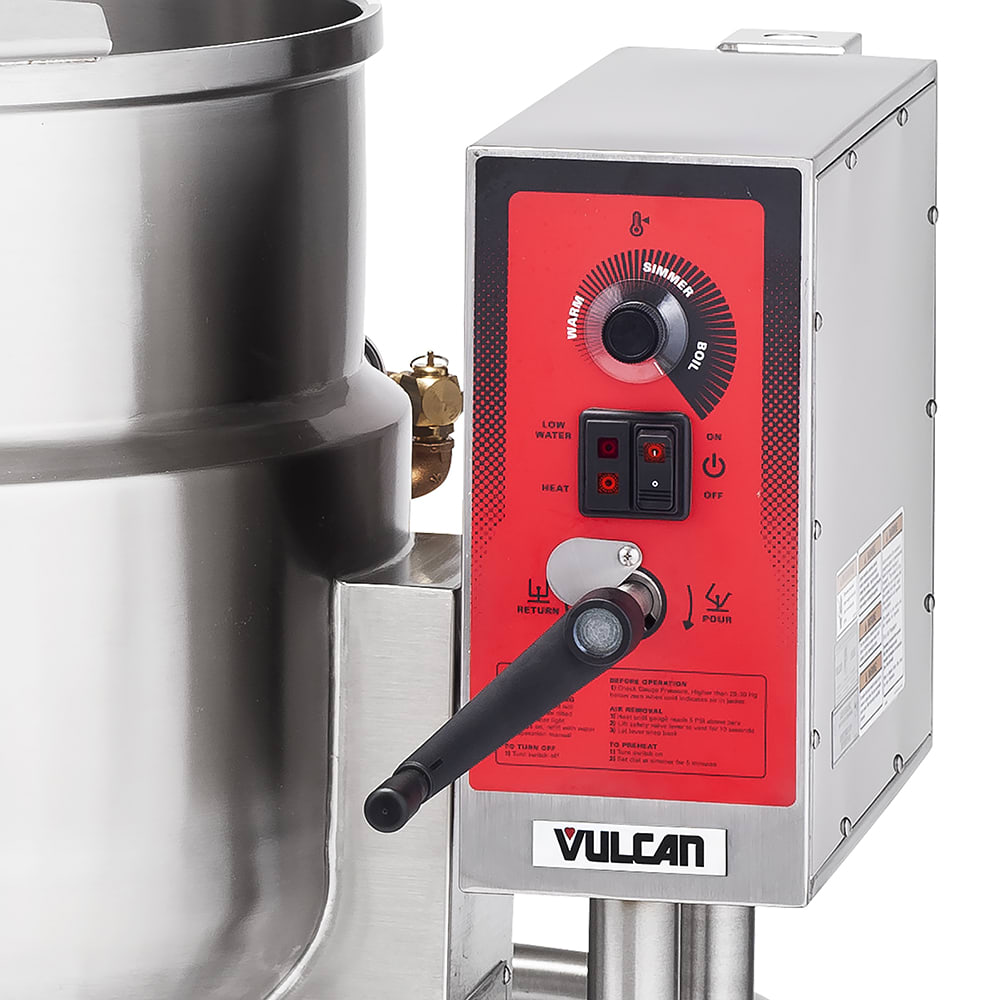

The Vulcan K20ELT tilting kettle includes a 2-inch compression tangent draw-off valve with a perforated strainer for efficient dispensing and flow control. The interior features embossed gallon and liter markings to simplify measurement. The stainless steel enclosure houses water-resistant controls, including a power switch, power-on light, solid-state temperature control, a vacuum/pressure gauge, a pressure relief valve, a low water light, and a low water shut-off.
Product Details
- 20-gal. true working capacity
- Stainless steel construction
- 2⁄3-jacketed floor-mounted design
- Tri-leg base with tubular stainless steel legs and flanged feet
- Spring-assist hinged stainless steel cover with condensate ring
- Drop-down lift handle with heavy-duty pivot assembly
- Manual tilt mechanism
- 2-in. compression tangent draw-off valve with perforated strainer
- Embossed gallon and liter markings
- Faucet bracket on tilting console
- Stainless steel enclosure for water-resistant controls
- Simple power switch
- Power indicator light
- Solid-state temperature control
- Vacuum/pressure gauge
- Pressure relief valve
- Low water light and low water shut-off
- 50-PSI steam jacket rating
- 353/4 in. W x 253/4 in. D x 531/2 in. H
- 240 V/60 Hz/3 ph
Dimensions & Utilities
*Free shipping on Vulcan K20ELT within the 48 contiguous states.
From The Manufacturer
Tilting Kettle, Electric, 20-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, cULus, UL EPH, ANSI/NSF 4, ASME
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan K20ELT Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 20 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Series | KELT Series |
| Tilt Mechanism | Crank |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 296.00 |
Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
WARNING: Important Prop 65 information for California residents.
Replacement for the Following Item
- Vulcan K20EL2403
