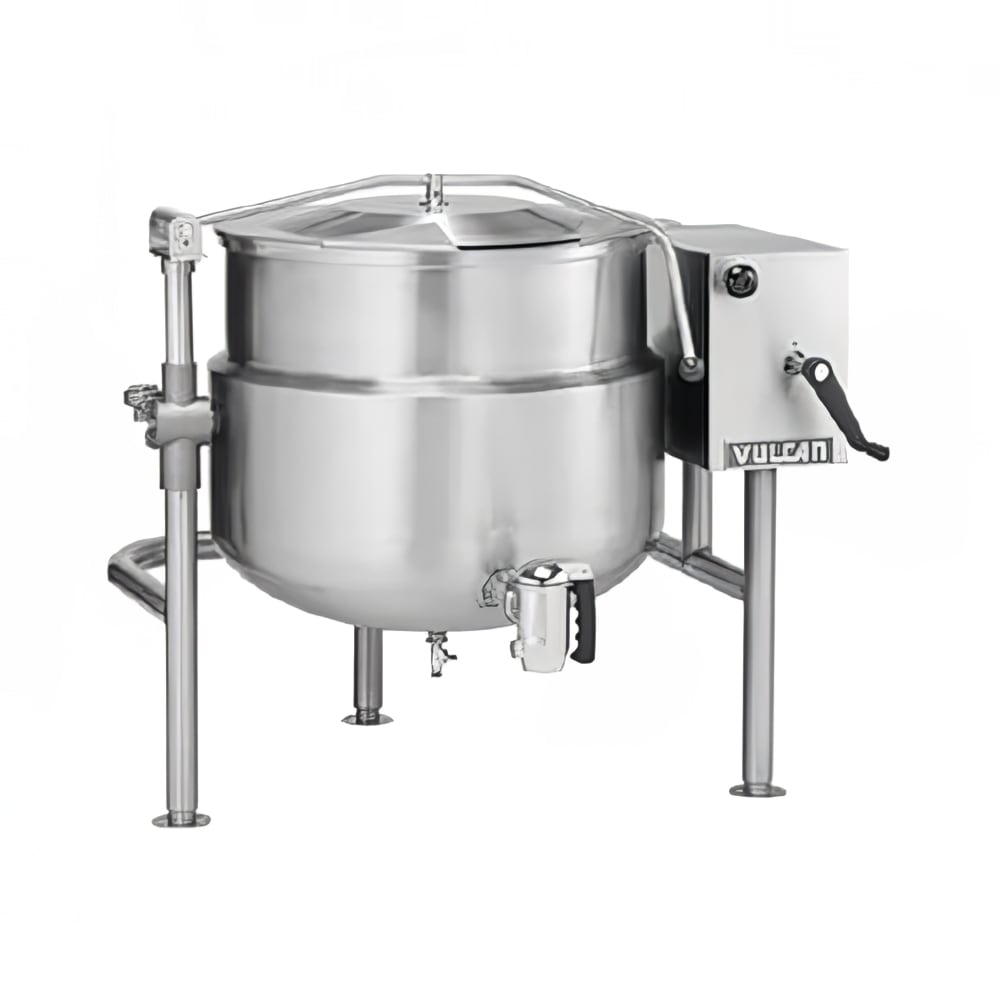

Vulcan K20DLT 20 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam
Typically ships in 6 - 8 weeks
Retail Price: $42,430.96
$17,467.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Vulcan K20DLT Description
Designed with a manual tilt mechanism, the Vulcan K20DLT direct steam tilting kettle provides precise control when dispensing contents. Its 20-gallon true working capacity and 2⁄3-jacketed construction ensure even heat distribution, while the ellipsoidal bottom enhances efficient cooking. Mounted on a tri-leg base with tubular stainless steel legs and flanged feet, this unit offers stability through high-volume use.
The Vulcan K20DLT tilting kettle features a stainless steel enclosure that houses the steam control valve, self-locking tilt mechanism, and faucet bracket. The steam control assembly includes a condensate return line strainer and a safety valve steam trap to regulate steam flow. The interior is embossed with gallon and liter markings for easy measurement. Engineered for reliability, the unit operates at a steam pressure of 50 PSI and tilts forward 90 degrees for complete emptying.
Product Details
- 20-gal. true working capacity
- Stainless steel construction
- Fully welded ellipsoidal bottom
- 2⁄3-jacketed floor-mounted design
- Manual tilt mechanism for controlled dispensing
- Tri-leg base with tubular stainless steel legs and flanged feet
- Embossed gallon and liter markings
- Stainless steel enclosure for steam control valve
- Self-locking tilt mechanism
- Faucet bracket on tilting console
- Steam control assembly with condensate return line strainer
- Safety valve steam trap
- Tilts forward 90 degrees
- 50-PSI steam jacket rating
- Direct steam operation
- Overall dimensions: 374/5 in. W x 373/10 in. D x 357/10 in. H
*Free shipping on Vulcan K20DLT within the 48 contiguous states.
From The Manufacturer
Tilting Kettle, Direct, 20-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, steam control assembly, 50 psi, 1.0 BHP
*Image may not depict product color, inclusions or accessories.
Vulcan K20DLT Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 20 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Series | KDLT Series |
| Tilt Mechanism | Crank |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 240.00 |
