Vulcan HEG48E 48" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 240v/1ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $19,217.55
$7,911.00 /Each
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

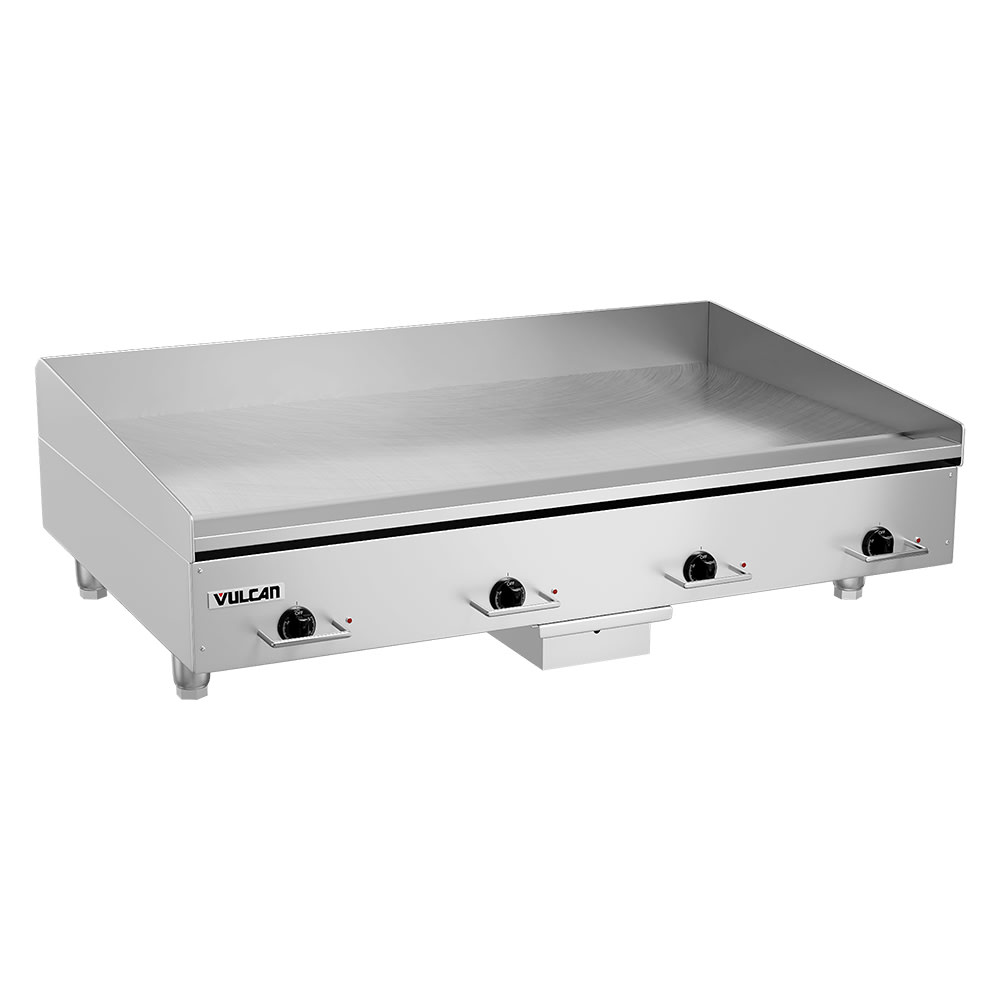

Vulcan HEG48E Description
Users can cook eggs, bacon, and pancakes simultaneously on this Vulcan HEG48E HEG-E Series heavy-duty electric griddle. It has a snap-action thermostat and cycling light for every 12-inch section, so users can input different temperatures for separate portions of the griddle. Heated by two sheathed incoloy warming elements, the griddle's 1/2-inch-thick steel plate gets hot quickly, which is ideal for sporadic use. The four thermostats have a versatile temperature range between 200 and 450 degrees Fahrenheit, and their controls are protected by chrome thermostat knob guards.
The Vulcan HEG48E commercial griddle's stainless steel construction is durable enough to withstand long durations of daily use. It's designed to sit on countertops and can be adjusted with its four 4-inch-tall legs to fit any kitchen environment. Equipped with rear and side splash guards, this griddle protects countertops from oil and hot grease spilling over the unit's sides. Instead, grease drains into the grease trough and the grease drawer for proper cleanup.
Product Details
- Part of the HEG-E series
- Stainless steel construction
- 1/2-in.-thick griddle plate
- Temperature range: 200-450 degrees F
- 4 snap-action thermostats
- 4 cycling lights
- Heated by 2 incoloy warming elements
- Warms in 12-in. sections
- 4 chrome thermostat knob guards
- 31/2-in.-wide grease trough
- 1.5-gal. grease drawer
- 4-in.-high back splash guard
- 2 tapered side splash guards
- (4) 4-in.-tall adjustable legs
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Griddle plate: 48 in. W x 24 in. D
- Overall: 48 in. W x 311/2 in. D x 15.3 in. H
- 90 A, 21.6 kW
- 240 V/50-60 Hz/1 ph
*Free shipping on Vulcan HEG48E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 48" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, cCSAus, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG48E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Heat | Electric |
| Hertz | 60 |
| kW | 21.6 |
| Overall Width (in) | 48 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 400.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
