Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan HEG48E 48" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 208v/3ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $19,217.55
$7,911.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan HEG48E Description

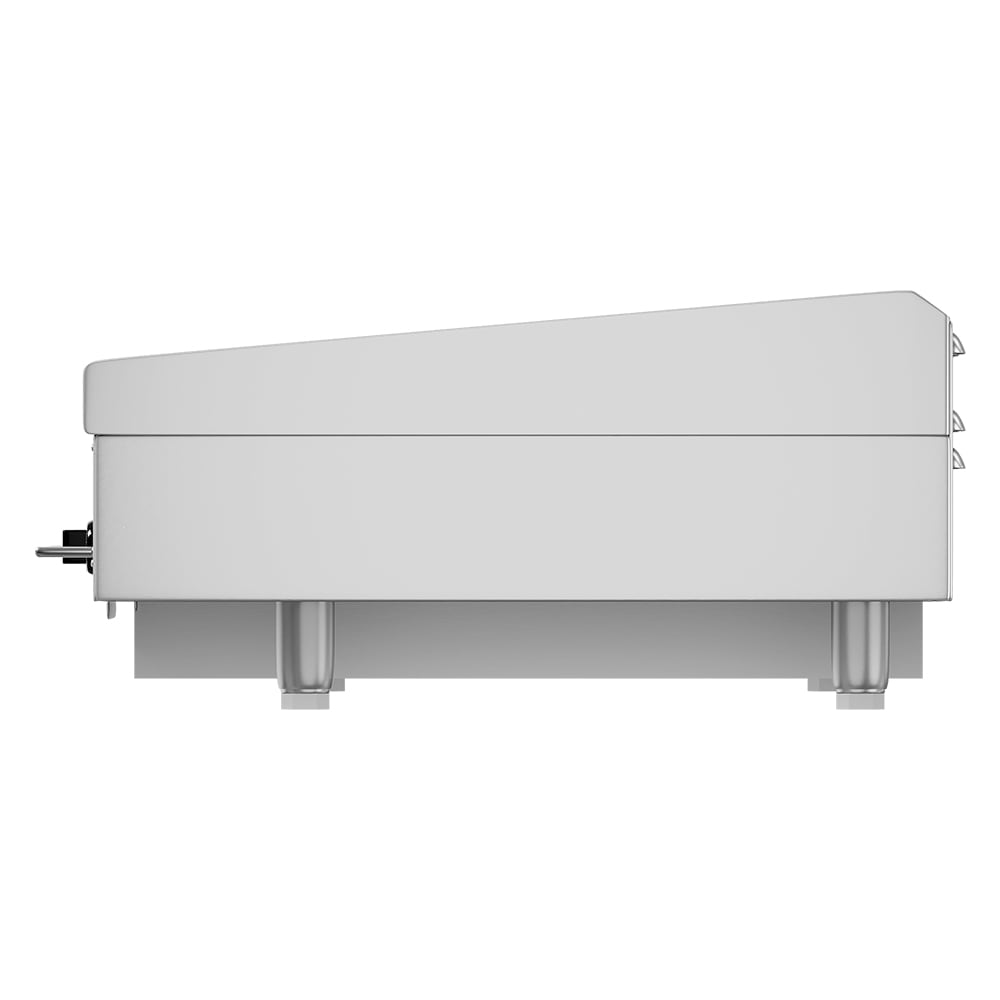

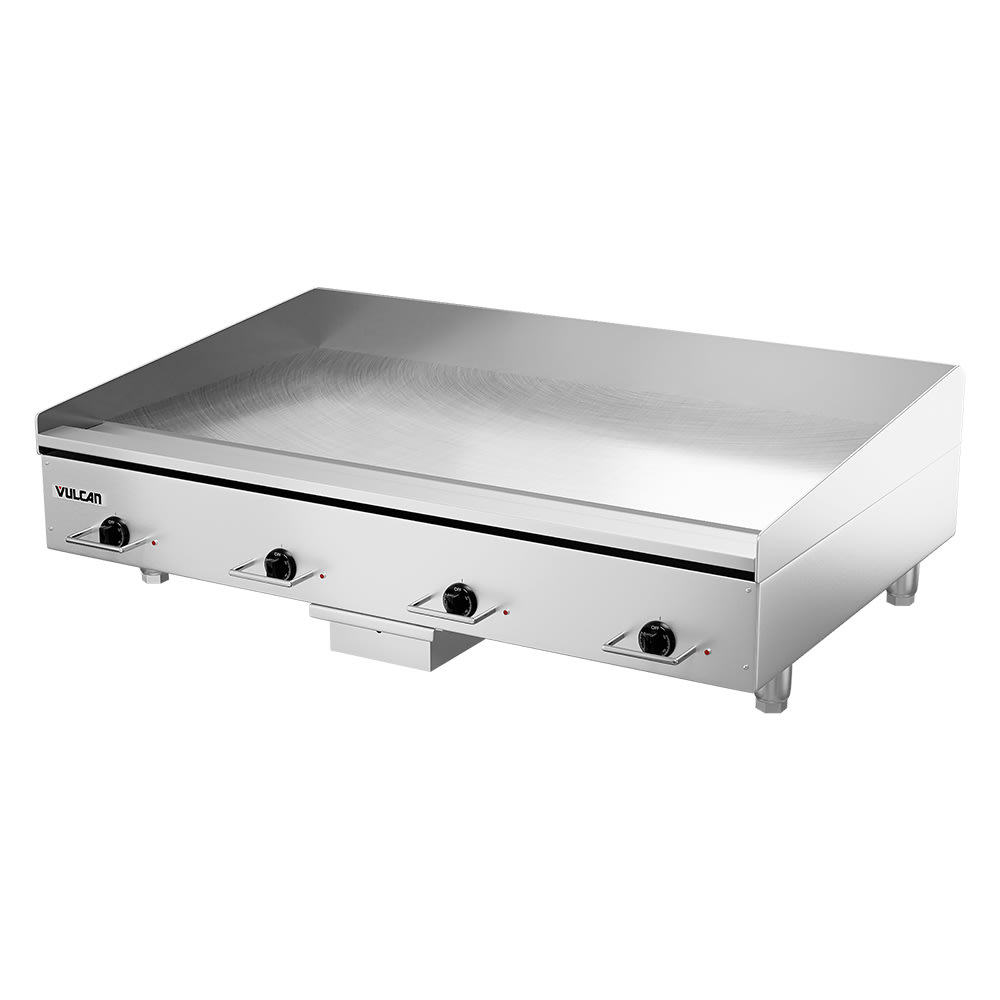

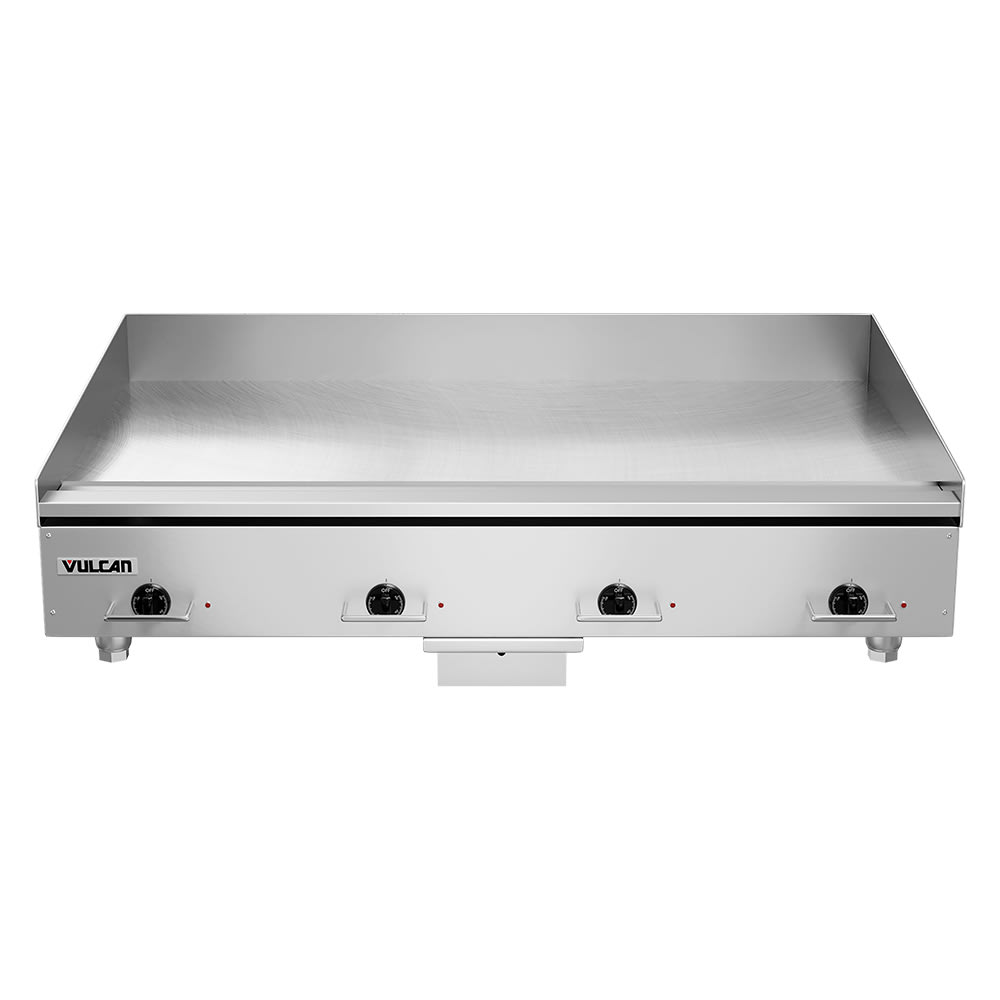

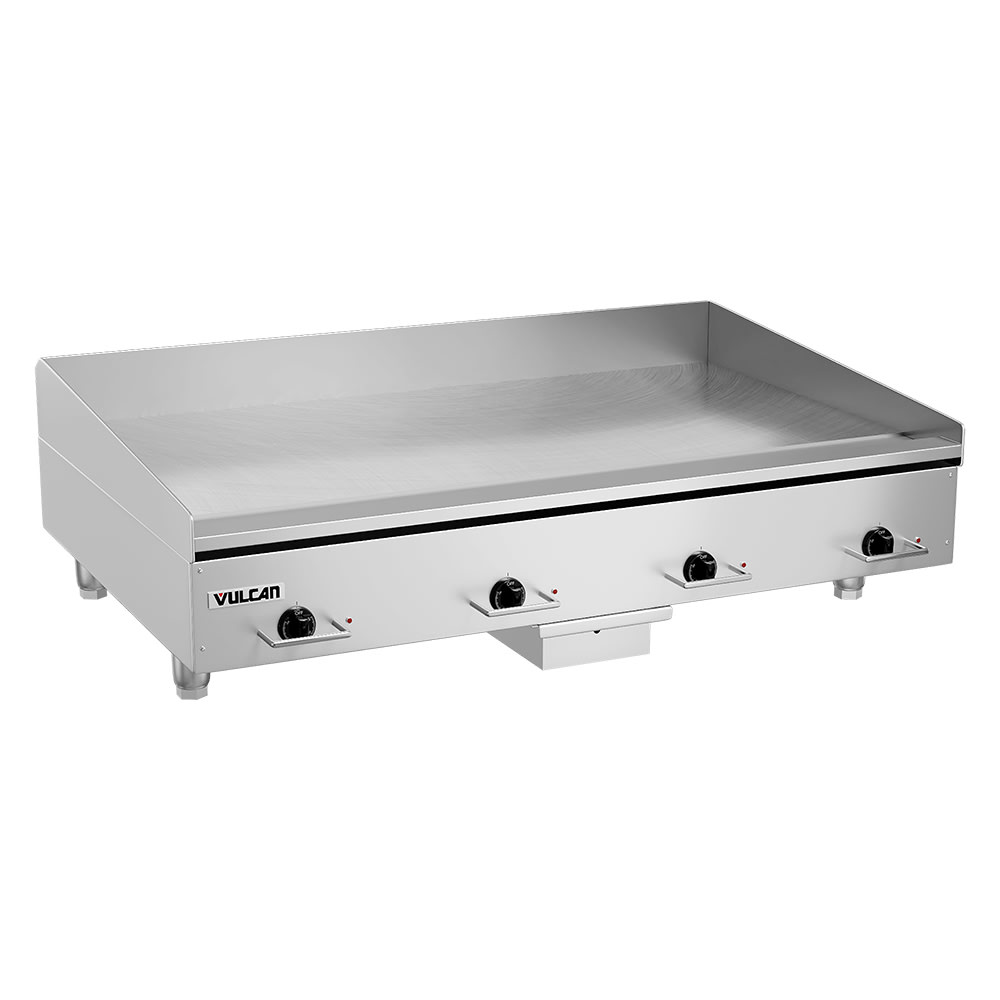

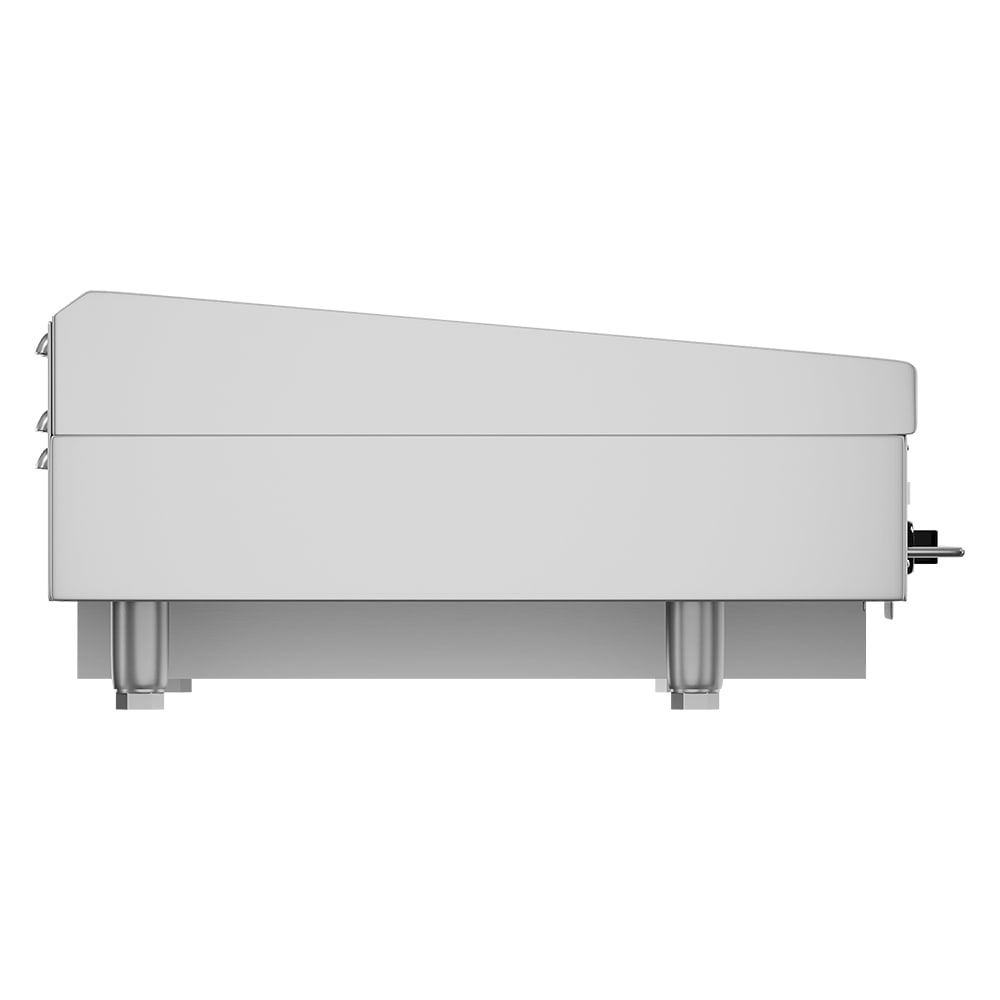

The Vulcan HEG48E HEG-E Series heavy-duty electric griddle cooks four different foods simultaneously on its 1/2-inch-thick steel griddle plate. By using a separate thermostatic control for each 12-inch-wide griddle section, this griddle enables operators to input individual temperature settings on the thermostats to support different foods, making it a good choice for medium-traffic cafes and restaurants. Designed with a temperature range from 200 to 450 degrees Fahrenheit, the griddle can reheat, grill, and thoroughly cook foods. It's heated with two incoloy heating elements, and the griddle's thin steel plate warms up quickly. This griddle is 48 inches wide and 24 inches deep, so it works well for medium-sized kitchens.
Safety features are built into the Vulcan HEG48E commercial electric griddle to improve the user experience. Heavy-duty chrome thermostat knob guards shield the thermostat controls to prevent unwanted adjustments. Rear and side splash guards work together to keep hot oil and grease contained within the griddle's barriers, and the grease trough and drawer simplify grease removal for quick maintenance. Made of stainless steel, the unit is durable enough to endure common kitchen wear, and it provides a stable cooking surface with its four adjustable legs.
Product Details
- Part of the HEG-E series
- Constructed of stainless steel
- 1/2-in.-thick griddle plate
- Temperature range: 200-450 degrees F
- Warms 12-in. sections independently
- 2 solid, sheathed, tubular incoloy heating mechanisms
- 4 snap-action thermostats with cycling lights
- Chrome thermostat knob guards
- 31/2-in.-wide grease trough
- 1.5-gal. grease drawer
- 4-in.-tall rear splash guard and 2 tapered side splash guards
- (4) 4-in.-tall adjustable legs
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Griddle plate: 48 in. W x 24 in. D
- Overall: 48 in. W x 311/2 in. D x 153/10 in. H
- 45-67.4 A, 21.6 kW
- 208 V/60 Hz/3 ph
*Free shipping on Vulcan HEG48E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 48" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, cCSAus, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG48E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Heat | Electric |
| Hertz | 60 |
| kW | 21.6 |
| Overall Width (in) | 48 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 400.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
