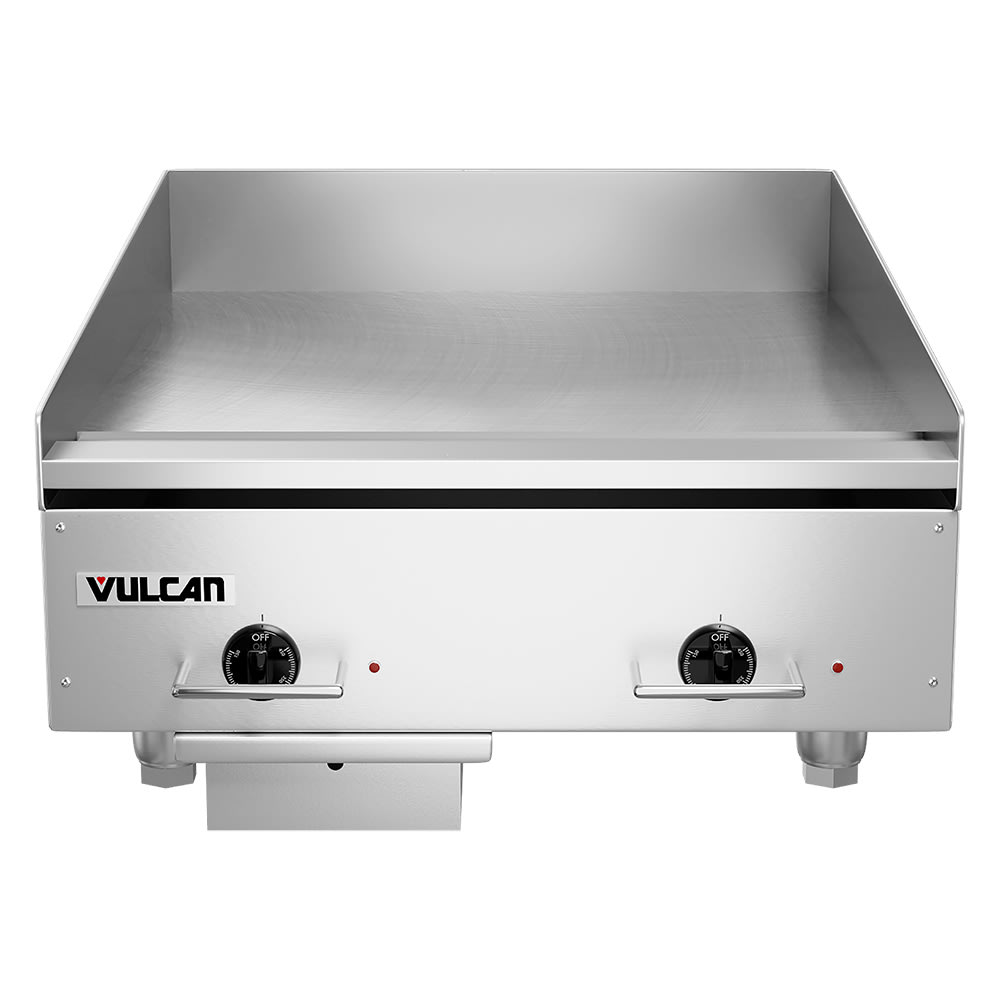

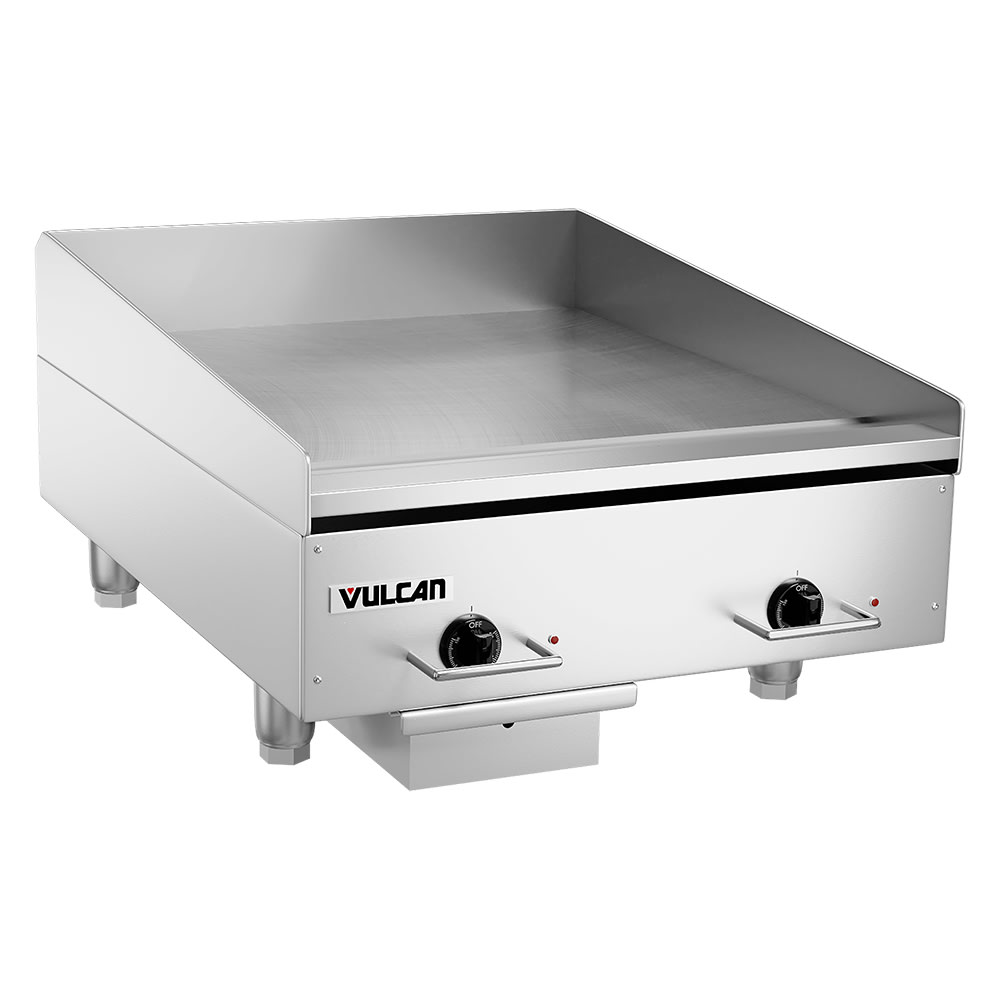

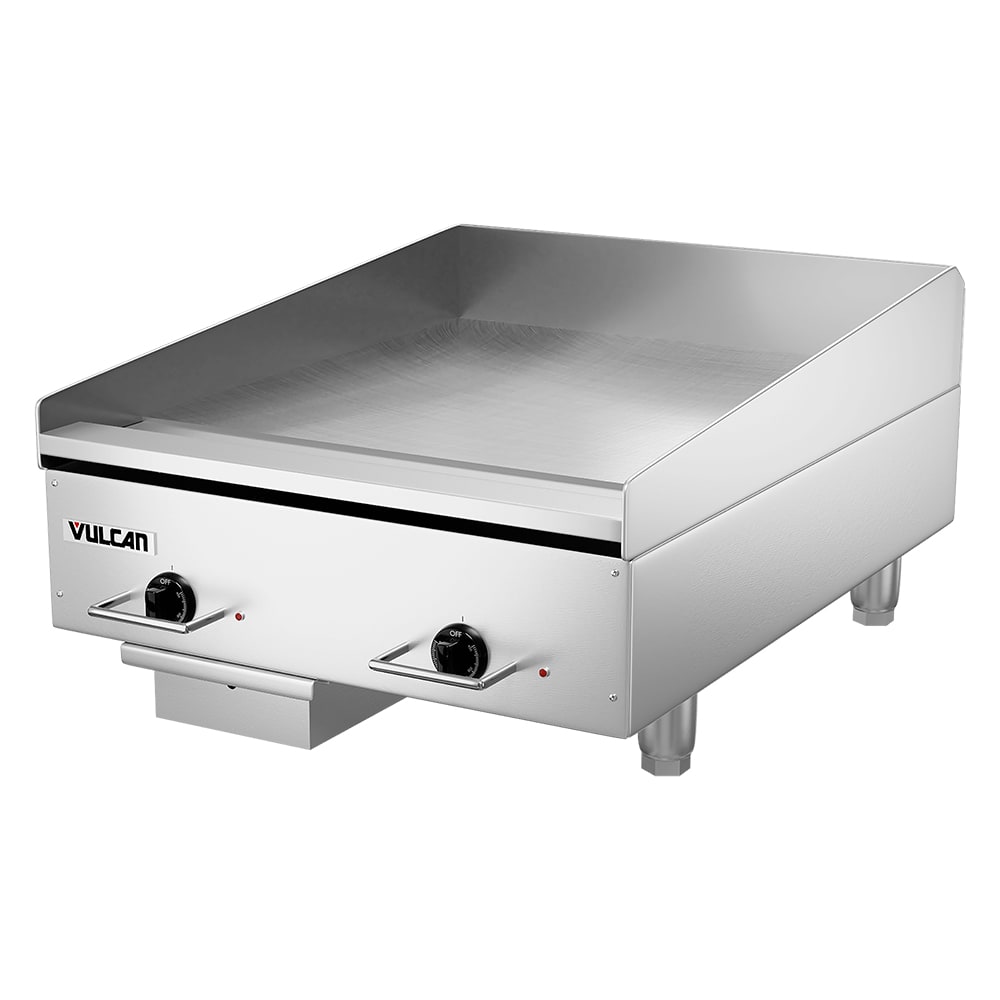

Vulcan HEG24E 24" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 208v/3ph

The Vulcan HEG24E countertop electric griddle operates with thermostatic controls and provides a 24-inch by 24-inch cook surface. Controlled by dual thermostat knobs, the griddle can be used for dual cook zones so operators have the choice to set each side to a different cooking temperature. The snap-action thermostats are bottom mounted on the unit’s front for accessibility. Resting on 4-inch adjustable stainless steel legs, the griddle has an 11-inch-high cooking surface.

To resist warping and streamline cleaning, the Vulcan HEG24E electric griddle’s ¹⁄₂-inch-thick cook plate is made of polished steel. A wraparound grease splash contains hot oil splashes, measuring 4 inches high in the back with sloped sides. Grease runoff travels through the 3¹⁄₂-inch gutter and is collected in the grease drawer. Holding 1.5 gallons, the grease drawer enables extended use between cleanings.

Product Details

• Countertop model
• Rust-resistant stainless steel front and sides
• Temperature range: 200-450 degrees F
• 4 sheathed heating elements
• 2 cycling lights
• Separately controlled burners for dual cook zones
• 2 bottom-mounted thermostats with snap action
• Chromed thermostat knob guards are heavy duty and corrosion resistant
• Front grease trough has cool bull-nose design to prevent burns
• ¹⁄₂-in.-thick griddle plate is polished steel
• Grease splash with 4-in. back and tapered sides wraps around griddle
• 12-ga. backsplash
• Wide 3¹⁄₂-in. grease gutter
• 1.5-gal. grease drawer
• Low-profile, 11-in. cooking height
• 4-in. adjustable stainless steel legs

Dimensions & Utilities

• Cook surface: 24 in. W x 24 in. D
• Overall: 24 in. W x 31¹/₂ in. D x 15³/₁₀ in. H
• 10.8 kW
• 208 V/50-60 Hz/3 ph

*Free shipping on Vulcan HEG24E within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, electric, countertop, 24" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, cCSAus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan HEG24E Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
