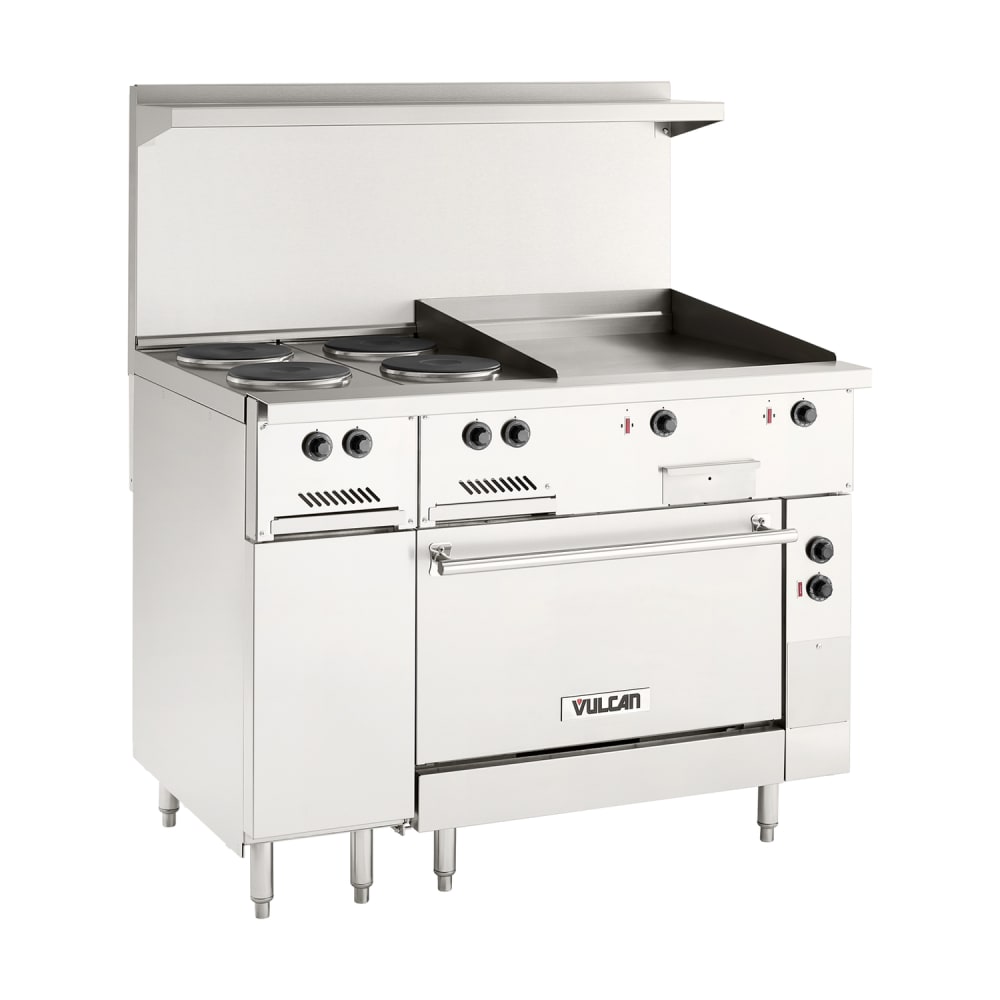

Vulcan EV48S-4FP24G480 48" EV Series Electric Range w/ (4) French Hot Plates & Griddle, 480v/1ph/3ph

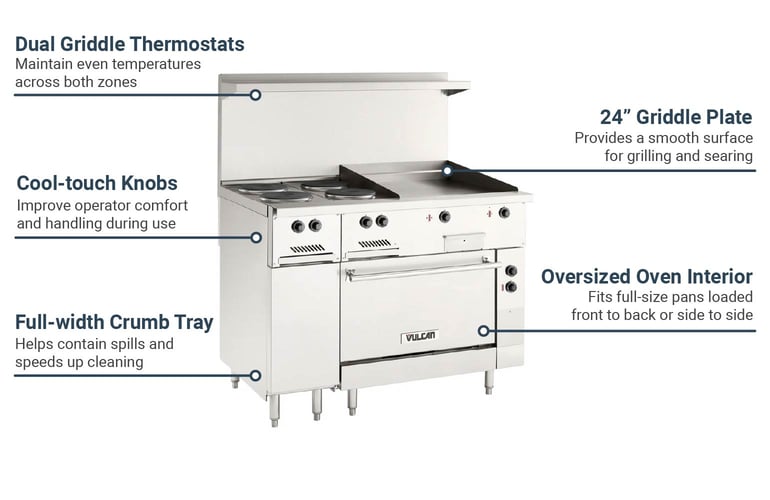

Built for multi-zone cooking applications, the Vulcan EV48S-4FP24G480 EV Series electric range features four French hot plates and a 24-inch-wide griddle to accommodate diverse tasks in a single footprint. Each 9¹⁄₂-inch round French plate operates independently with infinite control switches, while the griddle is equipped with two thermostats—one per 12-inch section—to help maintain even heat across the polished steel surface. The unit also includes a full-width pull-out stainless steel crumb tray, simplifying debris collection and daily cleaning beneath the cooktop.

The Vulcan EV48S-4FP24G480 range includes a standard oven with an interior measuring 26¹⁄₂ inches wide by 26³⁄₈ inches deep by 14 inches high, sized to accommodate full 18-inch by 26-inch sheet pans loaded either side to side or front to back. The oven comes with one rack and three position settings, along with a top browning control and thermostat adjustable from 200 to 500 degrees Fahrenheit. Its 48-inch-wide by 34-inch-deep by 58-inch-high footprint supports workflow efficiency without occupying unnecessary space. A fully MIG welded aluminized steel frame reinforces durability, while stainless steel surfaces on the front, sides, riser, shelf, and legs resist corrosion. Cool-to-the-touch knobs and 6-inch adjustable legs contribute to safe operation in busy kitchens.

Product Details

• EV Series
• 48-in.-wide electric range
• Stainless steel construction
• Welded aluminized steel frame
• (4) 9¹⁄₂-in. French plates
• Infinite heat control switches
• Standard oversized oven with top browning control
• 1 oven rack with 3 positions
• Full-width pull-out crumb tray
• Cool-to-the-touch control knobs
• Single-deck high shelf
• 6-in. adjustable stainless steel legs

Griddle Plate

• 24-in.-wide polished steel surface
• 7⁷⁄₈-in.-thick plate
• 1 thermostast per 12-in. of griddle width
• Temperature range: 200-500 degrees F

Dimensions & Utilities

• Overall: 48 in. W x 34 in. D x 58 in. H
• Interior: 26¹⁄₂ in. W x 26³⁄₈ in. D x 14 in. H
• 480 V/60 Hz/1 or 3 ph (convertible phase)

Product Features

*Free shipping on Vulcan EV48S-4FP24G480 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 48", (4) 2.0 kW French hotplates, 9-1/2" round, infinite controls, (1) 24" griddle, polished steel plate, thermostat controls, standard oven with (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 480v, cCSAus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV48S-4FP24G480 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
