Vulcan EV48S-4FP24G240 48" EV Series Electric Range w/ (4) French Hot Plates & Griddle, 240v/1ph/3ph

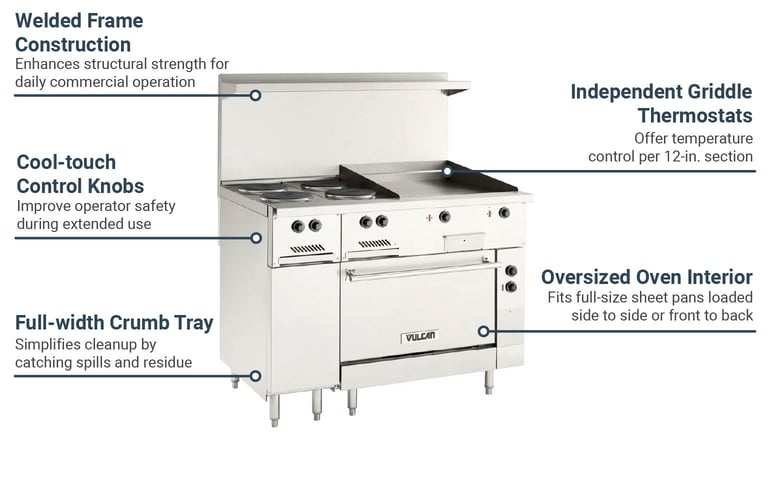

Equipped with a 24-inch-wide griddle and four 9¹⁄₂-inch French hot plates, the Vulcan EV48S-4FP24G240 EV Series electric range provides flexibility for high-volume cooking. Each hot plate operates with an infinite heat control switch for precise surface adjustment. A full-width pull-out stainless steel crumb tray helps streamline daily cleaning beneath the cooktop surface. The unit’s spacious layout and dual cooking zones are great for multi-tasking in busy kitchens.

Built with an oversized standard oven, the Vulcan EV48S-4FP24G240 range accommodates full-size sheet pans loaded front to back or side to side. The oven’s interior measures 26¹⁄₂ inches wide by 26³⁄₈ inches deep by 14 inches high and includes one rack with three adjustable positions. Cool-to-the-touch control knobs enhance user safety, while the oven’s thermostat adjusts between 200 and 500 degrees Fahrenheit. The unit’s stainless steel front, sides, riser, shelf, and legs provide corrosion resistance, and a fully MIG welded aluminized steel frame reinforces structural durability.

Product Details

• EV Series
• 48-in.-wide electric range
• Stainless steel construction
• Welded aluminized steel frame
• (4) 9¹⁄₂-in. French plates
• Infinite heat control switches
• Standard oversized oven with top browning control
• 1 oven rack with 3 positions
• Full-width pull-out crumb tray
• Cool-to-the-touch control knobs
• Single-deck high shelf
• 6-in. adjustable stainless steel legs

Griddle Plate

• 24-in.-wide polished steel surface
• 7⁷⁄₈-in.-thick plate
• 1 thermostat per 12-in. of griddle width
• Temperature range: 200-500 degrees F

Dimensions & Utilities

• Overall: 48 in. W x 34 in. D x 58 in. H
• Interior: 26¹⁄₂ in. W x 26³⁄₈ in. D x 14 in. H
• 240 V/60 Hz/1 or 3 ph (convertible phase)

Product Features

*Free shipping on Vulcan EV48S-4FP24G240 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 48", (4) 2.0 kW French hotplates, 9-1/2" round, infinite controls, (1) 24" griddle, polished steel plate, thermostat controls, standard oven with (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 240v, cCSAus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV48S-4FP24G240 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
