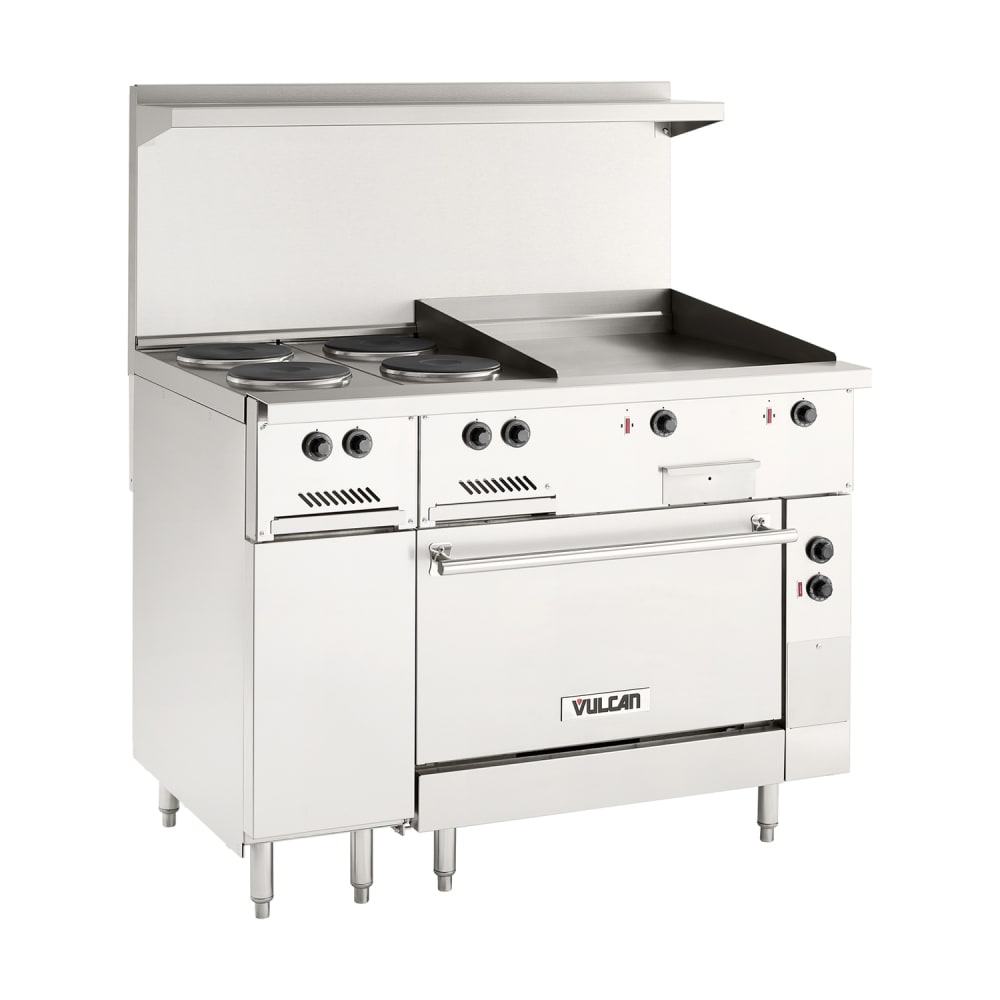

Vulcan EV48S-4FP24G208 48" EV Series Electric Range w/ (4) French Hot Plates & Griddle, 208v/1ph/3ph

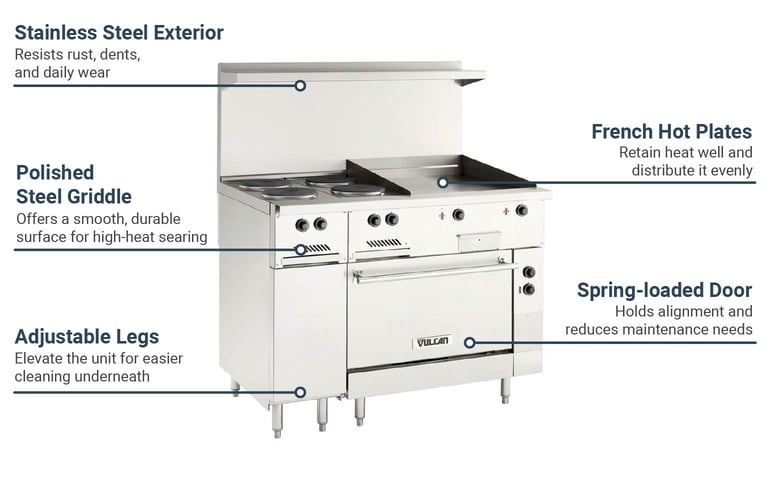

The Vulcan EV48S-4FP24G208 electric range combines precision, space, and power in a 48-inch footprint that supports demanding cooking routines. Its four hot plates offer individualized heat for simmering or searing, while the 24-inch polished steel griddle with dual thermostats supports a variety of grilled dishes. Infinite controls and wide temperature range give operators exceptional control over the cooking surface.

The Vulcan EV48S-4FP24G208 electric range's stainless steel construction and a fully welded frame reinforce durability, and 6-inch legs allow clearance for daily floor maintenance. Beneath the cooktop, the standard oversized oven fits full-size sheet pans in both orientations and includes a heavy-duty spring-hinged door for reliable performance. Overall, this unit measures 48 inches wide by 34 inches deep by 58 inches high.

Product Details

• From the EV series
• Stainless steel front, sides, back riser, shelf, and legs
• Welded aluminized steel frame
• (4) 9¹⁄₂-in. cast iron hot plates
• 24-in. wide polished steel griddle
• Dual thermostatic griddle controls (1 per 12-in. section)
• Cool-to-the-touch control knobs and oven handle
• Full-width stainless steel crumb tray
• Mounted on 6-in. adjustable legs
• Thermostat range: 200–500 degrees F

Standard Oven

• Top browning control
• 1 oven rack with 3 rack positions
• Holds 18-in. x 26-in. sheet pans

Dimensions & Utilities

• Overall: 48 in. W x 34 in. D x 58 in. H
• Interior: 26¹⁄₂ in. W x 26³⁄₈ in. D x 14 in. H
• 208 V/60 Hz/1-3 ph (hardwired)

Product Features

*Free shipping on Vulcan EV48S-4FP24G208 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 48", (4) 2.0 kW French hotplates, 9-1/2" round, infinite controls, (1) 24" griddle, polished steel plate, thermostat controls, standard oven with (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 208v, cCSAus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV48S-4FP24G208 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
