Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan EL80 80 gal Steam Kettle - Stationary, Full Jacket, 240v/3ph
Typically ships in 6 - 8 weeks
Free Shipping Item
Retail Price: $103,144.08
$42,459.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan EL80 Description

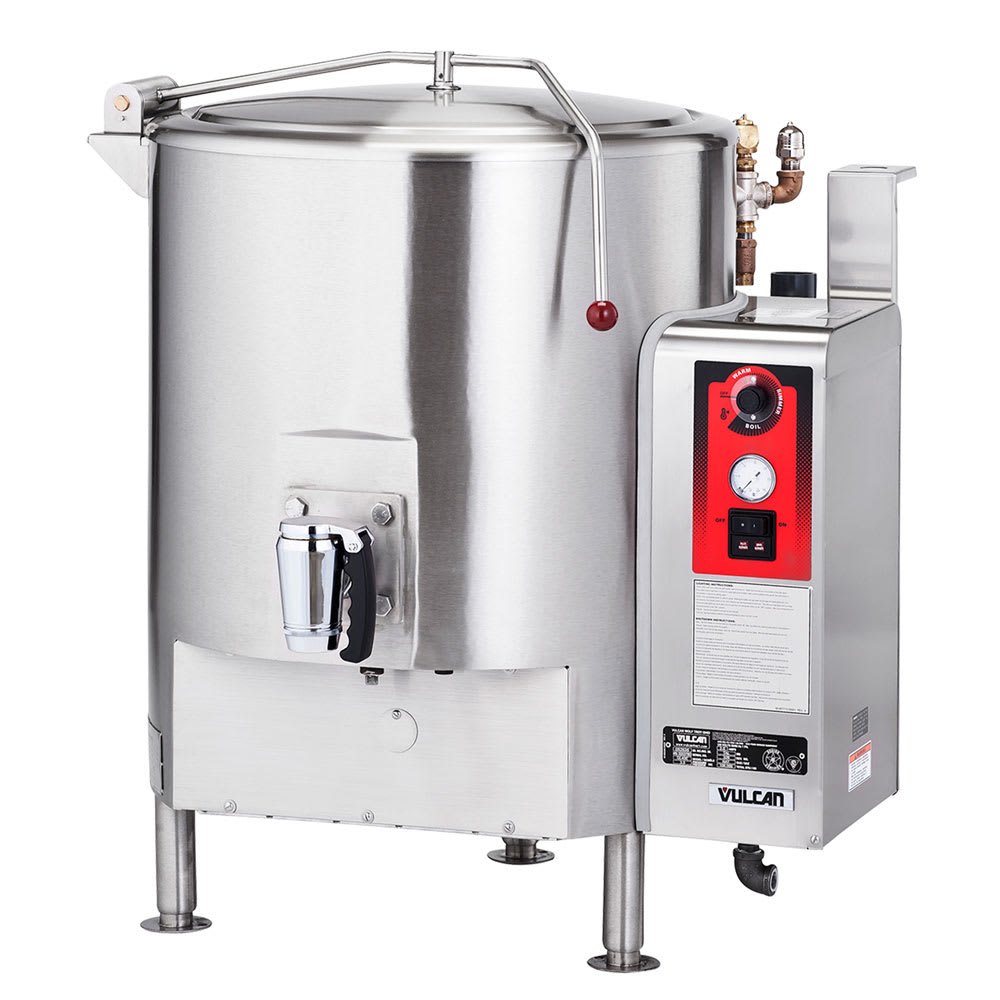

The Vulcan EL80 stationary kettle features an 80-gallon capacity and a fully steam-jacketed design for uniform heat distribution. Its 316 series stainless steel liner resists corrosion and ensures durability in commercial kitchens. The dish-shaped interior bottom slopes forward, allowing smooth product flow through the mounted 2-inch plug-type draw-off valve with a perforated strainer. A graduated measuring rod assists with portioning, and a faucet bracket is included for convenience.
This Vulcan EL80 kettle is equipped with a stainless steel, spring-assisted cover with a condensate ring and a drop-down lift handle for controlled steam release. Its electric heating elements provide consistent performance, while an on/off switch with a signal light and thermostat control allows precise temperature adjustments. Safety features include a 15 PSI relief valve, a low water cut-off control, a pressure limit switch, and a pressure gauge. The unit is supported by 2-inch-diameter stainless steel legs with adjustable flanged feet for stability.
Product Details
- 80-gal. capacity
- Fully steam-jacketed design ensures even heating
- 316 series stainless steel liner resists corrosion
- Spring-assisted cover with condensate ring and drop-down lift handle
- Sloped interior bottom for smooth product flow
- 2-in. plug draw-off valve with perforated strainer
- Graduated measuring rod for precise portioning
- Faucet bracket included
- On/off switch with signal light and thermostat control
- 15 PSI relief valve, magnetic conductor, and electric heating elements
- Low water cut-off control and pressure limit switch with pressure gauge
- Mounted on stainless steel 2-in.-diameter legs with adjustable flanged feet
- 240 V/60 Hz/3 ph
*Free shipping on Vulcan EL80 within the 48 contiguous states.
From The Manufacturer
Fully Jacketed Stationary Kettle, Electric, 80-gallon capacity, stainless steel spring assisted cover, 2" plug draw-off valve with perforated strainer, graduated measuring rod, faucet bracket, stainless steel construction with 316 series stainless steel liner, flanged feet
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan EL80 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 80 |
| Design | Full Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Series | EL/ET Series |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 734.00 |
