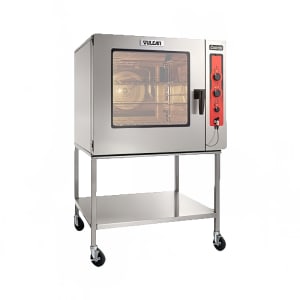

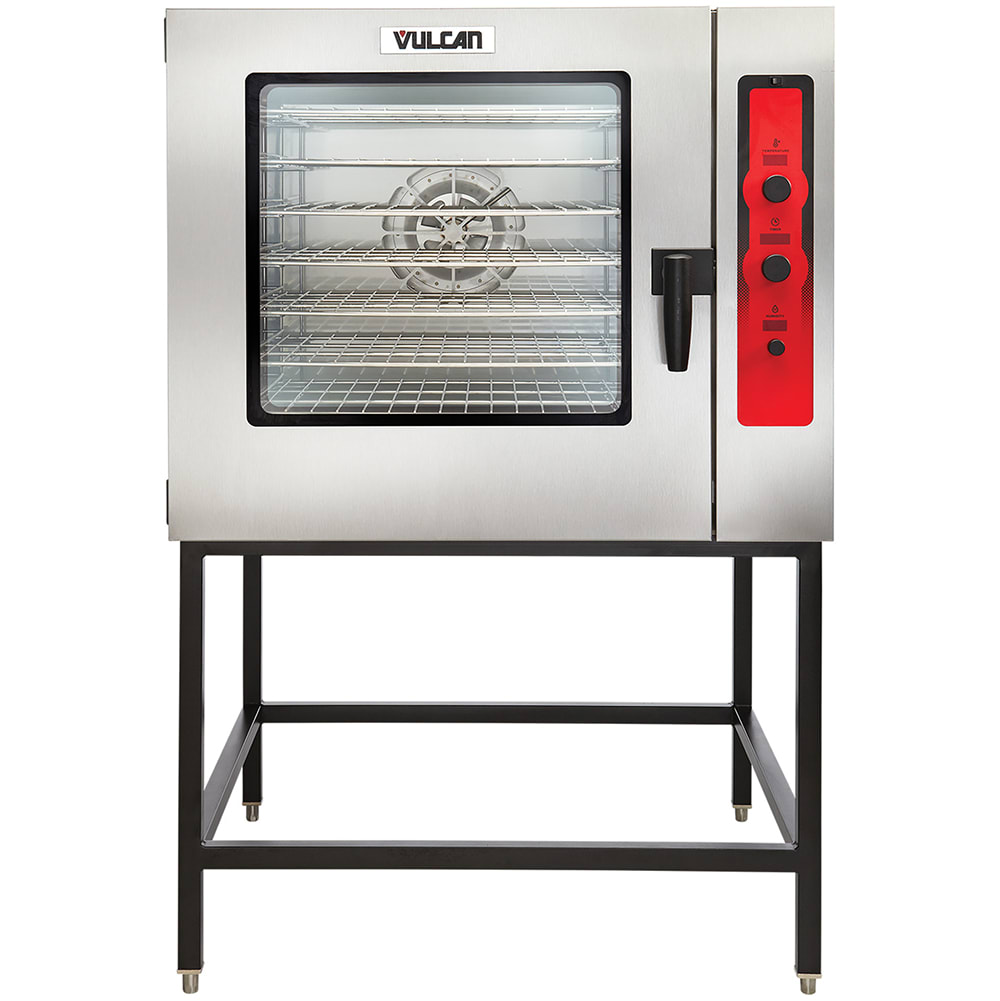

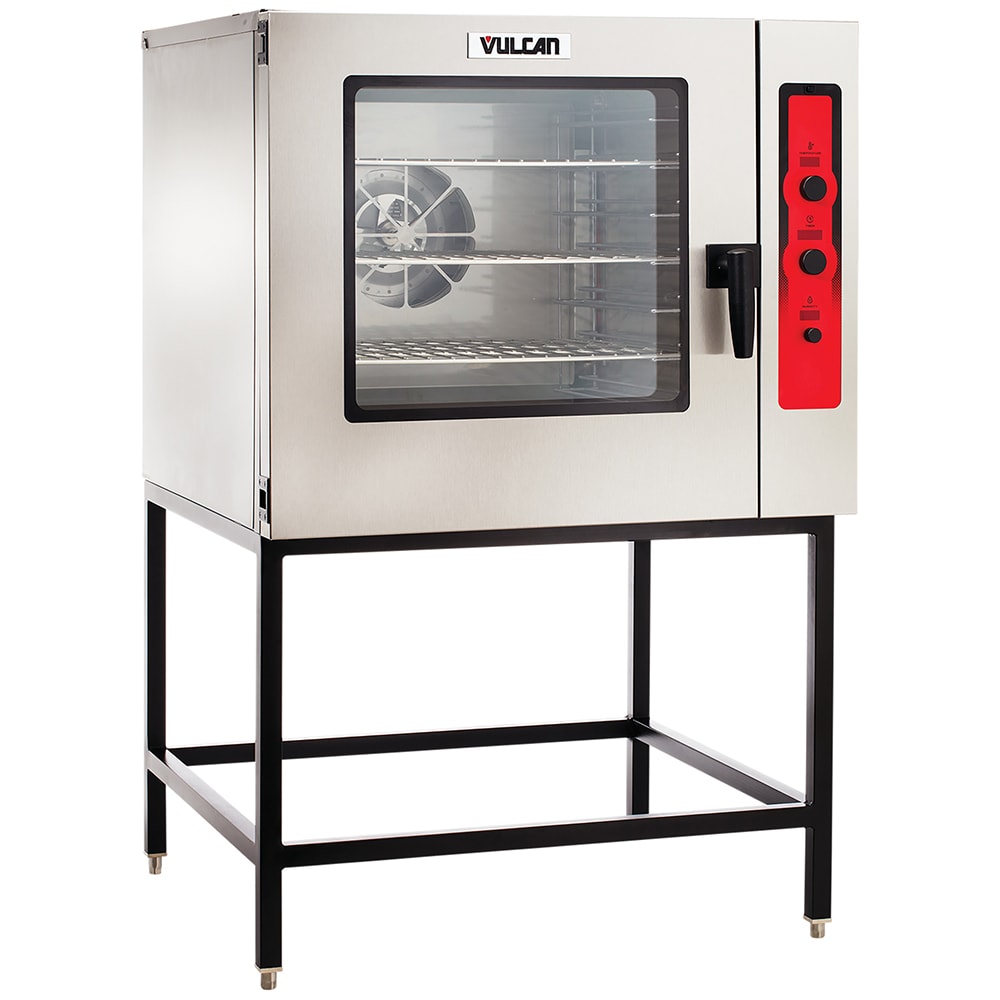

Vulcan ABC7E-480 Full Size Combi Oven - Boilerless, 480v/3ph

Engineered for reliability, the Vulcan ABC7E-480 combi oven is constructed of fully insulated stainless steel to enhance durability and thermal efficiency. Its safety features include a cool-touch, heat-reflective tempered glass door, a flashing door light, and an audible alarm system. The halogen-lit interior improves visibility, and the included four stainless steel grab-n-go racks provide versatile holding capacity. Diagnostics can be accessed through the controls or USB port. This unit requires hardwired installation and doesn't include a stand.

The Vulcan ABC7E-480 full-size combi oven is a robust, high-performance unit designed to accommodate seven 18-inch by 26-inch full-size sheet pans or (14) 12-inch by 20-inch hotel pans, making it ideal for high-capacity cooking. Its boilerless design supports multiple cooking applications, such as baking, steaming, roasting, air-frying, and proofing. An auto-reversing fan ensures consistent heat distribution, while three knob controls with LED displays allow operators to adjust temperature, timer, and humidity with precision.

Product Details

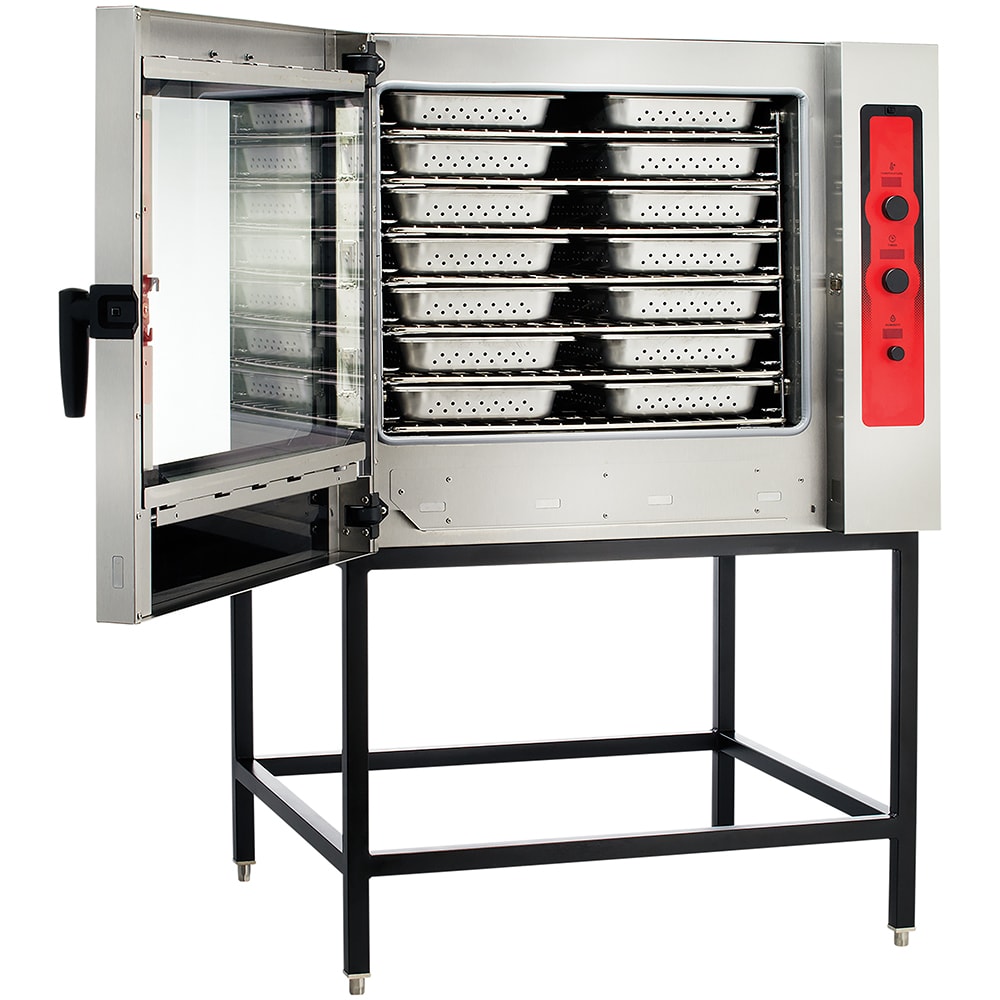

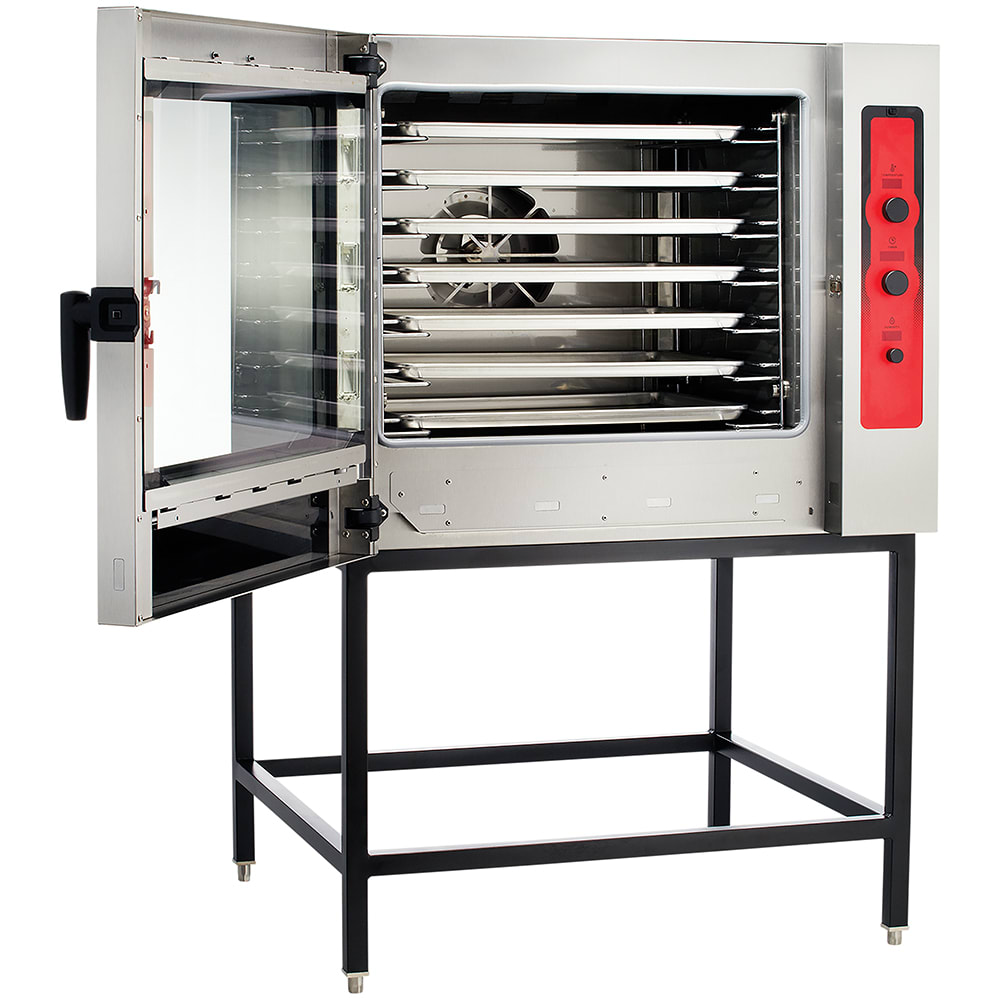

• Accommodates (7) 18-in. x 26-in. sheet pans or (14) 12-in. x 20-in. hotel pans

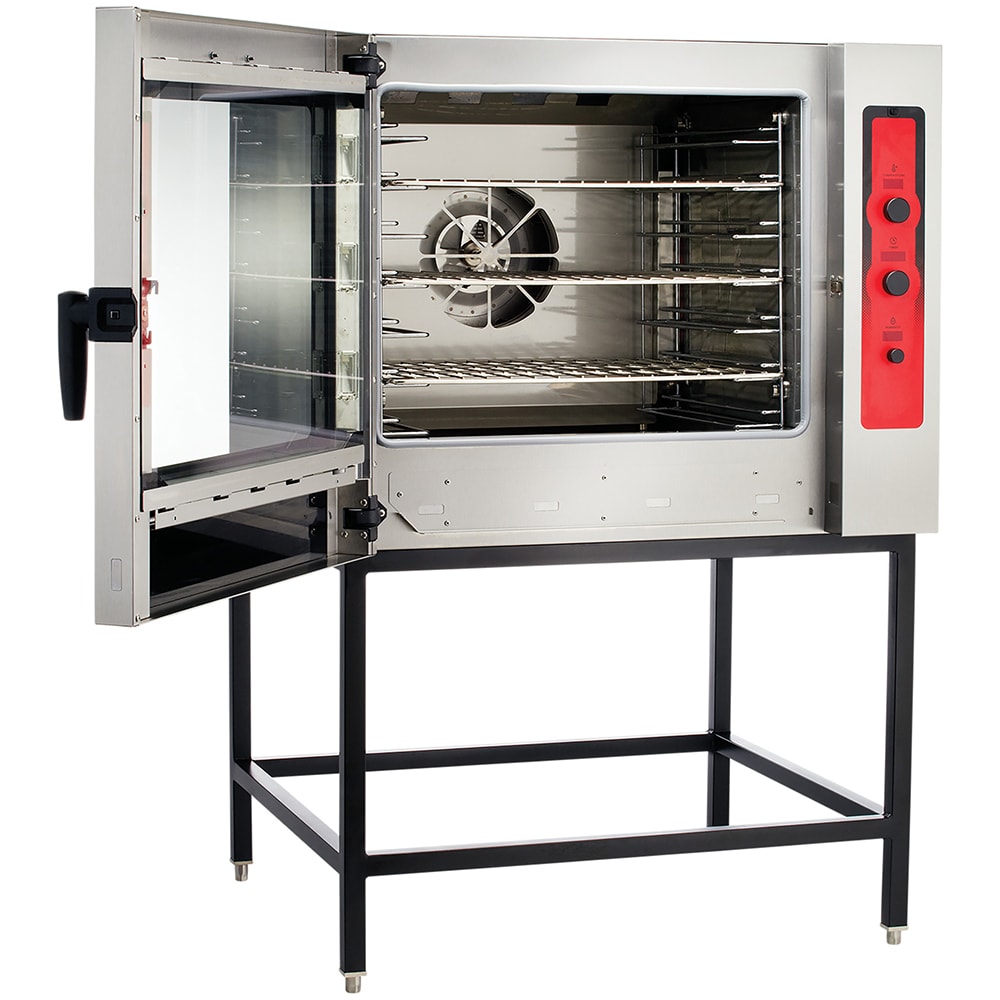

• Includes 4 stainless steel grab-n-go racks
• Fully insulated stainless steel construction
• Cool-touch, heat-reflective tempered glass door
• Halogen door light behind heat-reflective inner glass
• Flashing door light and audible alarm system
• 1-in. stainless steel round drain connection tube
• Stand sold separately

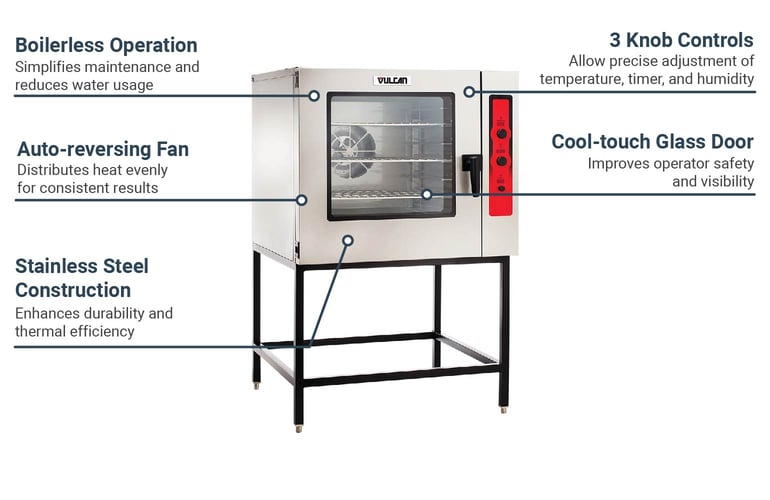

Heating & Operating System

• Cooking applications: baking, steaming, roasting, air-frying, rethermalization, proofing, finishing, poaching, stewing, low temp, and defrosting
• Auto-reversing fan ensures even cooking
• Automatic humidity adjustment
• Boilerless operation

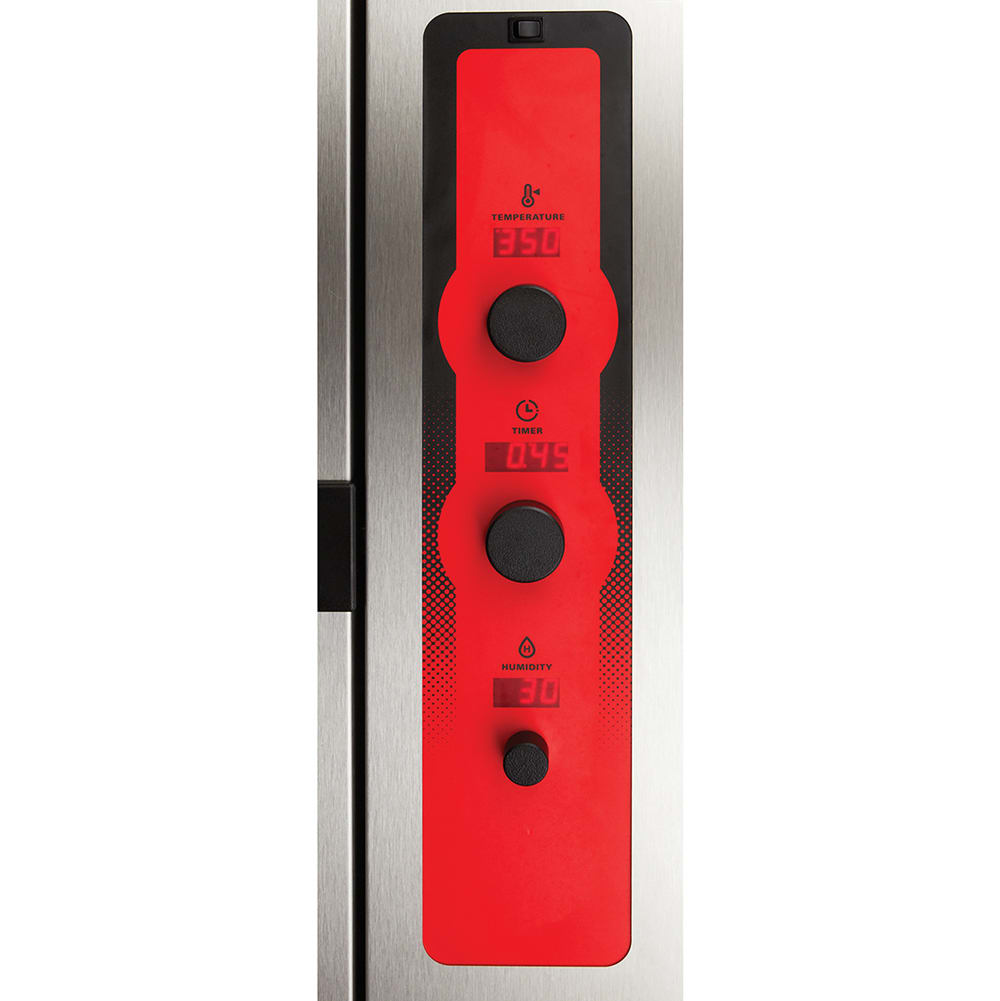

• 3 knob controls: temperature, timer, and humidity
• LED temperature displays
• Machine diagnostics accessible through controls or USB port
• Timer continuous up to 23 hours and 59 minutes
• Temperature cooking range: 80-450 degrees F

Dimensions & Utilities

• 42¹⁄₅ in. W x 43¹⁄₂ in. D x 35 in. H
• 28.9 A, 24 kW
• 480 V/60 Hz/3 ph (hardwire)

Product Features

*Free shipping on Vulcan ABC7E-480 within the 48 contiguous states.

From The Manufacturer

Combi Oven/Steamer, electric, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, auto-reversing fan with electronic braking system, cool to touch glass door, flashing door light & audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, engineered & assembled in USA, 480v/60/3ph, UL EPH Classified, cULus

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan ABC7E-480 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
