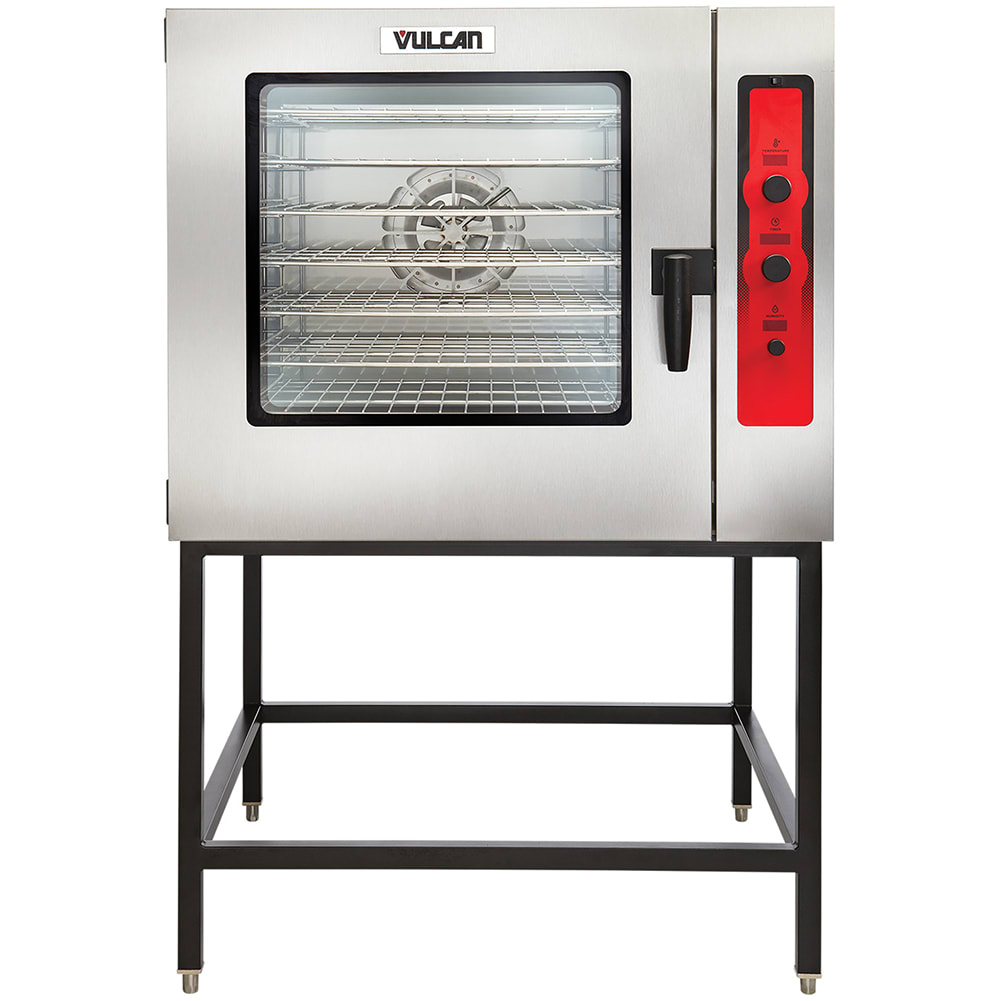

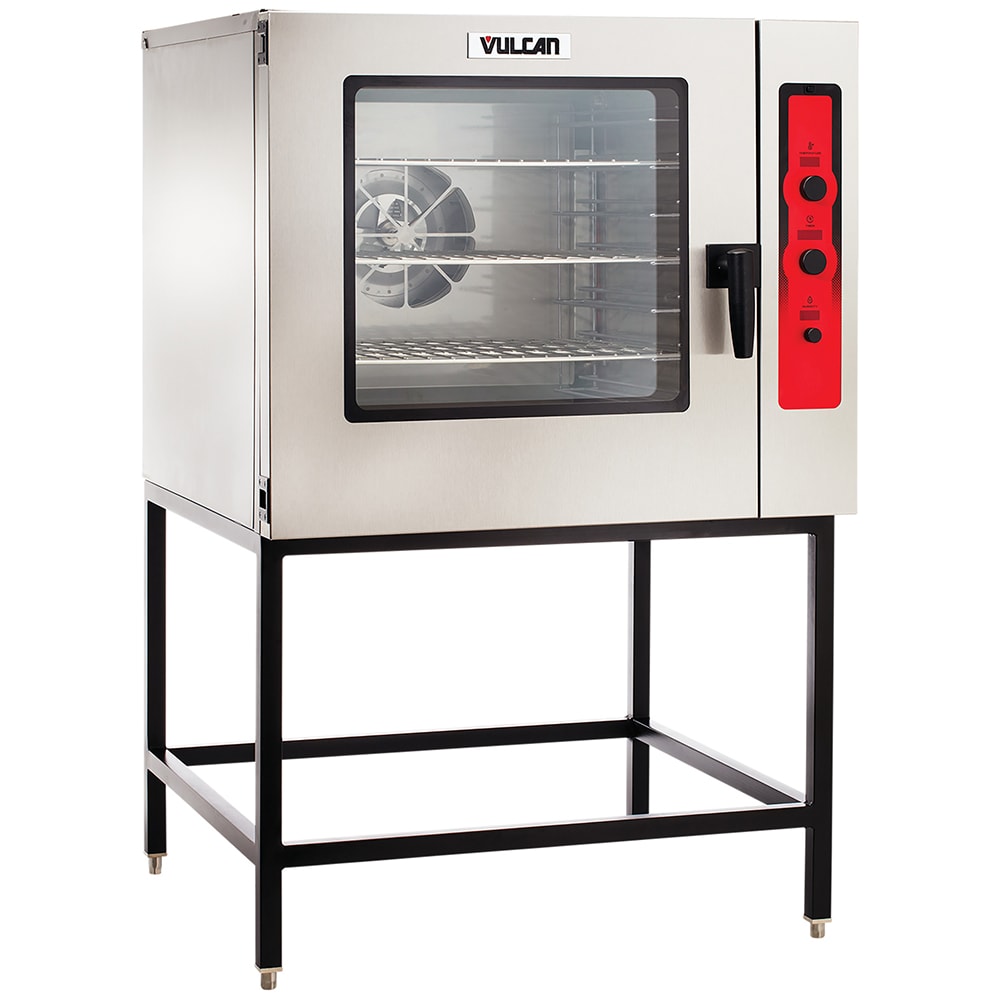

Vulcan ABC7E-240 Full-Size Combi-Oven, Boilerless, 240v/3ph

The Vulcan ABC7E-240 electric combi oven enhances food quality with its unique combination mode. This unit delivers higher yields than standard convection ovens when cooking poultry or roasted meats. There are three knobs on the unit to control temperature, time, and humidity. Its lack of modes simplifies operation and creates a more approachable user interface. This combi oven is capable of finishing, poaching, stewing, low-temperature cooking, defrosting, and more.

Direct steam creation optimizes the oven’s cooking capability and production. This unit minimizes energy and water consumption, and the fan motor has an electrical braking system with an auto-reversing fan. Large LED displays present the controls for temperature, humidity, and time. The visual recall displays the actual temperature and humidity on the LED displays.

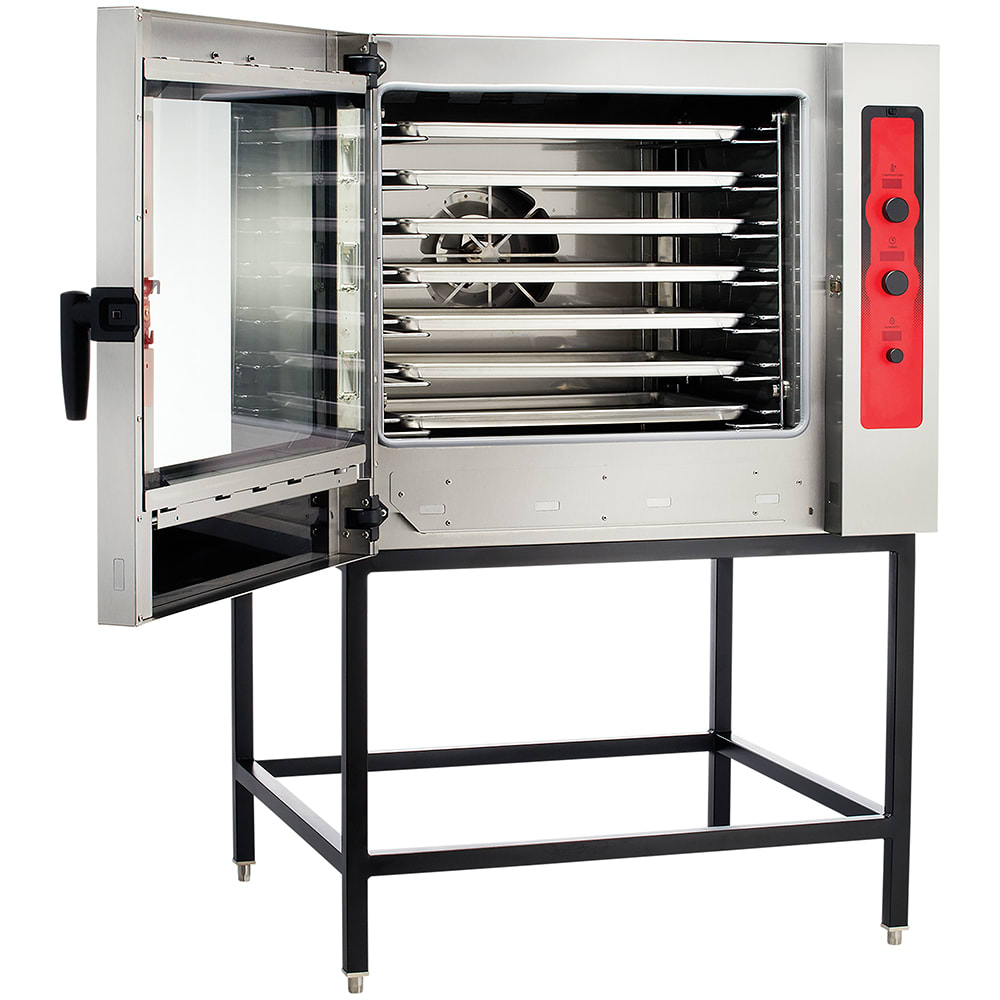

The timer reloads after the batch cooking timed cycle finishes, at which point an audible alarm system and flashing door light alert the user to the completed cycle. A halogen door light is located behind the heat-reflective inner glass. The unit is equipped with four stainless steel removable racks, and their 15¹⁄₂-inch by 3¹⁄₄-inch cutout ensures users can grab the pans. The Vulcan ABC7E-240 combi oven can accommodate seven 18-inch by 26-inch pans with additional racks.

Product Details

• 3 knobs for temperature, time, and humidity
• Temperature range: 80-450 degrees F
• Humidity range: 0-100 percent
• Timer range is continuous up to 23 hrs. 59 min.
• Setting the temperature automatically adjusts the humidity level

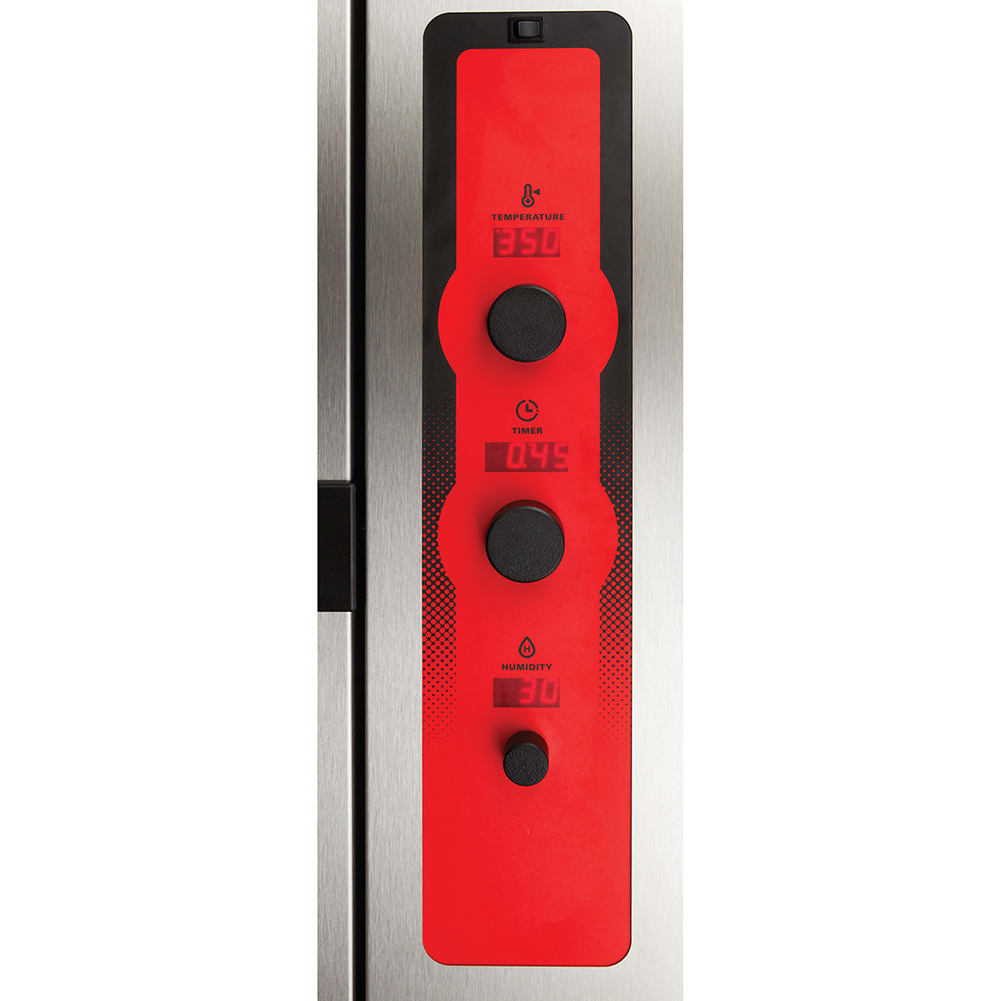

• Temperature, time, and humidity controls are presented in large LED displays
• Visual recall displays humidity and actual temperature LED displays
• Timer reloads after the completion of the timed cycle for batch cooking
• User alerted to finished cooking cycle by audible alarm system and flashing door light
• Capable of finishing, poaching, stewing, low temp, defrosting, and more
• Cooking capability and production optimized by direct steam creation
• Minimal energy and water consumption compared to most standard units

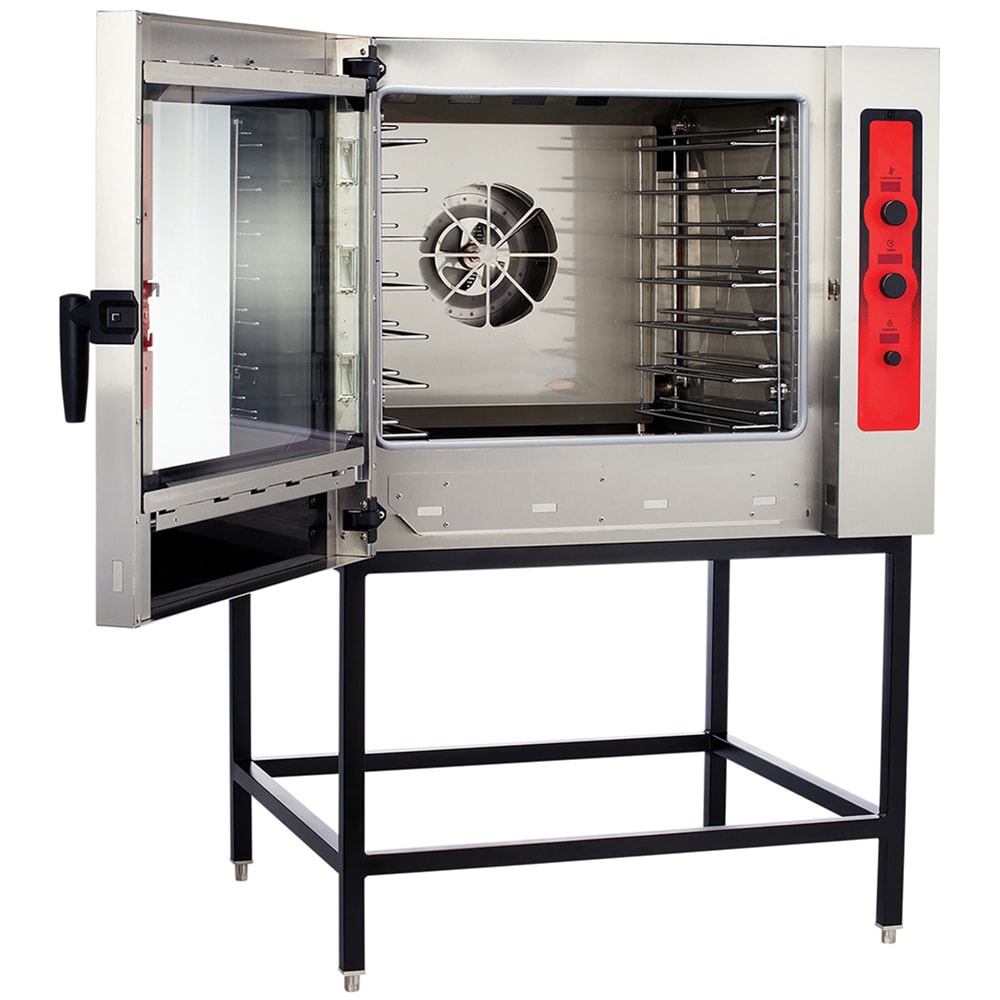

• Fan motor has electrical braking system with auto-reversing fan
• Halogen door light is located behind heat-reflective inner glass
• 4 stainless steel removable racks with 15¹⁄₂-in. x 3¹⁄₄-in. cutout for simple access to pans

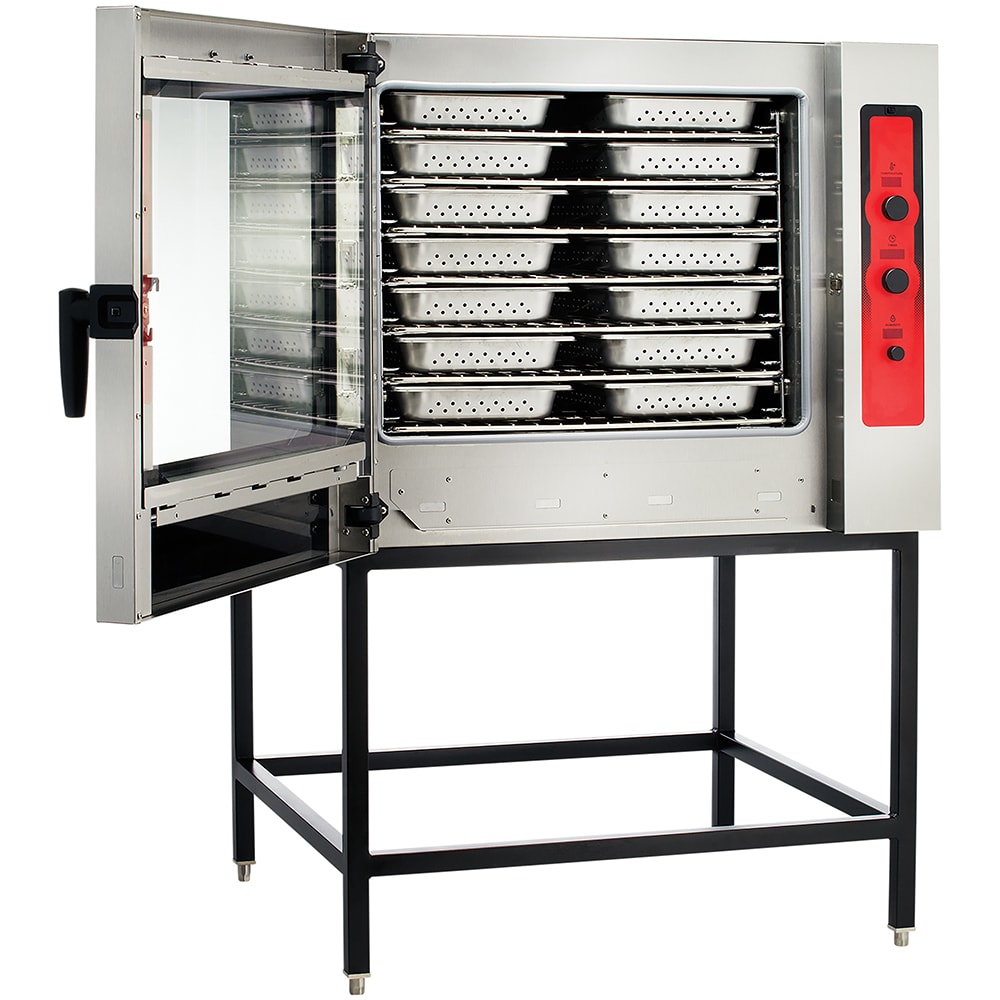

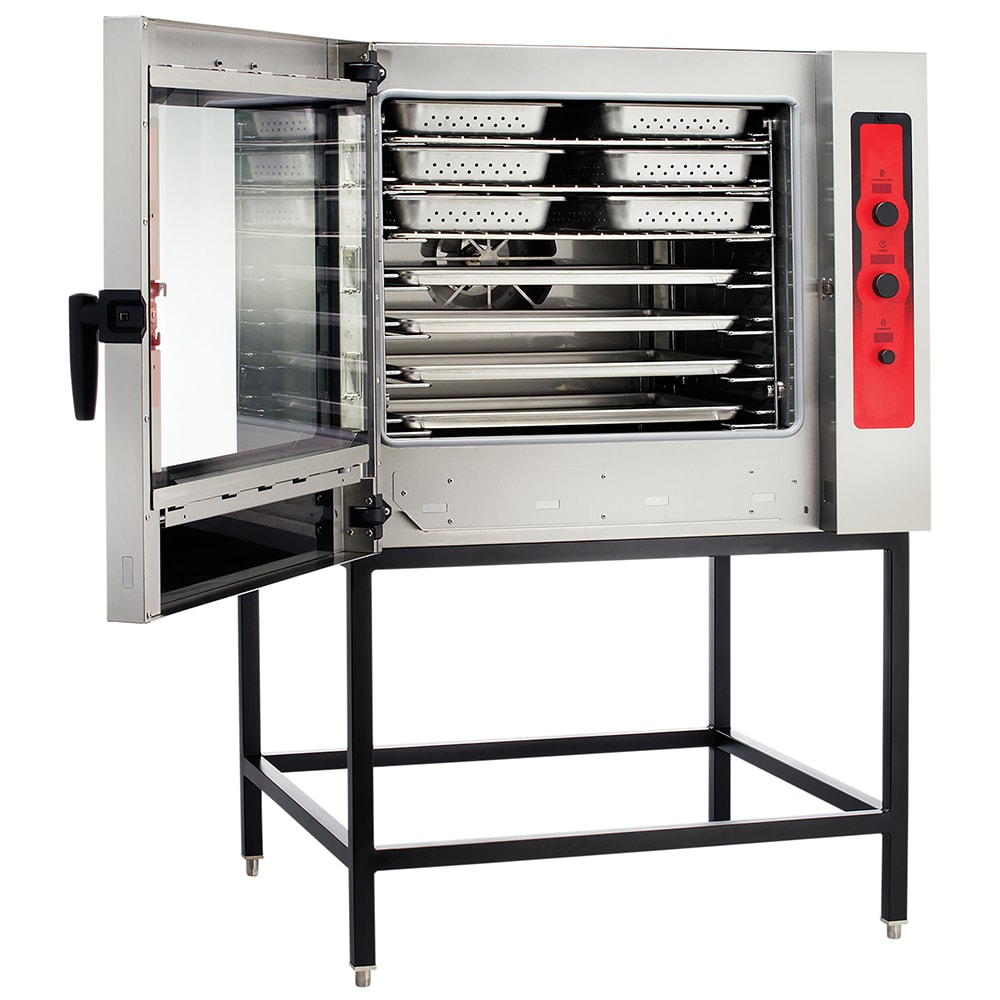

• Can accommodate (14) 12-in. x 20-in. pans or (7) 18-in. x 26-in. pans
• Users can access machine diagnostics through controls or via USB
• Energy-efficient, cool-to-the-touch, heat-reflective door constructed of tempered glass
• Fully insulated, all stainless steel top, cavity, and sides

Dimensions & Utilities

• 42¹/₅ in. W x 43¹/₂ in. D x 35 in. H
• 57.8 A, 24 kW
• 240 V/60 Hz/3 ph

*Free shipping on Vulcan ABC7E-240 within the 48 contiguous states.

From The Manufacturer

Combi Oven/Steamer, electric, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, auto-reversing fan with electronic braking system, cool to touch glass door, flashing door light & audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, engineered & assembled in USA, 240v/60/3ph, UL EPH Classified, cULus

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan ABC7E-240 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
