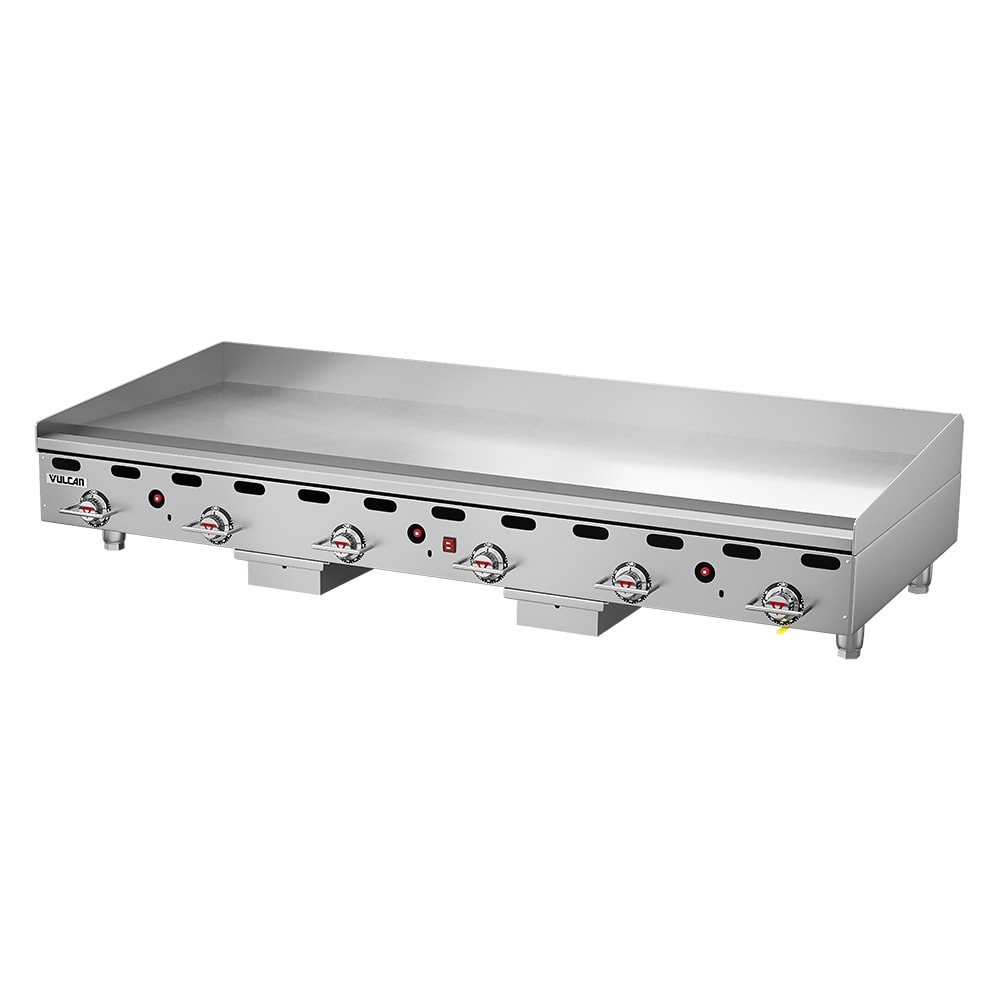

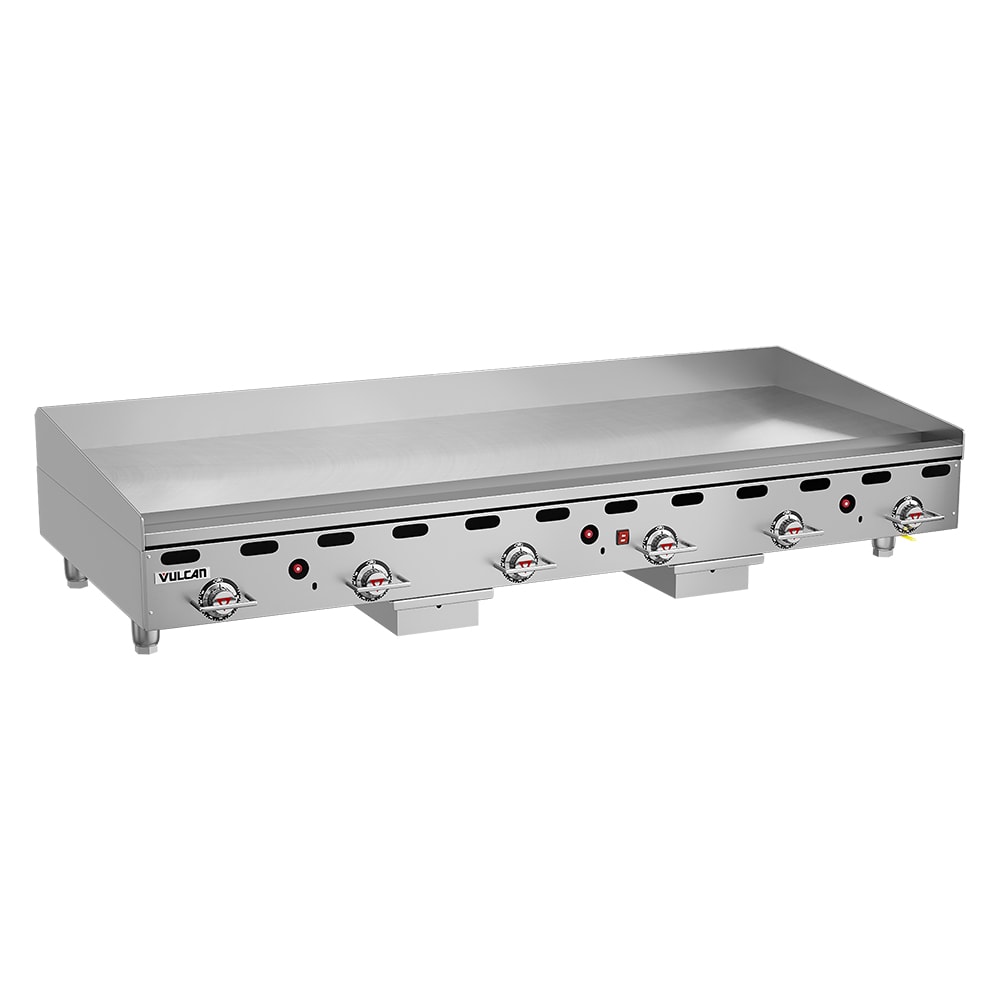

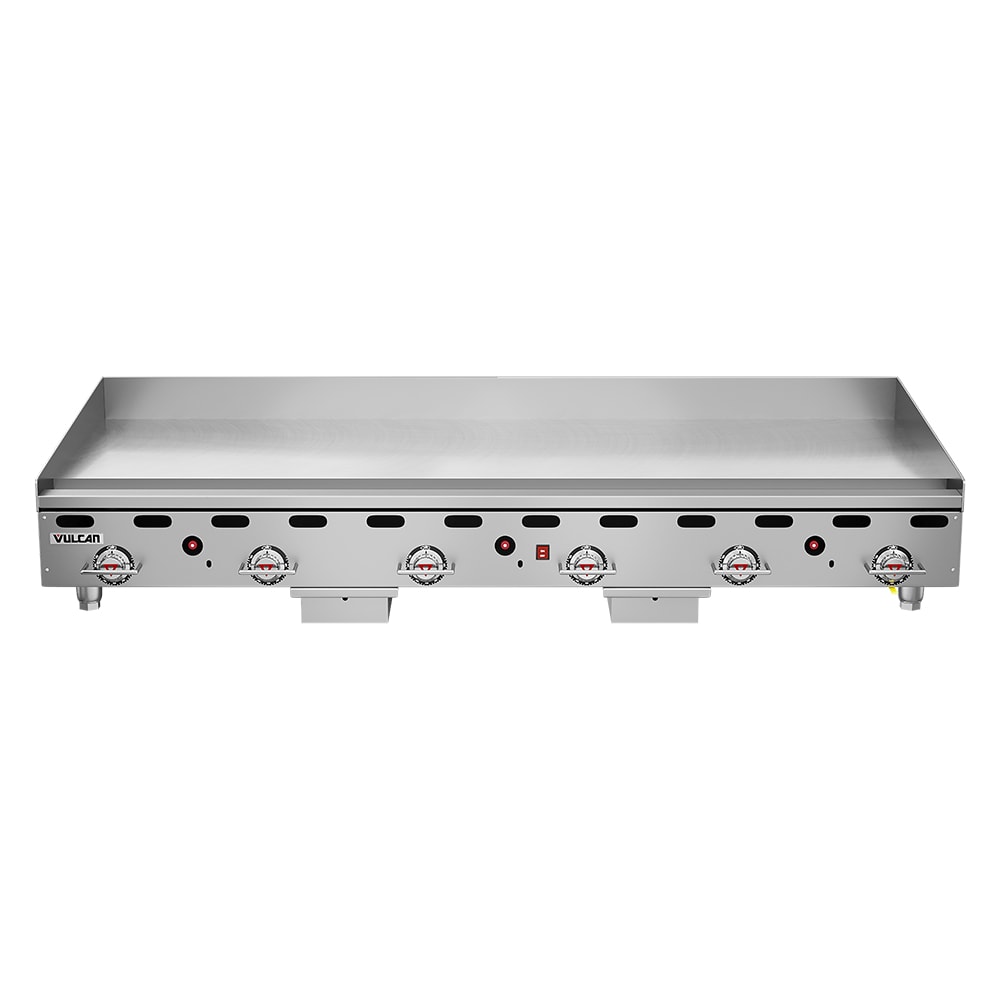

Vulcan 972RX-30 72" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas

Operated manually or with electronic spark, the Vulcan 972RX-30 gas griddle features dual ignition and a manual gas inlet shutoff. If the pilot light goes out, the griddle’s pilot safety valve blocks gas flow to prevent leaks. It has six burners, each of which is controlled separately to provide multiple cook zones. It’s operated with embedded thermostats, each of which is shielded from accidental impact by a chromes knob guard.

To protect nearby surfaces, the Vulcan 972RX-30 countertop gas griddle has built-in bottom heat shields and features a wraparound splash guard with tapered sides. Excess grease from cooking products is collected in a 3¹⁄₂-inch-wide grease gutter and directed into two 6-quart stainless steel drawers for storage. Preventing accidental burns, its bull-nose design stays cool during cooking. Made of polished steel, the griddle surface is 1 inch thick and releases food smoothly to streamline cleaning.

Product Details

• Countertop model
• Sides, front, and front top ledge are stainless steel
• Temperature range: 200-550 degrees F
• 6 U-shaped aluminized steel burners
• Dual electric and manual burner ignition
• If pilot light is extinguished, pilot safety valve stops gas flow
• Individual burner controls enable multiple cook zones
• Manual gas inlet shut-off
• Embedded snap-activated thermostats
• Chrome-finished thermostat knob guards resist corrosion
• Heat-resistant bull-nose design resists heat transfer
• 1-in.-thick, warp-resistant polished griddle plate withstands heavy use
• Splatter guard wraps around back and has tapered sides
• 12-ga. backsplash is 4 in. high
• Grease runoff collected in 3¹⁄₂-in.-wide grease gutter
• Fully welded chute and gutter contain grease to prevent migration
• (2) 6-qt. stainless steel grease drawers extend time between emptying
• Stainless and aluminized steel chassis frame is welded to prevent sagging
• Bottom heat shields on griddle reduce heat transfer
• Low-profile, 11-in. cooking height
• 4-in. adjustable legs
• 162,000 BTU

Dimensions & Utilities

• Cook surface: 72 in. W x 30 in. D
• Overall: 72 in. W x 37¹⁄₂ in. D x 15¹⁄₄ in. H
• 1 A
• 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
• Rear gas connection and pressure regulator: ³⁄₄ in.
• Uses natural gas

*Free shipping on Vulcan 972RX-30 within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 72" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 162,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan 972RX-30 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
