Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

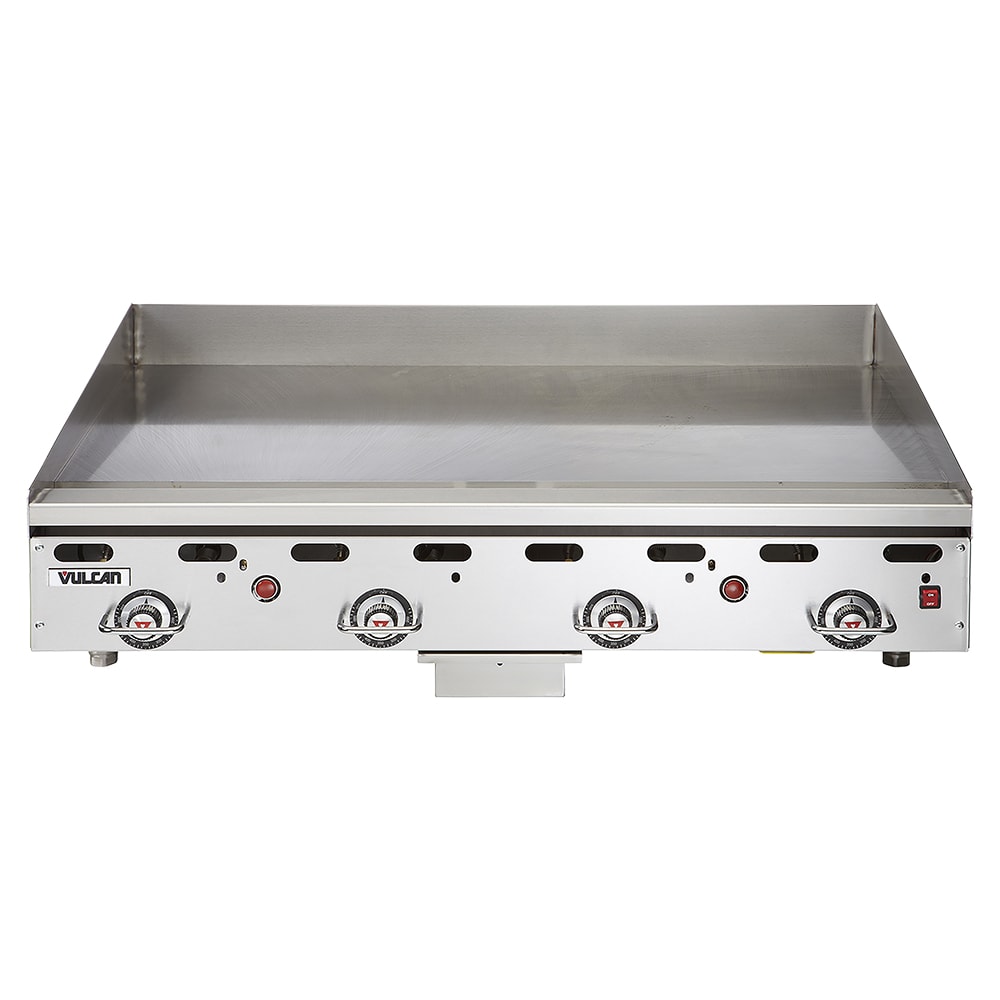

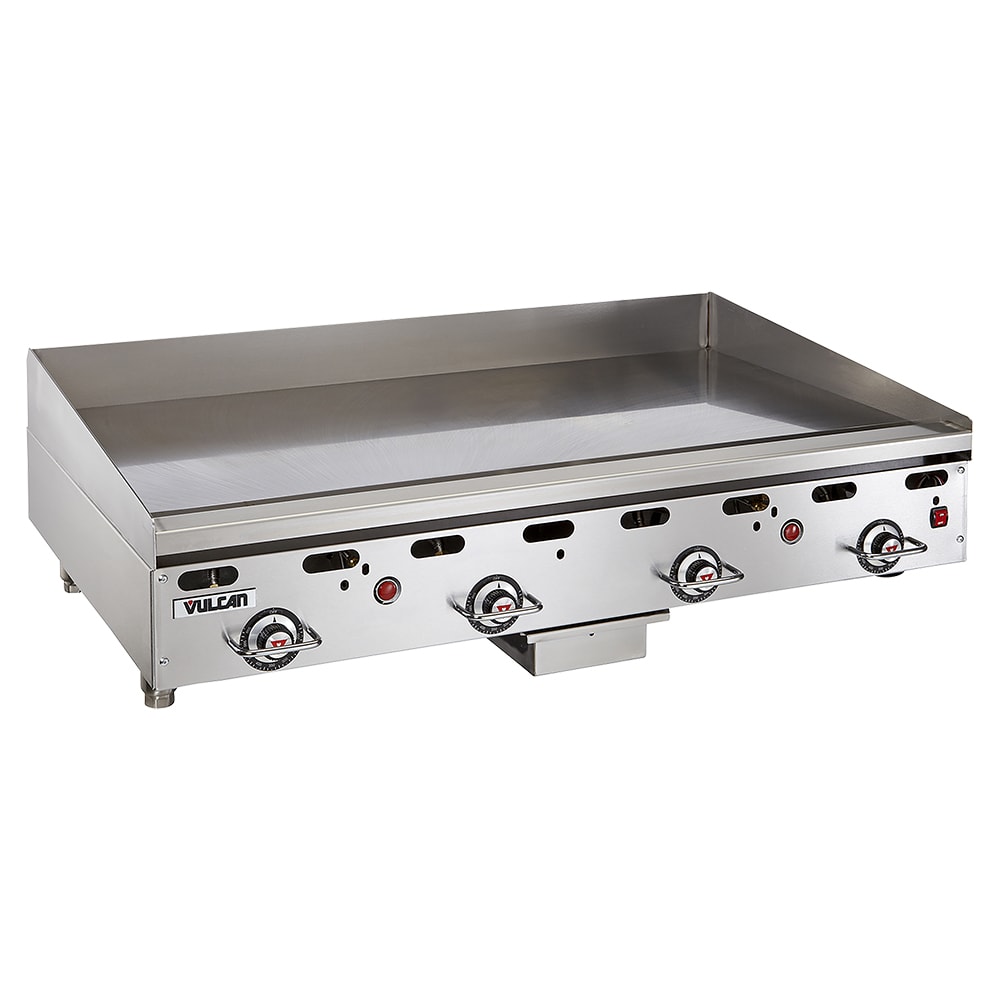

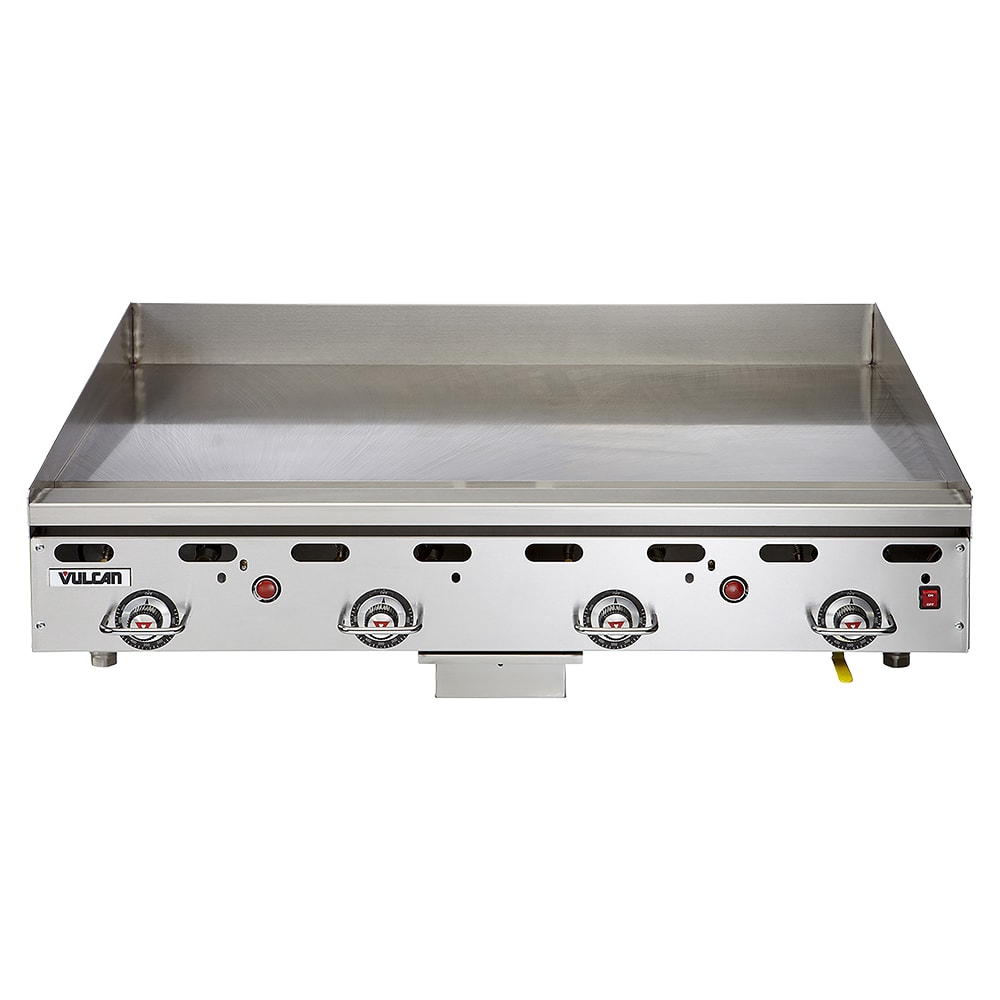

Vulcan 948RX 48" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $27,681.01
$11,395.00 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 948RX Description
The Vulcan 948RX gas griddle features a 1-inch-thick griddle plate that retains heat longer than a thinner plate. Its stainless steel construction can withstand daily use in a commercial kitchen without corroding or being dented and scratched. A burner is positioned every 12 inches inside the plate, delivering consistent heat and cooking power. These burners are controlled by snap-action thermostats, which can be adjusted as needed to achieve the proper levels. With a 48-inch-wide plate, this griddle works great in any high-production kitchen that serves grilled food, such as burgers or breakfast food.
Product Details
- 1-in.-thick steel griddle plate
- (1) U-shaped 27,000-BTU burner every 12 in. for even heat
- Snap-action burner thermostats
- Temperature range: 200-550 degrees F
- 6-qt. grease drawer is stainless steel for quick cleaning and corrosion resistance
- Grease gutter and chute are fully welded
- Dual manual/electric ignition
- Stainless steel front, sides, and front top ledge are durable and scratch resistant
- Fully welded aluminized and stainless steel frame
- Bullnose ledge prevents accidental burns
- Backsplash contains spills
- Manual gas shut-off for safety
- Gas input ratings listed for installation 3,999 ft. above sea level. For higher elevations, call customer care at (800) 541-8683
- 108,000 BTU total
Dimensions & Utilities
- 48 in. W x 311⁄2 in. D x 151⁄4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, cord with a NEMA 5-15P plug
- Uses LP gas
- Gas pressure regulator and rear 3⁄4-in. NPT connection
*Free shipping on Vulcan 948RX within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, liquid propane gas, 48" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 108,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan 948RX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 48 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 535.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
