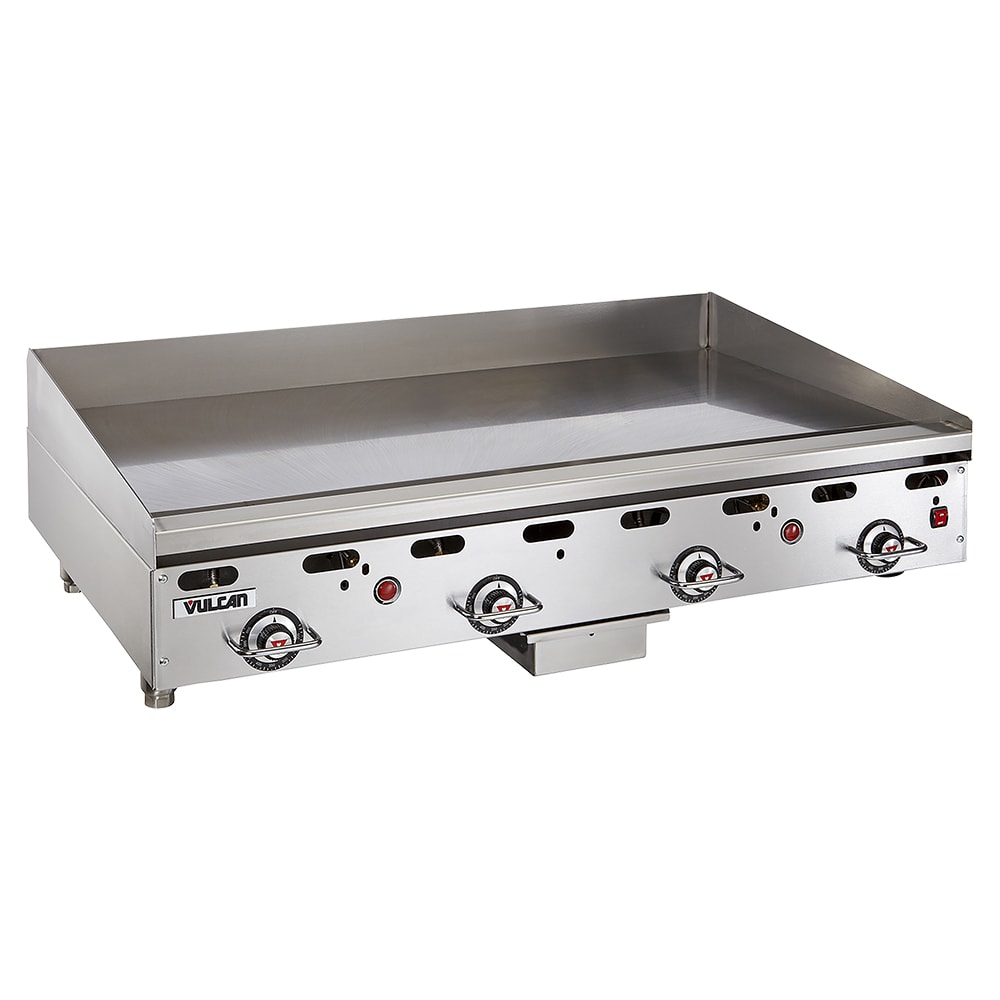

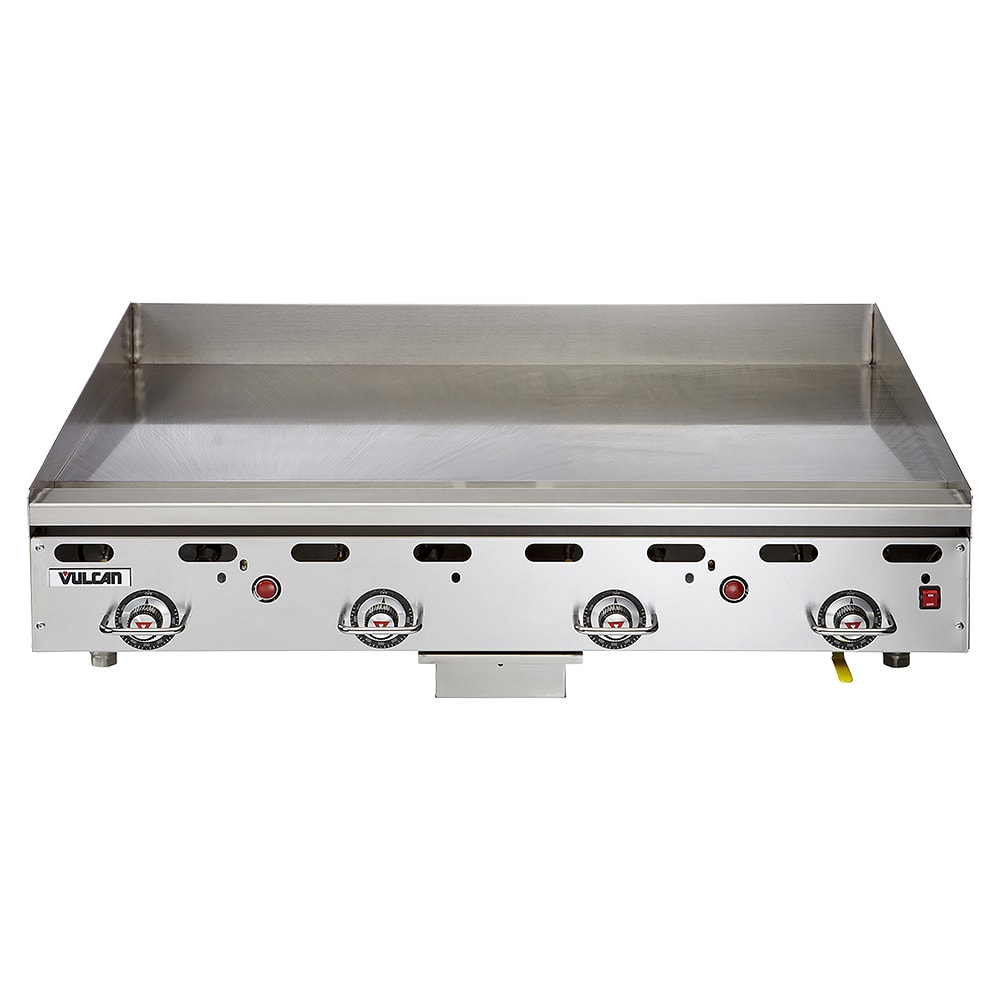

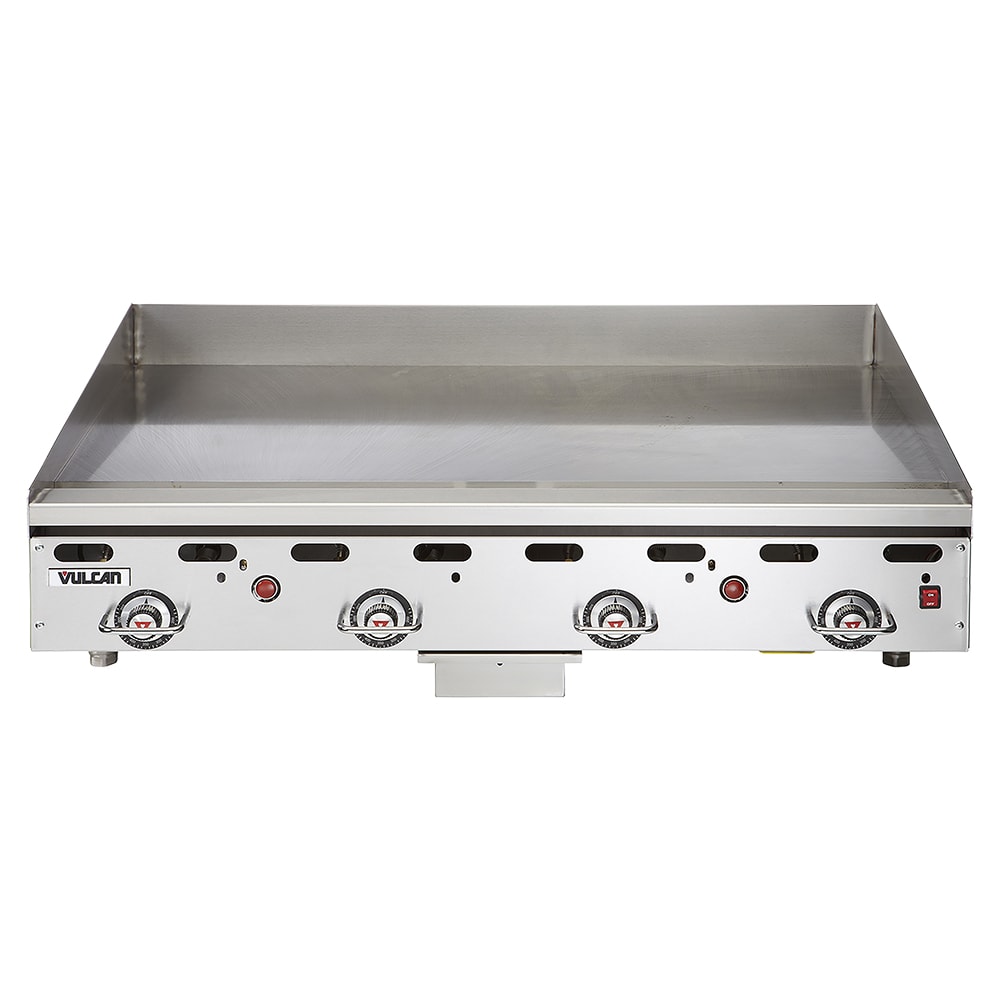

Vulcan 948RX-30 48" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Typically ships in 2 - 3 weeks
Retail Price: $36,938.00
$13,851.69 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Vulcan 948RX-30 Description
With a cook surface that stands just 11 inches high, the Vulcan 948RX-30 gas griddle remains comfortably accessible on most countertops and equipment stands. To ensure stability the griddle rests on four adjustable legs made of rust-resistant stainless steel. The gas inlet shuts off manually, while the pilot safety valve stops the flow of gas if the pilot light goes out to prevent leaks. Protecting counters and tabletops from scorching, heat shields are built into the unit’s bottom.
Operating with four separately controlled burners, the Vulcan 948RX-30 gas griddle can be used to create multiple cook zones so users can prepare a variety of different products. Giving it a smooth surface that reduces sticking and simplifies cleaning, the steel griddle plate is polished. During use, hot grease is channeled through the unit’s 3 1⁄2-inch-wide gutter to be stored in the 6-quart grease drawer. To prevent sagging or warping from heavy use, the stainless and aluminized chassis frame is fully welded for strength.
- Countertop model
- Sides, front, and front top ledge are stainless steel
- Temperature range: 200-550 degrees F
- 4 U-shaped, aluminized steel burners
- Dual electric and manual burner ignition
- Pilot safety valve cuts gas flow to prevent leaks
- Separate cook zones enabled by individually controlled burners
- Manual gas inlet shut-off
- Embedded snap-action thermostats
- Heavy-duty chromed thermostat knob guards withstand high-volume use
- Stay-cool bull-nose design prevents burns
- Cleaning is streamlined by smooth 1-in.-thick polished steel griddle plate
- Wraparound splatter guard protects back and sides from grease splashes
- 12-ga. backsplash is 4 in. high
- 3 1⁄2-in.-wide grease gutter can fit most spatulas
- Leak-resistant chute and gutter are fully welded
- 6-qt. stainless steel drawer catches grease runoff
- Supported by fully welded stainless and aluminized steel chassis frame
- Bottom heat shields prevent countertops from burning
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 108,000 BTU
- Cook surface: 48 in. W x 30 in. D
- Overall: 48 in. W x 37 1⁄2 in. D x 15 1⁄4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3⁄4 in.
- Uses natural gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 948RX-30 within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 48" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 108,000 BTU, CSA, NSF
Vulcan 948RX-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 48 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 48 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 535.00 |
