Vulcan 924RX-30 24" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $23,704.78
$9,758.00 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 924RX-30 Description
Measuring 24 inches wide by 371/2 inches deep by 151/4 inches high, the Vulcan 924RX-30 gas griddle takes up minimal space on a crowded countertop. It has a mechanical snap-action thermostat embedded every 12 inches to provide individual cooking zones. To cook various foods, the temperature can be adjusted from 200 to 550 degrees Fahrenheit. If the pilot light extinguishes, the pilot safety valve shuts off the gas to prevent gas leaks and danger of explosion.

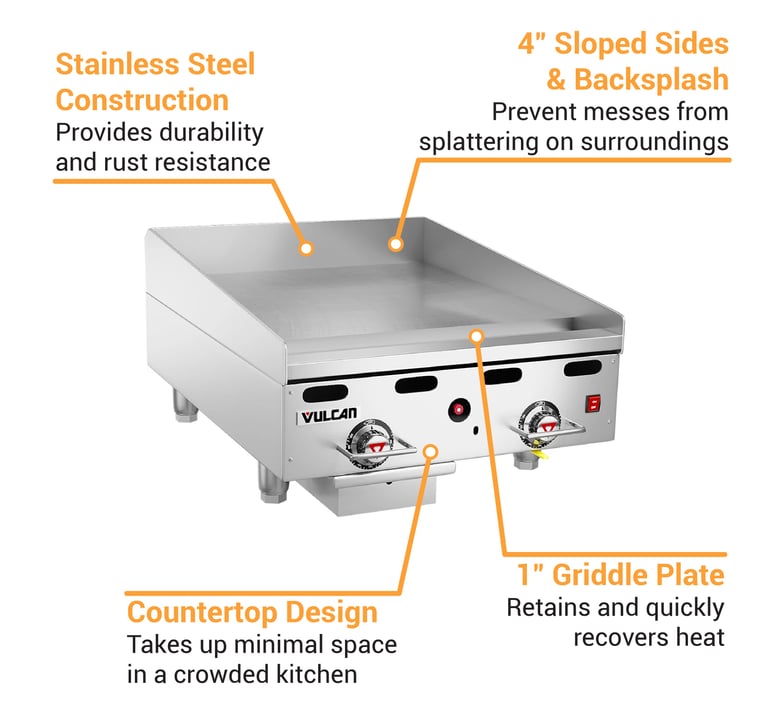

The Vulcan 924RX-30 countertop griddle has a grease trough in the front that holds 6 quarts. It has a 4-inch backsplash as well as tapered side splashes that contain messes, ensuring the wall and surrounding equipment stays clean. To wipe underneath the unit, it's positioned on 4-inch adjustable legs. This unit's griddle plate is 1 inch thick to provide quick recovery times as well as heat retention and uniform cooking.
Product Details
- Polished steel griddle plate is 1 in. thick
- Embedded mechanical snap-action thermostat every 12 in.
- Temperature range: 200-550 degrees F
- Millivolt pilot safety shuts unit off if light extinguishes
- Manual or electric spark ignition
- Front manifold gas shut-off valve
- Countertop design with a low profile
- Bull-nose front protects users from burns
- Stainless steel construction offers rust resistance
- Front grease trough holds 6 qt.
- 4-in. tapered side splashes and backsplash
- Mounted on 4-in. adjustable legs
- 54,000 BTU
Product Features
Dimensions & Utilities
- Cooking surface: 24 in. W x 30 in. D
- Overall: 24 in. W x 371/2 in. D x 151/4 in. H
- Uses natural gas
- 3⁄4-in. rear gas connection
*Free shipping on Vulcan 924RX-30 within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 24" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 54,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan 924RX-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 24 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 270.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
