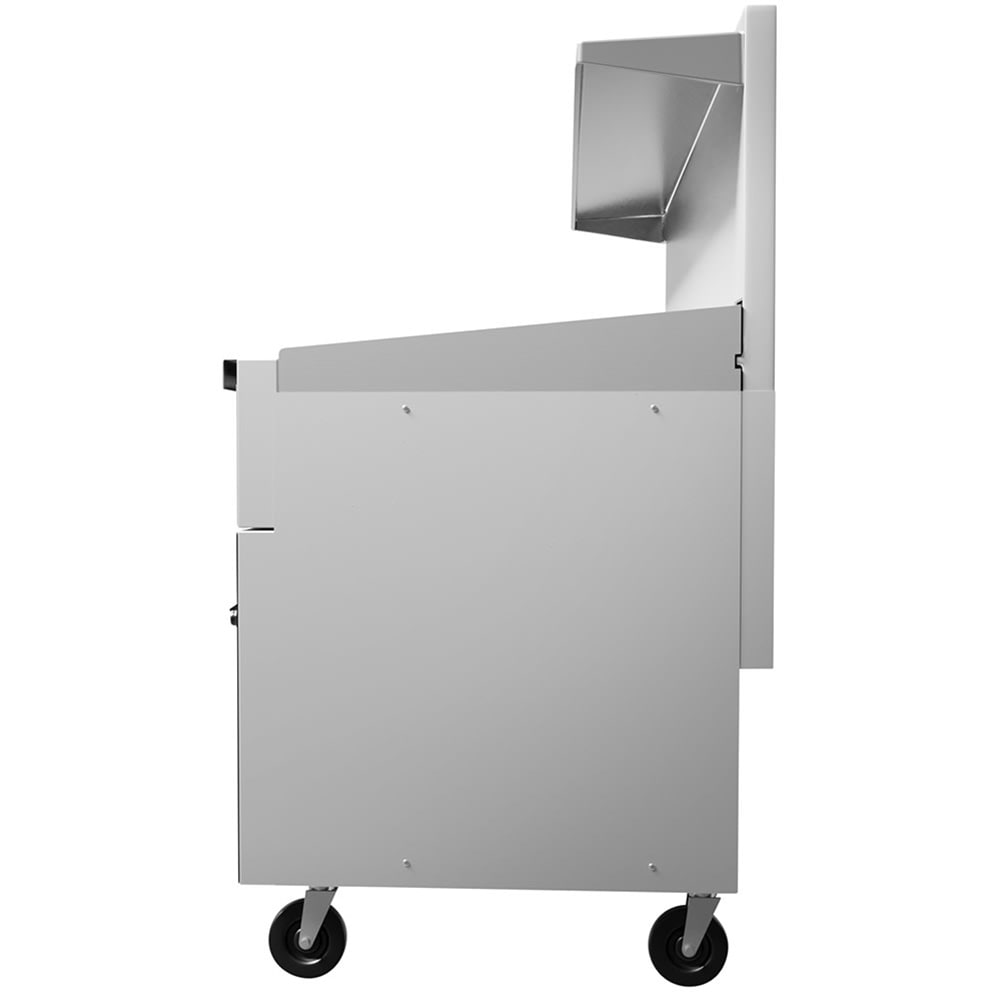

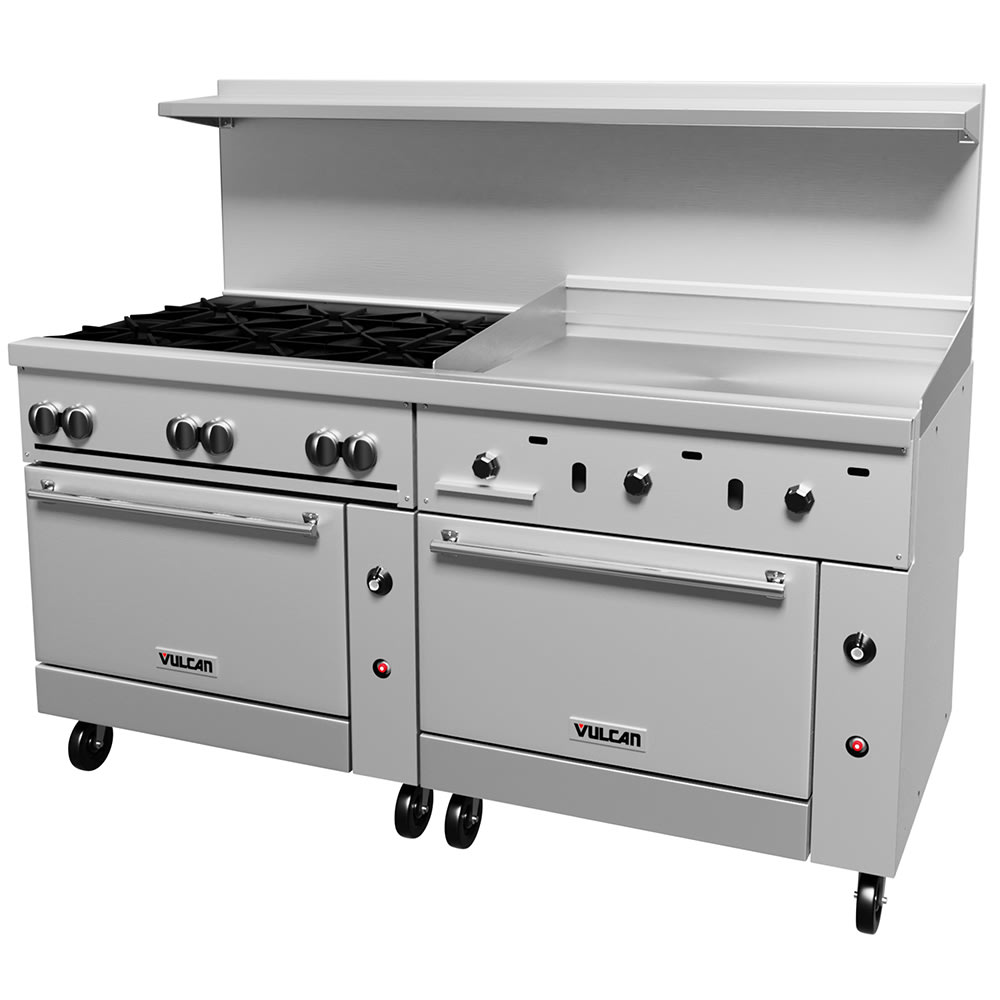

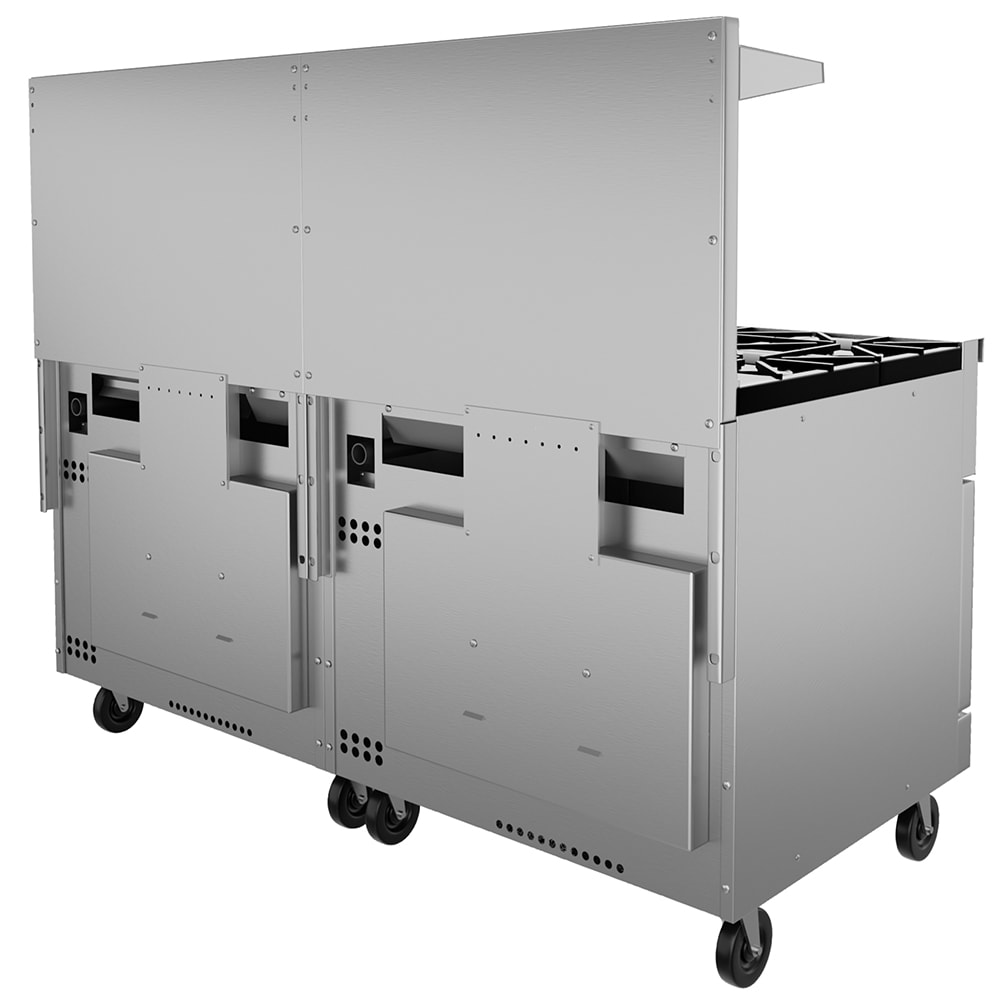

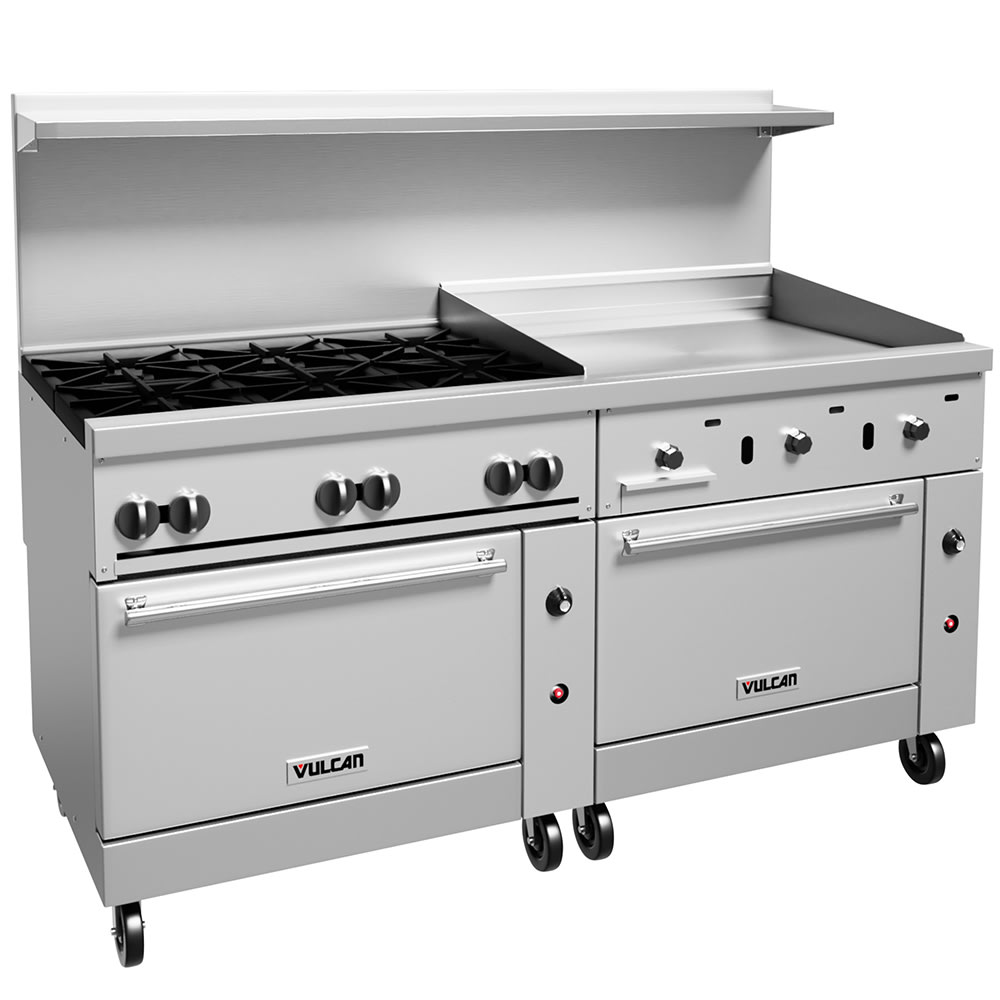

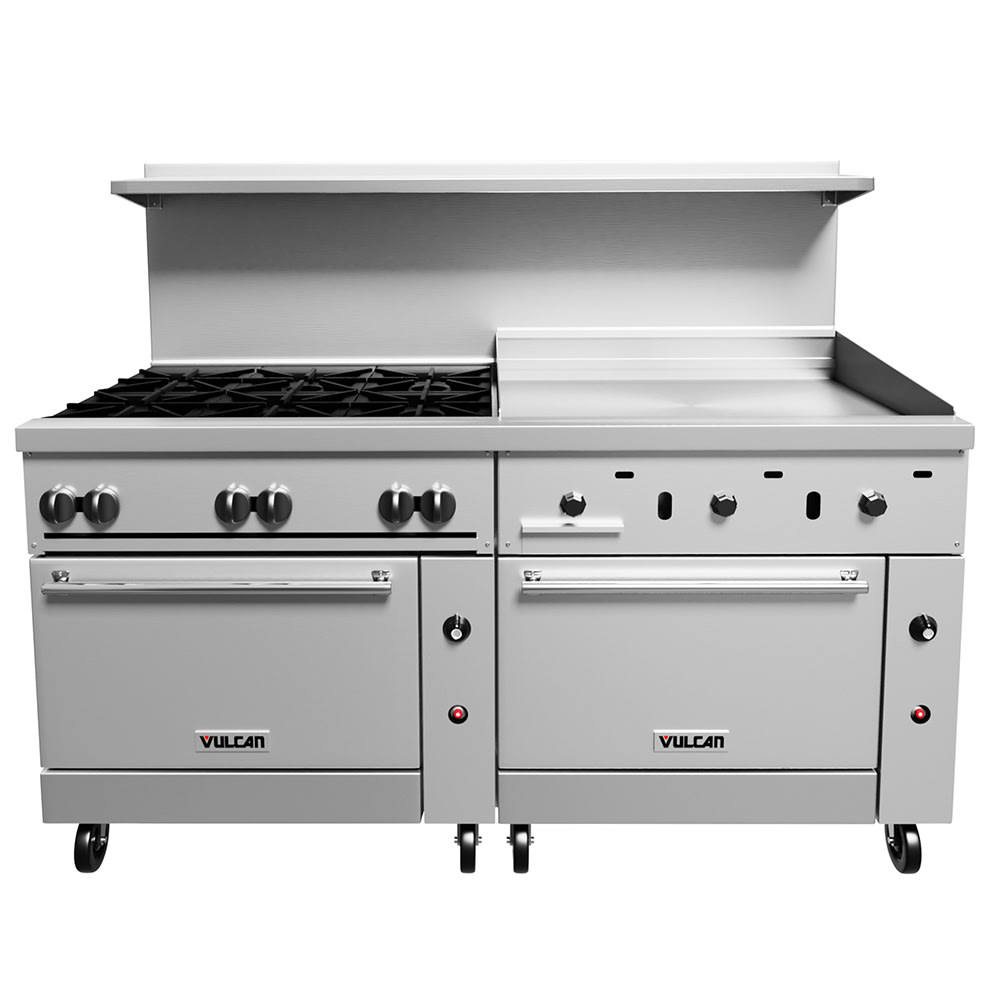

Vulcan 72SS-6B36GT 72" 6 Burner Gas Range w/ Griddle & (2) Standard Ovens, Liquid Propane

Built with six burners, a 36-inch-wide griddle, and two standard ovens, the Vulcan 72SS-6B36GT Endurance™ restaurant range is a space-saving three-in-one piece of equipment. This 72-inch-wide by 34-inch-deep by 58-inch-tall unit's front, sides, backriser, and lift-off high shelf are made of rugged rust- and corrosion-resistant stainless steel, and it features a fully MIG-welded aluminized steel frame for added strength. To ease cleaning, the ovens' door panels and bases are porcelain, the burners feature a pull-out crumb tray, and the griddle has a 4-inch-wide grease trough. This LP-gas-powered unit sits on 6-inch-tall legs that can be raised or lowered depending on the surface.

To boil, saute, fry, or simmer various ingredients, the 72-inch-wide range features six open-top burners on the left side. These burners are built with lift-off cast grates, integrated aeration bowls, and lift-off burner heads, and to minimize gas consumption, two burners are powered by one shrouded flashtube pilot system. Operators can quickly increase or reduce heat with the cool-to-the-touch burner knobs. To accommodate variously sized cookware on a single surface, the rear cast grates measure 12 inches by 14¹⁄₂ inches while the front grates measure 12 inches by 12¹⁄₂ inches. Great for cooking breakfast foods, the right side's 36-inch-wide griddle measures ³⁄₄ of an inch thick. This durable surface endures repeated heating and cooling and warms evenly. For precise temperature adjustment, it features corresponding snap-action thermostatic controls.

The Vulcan 72SS-6B36GT commercial range's base features two standard ovens with 26³⁄₈-inch-wide by 27-inch-deep by 14-inch-tall cavities. These baker's-depth ovens each have two racks that can be raised or lowered in four positions and accommodate full-size pans inserted side to side or front to back. The oven doors feature a hinged spring mechanism that eliminates adjustment, and to protect users from high heat, their handles remain cool to the touch through baking cycles. For simple temperature adjustment, their thermostats feature a low-heat option or can be set from 250 to 500 degrees Fahrenheit.

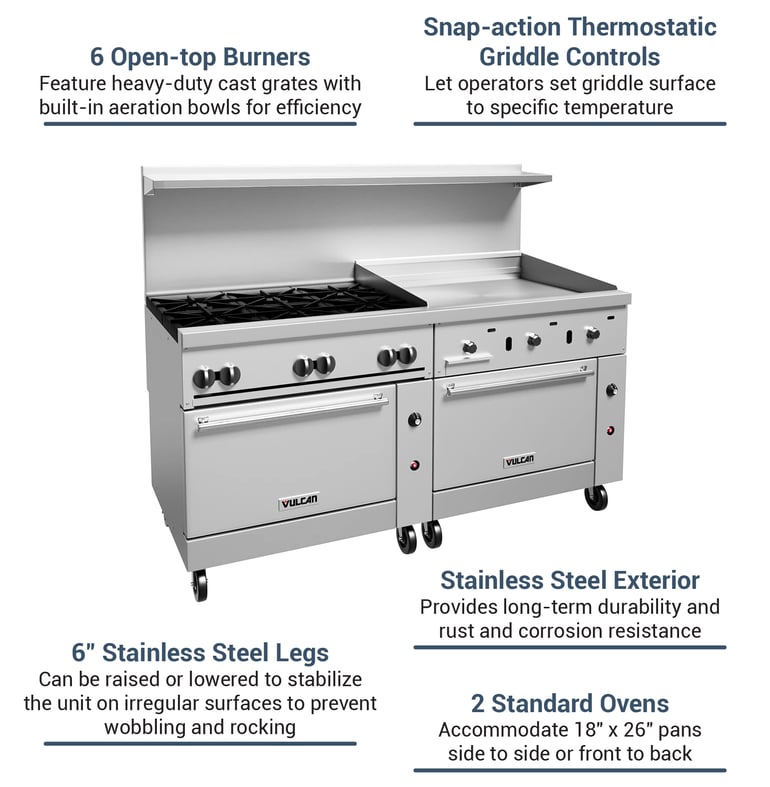

Range Details

• Part of the Endurance collection
• Stainless steel front, sides, backriser, and lift-off high shelf
• Fully MIG-welded aluminized steel frame adds strength
• Left side features (6) 30,000-BTU open-top burners with lift-off heads
• 3 shrouded flashtube pilot ignition systems (1 pilot for every 2 burners)
• 6 heavy-duty lift-off cast grates
• (3) 12- in. x 12¹⁄₂-in. front grates
• (3) 12-in. x 14¹⁄₂-in. rear grates
• Aeration bowls built into each grate
• Cool-to-the-touch burner knobs
• Extra-deep pull-out crumb tray with welded corners
• 36-in.-wide griddle on right side
• ³⁄₄-in.-thick griddle plate
• Precise temperature adjustment with snap-action thermostatic controls
• 4-in.-wide grease trough mounted on front

Oven Details

• (2) 35,000-BTU standard ovens with baker's-depth cavities
• Each oven accepts 18-in. x 26-in. pans side to side or front to back
• Each oven has 2 oven racks with 2 rack guide sets and 4 rack positions
• Operating temperature: 250-500 degrees F
• Low-heat setting
• Porcelain oven bases and door panels can be wiped clean
• 2 hinged oven doors
• Heavy-duty cool-to-the-touch oven door handles
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Standard oven interiors: (2) 26³⁄₈ in. W x 27 in. D x 14 in. H
• Overall: 72 in. W x 34 in. D x 58 in. H
• Powered by LP gas
• 1-in. rear gas connection
• 310,000 BTU

Product Features

*Free shipping on Vulcan 72SS-6B36GT within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 72", (6) 30,000 BTU burners with lift-off burner heads, (1) 36" thermostatic griddle, 3/4" thick, 4" wide front grease trough, (2) standard oven bases, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 310,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SS-6B36GT Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
