Vulcan 72SS-6B36G 72" 6 Burner Gas Range w/ Griddle & (2) Standard Ovens, Natural Gas

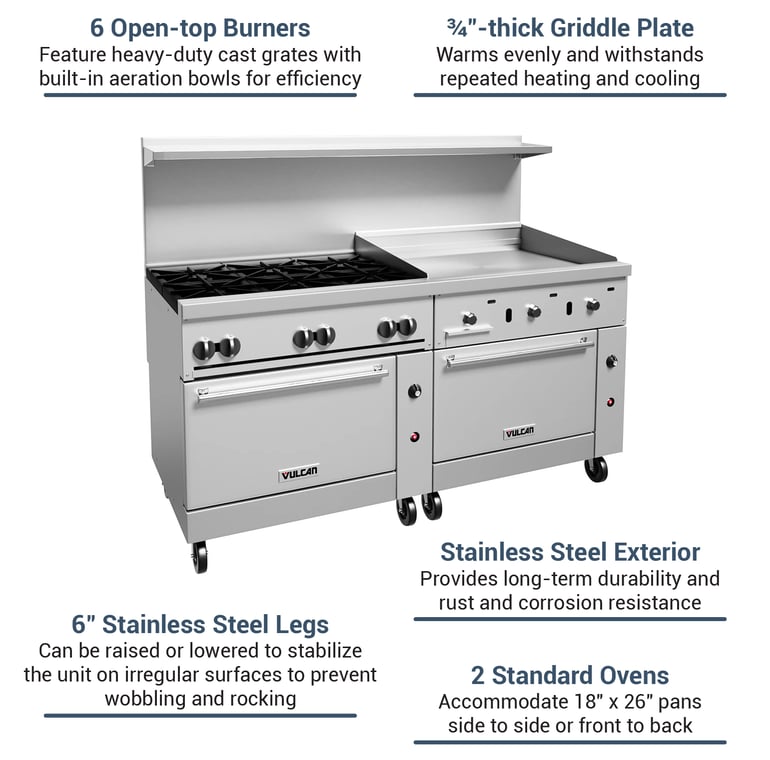

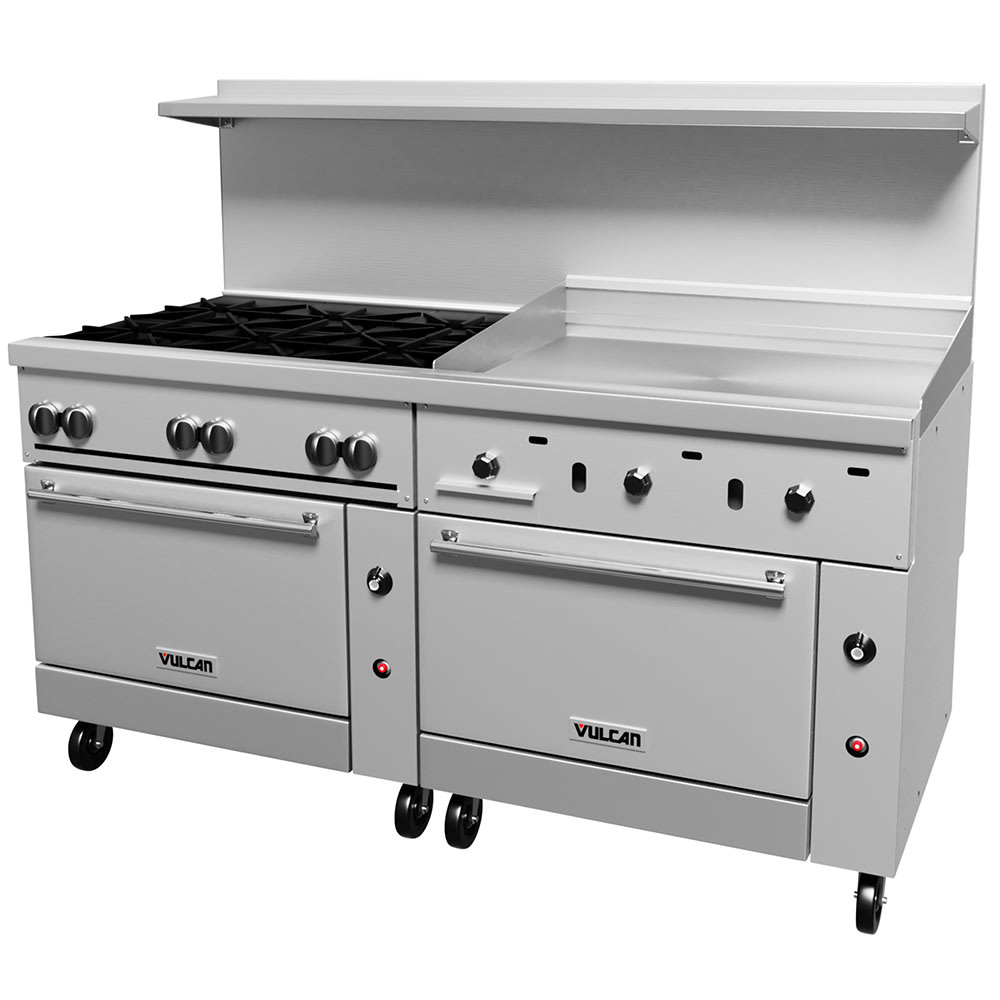

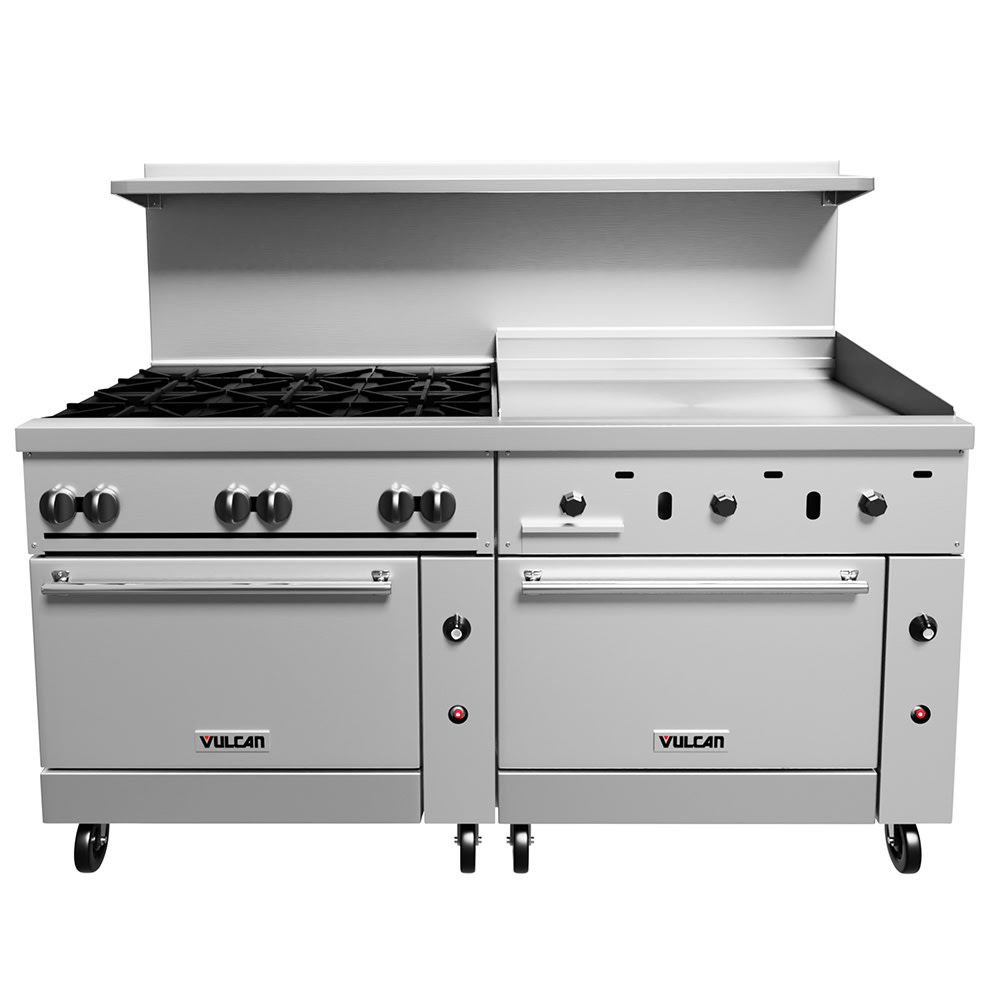

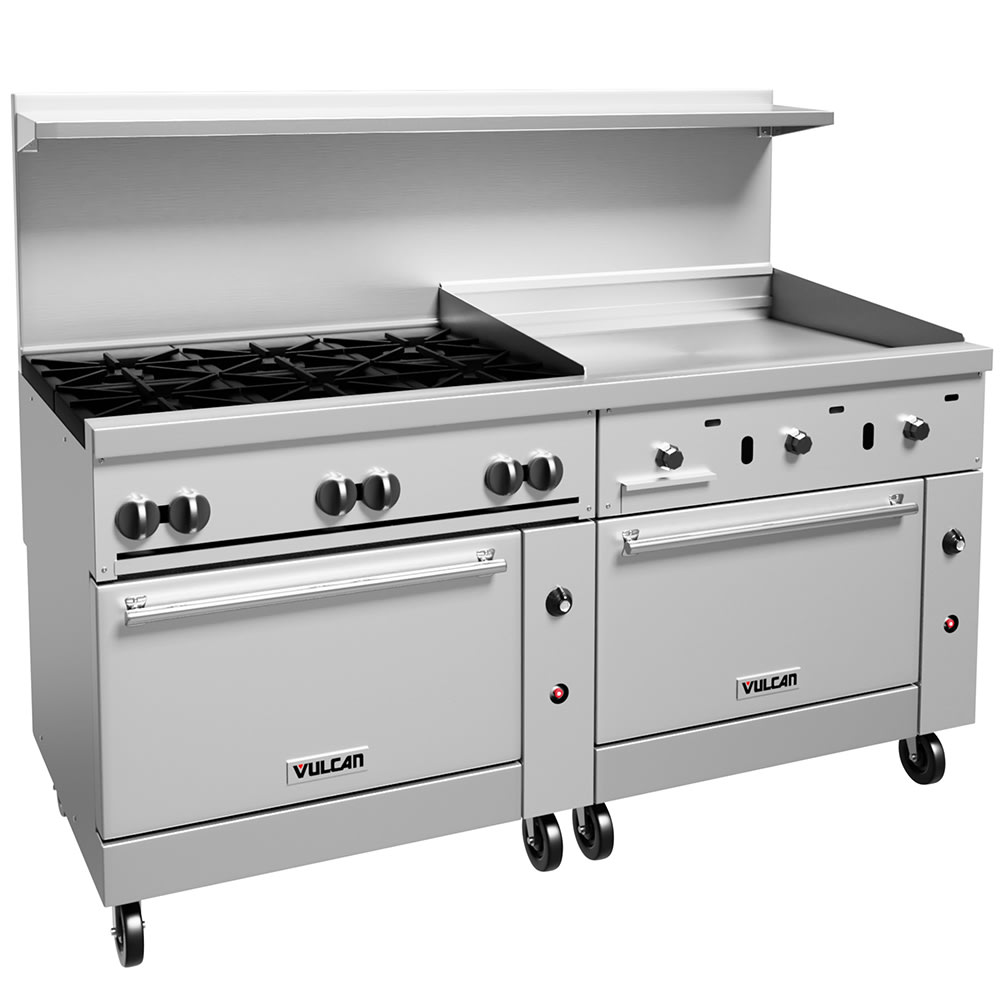

The Vulcan 72SS-6B36G Endurance™ restaurant range is a 310,000-BTU burner powered by natural gas. This 72-inch-wide by 34-inch-deep by 58-inch-tall unit features six burners on its left side, a 36-inch-wide griddle on its right side, and two standard base ovens. Built to last in demanding commercial kitchens, its front, sides, backriser, and high lift-off shelf are made of durable rust- and corrosion-resistant stainless steel, while its fully MIG-welded frame is aluminized steel. To enhance user safety, the burner knobs are made of a high-temperature-resistant material, and the oven door handles remain cool to the touch. With its pull-out crumb tray, 4-inch-wide grease trough, and porcelain oven door panels and bases, this unit is simple to clean. For stability during use, it's mounted on adjustable 6-inch-tall stainless steel legs.

The range's six burners are powered by three shrouded flashtube pilot systems to conserve energy. Each burner features a lift-off cast grate, built-in aeration bowl, and corresponding burner knob for simple temperature adjustment. The three front grates measure 12 inches by 12¹⁄₂ inches to accommodate small or medium cookware, while the three rear grates are 12 inches by 14¹⁄₂ inches to support large cookware. The griddle's ³⁄₄-inch-thick plate withstands high-volume heating and cooling, and to save time reheating, it retains heat after use. Operators can easily adjust the griddle's surface temperature with the manual controls.

The Vulcan 72SS-6B36G commercial gas range's two standard ovens both feature 26³⁄₈-inch-wide by 27-inch-deep by 14-inch-tall interiors to accommodate full-size 18-inch by 26-inch food pans. Each oven includes two rack guide sets that facilitate placement in four different positions. Operators can simply access the interiors by opening the hinged doors, and to accommodate dishes with varying baking needs, the thermostats can be set from 250 to 500 degrees Fahrenheit or at a low-heat setting.

Range Details

• Part of Vulcan's Endurance line
• Stainless steel front, sides, backriser, and lift-off high shelf
• Fully MIG-welded aluminized steel frame
• (6) 30,000-BTU open-top burners with lift-off heads on left side
• 3 shrouded flashtube pilot ignition systems (1 system per 2 burners)
• 6 heavy-duty lift-off cast grates
• (3) 12- in. x 12¹⁄₂-in. front grates
• (3) 12-in. x 14¹⁄₂-in. rear grates
• Efficient built-in aeration bowls
• Cool-to-the-touch burner knobs
• Extra-deep pull-out crumb tray featuring welded corners
• 36-in.-wide griddle on right side
• ³⁄₄-in.-thick griddle plate
• Manual controls
• 4-in.-wide grease trough mounted on front

Oven Details

• (2) 35,000-BTU standard ovens with baker's-depth cavities
• Each oven accepts 18-in. x 26-in. pans inserted side to side or front to back
• Each oven has 2 oven racks with 2 rack guide sets and 4 rack positions
• Operating temperature: 250-500 degrees F
• Low setting
• Simple-to-clean porcelain oven bases and door panels
• 2 hinged oven doors with heavy-duty cool-to-the-touch oven door handles
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Standard oven interiors: (2) 26³⁄₈ in. W x 27 in. D x 14 in. H
• Overall: 72 in. W x 34 in. D x 58 in. H
• Powered by natural gas
• 1-in. rear gas connection
• 310,000 BTU

Product Features

*Free shipping on Vulcan 72SS-6B36G within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (6) 30,000 BTU burners with lift-off burner heads, (1) 36" manual griddle, 3/4" thick, 4" wide front grease trough, (2) standard oven bases, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 310,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SS-6B36G Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
