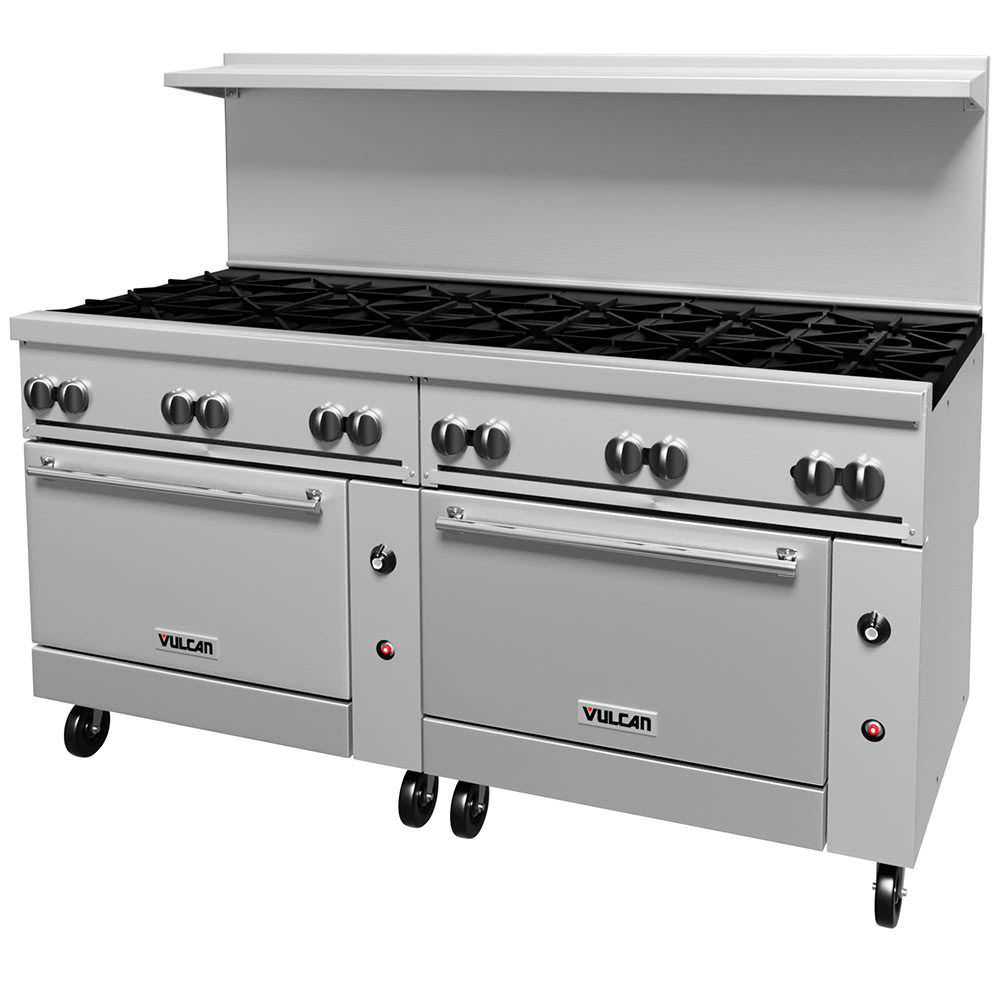

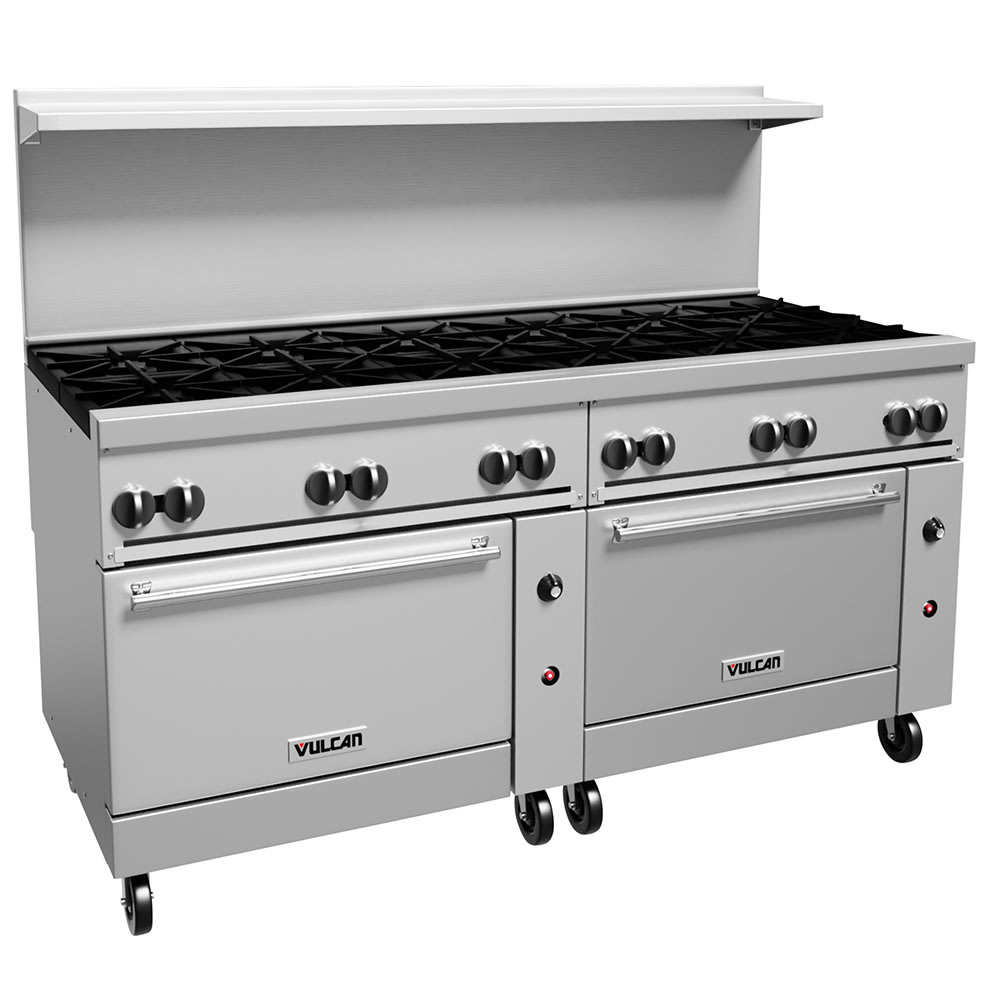

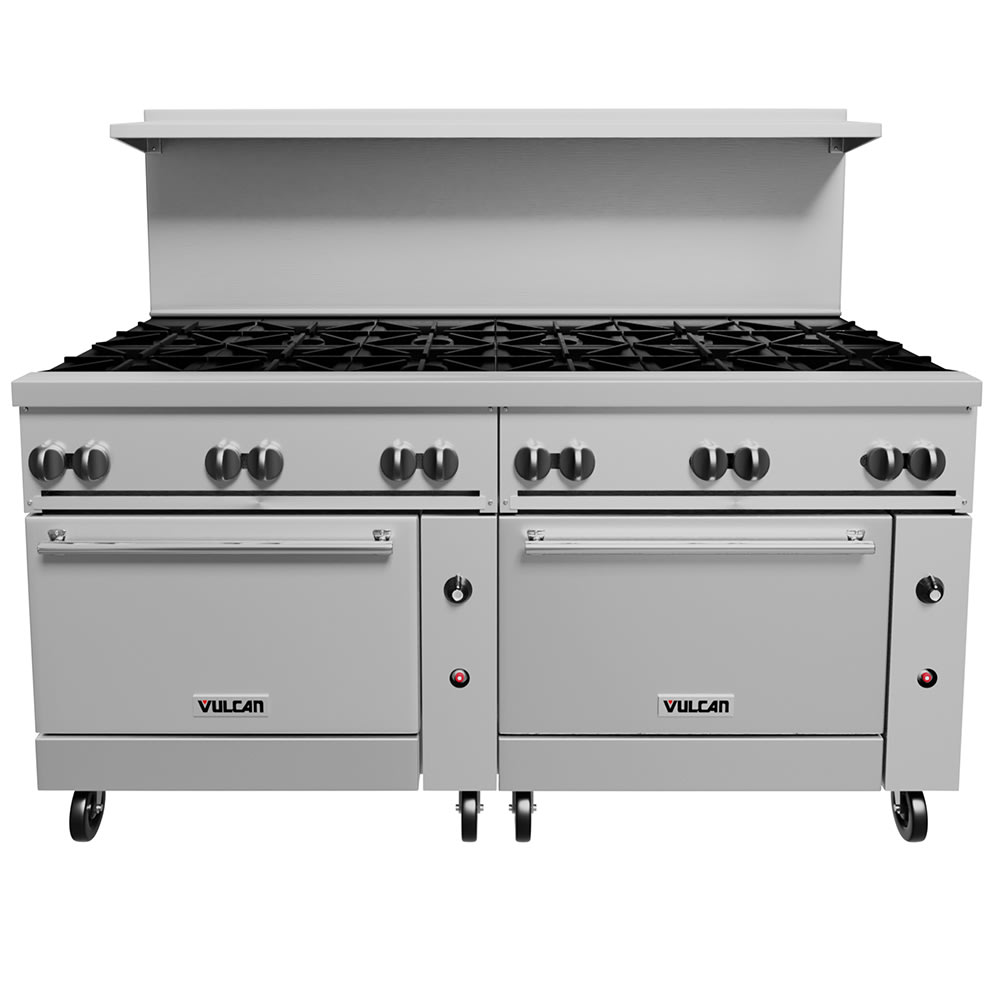

Vulcan 72SS-12B 72" 12 Burner Gas Range w/ (2) Standard Ovens, Natural Gas

To maximize space for steaming, boiling, frying, searing, simmering, or sauteing various ingredients, the Vulcan 72SS-12B Endurance™ restaurant range is built with (12) 30,000-BTU open-top burners. One shrouded flashtube pilot system powers two burners, meaning this unit features six pilot systems. While the six front burners feature heavy-duty lift-off grates measuring 12 inches by 12¹⁄₂ inches, the six rear burners are built with 12-inch by 14¹⁄₂-inch lift-off grates so it can fit stock pots, sauce pans, and other large cookware. Staff members can adjust each burner's heat with the corresponding burner knobs that remain cool to the touch through operation, and for quick cleanup, the extra-deep crumb tray can be pulled out.

The base features two standard ovens to simultaneously cook products with different baking requirements. Both baker's-depth oven cavities measure 26³⁄₈ inches wide by 27 inches deep by 14 inches high and include two racks, two rack guide sets, and four rack positions. Full-size pans can be inserted side to side or front to back for flexibility. To ease pan insertion and removal, their doors feature a spring mechanism that doesn't require adjustment, while their handles remain cool during baking cycles. So users can clean the ovens' interiors with ease, the bases and door panels are made of porcelain. Both ovens' thermostats range from 250 to 500 degrees Fahrenheit and include a low-heat setting.

The Vulcan 72SS-12B commercial gas range is powered by natural gas, outputs 430,000 BTUs per hour and has a 1-inch rear gas connection. To modify incoming gas flow, it includes a pressure regulator. This 72-inch-wide by 34-inch-deep by 58-inch-tall unit rests on 6-inch legs that can be raised or lowered to level the unit on sloped or irregular flooring, reducing the risk of its body wobbling as cookware is loaded into the oven or placed on the stovetop. To prolong service through high-volume use, its front, sides, backriser, and lift-off shelf are made of rust- and corrosion-resistant stainless steel, while its aluminized steel frame is fully MIG welded for enhanced strength.

Range Details

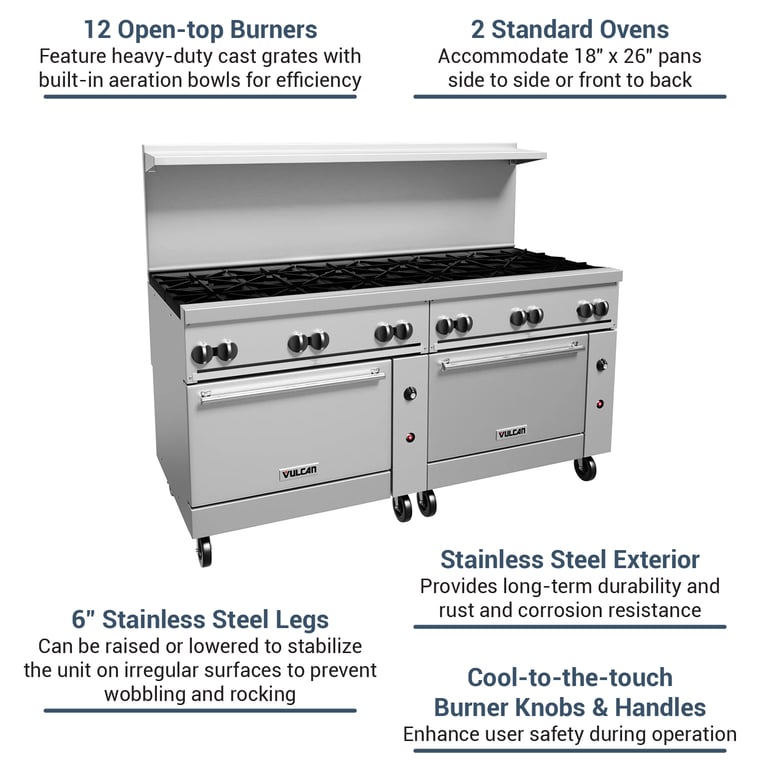

• Part of Vulcan's Endurance series
• Stainless steel front, sides, backriser, and lift-off high shelf
• Fully MIG-welded aluminized steel frame
• (12) 30,000-BTU open-top burners with lift-off heads
• 6 shrouded flashtube pilot ignition systems (1 system per 2 burners)
• 12 heavy-duty lift-off cast grates with aeration bowls
• (6) 12- in. x 12¹⁄₂-in. front grates
• (6) 12-in. x 14¹⁄₂-in. rear grates
• Cool-to-the-touch burner knobs
• Extra-deep pull-out crumb tray features welded corners

Oven Details

• (2) 35,000-BTU standard ovens with baker's-depth cavities
• Each oven accommodates 18-in. x 26-in. pans side to side or front to back
• 2 oven racks with 2 rack guide sets and 4 rack positions per oven
• Operating temperature: 250-500 degrees F
• Low setting
• Simple-to-clean porcelain oven bases and door panels
• 2 hinged oven doors with heavy-duty cool-to-the-touch oven door handles
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Standard oven interiors: (2) 26³⁄₈ in. W x 27 in. D x 14 in. H
• Overall: 72 in. W x 34 in. D x 58 in. H
• Powered by natural gas
• 1-in. rear gas connection
• 430,000 BTU

Product Features

*Free shipping on Vulcan 72SS-12B within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (12) 30,000 BTU burners with lift-off burner heads, (2) standard oven bases, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 430,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SS-12B Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
