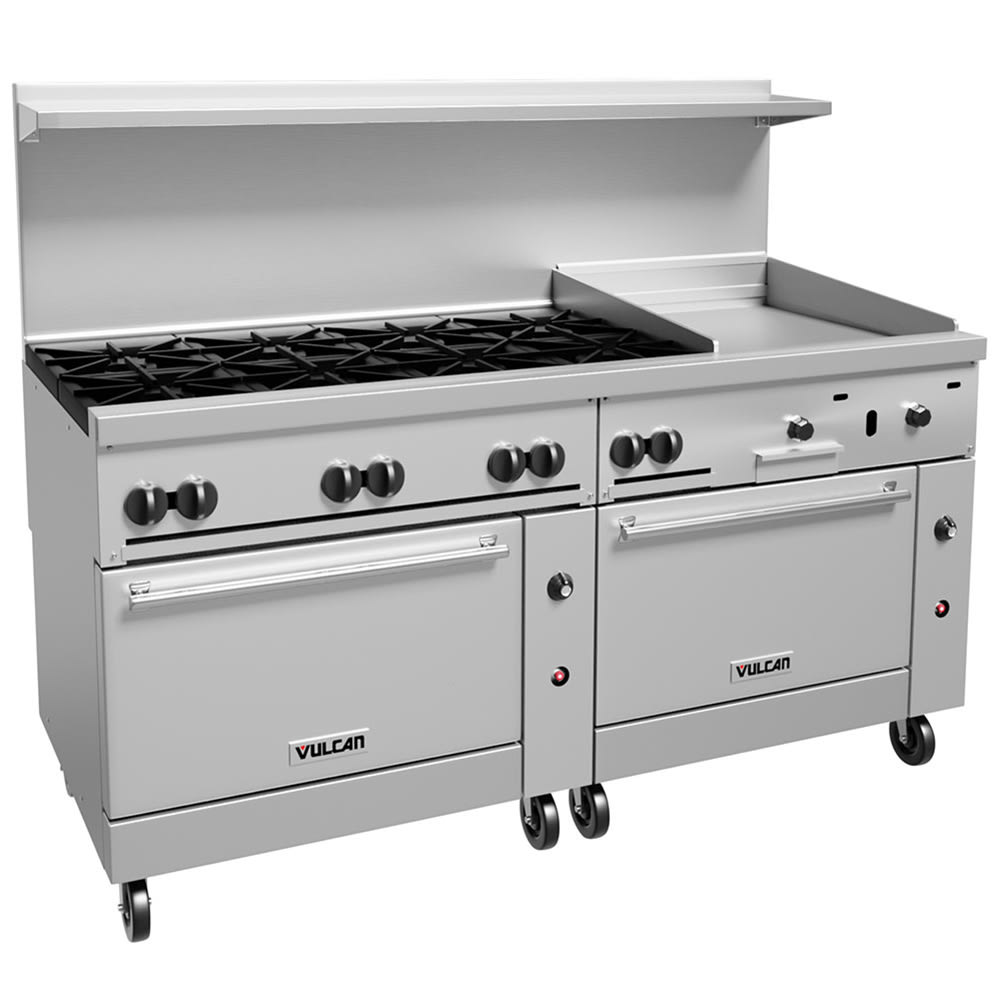

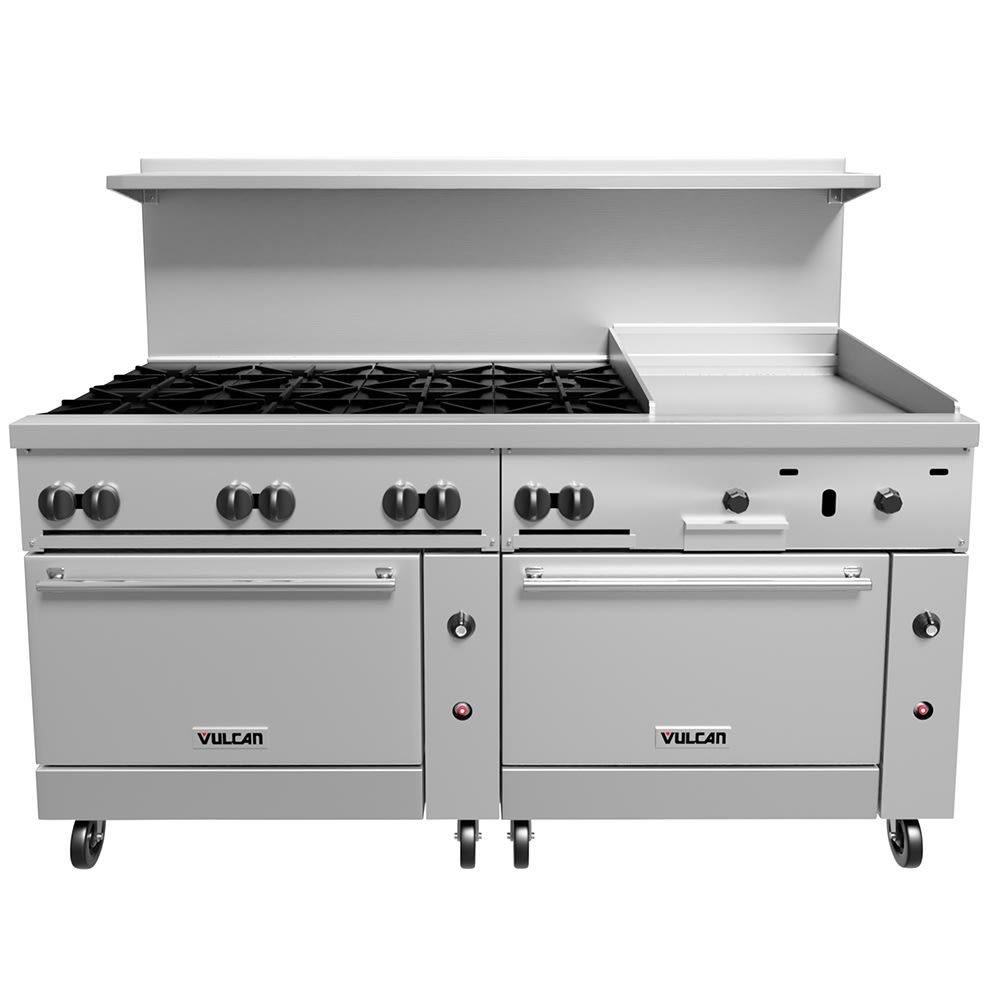

Vulcan 72SC-8B24GT 72" 8 Burner Gas Range w/ Griddle, (1) Standard Oven, & (1) Convection Oven, Natural Gas

Constructed of stainless steel, the 72-inch 72SC-8B24GT gas range with griddle offers durability in high-heat kitchens. Its layout includes eight 30,000-BTU open burners and a 24-inch, ³⁄₄-inch-thick manual griddle with a 4-inch grease trough. Designed for flexibility, this unit also includes a convection oven and a standard oven. Total input is rated at 350,000 BTU.

The fully MIG welded frame adds strength beneath the heavy-duty cast grates and porcelain oven interior. Oven thermostat settings range from 250 to 500 degrees Fahrenheit. Each oven accommodates full-size pans, and the convection oven includes a plug-in blower motor. The Vulcan 72SC-8B24GT gas range with griddle also includes an extra-deep crumb tray and cool-touch oven door handles.

Product Details

• Endurance™ series
• Stainless steel front, sides, backriser, and high shelf
• Fully MIG welded frame
• 350,000-BTU total output
• (8) 30,000-BTU open burners with lift-off heads
• 24-in. griddle with ³⁄₄-in. thickness and 4-in. front grease trough
• Thermostatic burner controls
• Shrouded flash tube pilot system—1 pilot per 2 burners
• Extra-deep pull-out crumb tray with welded corners
• Cool-touch oven door handles
• 6-in. adjustable stainless steel legs

Standard Oven

• 35,000 BTU baker's depth oven
• Interior dimensions: 27 in. D x 26³⁄₈ in. W x 14 in. H
• Accommodates full-size pans side-to-side or front-to-back
• Thermostat adjustable from 250 to 500 degrees F
• Porcelain oven bottom and door panel
• Includes 2 oven racks and 4 rack positions

Convection Oven

• 35,000 BTU convection oven replaces standard oven (right side)
• Interior dimensions: 24 in. D x 26³⁄₈ in. W x 13⁷⁄₈ in. H
• Accepts full-size sheet pans side-to-side
• Includes 3 oven racks
• Blower motor: 115 V/1 ph, 4 A, with 6-ft. cord and plug
• Field attachment required for convection motor

Dimensions & Utilities

• Gas type: Natural
• Overall dimensions: 72 in. W x 41 in. D x 58 in. H
• Electrical (convection motor): 115 V/1 ph, 4 A, 6-ft. cord with NEMA 6-20P plug

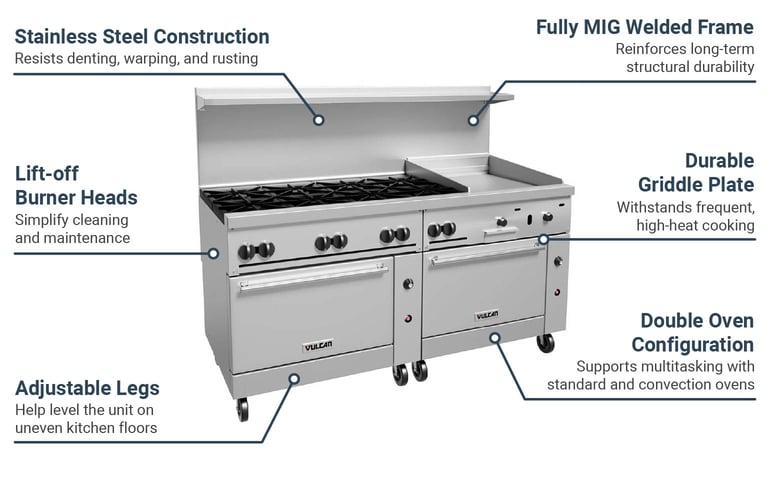

Product Features

*Free shipping on Vulcan 72SC-8B24GT within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (8) 30,000 BTU burners with lift-off burner heads, (1) 24" x 3/4" thick griddle, thermostatic controls, 4" wide front grease trough, (1) standard oven (left), (1) convection oven (right), stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 350,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SC-8B24GT Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
