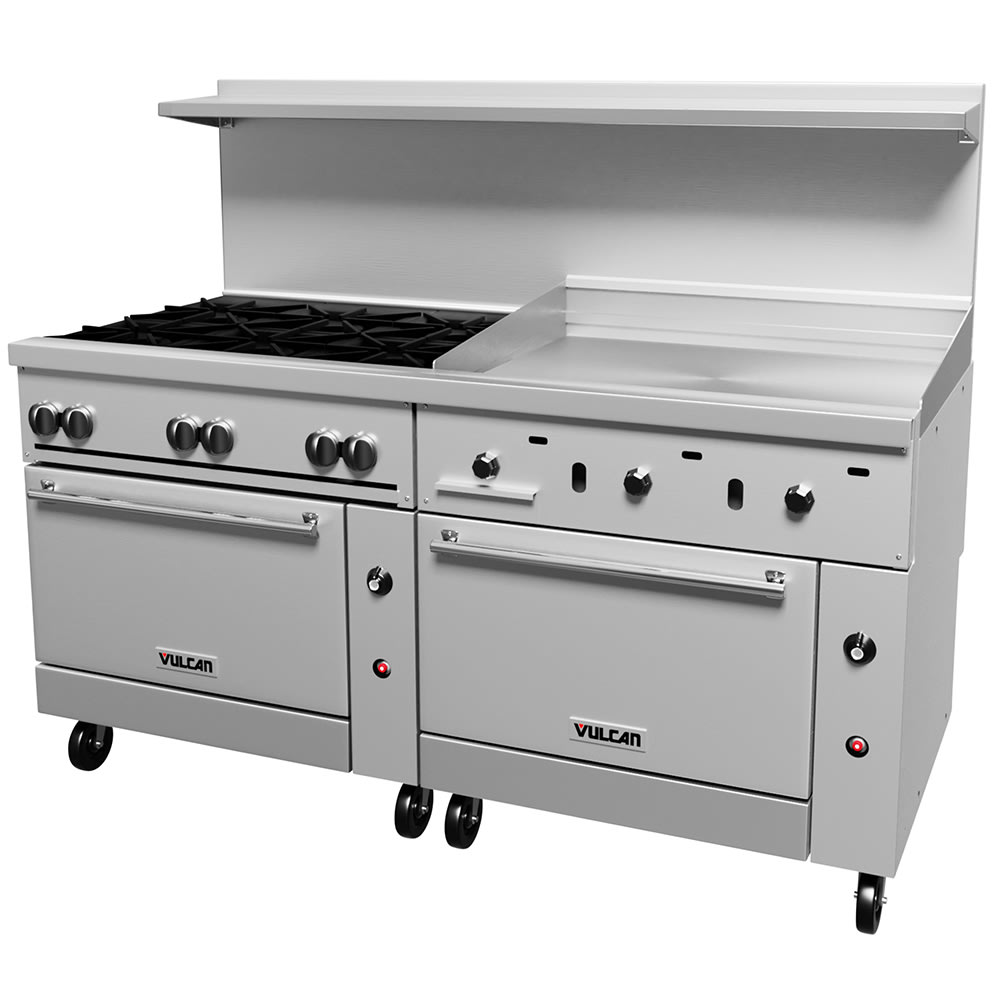

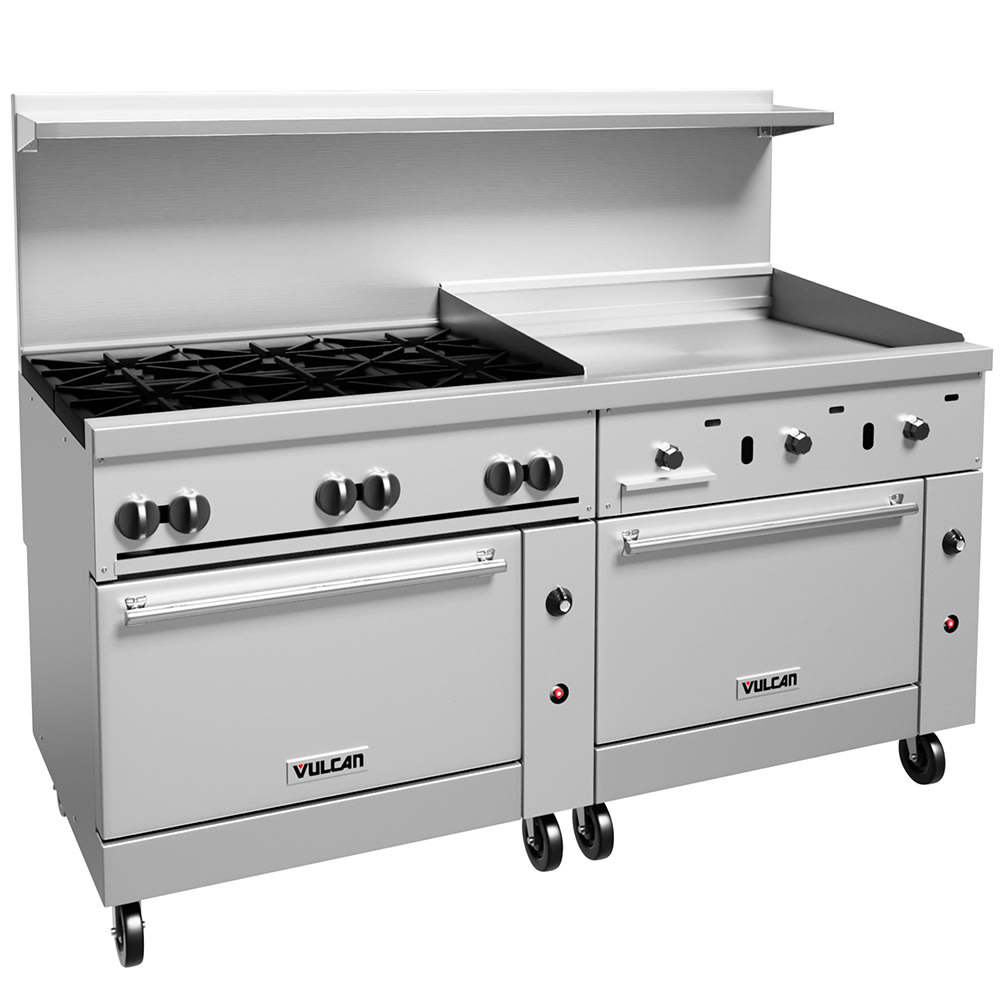

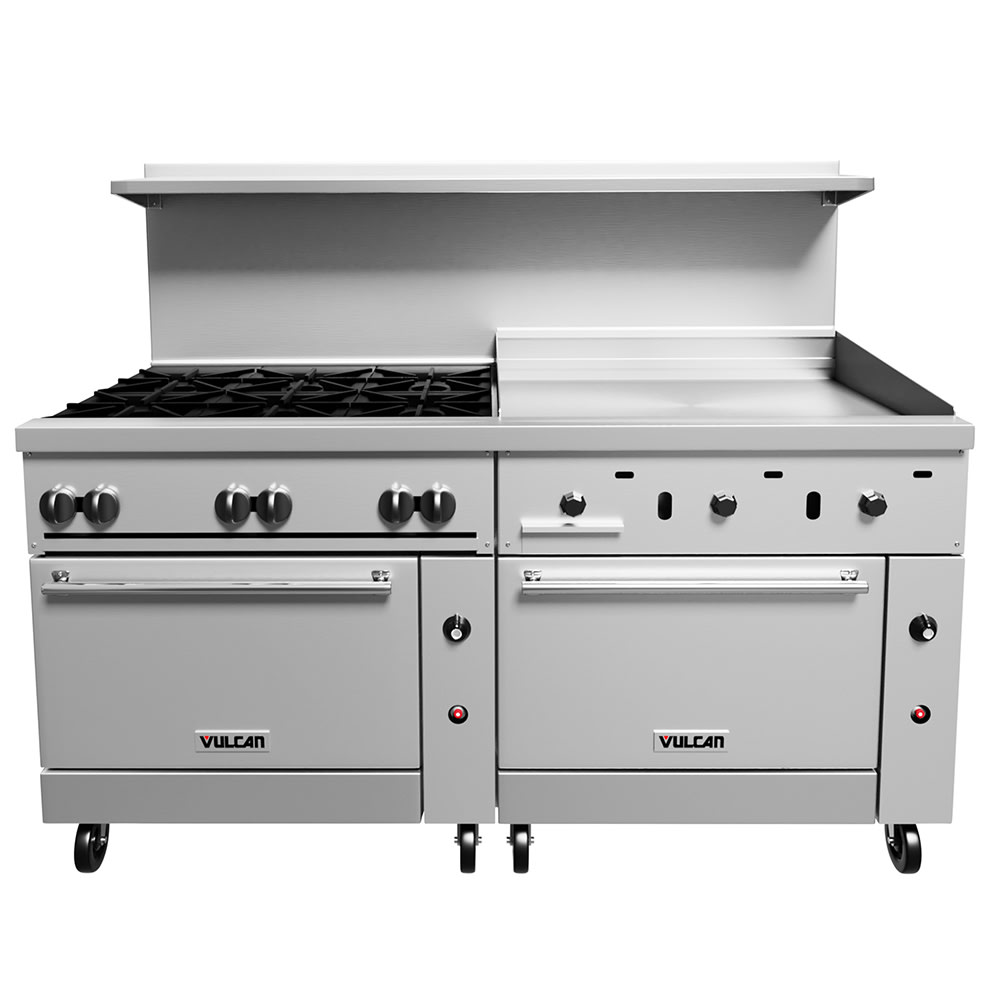

Vulcan 72CC-6B36G 72" 6 Burner Gas Range w/ Griddle & (2) Convection Ovens, Natural Gas

Designed to serve as a convection oven, stove top, and griddle, the Vulcan 72CC-6B36G NG gas range is an all-in-one unit that saves on space and fuel. Powered by natural gas, this unit outputs 310,000 BTUs per hour, distributing 35,000 BTUs to each oven, 30,000 BTUs to each burner, and 60,000 BTUs to its griddle. Its 1-inch rear gas connection fuels the unit and its shrouded pilot lights are designed to evenly distribute heat and reduce mechanical failure risks. Its 36-inch griddle has a ⁷/₈-inch-thick plate and comes with a 4-inch-wide front grease trough to simplify clean up after use. Its double convection oven base is designed to hold full-size food pans side to side and can be set between 250 and 500 degrees Fahrenheit or turned to a low setting. These features are controlled with a series of manual dials on its front that remain cool to the touch during operation.

Constructed for use in various spaces, the Vulcan 72CC-6B36G burner range measures 72 inches deep by 41 inches wide by 58 inches high. It sits on a series of adjustable legs that can stabilize the unit on uneven surfaces and sports an MIG-welded stainless steel frame to protect internal components. Designed with cleanliness in mind, the unit comes with an extra-deep crump tray and each of its burner tops is fully removable. Its six oven racks can be moved to accommodate larger meals or removed as needed, and to optimize space, its back riser is equipped with a metal shelf that keeps important ingredients and utensils within reach.

Range Details

• Part of the Endurance series
• MIG-welded stainless steel frame
• Stainless steel front, sides, back riser, and lift-off shelf
• Front grates: 12 in. x 12¹/₂ in.
• Rear grates: 12 in. x 14¹/₂ in.
• 36-in. manual griddle with ⁷/₈-in. thick plate
• (6) 30,000 open top burners with lift-off heads
• Shrouded flash tube pilot system (1 pilot per 2 burners)
• Removable crumb tray with welded corners
• 4-inch-wide grease trough and extra-deep pull-out crumb tray
• 6-in. adjustable legs

Convection Oven Details

• Two baker's-depth convection ovens
• Three adjustable racks per oven
• Holds full-size sheet pans side to side
• Temperature range: 250-500 degrees F
• Low setting
• 35,000 BTU/hr. per oven

Dimensions and Utilities

• Ovens: (2) 26³/₈ in. W x 24 in. D x 13⁷/₈ in. H
• Overall: 72 in. W x 41 in. D x 58 in. H
• Natural gas
• 115 V/1 ph/4 A
• Includes 6-ft. cord and plug
• 1-in. rear gas connection with pressure regulator
• 310,000 BTU

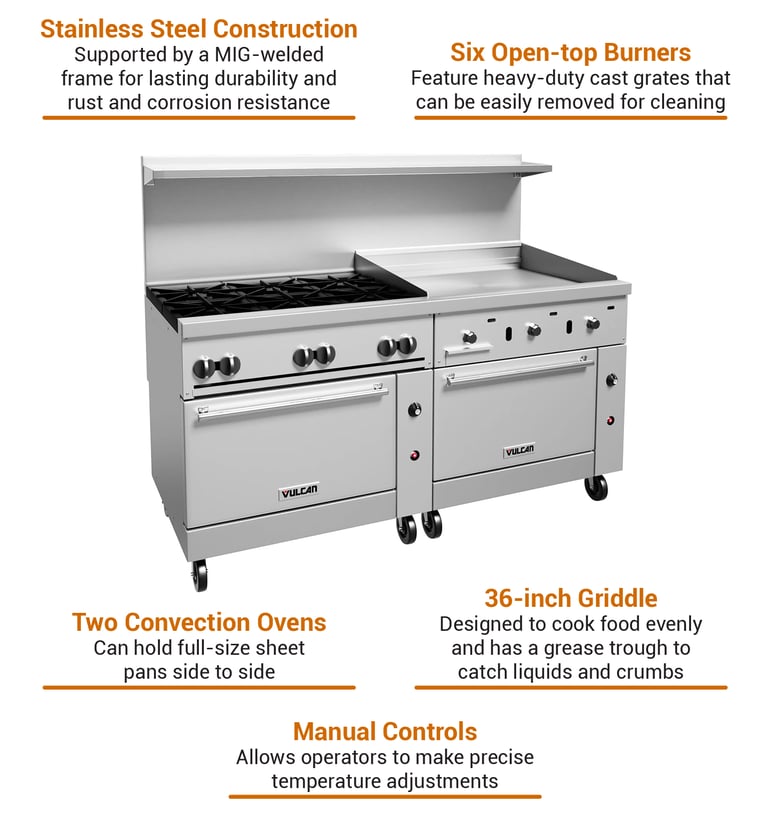

Product Features

*Free shipping on Vulcan 72CC-6B36G within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (6) 30,000 BTU burners with lift-off burner heads, (1) 36" griddle, manual controls, (2) convection oven bases, stainless steel front, sides, backriser & high shelf, fully-welded chassis, 6" adjustable legs, 310,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72CC-6B36G Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
