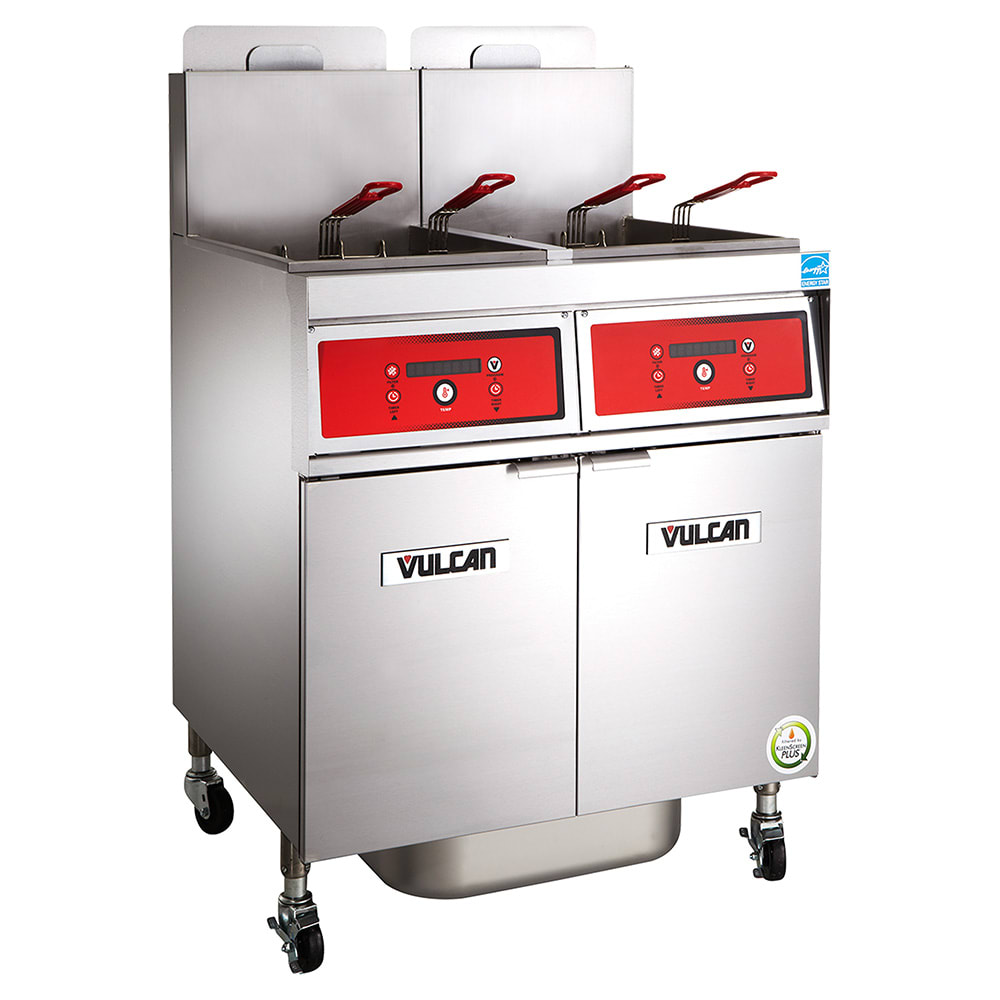

Vulcan 4VK85CF Gas Fryer - (4) 90 lb Vats, Floor Model, Natural Gas

For high-volume frying of breaded chicken, fish, shrimp, pork loin, and other varieties, the Vulcan 4VK85CF gas fryer features four vats and is equipped with KleenScreen PLUS® filtration. This filtration system features a ¹/₃-horsepower motor and pump that circulate frying compound at 8 gallons per minute. To cover a wide area, its two-sided stainless steel mesh filter screen covers 270 to 350 square inches, and when the oil needs exchanged, its 1¹/₄-inch drain valve can empty used oil into the 18-gauge stainless steel filter pan. This pan can hold 110 pounds of oil and features large lift handles to ease removal for cleaning. For precise sanitation, employees can use the included tank brush and clean-out rod.

This fryer maintains temperatures between 200 and 390 degrees Fahrenheit, which can be adjusted with the programmable computer controls. A total of ten menu timers can be programmed with an accurate digital display of the product names and their corresponding cook times. For quick heating with reduced energy usage, its SoftStart™ ignition system quickly heats the oil while outputting 35,000 BTU an hour per frypot. To optimize production, its FivePass™ heat transfer system yields 65 percent cooking and 78 percent thermal efficiency; as a safety precaution, if this unit exceeds its temperature limit, it boasts a hi-limit shutoff.

Overall, the Vulcan 4VK85CF gas fryer measures 84 inches wide by 34³/₈ deep by 47¹/₄ inches high and is mounted on four 6-inch casters to encourage mobility. Its cabinet and fry tank are constructed of stainless steel to reduce corrosion and irregularities to the structure. For convenience, each tank includes two 8³/₄-inch-wide by 16³/₄-inch-deep metal fry baskets that feature plastic-coated handles to reduce heat transfer to hands.

Product Details

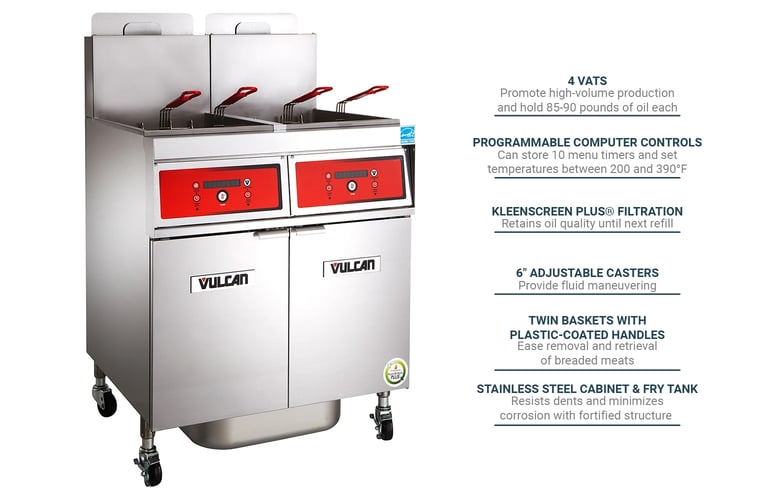

• Part of the PowerFry5™ series
• (4) 85-90-lb.-capacity frypots
• Twin baskets with plastic-coated handles (8 total)
• Stainless steel cabinet and fry tank
• Adjustable casters (2 swivel locking & 2 non-locking)
• 1¹/₄-in. full port ball type drain valve
• Includes tank brush and clean-out rod
• SoftStart ignition system
• FivePass heat transfer system
• (4) 90,000 BTUs

Programmable Computer Controls

• Temperature range: 200-390 degrees F
• 10 menu timers
• Offers offline USB programming (software included)
• Digital display can be set to Fahrenheit or Celsius
• Hi-limit shutoff

KleenScreen PLUS Filtration System

• Motor and pump circulate compound at 8 gal. per minute
• 18-ga. stainless steel filter pan
• Two-sided stainless steel mesh filter screen
• Boil-out bypass function
• 1¹/₄-in. port ball type drain valve
• Interlock switch shuts off burners during filtering process

Dimensions & Utilities

• Tank size: (4) 19¹/₂ in. W x 18¹/₄ in. D
• Baskets: (8) 8³/₄ in. W x 16³/₄ in. D x 6 in. H
• Overall: 84 in. W x 34³/₈ in. D x 47¹/₄ in. H
• 120 V/60 Hz/1 ph, with NEMA 5-15 P
• 7 A, ¹/₃-HP motor
• 1¹/₄ NPT common rear gas connection
• Natural gas powered

Product Features

*Free shipping on Vulcan 4VK85CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 84" W, (4) battery, 85-90 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 360,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4VK85CF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	90000
Capacity (lbs)	360
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	360
Oil Capacity/Fryer (lb)	90
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	84
Weight	1236.00
