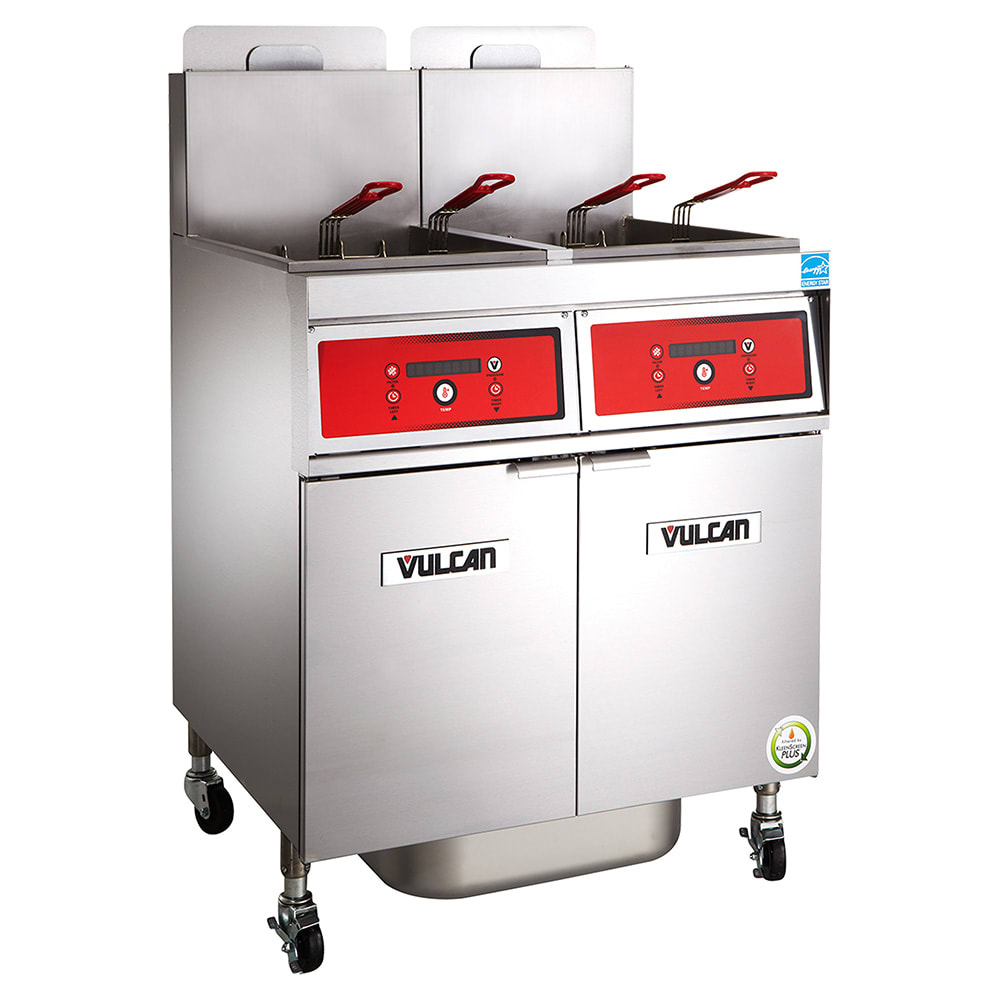

Vulcan 4VK85CF Gas Fryer - (4) 90 lb Vats, Floor Model, Liquid Propane

The Vulcan 4VK85CF gas fryer features ten buttons, which are programmable through an offline USB interface (software included). Using its digital display, operators can set product names and time-frame-specific menu timers. This unit maintains set temperatures between 200 and 390 degrees Fahrenheit and features three melt modes; its digital display shows these temperatures in Fahrenheit or Celsius. With its hi-limit shutoff, it minimizes fire hazards should this unit exceed safe temperatures.

A four-battery unit, each vat holds 85 to 90 pounds of oil, and to streamline high volumes of breaded chicken, pork loin, fish, or shrimp, its FivePass™ heat transfer system yields 65 percent cooking and 78 percent thermal efficiency. Ideal for conserving energy during start up, its SoftStart™ ignition outputs 35,000 BTU per hour per vat to initially heat the oil. Once it reaches desired temperatures, it can maintain the heat with just 6,298 BTU per hour when idle.

The Vulcan 4VK85CF gas fryer measures 84 inches wide by 34³/₈ inches deep by 47¹/₄ inches high, and its KleenScreen Plus® filtration system can be used to purify 270 square inches. Its stainless steel construction reduces dents and other irregularities to the structure, and to contain food as it's fried, each frypot includes twin metal baskets with plastic-coated handles that minimize heat transfer. This heavy-duty fryer sits on four 6-inch casters for smooth maneuvering.

Product Details

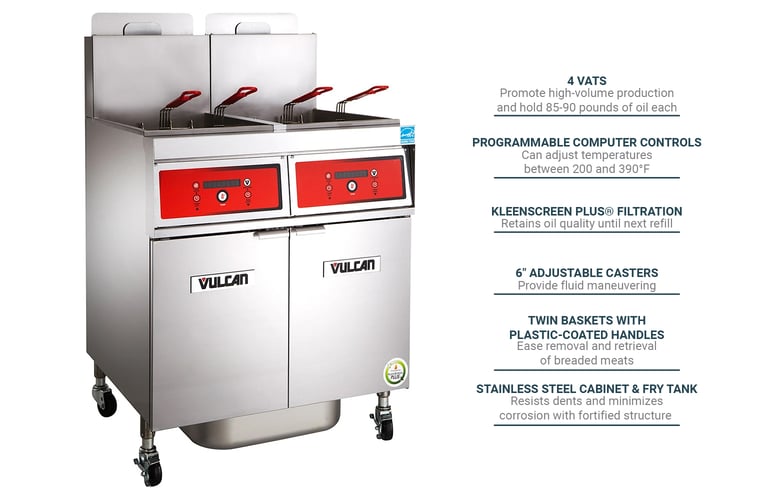

• Part of the PowerFry5™ series
• 85-90-lb. capacity per frypot
• 4 vats
• Twin baskets with plastic-coated handles (2 per frypot)
• Stainless steel cabinet and fry tank
• Adjustable casters (2 swivel locking & 2 non-locking)
• 1¹/₄-in. full port ball type drain valve
• Includes tank brush and clean-out rod
• Energy-efficient SoftStart ignition system quickly heats oil
• FivePass heat transfer system evenly disperses heat into oil
• (4) 90,000 BTUs

Programmable Computer Controls

• Temperature can be set between 200 and 390 degrees F
• 10 menu timers
• Offline USB programming
• Digital display in Fahrenheit or Celsius
• Hi-limit shutoff

KleenScreen PLUS Filtration System

• Motor and pump circulate compound at 8 gal. per minute
• 18-ga. stainless steel filter pan
• Stainless steel filter mesh screen filters from two sides
• Boil-out bypass function
• 1¹/₄-in. port ball type drain valve
• Interlock switch shuts off burners during filtration

Dimensions & Utilities

• Tank size: (4) 19¹/₂ in. W x 18¹/₄ in. D
• Baskets: (8) 8³/₄ in. W x 16³/₄ in. D x 6 in. H
• Overall: 84 in. W x 34³/₈ in. D x 47¹/₄ in. H
• 120 V/60 Hz/1 ph, with NEMA 5-15 P
• 7 A, ¹/₃-HP motor
• 1¹/₄ NPT common rear gas connection
• LP gas powered

Product Features

*Free shipping on Vulcan 4VK85CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 84" W, (4) battery, 85-90 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 360,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4VK85CF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	90000
Capacity (lbs)	360
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	360
Oil Capacity/Fryer (lb)	90
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	84
Weight	1236.00
