Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

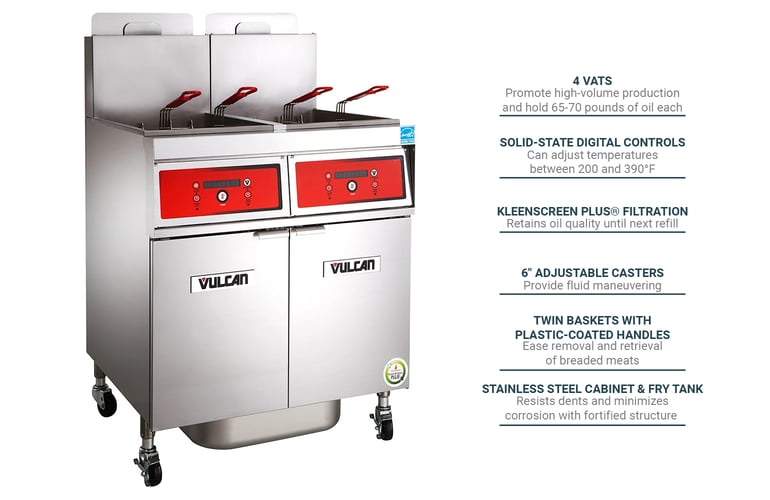

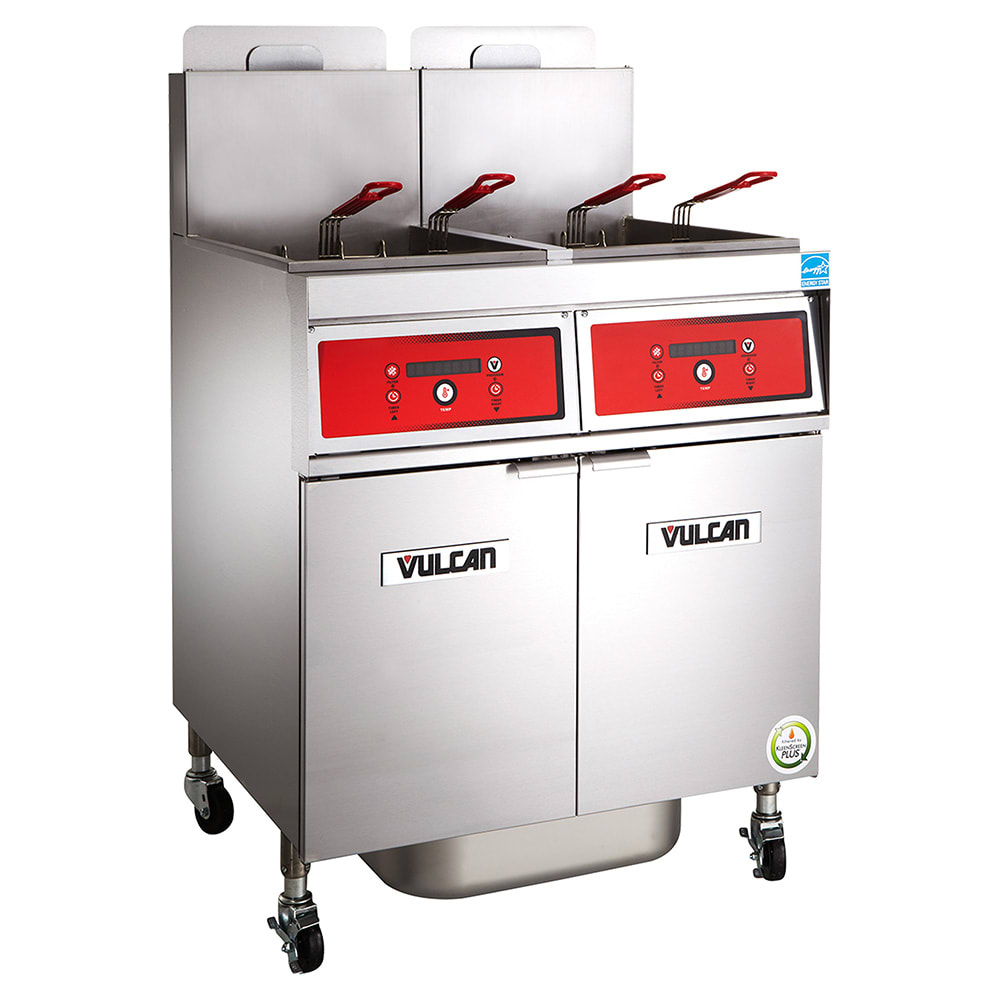

Vulcan 4VK85AF Gas Fryer - (4) 90 lb Vats, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $139,904.60
$57,592.00 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 4VK85AF Description
For frying breaded meats and vegetables or preparing fries and mozzarella sticks, the Vulcan 4VK85AF gas fryer maintains temperatures between 200 and 390 degrees Fahrenheit. To conveniently adjust temperatures, it integrates solid-state analog controls, which feature user-selectable fat melt modes. This four-battery unit can hold 85 to 90 pounds of oil per vat, and to effectively heat the oil while conserving energy, its SoftStart™ ignition system quickly heats the unit at half the normal BTUs. To evenly distribute the heat and reduce scalding or disintegration, its FivePass™ heat transfer yields 65 percent cooking efficiency and 78 percent thermal efficiency; should it exceed temperature conditions, it has a hi-limit shutoff safety precaution.
To maintain quality oil and extends its life, the Vulcan 4VK85AF gas fryer features a KleenScreen Plus® filtration system. Its oil return line connection facilitates frying compound at 8 gallons per minute, and to simplify operation, it's activated with the push of a button. Filtration occurs from two sides to cover 270 to 350 square inches, and after business hours, its 11/4-inch drain valve can be used to circulate oil into the 18-gauge stainless steel filter pan. For thorough sanitation, its patented Boil Out Bypass™ system removes solutions with minimal contact to the drain manifold, filter pan, and motor pump.
Product Details
- Part of the PowerFry5™ series
- (4) 85-90-lb.-capacity vats
- 2 baskets with plastic-coated handles per frypot (8 total)
- Stainless steel cabinet and fry tank
- Adjustable casters (2 swivel locking & 2 non-locking)
- 11/4-in. full port ball type drain valve
- Includes tank brush and clean-out rod
- SoftStart ignition system quickly heats oil at 45,000 BTUs per frypot
- FivePass heat transfer system
- (4) 90,000 BTUs
Solid-state Analog Controls
- Temperature range: 200-390 degrees F
- User-selectable fat melt modes
- Hi-limit shutoff
KleenScreen PLUS Filtration System
- Motor and pump circulate oil at 8 gal. per minute
- 18-ga. stainless steel filter pan
- Stainless steel filter mesh screen filters from two sides
- Boil-out bypass
- Interlock switch
Dimensions & Utilities
- Tank size: (4) 191/2 in. W x 181/4 in. D
- Baskets: (8) 83/4 in. W x 163/4 in. D x 6 in. H
- Overall: 84 in. W x 343/8 in. D x 471/4 in. H
- 120 V/60 Hz/1 ph, with NEMA 5-15 P
- 7 A, 1/3-HP motor
- 11/4 NPT common rear gas connection
- LP gas powered
Product Features
*Free shipping on Vulcan 4VK85AF within the 48 contiguous states.
From The Manufacturer
PowerFry5™ Fryer, LP gas, high efficiency, 84" W, (4) battery, 85-90 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 360,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 4VK85AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 360 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 360 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 84 |
| Weight | 1236.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
