Vulcan 4VK65CF Gas Fryer - (4) 70 lb Vats, Floor Model, Liquid Propane

To streamline manual tasks and monitoring, the Vulcan 4VK65CF fryer features a programmable computer control system with ten menu timers; users can input menu items and adjust cook times using the USB interface (software included). Temperatures are displayed on the digital thermostat in either Celsius or Fahrenheit and can be set between 200 and 390 degrees Fahrenheit. Because this system has three melt modes, staff can use solid frying compounds. To extend oil life, this fryer has a KleenScreen PLUS® system, which filters out particulates 40 to 60 times smaller than paper filters. Its motor and pump can be engaged with a simple push of a button to circulate oil at 8 gallons per minute, while its stainless steel mesh screen provides filtration from two sides. After the drain valve interlock switch is engaged, staff can use the 6-foot, high-temperature discard hose to drain the stainless steel filter pan, which collects as much as 110 pounds of the polluted compound.

To reduce heat lag as new products are introduced to the vat, this fryer has a FivePass™ heat transfer system. It's activated via an electronic ignition system, which gradually heats the oil using SoftStart™ technology. Loose sediments that could otherwise burn and impact oil taste and color are caught in the fryer's "V"-shaped cold zone. For enhanced cost and energy savings during slow periods, its idle temperature mode only uses an hourly rate of 4,802 BTU; a high-limit shut-off system automatically caps temperatures for fire prevention.

The Vulcan 4VK65CF gas fryer has a large base cabinet with four fry tanks made of stainless steel; each tank has a 70-pound capacity. To remove oil, it features a 1¹⁄₄-inch full-port, ball-type drain valve; users can scrub contaminated parts with the included tank brush and clean-out rod. The unit also comes with eight fry baskets, which ease the transportation of products to and from the vats. These baskets have plastic-coated handles to protect hands from burns. To establish a comfortable work station, this 84-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈₄-inch-high unit has a 36¹⁄₄-inch working height. It's mounted on four adjustable 6-inch swivel casters; two of which have locks for fixed placement.

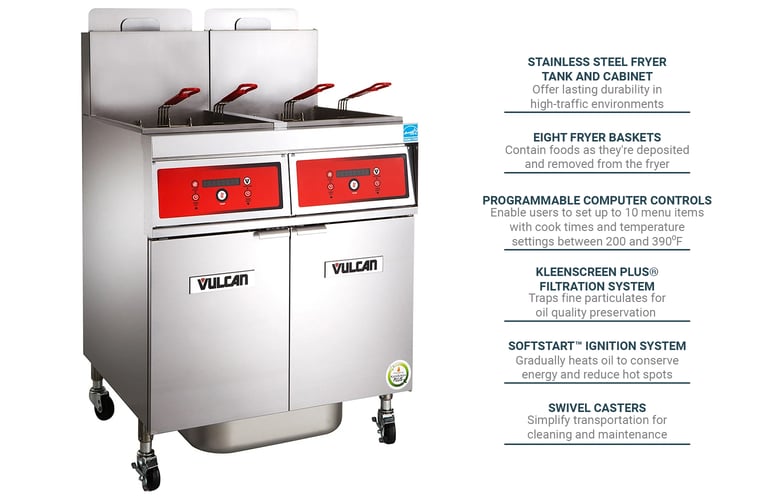

Product Details

• Part of the PowerFry5™ series
• 65-70-lb. capacity per frypot
• 4 tanks
• Stainless steel fry tank and cabinet
• 4 sets of twin fry baskets with plastic-coated handles
• 36¹⁄₄-in. working height
• Temperature range: 200-390 degrees F
• Rapid heat recovery minimizes thermal lag
• Electronic matchless ignition
• SoftStart ignition lengthens oil life and saves energy
• Idle temperature setting reduces energy use to 4,802 BTU
• Hi-limit shut off
• FivePass heat transfer system yields 68 percent cooking and 78 percent thermal efficiency
• "V"-shaped cold zone traps loose sediments and particulates
• 1¹⁄₄-in. full-port, ball-type drain valve
• 4 adjustable 6-in. casters (2 with brakes)
• Tank brush and clean-out rod included
• (4) 80,000 BTU per hour

Computer Control System

• Programmable computer controls with digital thermostat
• Readouts in Celsius or Fahrenheit
• 10 menu timers
• Offline menu programming with USB interface
• 3 melt modes for solid frying compounds
• Users can cook with compensating time or actual time

Filtration System

• Stainless steel filter pan with 110-lb. capacity
• KleenScreen PLUS filtration system preserves oil taste and color
• Stainless steel mesh screen filter from 2 sides
• Drain valve interlock switch turns off burners during draining
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• One-touch, push-button-activated motor and pump
• 6-ft. high-temperature discard hose eases oil removal

Dimensions and Utilities

• 84 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 115-120 V/60 Hz/1 ph, with NEMA 5-15P plug
• 7 A, ¹/₃ HP motor
• Powered by LP gas
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 4VK65CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 84" W, (4) battery, 65-70 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 320,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4VK65CF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	320000
Capacity (lbs)	280
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	280
Oil Capacity/Fryer (lb)	70
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	84
Weight	1136.00
