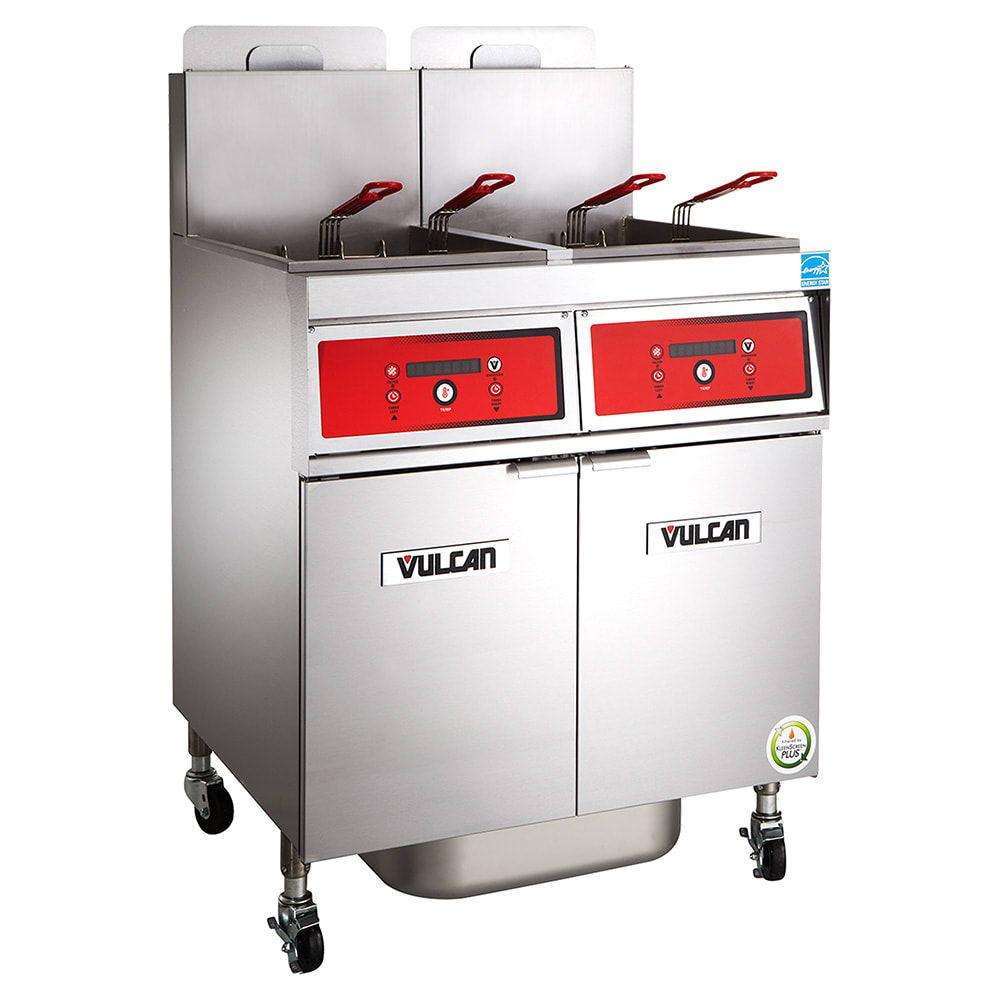

Vulcan 4VK65AF Gas Fryer - (4) 70 lb Vats, Floor Model, Natural Gas

Featured in the PowerFry5™ series, the Vulcan 4VK65AF fryer has four stainless steel fry tanks, each of which can hold 65 to 70 pounds, and a stainless steel base. The unit establishes a 36¹⁄₄-inch working height for comfortable access to the frying area's eight fry baskets. To protect users' hands from burns, these baskets feature handles that have been coated in plastic. For cleaning, users can use the 1¹⁄₄-inch full-port, ball-type drain valve, tank brush, and clean-out rod. Its automatic boil-out mode streamlines boil-out solution removal. For transportation, it's mounted on four 6-inch swivel casters; two casters have locks for stability during use. Overall, this fryer measures 84 inches wide by 30¹⁄₈ inches deep by 47¹⁄₈ inches high.

This unit can be set to temperatures between 200 and 390 degrees Fahrenheit, and this heat is evenly distributed through the oil with the FivePass™ heating system. Temperatures can be set with the solid-state analog control knob, which can be accessed through the cabinet door. This fryer features multiple melt modes so staff can use solid frying compounds with ease, and during slow periods, its idle temperature mode uses 4,802 BTU per hour to maintain set temperatures.

This Vulcan 4VK65AF fryer operates with natural gas and features an electronic SoftStart™ ignition system. So the unit doesn't exceed the maximum temperature setting, it boasts hi-limit shut-off technology. Its "V"-shaped cold zone traps debris that could otherwise burn and impact oil taste and color, while its Kleenscreen Plus® filtration system further extends oil life by trapping particulates 40 to 60 times smaller than paper filters. While a stainless steel mesh screen catches debris from two sides, the push-button-activated motor and pump circulate oil at 8 gallons per minute for thorough filtration. The stainless steel filter pan collects as much as 110 pounds of waste, which can then be emptied through the 6-foot, high-temperature discard hose. Before draining, users should engage the drain valve interlock switch to disconnect the gas channel.

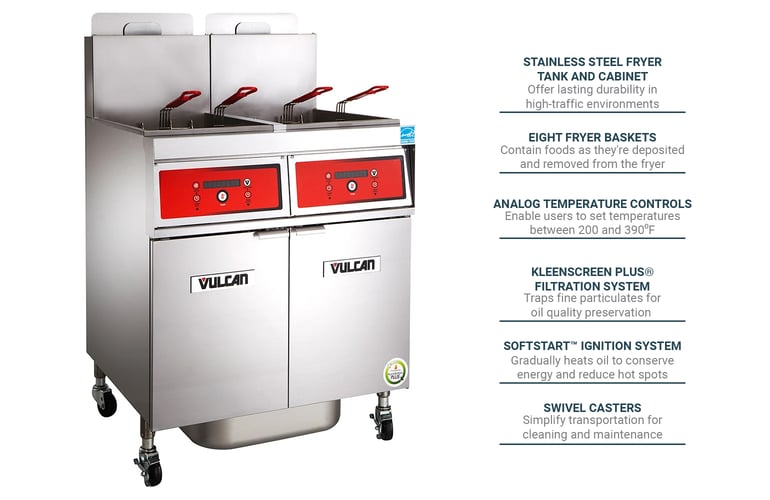

Product Details

• Part of the PowerFry5 series
• 65-70-lb. capacity per vat
• 4 frypots
• Stainless steel base and fry tanks
• 8 fry baskets feature plastic-coated handles (2 baskets per tank)
• 36¹⁄₄-in. working height
• Temperature range: 200-390 degrees F
• Fast heat recovery
• Electronic ignition
• SoftStart ignition saves energy during initial use
• Idle temperature setting saves energy by outputting just 4,802 BTU
• Hi-limit shut off minimizes risk of overheating
• FivePass™ heat transfer system yields 68 percent cooking and 78 percent thermal efficiency
• "V"-shaped cold zone
• 1¹⁄₄-in. full-port, ball-type drain valve
• 4 adjustable 6-in. casters (2 with locks)
• Tank brush and clean-out rod streamline cleaning
• (4) 80,000 BTU per hour

Analog Controls

• Independent solid-state analog control knobs can be accessed through cabinet doors
• Multiple melt modes for solid oil and shortening

Filtration System

• 110-lb. filter pan capacity
• Stainless steel filter pan
• KleenScreen PLUS filtration system lengthens oil life
• Stainless steel mesh screen filters from 2 sides
• Drain valve interlock switch
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• One-touch switch activates motor and pump with push of a button
• 6-ft. high-temperature discard hose

Dimensions and Utilities

• 84 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 115-120 V/60 Hz/1 ph, with NEMA 5-15P plug
• 7 A, ¹/₃ HP motor
• Powered by natural gas
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 4VK65AF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 84" W, (4) battery, 65-70 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 320,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4VK65AF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	320000
Capacity (lbs)	280
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	280
Oil Capacity/Fryer (lb)	70
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	84
Weight	1136.00
