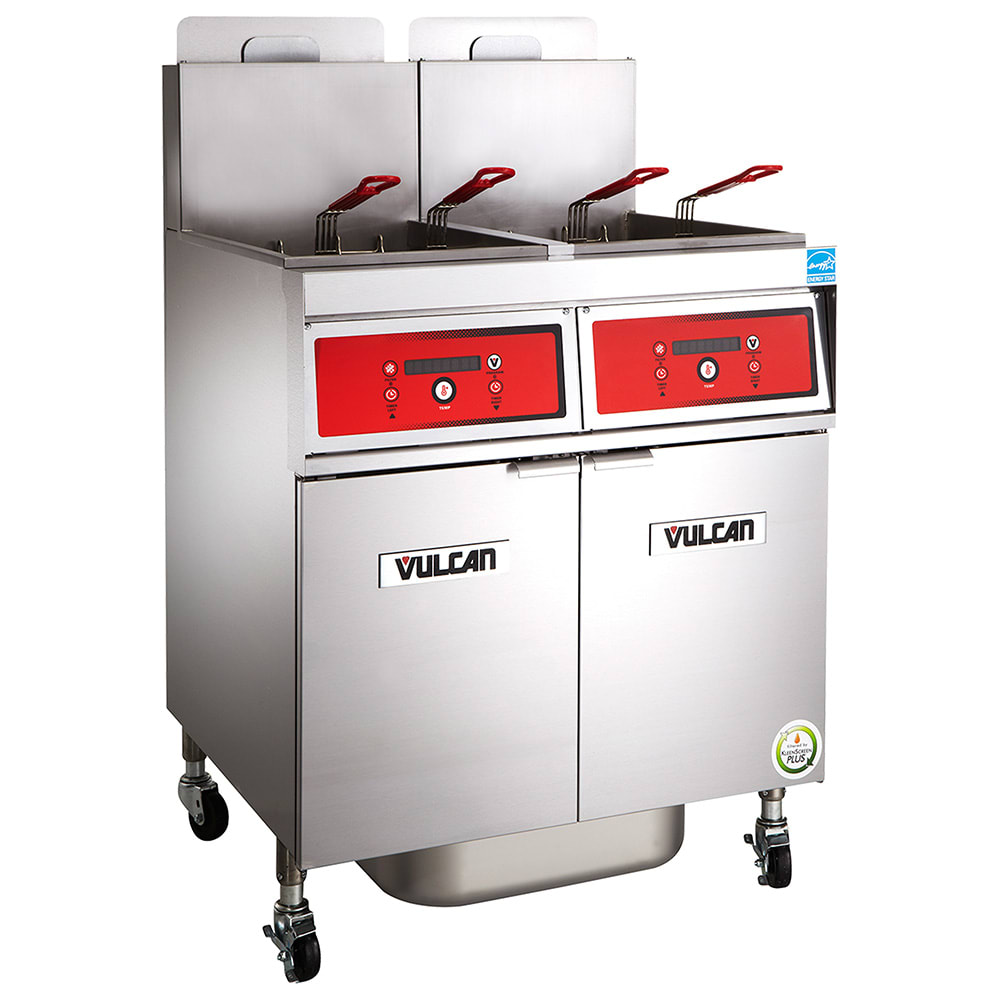

Vulcan 4VK45DF Gas Fryer - (4) 50 lb Vats, Floor Model, Liquid Propane

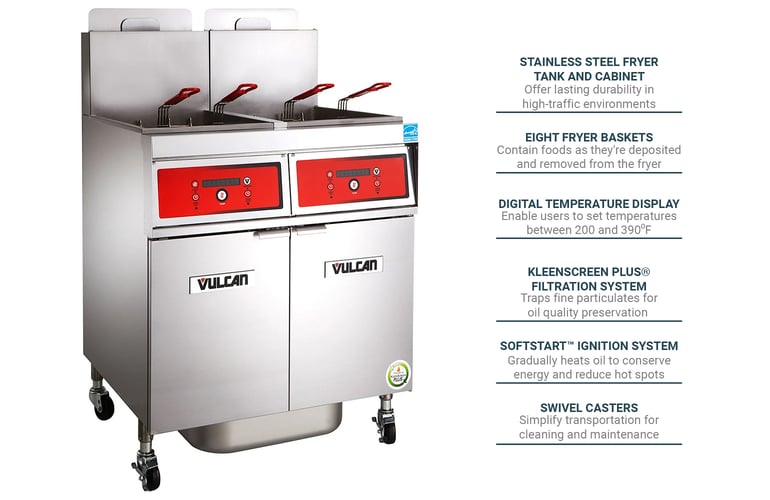

The Vulcan 4VK45DF LP gas fryer features an electronic ignition system imbued with SoftStart™ technology; this system heats oil gradually at startup to save energy and reduce chances of overheating. For high-temperature protection, it has a hi-limit shut-off system; meanwhile, a "V"-shaped cold zone catches loose sediments to further minimize burning risk. To preserve the oil's taste and color, the Kleenscreen Plus® filtration system traps fine particulates. While its stainless steel mesh screen provides filtration from two sides, the motor and pump circulate oil at 8 gallons per minute at the touch of a button. The stainless steel filter pan can collect as much as 70 pounds of polluted compound, which can be disposed through the 6-foot, high-temperature discard hose. Users should activate the drain valve interlock switch to disconnect the gas before draining.

To ensure foods are cooked thoroughly with minimal heat lag, this fryer has a 200-to-390-degree-Fahrenheit temperature range generated by a FivePass™ heating system. Users can monitor fluctuations through the digital thermostat, which offers readouts in Fahrenheit or Celsius. Staff can use the two countdown timers to account for compensating time, and for restaurants with solid shortening, this unit has three melt modes. During idle periods it drops to 4,251 BTUs to reduce operating costs without shutting down the fryer.

Part of the PowerFry5™ collection, the Vulcan 4VK45DF fryer boasts four fry tanks and a base cabinet, all of which are constructed of sturdy stainless steel. These fry tanks can hold as much as 50 pounds of frying compound each and boasts a 36¹⁄₄-inch working height for straightforward, comfortable access to the cooking area. Eight fryer baskets effectively contain breaded product during frying, and to reduce heat transfer as users handle the baskets, they feature plastic-coated handles. After hours, users can clear the tank through the 1¹⁄₄-inch full-port, ball-type drain valve and use the tank brush and clean-out rod to scrub all contaminated parts. For efficient cleaning, staff can run the boil-out solution through the tank and remove it with the automatic boil-out mode. The unit's mounted on four 6-inch swivel casters so staff can transport it as needed; two of these casters have locks that can be engaged to hold the fryer in place. Overall, it measures 62 inches wide by 30¹⁄₈ inches deep by 47¹⁄₈ inches high.

Product Details

• Part of the PowerFry5 series
• 45-50-lb. individual frypot capacity
• 4 frypots
• Cabinet and fry tank constructed of stainless steel
• 4 sets of twin fry baskets (8 baskets total)
• Plastic-coated basket handles minimize risk of burns
• 36¹⁄₄-in. working height
• Temperature range: 200-390 degrees F
• Rapid heat recovery
• Electronic ignition
• SoftStart ignition conserves energy and extends oil life
• Hi-limit shut off
• FivePass™ heat transfer system yields 66 percent cooking and 78 percent thermal efficiency
• Idle temperature setting saves energy by outputting only 4,251 BTU
• "V"-shaped cold zone catches loose particulates and debris
• 1¹⁄₄-in. full-port, ball-type drain valve
• 4 adjustable 6-in. casters (2 locking and 2 non-locking)
• Includes tank brush and clean-out rod
• (4) 70,000 BTUs per hour

Digital Control System

• Digital thermostat displays readouts in Fahrenheit or Celsius
• 2 countdown timers ease operation
• 3 melt modes for solid compounds
• Auto boil-out mode
• Option to cook with compensating time or actual time

Filtration System

• 70-lb. filter pan capacity
• Stainless steel filter pan
• KleenScreen PLUS filtration system preserves oil taste and color
• 2-sided stainless steel mesh filter
• Drain valve interlock switch
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• Motor and pump engaged by push button
• 6-ft. high-temperature discard hose streamlines oil removal

Dimensions and Utilities

• 62 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 115-120 V/ 60 Hz/ 1 ph with NEMA 5-15P plug
• 7 A, ¹/₃ HP motor
• Powered by LP gas
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 4VK45DF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, solid state digital control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4VK45DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	70000
Capacity (lbs)	200
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	200
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	62
Weight	871.00
