Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

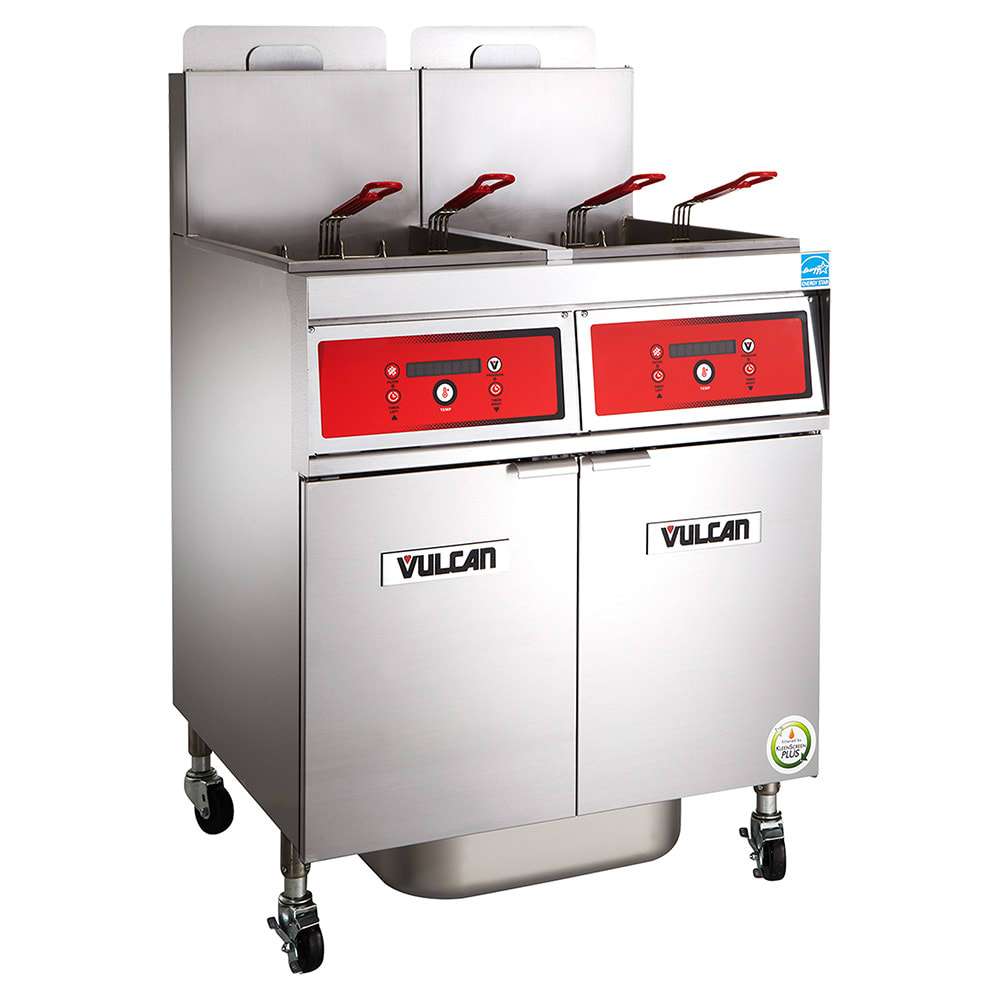

Vulcan 4VK45CF Gas Fryer - (4) 50 lb Vats, Floor Model, Natural Gas
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $148,413.00
$61,094.00 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 4VK45CF Description
The Vulcan 4VK45CF PowerFry5™ high-efficiency gas fryer is built with four 50-pound-capacity gas fryers, enabling staff to fry shrimp, chicken, dumplings, and potatoes simultaneously to streamline operation. Each frypot comes with two fryer baskets that contain contents during frying, and their plastic-coated handles protect users' hands from burns as they retrieve the baskets from hot oil. To accommodate specific cooking requirements, the vats have individual computer controls that can be programmed to store as many as 10 menu timers. Users can also use these controls to set temperatures from 200 to 390 degrees Fahrenheit, initiate one of three melt modes, and cook with actual or compensating time. Digital screens provide easy-to-read Celsius or Fahrenheit displays.

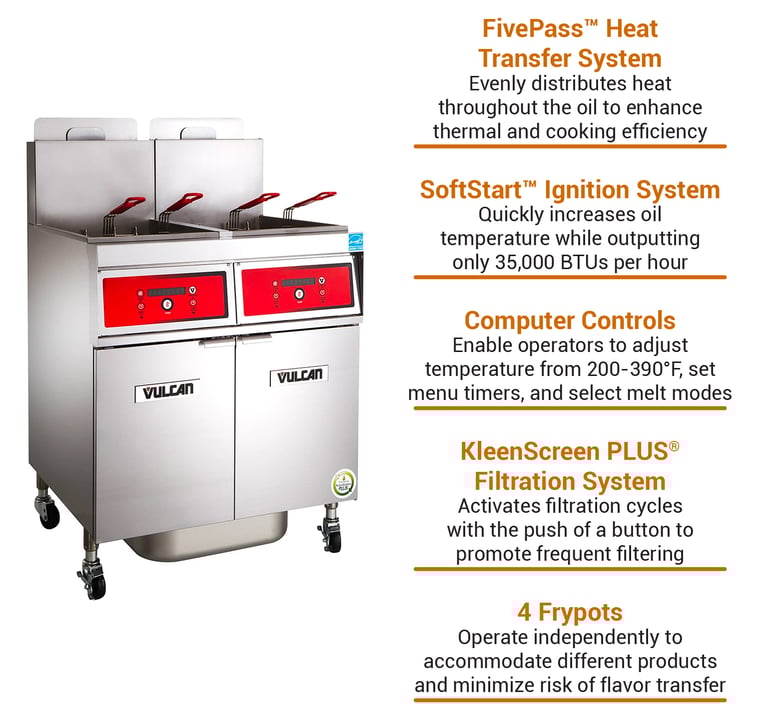

As a PowerFry5 VK45 unit, this fryer is built with the FivePass™ heat transfer system—a mechanism that disperses high temperatures throughout oil to yield 78 percent thermal efficiency and 60 percent cooking efficiency. The SoftStart™ ignition system only outputs 35,000 BTUs per hour for each frypot to initially heat oil and maintain oil quality. To maintain the desired temperature, the idle temperature setting has to output just 4,251 BTUs per hour. The base-mounted KleenScreen PLUS® filtration system further extends oil life by promoting frequent oil filtration; operators can initiate a filtration cycle with the push of a button. While the motor and pump circulate 8 gallons of oil per minute, the stainless steel mesh filter screen efficiently removes particulates from two sides. Oil drains into the 70-pound-capacity filter pan, and the filtration drawer can be shut to seal the oil-return tube, enabling it to recycle filtered oil back to the frypots.
Overall, the Vulcan 4VK45CF commercial freestanding fryer measures 62 inches wide by 301⁄8 inches deep by 471⁄4 inches deep and creates an ergonomic 361⁄4-inch working height. Its base is positioned on four 6-inch casters that provide smooth mobility when movement is needed for cleaning or maintenance. During use, two of the casters can be locked. All frypots and cabinets are made of durable, rust- and corrosion-resistant stainless steel to match other back-of-house equipment, simplify cleaning, and withstand high-volume use.
Product Details
Computer Controls
- Electronic ignition
- 10 menu timers display product name and cook time
- Items can be programmed offline with USB interface (software included)
- Operating temperature range: 200-390 degrees F
- Digital character display can be set to Fahrenheit or Celsius
- Compensating time or actual time cooking options
- 3 melt modes
Filtration System Details
- Heavy-duty drawer assembly located in unit's base
- Removable 70-lb.-capacity stainless steel filter pan
- 2-sided stainless steel mesh filter screen removes debris
- Filtration area: 270 to 350 sq. in.
- 1-touch push-button-activated pump and motor
- Motor and pump circulate oil at 8 GPM
- Drain valve interlock switch
- Self-sealing oil-return tube
Dimensions & Utilities
- 62 in. W x 301⁄8 in. D x 471⁄4 in. H
- 7 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas
- 11⁄4-in. NPT common rear gas connection
Product Features
*Free shipping on Vulcan 4VK45CF within the 48 contiguous states.
From The Manufacturer
PowerFry5™ Fryer, natural gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 4VK45CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 200 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 62 |
| Weight | 871.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
