Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

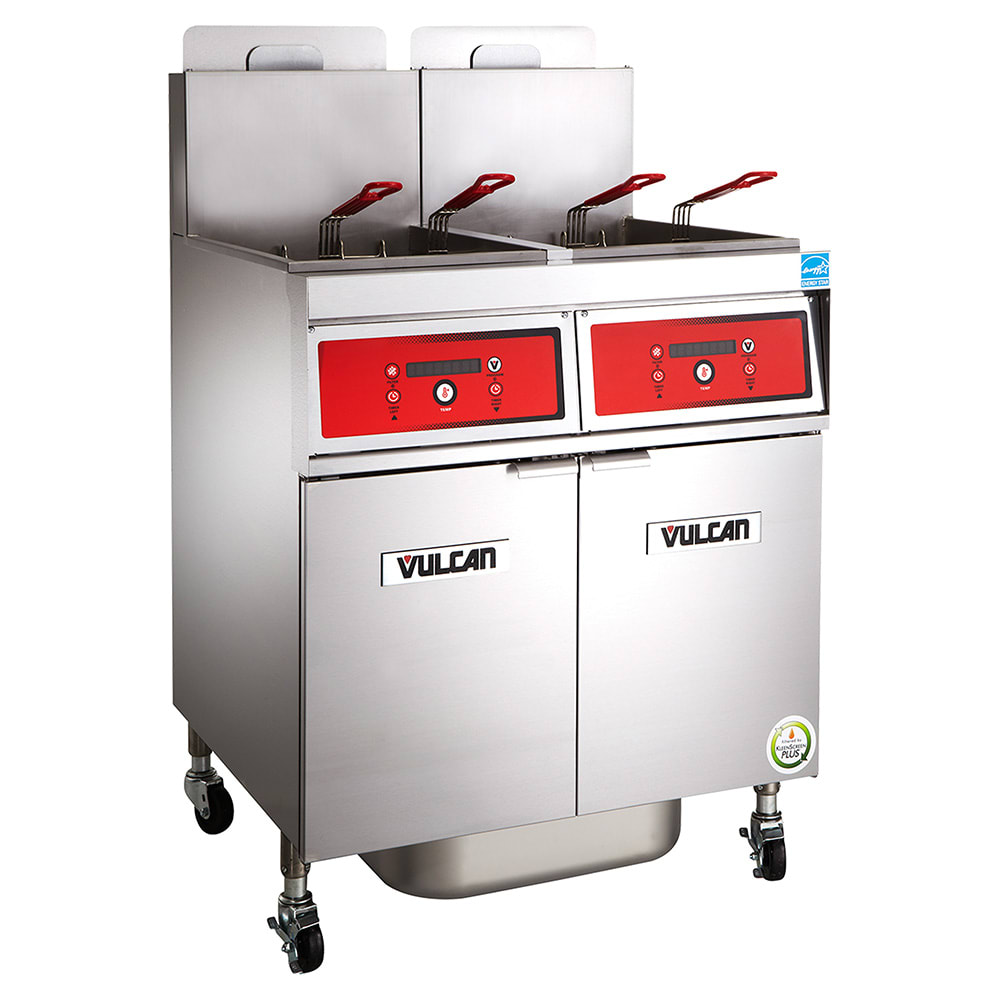

Vulcan 4VK45CF Gas Fryer - (4) 50 lb Vats, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $148,413.00
$61,094.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 4VK45CF Description

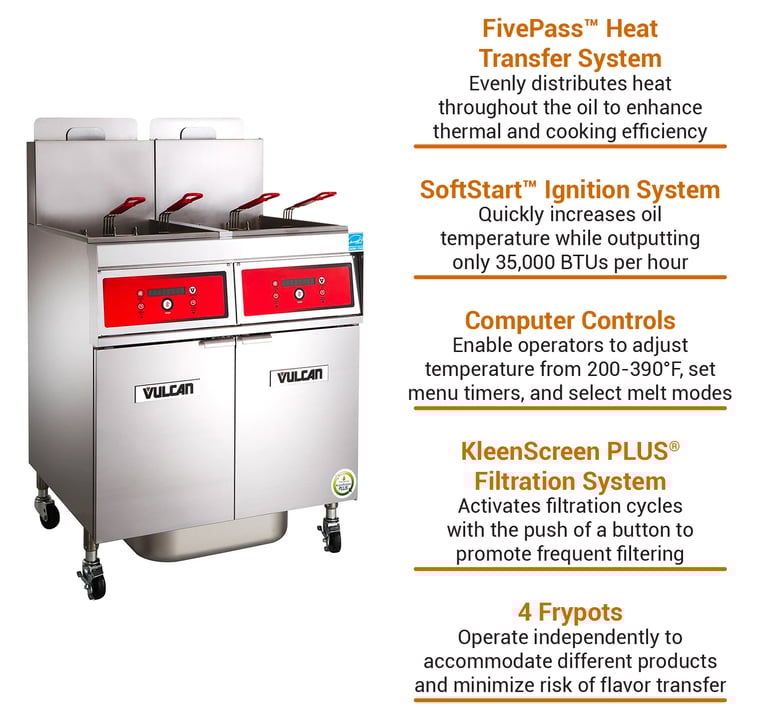

To streamline frying, the Vulcan 4VK45CF gas fryer's four 50-pound-capacity frypots have individual computer controls. Users can upload as many as 10 menu items' cook times and temperatures with USB programming software. For items not programmed into the system, operators can manually adjust the temperature between 200 and 390 degrees Fahrenheit. The controls include three melt modes and the choice of cooking with compensating time or actual time; the digital display provides accurate temperature readouts in Fahrenheit or Celsius. After users set up each frypot for use, the SoftStart™ ignition system quickly warms oil using just 35,000 BTUs per hour for each vat. The FivePass™ heat transfer system yields 66 cooking efficiency and 78 percent thermal efficiency by uniformly dispersing heat throughout oil. Once the set temperature is reached, the idle temperature setting maintains the heat by outputting just 4,251 BTUs per hour.
To enhance oil quality and extend oil life, a KleenScreen PLUS® filtration system is built into the unit's base. Operators can activate the 1⁄3-horsepower motor and pump with the push of a button, and the drain interlock valve automatically shuts off the burners as oil drains. While the motor and pump circulate 8 gallons of hot oil per minute, the stainless steel mesh filter screen establishes a filtration area as large as 350 square inches by removing debris from two sides. After oil has drained into the 70-pound-capacity filter pan, the filter drawer can be closed to seal the oil-return tube so it can direct filtered oil to the frypots.
For lasting durability, the Vulcan 4VK45CF efficient commercial fryer's frypots and cabinet are made of dent-, scratch-, rust-, and corrosion-resistant stainless steel. Users can comfortably fry products at the 361⁄4-inch working height, and the included fryer baskets are built with plastic-coated handles to minimize heat transfer. To simplify maneuvering when the floor needs to be cleaned or the unit needs to be serviced, it's fitted with four 6-inch-diameter casters, two of which include locks for stabilization.
Product Details
Computer Controls
- Electronic ignition
- 10 menu timers display product name and cook time
- Items can be programmed offline using USB interface (software included)
- Operating temperature range: 200-390 degrees F
- Digital character display can be set to Fahrenheit or Celsius
- Option to cook with compensating time or actual time
- 3 melt modes
Filtration System Details
- Built into base on a heavy-duty drawer assembly
- 70-lb.-capacity stainless steel filter pan
- Stainless steel mesh filter screen removes debris from 2 sides
- Filtration area: 270 to 350 sq. in.
- 1-touch push button activates pump and motor
- Motor and pump circulate oil at 8 GPM
- Drain valve interlock switch
- Oil-return tube is self-sealing
Dimensions & Utilities
- 62 in. W x 301⁄8 in. D x 471⁄4 in. H
- 7 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
- 11⁄4-in. NPT common rear gas connection
Product Features
*Free shipping on Vulcan 4VK45CF within the 48 contiguous states.
From The Manufacturer
PowerFry5™ Fryer, LP gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 4VK45CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 200 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 62 |
| Weight | 871.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
