Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

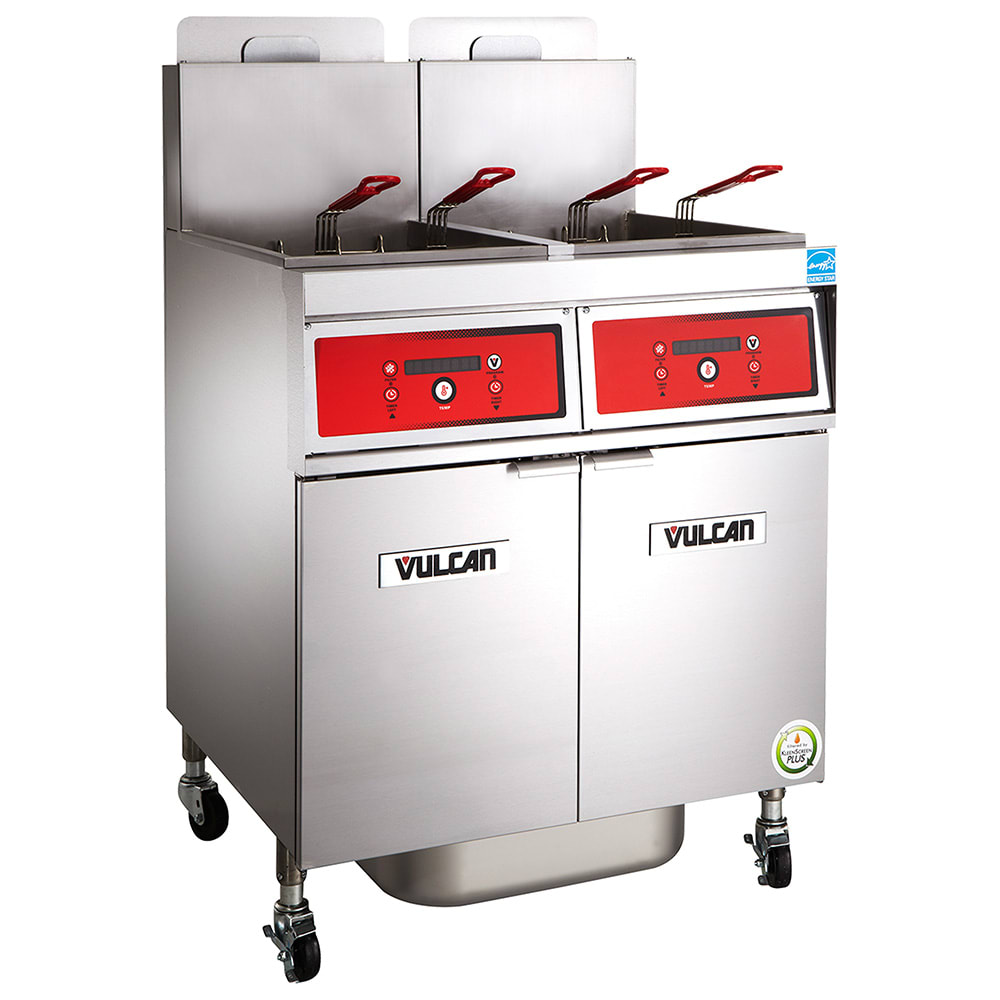

Vulcan 4VK45AF Gas Fryer - (4) 50 lb Vats, Floor Model, Natural Gas
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $135,158.21
$55,638.00 /Each
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 4VK45AF Description

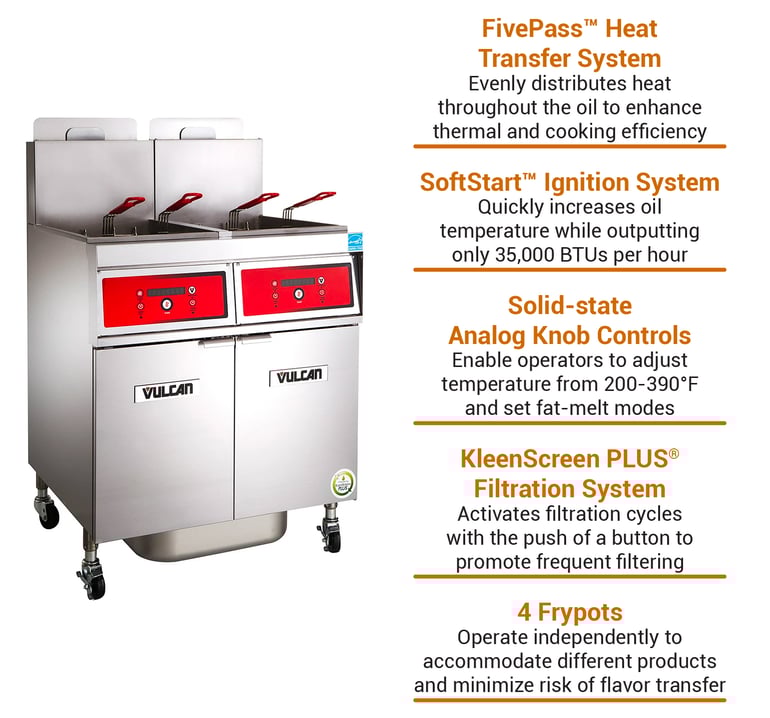

Although the Vulcan 4VK45AF gas fryer is designed to conserve energy, it also heats oil quickly because of its FivePass™ heat transfer system and SoftStart™ ignition system. While the FivePass mechanism uniformly circulates heat throughout the oil to yield 66 percent cooking efficiency and 78 percent thermal efficiency, the SoftStart system outputs 35,000 BTUs per hour for each frypot for an extended oil life. To maintain oil temperatures, the idle temperature settings outputs 4,251 BTUs per hour, further saving energy. This unit is powered by natural gas and can output 70,000 BTUs per hour for each fry tank (210,000 BTUs per hour overall).
Great for medium- to high-volume frying applications, each fry tank can hold 50 pounds of oil. The vats have individual analog knob controls that enable users to set the temperature between 200 and 390 degrees Fahrenheit and choose from a fat-melt mode for solid shortening. To keep breaded contents contained during frying, each fry tank includes twin fryer baskets; each basket features a plastic-coated handle to minimize heat transfer for enhanced user safety. This 62-inch-wide by 301⁄8-inch-deep by 471⁄4-inch-tall unit provides a comfortable 361⁄4-inch working height. For lasting durability, it's made of rugged rust-, dent-, and scratch-resistant stainless steel.
The Vulcan 4VK45AF high-efficiency gas fryer's base is mounted on four 6-inch-diameter casters—two can be locked for stability during operation. The base is also comprised of a KleenScreen PLUS® filtration system which features a 70-pound-capacity filter pan on a heavy-duty pull-out drawer. For simple operation, this system can be activated with the push of a button, and the drain valve interlock switch will automatically turn off the burners as oil drains. The 1⁄3-horsepower pump and motor circulate oil at an 8-gallon-per-minute rate, while the stainless steel mesh filter screen removes particulates from two sides. The self-sealing oil-return tube directs filtered oil to the fry tanks when the filter drawer is closed for hands-free operation.
Product Details
Solid-state Analog Knob Controls
- Electronic ignition
- Operating temperature range: 200-390 degrees F
- Selectable fat-melt modes
Filtration System Details
- 70-lb.-capacity stainless steel filter pan on heavy-duty drawer assembly
- Stainless steel mesh filter screen removes debris from 2 sides
- Filtration area ranges from 270 to 350 sq. in.
- 1-touch push-button-activated pump and motor
- Motor and pump circulate oil at 8 GPM
- Drain valve interlock switch
- Self-sealing oil-return tube
Dimensions & Utilities
- 62 in. W x 301⁄8 in. D x 471⁄4 in. H
- 7 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas
- 11⁄4-in. NPT common rear gas connection
Product Features
*Free shipping on Vulcan 4VK45AF within the 48 contiguous states.
From The Manufacturer
PowerFry5™ Fryer, natural gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 4VK45AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 200 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 62 |
| Weight | 871.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
