Vulcan 4TR85AF Gas Fryer - (4) 90 lb Vats, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 4TR85AF commercial fryer outputs 360,000 BTUs per hour, or 90,000 BTUs per hour for each of its four frypots. To minimize energy consumption, this unit is part of the PowerFry3™ series, which features a ThreePass™ heat transfer system that evenly distributes heat throughout oil, yielding 72 percent thermal efficiency and 60 percent cooking efficiency. Once staff sets temperatures from 200 to 390 degrees Fahrenheit with the solid-state analog knob controls, the SoftStart™ ignition system quickly heats oil by outputting 45,000 BTUs per hour. To maintain the set temperature, the idle temperature settings outputs only 5,575 BTUs per hour.

To extend oil life, operators can initiate the KleenScreen PLUS® filtration system with the push of a button. This system is located in the unit's base on a pull-out drawer for accessibility, and it includes a seamless stainless steel pan that can hold 110 pounds of oil. Once a filtration cycle is activated, the drain interlock valve turns off the gas burners as oil drains. The pump and motor circulate oil at 8 gallons per minute, and the stainless steel mesh filter screen filters out particulates from two sides, establishing a filtration area between 270 and 350 square inches. To add filtered oil back to the vats, users can simply close the filtration drawer and the oil-return tube will seal itself.

The Vulcan 4TR85AF high-efficiency gas commercial fryer is a four-battery, 84-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₄-inch-tall freestanding unit that sits on four 6-inch casters for smooth mobility during cleaning or servicing; two of these casters can be locked in place during use. For user comfort, it has a 36¹⁄₄-inch working height, and each frypot comes with two stainless steel fryer baskets featuring plastic-coated handles to minimize heat transfer. The fry tanks and cabinet are made of stainless steel—durable, scratch-, dent-, and rust-resistant metal that matches other back-of-house equipment and is simple to wipe clean.

Product Details

• Part of the PowerFry3 and TR85 collection
• 4-battery unit comprised of (4) 90-lb.-capacity frypots
• Freestanding unit with 36¹⁄₄-in. working-height
• Cabinet and frypots made of stainless steel
• 2 stainless steel fryer baskets with plastic-coated handles (8 baskets total)
• ThreePass heat transfer system yields 72 percent thermal efficiency and 60 percent cooking efficiency
• SoftStart ignition system outputs 45,000 BTUs to quickly heat oil energy
• Idle temperature setting outputs 5,575 BTUs per hour to maintain set temperatures
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• Tank brush and clean-out rod included
• 1¹⁄₄-in. full-port ball-type drain valve
• (4) 6-in. adjustable casters (2 locking)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (4) 90,000 BTU

Solid-state Analog Knob Controls

• Electronic matchless ignition
• Operating temperature range: 200-390 degrees F
• Selectable fat-melt modes

Filtration System Details

• Accessible pull-out drawer
• 110-lb.-capacity lightweight, seamless stainless steel filter pan
• 1-touch activation button
• Motor and pump circulate oil at 8 GPM
• Drain valve interlock switch shuts burners down during oil draining
• Hands-free oil-return tube

Dimensions & Utilities

• 84 in. W x 30¹⁄₈ in. D x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

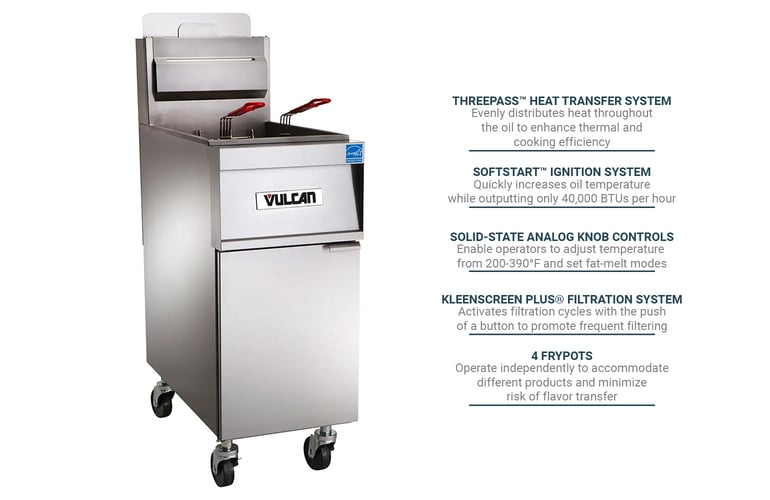

Product Features

*Free shipping on Vulcan 4TR85AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 84" W, (4) battery, 85-90 lbs. capacity per vat, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

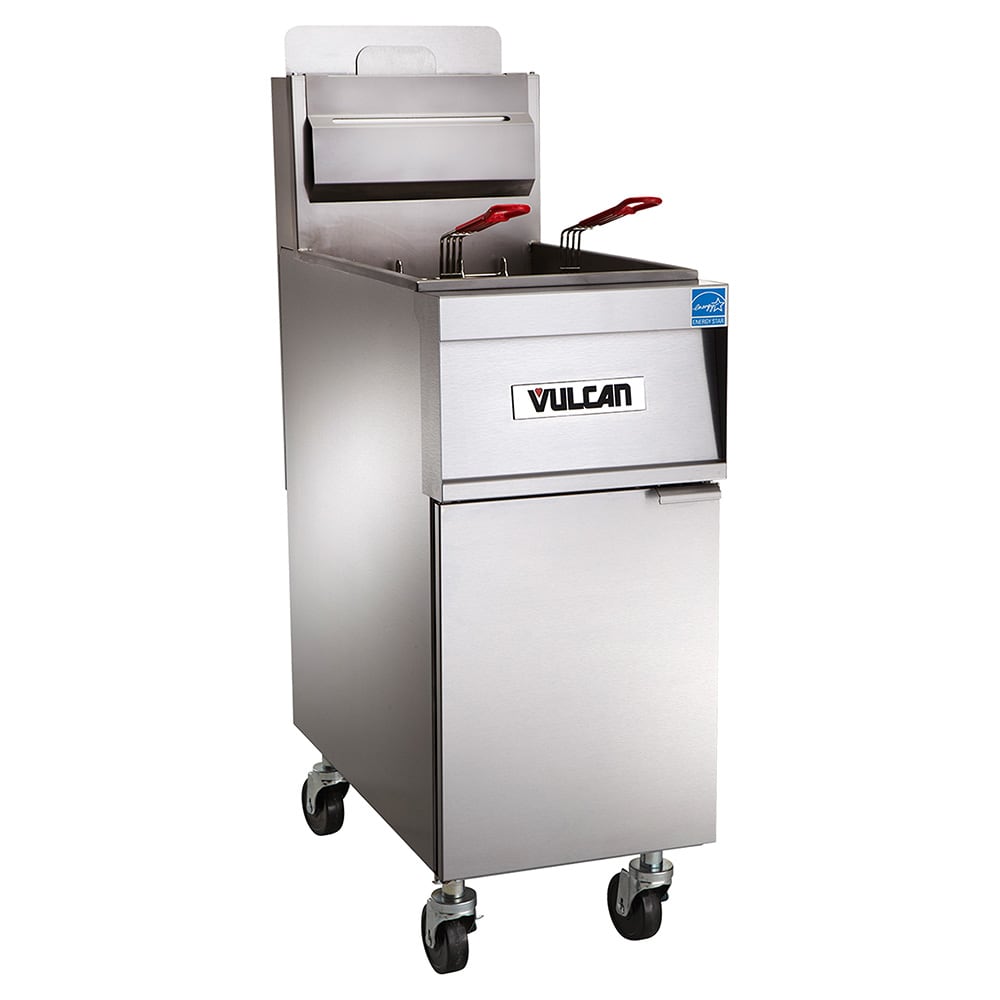

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 4TR85AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
