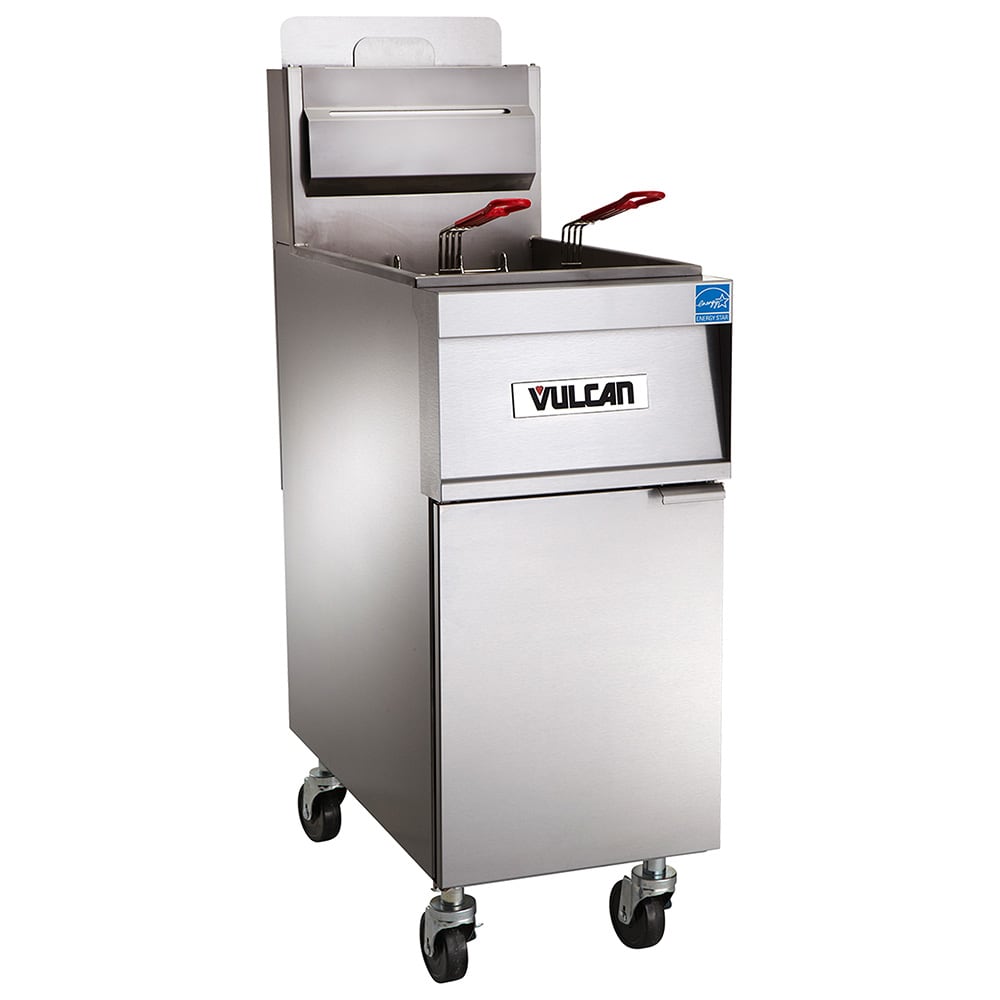

Vulcan 4TR65DF Gas Fryer - (4) 70 lb Vats, Floor Model, Natural Gas

To streamline cooking and maximize throughput, the Vulcan 4TR65DF PowerFry3™ high-efficiency gas fryer is a four-battery unit built with four 70-pound-capacity frypots. Each tank has a corresponding digital control featuring temperature settings between 200 and 390 degrees Fahrenheit, three melt modes, two countdown timers, an automatic boil-out mode, and an option to cook with compensating or actual time. The digital display provides accurate temperature readouts in Fahrenheit or Celsius so users can monitor the temperature throughout frying. For optimization, the ThreePass™ heat transfer system evenly distributes heat, yielding 72 percent thermal efficiency and 60 percent cooking efficiency. The SoftStart™ ignition system outputs 40,000 BTUs per hour—or half of each frypot's maximum hourly BTU output—to quickly heat oil upon startup while minimizing energy usage. The idle temperature mode retains the set temperature by outputting only 5,083 BTUs per hour.

To prolong oil life, this fryer's base is built with a KleenScreen PLUS® filtration system that includes one-touch button controls for quick startup, a drain valve interlock switch, a ¹⁄₃-horsepower motor and pump, an oil-return tube, and a 110-pound stainless steel filtration pan. After users press the activation button, the pump and motor circulate hot oil at 8 gallons per minute, while the stainless steel mesh filter screen filters from two sides—establishing a filtration area as large as 350 square inches.

The Vulcan 4TR65DF commercial gas fryer measures 84 inches wide by 30¹⁄₈ inches deep by 47¹⁄₄ inches tall and provides a comfortable 36¹⁄₄-inch working height. To protect users' hands from heat transfer when moving product, all eight fryer baskets feature plastic-coated handles. The cabinet and frypots' stainless steel construction resists denting, scratching, rusting, and corroding for simplified cleaning. Its base is fitted with four 6-inch casters that provide smooth mobility to streamline repositioning for cleaning and maintenance. Two of the casters can be secured in place to ensure the unit is stable during use.

Product Details

• Part of the PowerFry3 and TR65 lines
• 4-battery unit with (4) 70-lb.-capacity frypots
• 36¹⁄₄-in. working-height freestanding configuration
• Durable, rust-, bend-, and scratch-resistant stainless steel cabinet and frypots
• 8 fryer baskets with plastic-coated handles (2 fryer baskets per vat)
• ThreePass heat transfer system enhances thermal and cooking efficiency
• SoftStart ignition system outputs 40,000 BTUs to save energy while heating oil at startup
• Idle temperature setting outputs 5,083 BTUs per hour
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• Tank brush and clean-out rod included
• 1¹⁄₄-in. full-port ball-type drain valve
• (4) 6-in. adjustable casters (2 with locks)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (4) 80,000 BTU

Digital Controls

• Electronic matchless ignition
• Fahrenheit or Celsius digital character display
• Operating temperature range: 200-390 degrees F
• 3 melt modes
• 2 countdown timers
• Automatic boil-out mode
• Can cook with compensating time or actual time

Filtration System Details

• Assembled on an accessible pull-out drawer
• 110-lb.-capacity lightweight, seamless stainless steel filter pan
• 1-touch activation button
• Motor and pump circulate oil at 8 GPM
• Drain valve interlock switch shuts burners down during oil draining
• Hands-free oil-return tube

Dimensions & Utilities

• 84 in. W x 30¹⁄₈ in. D x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

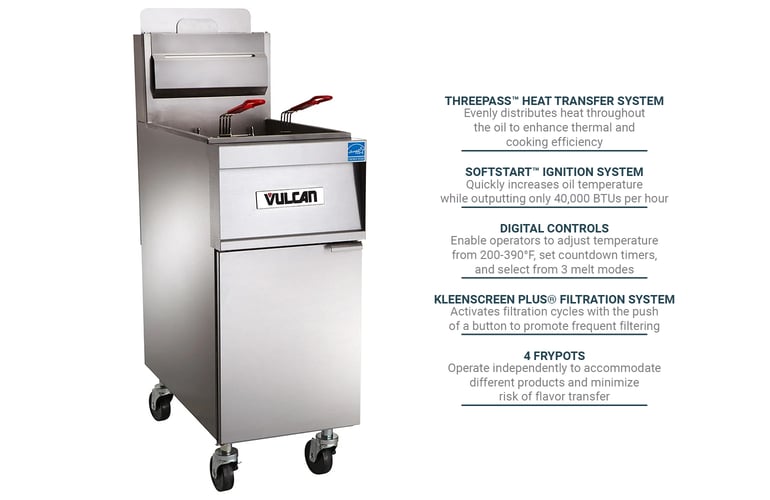

Product Features

*Free shipping on Vulcan 4TR65DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 84" W, (4) battery, 65-70 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 4TR65DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
