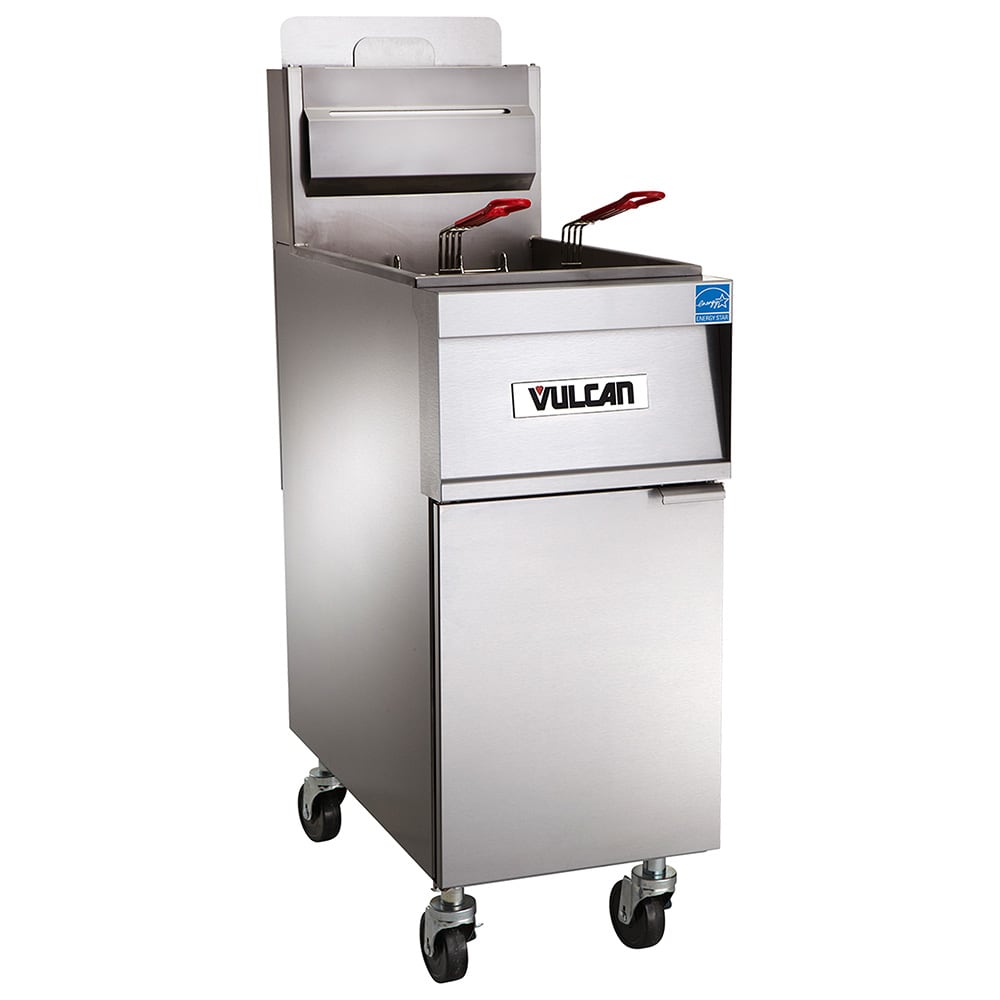

Vulcan 4TR65AF Gas Fryer - (4) 70 lb Vats, Floor Model, Natural Gas

Equipped for medium- and high-volume applications, the Vulcan 4TR65AF PowerFry3™ high-efficiency gas fryer is built with four 70-pound-capacity fry tanks. This unit is powered by natural gas and can output 320,000 BTUs per hour, or 80,000 BTUs per hour for each frypot. Once users set temperatures between 200 and 390 degrees Fahrenheit with the solid-state analog control knobs, the ThreePass™ heat transfer system uniformly directs heat throughout the oil to enhance thermal and cooking efficiency. To further save energy and reduce lag time, the SoftStart™ ignition system outputs 40,000 BTUs per hour to quickly warm oil upon startup. The idle temperature setting outputs only 5,083 BTUs per hour to maintain the desired temperature.

A KleenScreen PLUS® filtration system is built into the unit's base to promote frequent filtering. Designed to activate filtration cycles twice per day, this system can be engaged with the push of a button. The drain interlock switch automatically shuts down the burners as oil drain. While its stainless steel mesh filter screen establishes a 350-square-inch filtration area, its pump and motor circulate oil at 8 gallons per minute. Its seamless stainless steel filtration pan boasts a 110-pound capacity,and is simple to remove as needed. The oil-return tube can guide filtered oil back to the vats once the filtration drawer is shut.

Employees can work comfortably at the Vulcan 4TR65AF commercial gas fryer because its 84-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₄-inch-tall fryer creates a 36¹⁄₄-inch working height. To reduce the risk of burns when lowering and lifting food, the included fryer baskets' handles are coated with plastic that minimizes heat transfer. The vats and cabinet are made of durable stainless steel for lasting rust, corrosion, dent, and scratch resistance; these surfaces are also simple to wipe clean to maintain a sanitary workspace. Because this fryer is mounted on four 6-inch casters, it can be repositioned for cleaning or maintenance, and two of the casters can be locked in place for stability during use.

Product Details

• Featured in the PowerFry3 and TR65 collection
• Freestanding 4-battery unit with (4) 70-lb. frypots
• 36¹⁄₄-in. working height
• Stainless steel cabinet and frypots
• 8 fryer baskets with plastic-coated handles (2 per frypot)
• SoftStart ignition system outputs 40,000 BTUs per hour while heating oil
• ThreePass mechanism enhances thermal and cooking efficiency in high-volume operations
• Idle temperature setting maintains set temperatures by outputting 5,083 BTUs per hour
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff feature
• Tank brush and clean-out rod included
• 1¹⁄₄-in. full-port ball-type drain valve
• (4) 6-in. adjustable casters (2 with locks)
• 6-in. clearance required at sides and rear
• 16-in. minimum clearance to adjacent open-top burner units
• (4) 80,000 BTU

Solid-state Analog Knob Controls

• Electronic matchless ignition
• Operating temperature range: 200-390 degrees F
• User-selectable fat-melt modes

Filtration System Details

• Positioned on a pull-out drawer assembly
• 1-touch button activates motor and pump
• Motor and pump circulate oil at 8 GPM
• Stainless steel mesh filter establishes a filtration area as large as 350 sq. in.
• Drain valve interlock switch shuts off burners when drain valve is opened
• Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
• Hands-free oil-return tube

Dimensions & Utilities

• 84 in. W x 30¹⁄₈ in. D x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

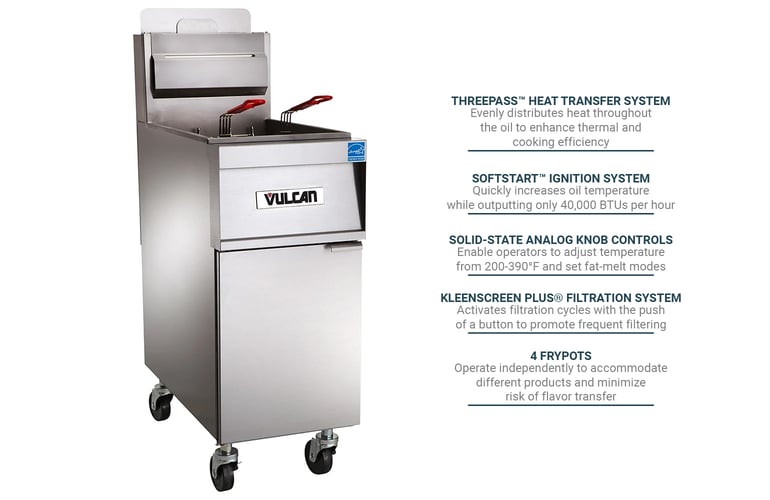

Product Features

*Free shipping on Vulcan 4TR65AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 84" W, (4) battery, 65-70 lbs. capacity per vat, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 4TR65AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
