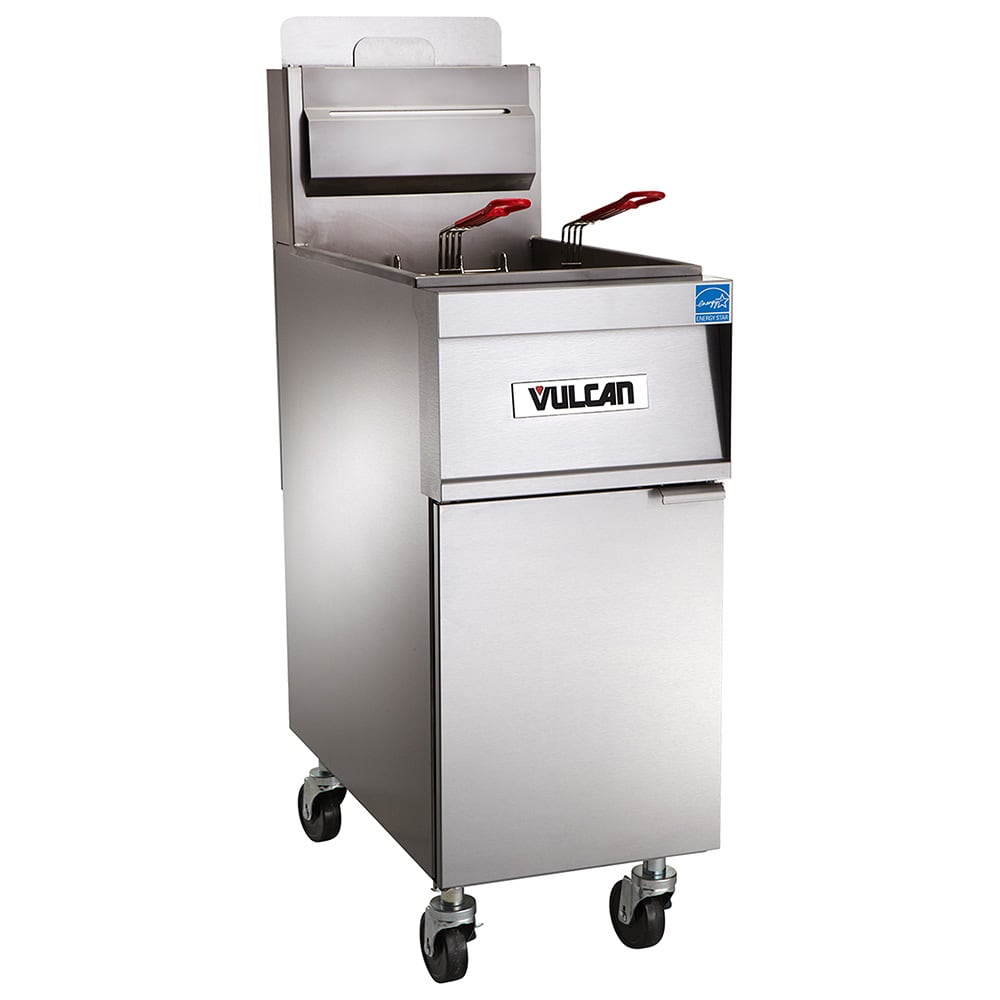

Vulcan 4TR45DF Gas Fryer - (4) 50 lb Vats, Floor Model, Natural Gas

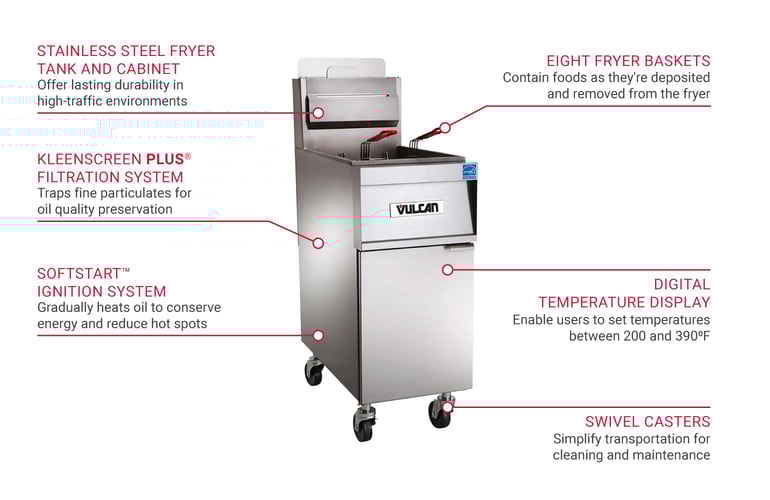

Featured in the PowerFry3™ series, the Vulcan 4TR45DF freestanding fryer has four stainless steel fry tanks, each of which can hold as much as 50 pounds of oil or shortening, and a stainless steel base. The tank establishes a 36¹⁄₄-inch working height to ease access to the frying area. This unit comes with four sets of twin fryer baskets to hold breaded goods during cooking processes, and to reduce heat transfer during transportation, these baskets have plastic-coated handles. For cleaning, users can empty the tank using the 1¹⁄₄-inch full-port, ball-type drain valve, and scrub the interior with the included tank brush and clean-out rod. After running the boil-out solution through the tank, staff can select the automatic boil-out mode to remove the solvent. So users can move the unit for maintenance, it's mounted on four 6-inch swivel casters— two have brakes for enhanced stability. Overall, this fryer measures 62 inches wide by 30¹⁄₈ inches deep by 47¹⁄₈ inches high.

For efficient frying with fast heat recovery, this unit generates set temperatures between 200 and 390 degrees Fahrenheit using a ThreePass™ heating system. These temperatures can be observed through the digital thermostat in Celsius or Fahrenheit. To reduce the risk of overcooking, this system has two countdown timers that assist staff with cooking using actual or compensating time. To use solid shortening, it features three melt modes to dissolve dense frying compounds, and when the unit is stagnant it only uses 4,318 BTUs for energy conservation.

The Vulcan 4TR45DF natural gas fryer operates with an electronic SoftStart™ ignition system that heats the oil while minimizing scorch risks. So the unit doesn't exceed the maximum temperature setting, it features a hi-limit shut-off system. To preserve oil taste and color, its "V"-shaped cold zone traps debris that could otherwise burn. The integrated Kleenscreen Plus® filtration system further extends oil life by trapping particulates 40 to 60 times smaller than paper filters. While a stainless steel mesh screen catches debris from two sides, the push-button-activated motor and pump circulate oil at 8 gallons per minute for efficient filtration. Polluted oil is collected in the stainless steel filter pan, which can hold as much as 70 pounds of waste; this pan can be emptied through the 6-foot, high-temperature discard hose. Prior to draining, users should engage the drain valve interlock switch to disconnect the gas channel.

Product Details

• Part of the PowerFry3 series
• 45-50-lb. capacity per tank
• 4 frypots
• Stainless steel cabinet and fry tank
• 8 metal fry baskets (2 per vat)
• Plastic-coated basket handles protect users from burns
• 36¹⁄₄-in. working height
• Temperature range: 200-390 degrees F
• Fast heat recovery
• Simple electronic ignition
• SoftStart ignition conserves energy
• Idle temperature setting saves energy by outputting only 4,318 BTU
• Hi-limit shut off system
• ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
• "V"-shaped cold zone protects sediments from burning
• 1¹⁄₄-in. full-port, ball-type drain valve
• 4 adjustable 6-in. casters (2 with locks)
• Tank brush and clean-out rod
• (4) 70,000 BTUs

Digital Control System

• Digital thermostat displays readouts in Celsius or Fahrenheit
• 2 countdown timers
• 3 melt modes accommodate solid frying compound
• Auto boil-out mode streamlines boil-out solution removal
• Users can cook with compensating time or actual time

Filtration System

• Filter pan capacity: 70 lb.
• Filter pan constructed of stainless steel
• KleenScreen PLUS filtration system extends oil life
• 2-sided stainless steel mesh filter
• Drain valve interlock switch enhances safety while draining
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• 1-touch, push-button-activated motor and pump
• 6-ft. high-temperature discard hose

Dimensions and Utilities

• 62 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 115-120 V/ 60 Hz/ 1 ph with NEMA 5-15P plug
• 7 A, ¹/₃ HP motor
• Powered by natural gas
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 4TR45DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4TR45DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	70000
Capacity (lbs)	200
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	200
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry3™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	62
Weight	871.00
