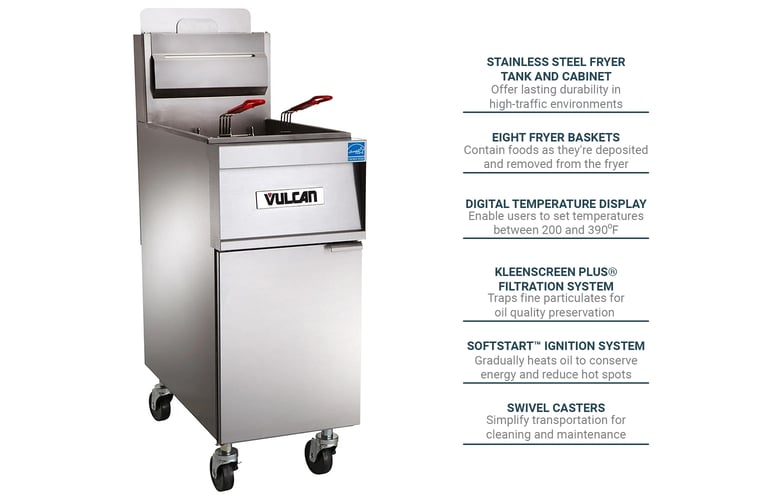

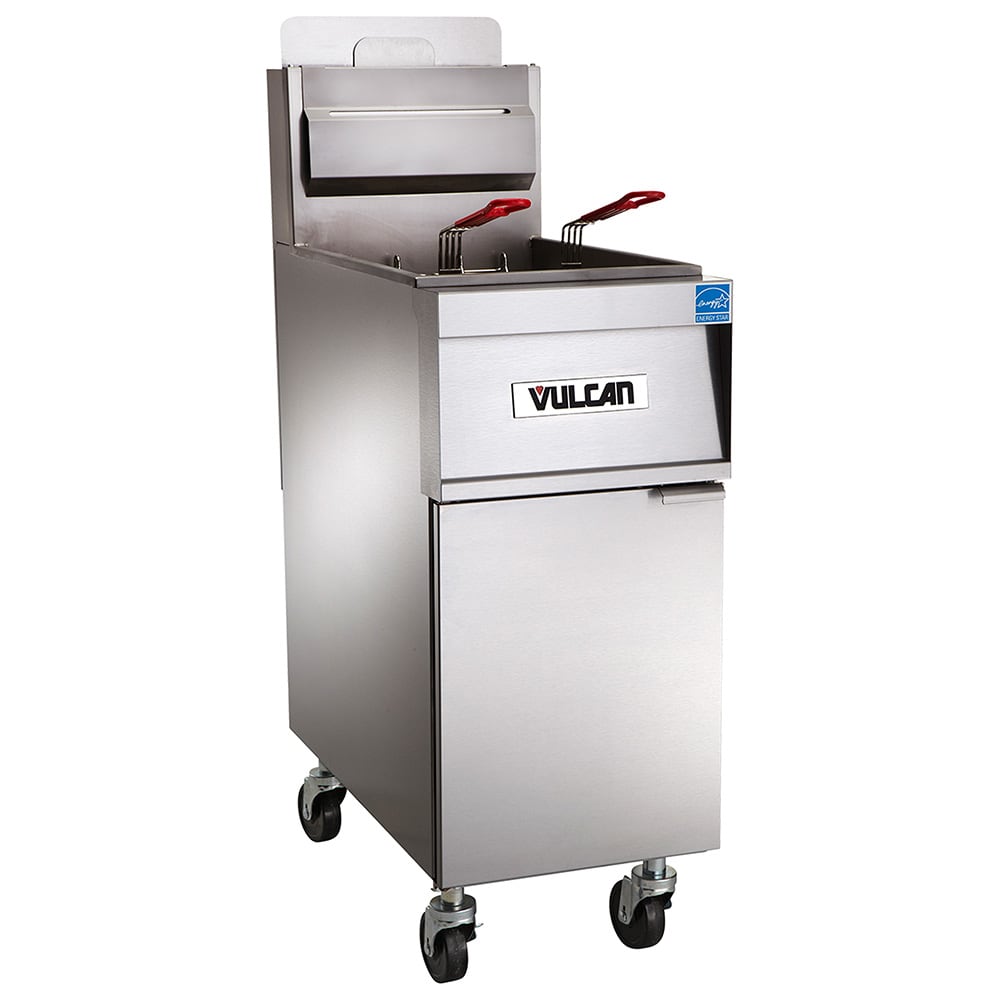

Vulcan 4TR45DF Gas Fryer - (4) 50 lb Vats, Floor Model, Liquid Propane

To streamline operation and reduce manual tasks, the Vulcan 4TR45DF fryer features a digital control system with digital display to ease temperature monitoring. Staff can also use the two countdown timers to account for compensating time. Temperatures are displayed in either Celsius or Fahrenheit through the digital thermostat and can be set between 200 and 390 degrees Fahrenheit. So users can fry with solid shortenings, this system has three melt modes; it also features an auto boil-out mode to ease the removal of the boil-out solution after cleaning. For enhanced filtration, this fryer has a KleenScreen PLUS® system, trapping fine debris 40 to 60 times smaller than paper filters. Its motor and pump can be engaged with a one-touch push button switch to effectively circulate oil at 8 gallons per minute, while its stainless steel mesh screen filters the oil from two sides. After activating the drain valve interlock switch to disconnect the gas channel, staff can empty 70 pounds of oil into the stainless steel filter pan. A 6-foot, high-temperature discard hose streamlines oil removal.

For fast heat recovery after new items are added to the vat, this fryer features a ThreePass™ heat transfer system. The unit can be activated using the electronic ignition, and to reduce operation costs, the SoftStart™ system heats the oil gradually at 35,000 BTUs per frypot. Loose sediments are captured in the fryer's "V"-shaped cold zone to minimize the risk of burning and maintain the oil quality. For further energy conservation, its idle temperature mode only uses 4,318 BTU during slow periods. A high-limit shut-off system automatically caps the temperature threshold for safety and fire prevention.

Ideal for high-volume frying, the Vulcan 4TR45DF gas fryer has a large base cabinet with four fry tanks constructed of durable stainless steel. Each tank can hold 45 to 50 pounds of frying compound, and to remove oil for cleaning, it features a 1¹⁄₄-inch full-port, ball-type drain valve. An included tank brush and clean-out rod further ease cleaning. The unit comes with eight fry baskets to keep breaded shrimp, chicken, and fries contained as they're transferred to and from the frying compound; these baskets have plastic-coated handles to protect user hands from burns. So employees can comfortably access the fryer, this 62-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈-inch-high unit establishes a 36¹⁄₄-inch working height. It's mounted on four adjustable 6-inch swivel casters to enable smooth transportation as needed, and two of these casters have locks for fixed placement during use.

Product Details

• Featured in the PowerFry3™ series
• 45-50-lb. capacity per frypot
• Fry tank and cabinet made of stainless steel
• 8 fry baskets with plastic-coated handles (2 per frypot)
• 36¹⁄₄-in. working height
• 200-390-degrees-F temperature range
• Fast temperature recovery minimizes heat lag between batches
• Users can cook with actual time or compensating time
• Electronic matchless ignition
• SoftStart ignition system preserves oil quality
• Idle temperature setting saves energy by outputting only 4,318 BTU
• Hi-limit shut off
• ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
• "V"-shaped cold zone minimizes burning risk
• 1¹⁄₄-in. full-port, ball-type drain valve
• 4 adjustable 6-in. casters (2 swivel and 2 locking)
• Tank brush and clean-out rod included
• (4) 70,000 BTUs

Digital Control System

• Digital display offers Celsius or Fahrenheit readouts
• 2 countdown timers
• 3 melt modes for solid compounds
• Auto boil-out mode

Filtration System

• 70-lb. filter pan capacity
• Stainless steel filter pan
• KleenScreen PLUS filtration system preserves oil taste and color
• Stainless steel mesh screen filter is 2 sided
• Drain valve interlock switch closes gas channel during draining
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• 1-touch push button activates motor and pump
• 6-ft. high-temperature discard hose eases oil removal

Dimensions and Utilities

• 62 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 115-120 V/ 60 Hz/ 1 ph with NEMA 5-15P plug
• 7 A, ¹/₃ HP motor
• Powered by LP gas
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 4TR45DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 62" W, (4) battery, 45-50 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4TR45DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	70000
Capacity (lbs)	200
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	4
Oil Capacity (lb)	200
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry3™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	62
Weight	871.00
