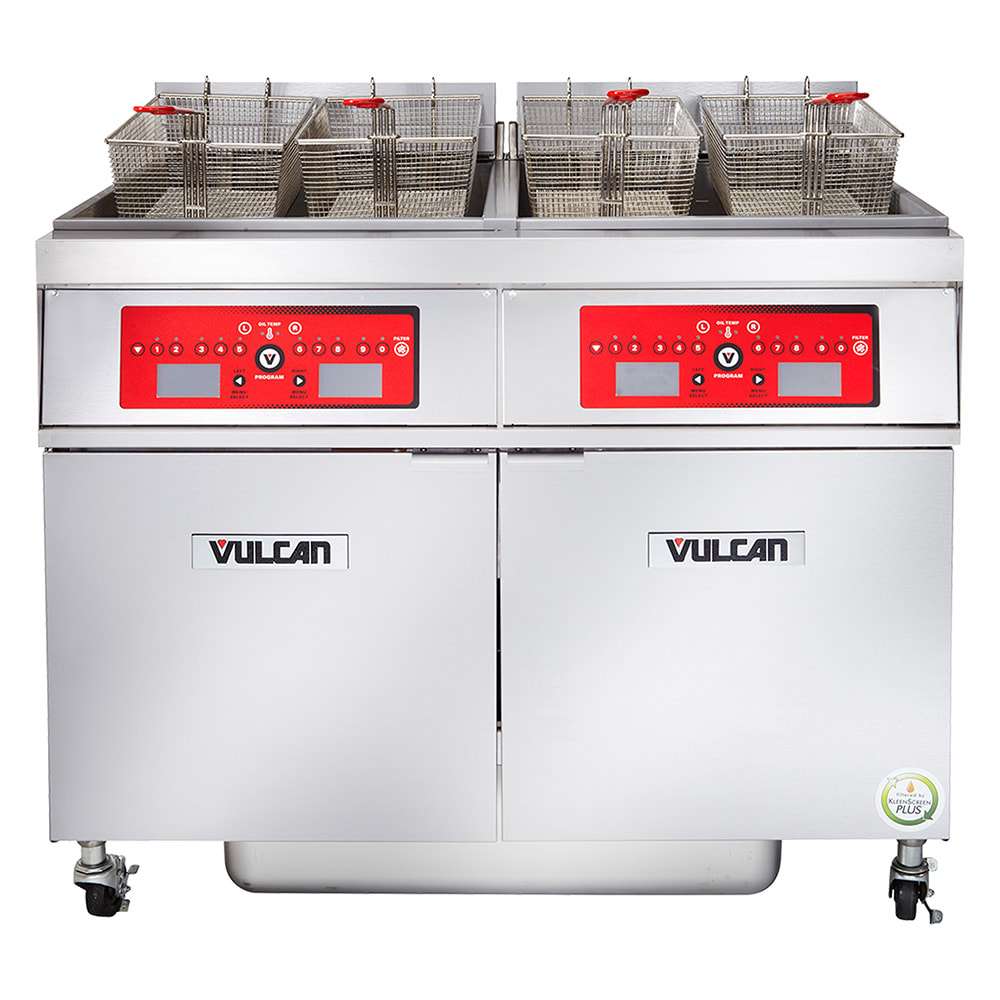

Vulcan 4ER50AF Electric Fryer - (4) 50 lb Vats, Floor Model, 208v/3ph

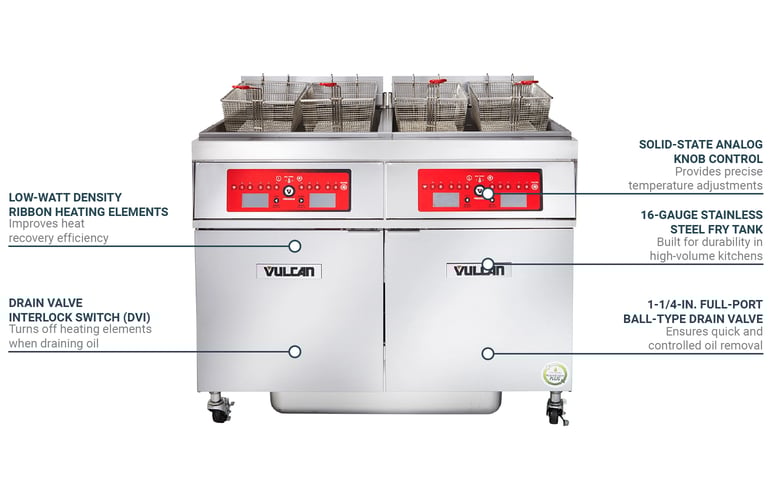

The Vulcan 4ER50AF electric fryer features a solid-state analog knob control system, providing precise temperature adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees. This floor model fryer includes four, 50-pound vats, offering a total oil capacity of 200 pounds to support high-volume frying applications. Multiple fat melt modes ensure controlled oil heating, while the low-watt density ribbon-style heating elements improve heat recovery. The KleenScreen PLUS® filtration system helps extend oil life by removing food debris, reducing operating costs.

Constructed with a durable 16-gauge stainless steel fry tank, the Vulcan 4ER50AF electric fryer is designed for longevity in demanding commercial kitchens. A 1¹/₄-inch full-port ball-type drain valve enables controlled oil removal, and the Drain Valve Interlock Switch (DVI) automatically shuts off heating elements when oil is drained or the elements are lifted during cleaning. The 18-gauge stainless steel filter pan holds up to 70 pounds of frying compound, while the Boil-Out ByPass™ system simplifies cleaning without contact with the drain manifold, filter pan, or pump. The fryer stands on four 6-inch adjustable legs for stability and height adjustment.

Product Details

• 4ER50 series
• (4) 50-lb. vats
• 200-lb. total oil capacity
• 18-gauge stainless steel filter pan
• Stainless steel cabinet
• Solid-state analog knob control
• Temperature holding range: 200-390 degrees F
• Multiple fat melt modes
• Fast heat recovery
• KleenScreen PLUS filtration system
• Boil-Out ByPass system
• 1¹/₄-in. full-port ball-type drain valve
• Drain Valve Interlock Switch (DVI)
• Low-watt density ribbon-style heating elements
• 16-gauge stainless steel fry tank
• 2 twin fry baskets with plastic-coated handles
• (4) 6-in. adjustable legs

Dimensions & Utilities

• Overall dimensions: 62 in. W x 34¹⁹/₅₀ in. D x 36¹/₄ in. H
• 17 kW
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Vulcan 4ER50AF within the 48 contiguous states.

From The Manufacturer

Fryer, electric, 62" W, (4) battery, 50 lbs. capacity per vat, solid state analog knob control with melt cycles, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, (4) adjustable legs, 208v/3, CSAus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 4ER50AF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Capacity (lbs)	50
Hertz	60
kW	17
Number of Fry Pots	4
Oil Capacity (lb)	200
Oil Capacity/Fryer (lb)	50
Phase	3
Product	Electric Fryers
Product Type	Cooking Equipment
Rating	Best
Series	4ER50 Series
Type	Floor Model
Voltage	208
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	62
Weight	927.00
