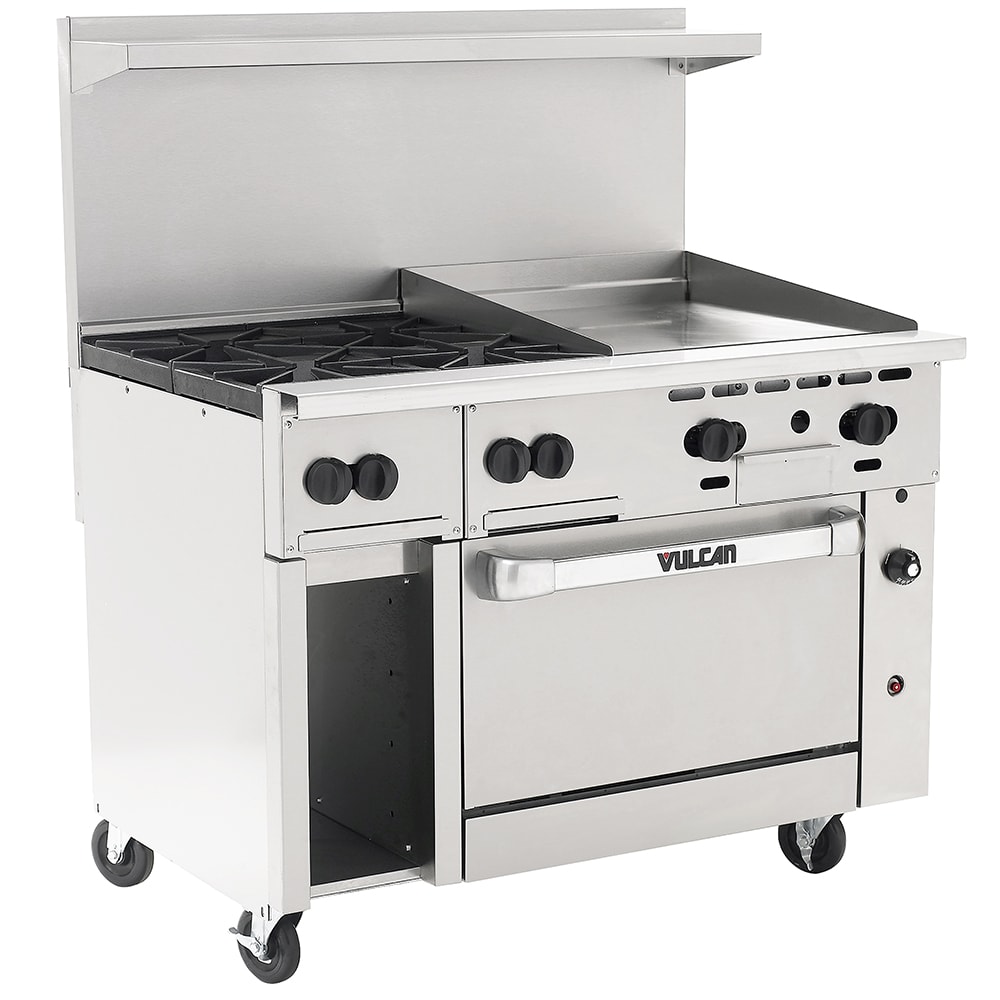

Vulcan 48S-4B24G 48" 4 Burner Gas Range w/ Griddle & Standard Oven, Liquid Propane

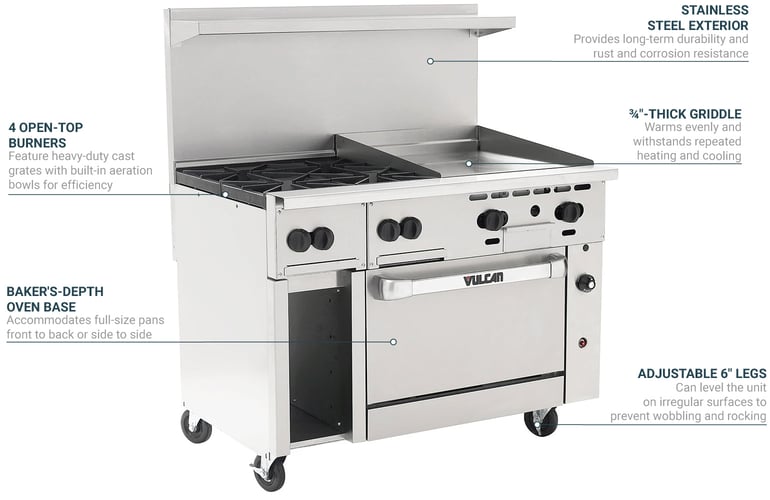

To increase versatility in cooking, the Vulcan 48S-4B24G LP Endurance™ restaurant range is divided into two sections featuring a 24-inch-wide griddle and four open-top burners. The ³⁄₄-inch-thick griddle plate heats uniformly and is thick enough to withstand repeated heating and cooling. Operators can adjust the griddle's heat with the manual controls, and to keep adjacent areas clean, its cooking surface is encased with two side splash guards and a backriser. To catch grease buildup, it features a 4-inch-wide front grease trough.

The open-top burners are powered by two shrouded flashtube pilot systems to reduce gas consumption. While the rear cast grates measure 12 inches by 14¹⁄₂ inches to accommodate large pots and pans, the front cast grates measure 12 inches by 12¹⁄₂ inches. All grates feature integrated aeration bowls to elevate efficiency, and for user safety, the burner knobs remain cool to the touch during operation.

The Vulcan 48S-4B24G LP range's standard oven can bake, broil, or roast dishes while staff performs additional tasks on the range's top section. Its temperature can be set from 250 to 500 degrees Fahrenheit or at a low-heat setting, and its 27-inch baker's-depth cavity accommodates full-size pans positioned front to back or side to side. To achieve various results, the two included oven racks can be placed in four positions. So operators can quickly insert and remove pans, the oven door is hinged, and its handle remains cool to the touch for safety. Staff can simply wipe down the porcelain door panel and base to expedite cleaning.

To save space in compact kitchens and eliminate the need to buy three separate pieces of equipment, this range measures 48 inches wide by 34 inches deep by 58 inches high. Its sides, front, backriser, and lift-off high shelf are made of rust- and corrosion-resistant stainless steel for resiliency, while its chassis is fully MIG welded for strength. Because it's positioned on adjustable 6-inch-tall stainless steel legs, it can be modified for stability on irregular flooring.

Range Details

• Part of the Endurance collection
• Stainless steel front, sides, backriser, and high lift-off shelf
• Fully MIG-welded chassis
• 2 shrouded flashtube pilot ignition systems (1 system per 2 burners)
• (4) 30,000-BTU open-top burners with lift-off heads
• 4 heavy-duty cast grates with built-in aeration bowls
• (2) 12-in. x 12¹⁄₂-in. cast front grates
• (2) 12-in. x 14¹⁄₂-in. cast rear grates
• Extra-deep pull-out stainless steel crumb tray features welded corners
• Cool-to-the-touch burner knobs
• 24-in.-wide griddle outputs 60,000-BTUs
• ³⁄₄-in.-thick plate
• Manual controls
• 2 side splash guards
• 4-in.-wide front grease trough

Oven Details

• 27-in. baker's depth accommodates full-size sheet pans side to side or front to back
• Includes 2 racks with 2 rack guide sets
• 4 oven rack positions
• Operating temperature: 250-500 degrees F
• Low setting
• Porcelain door panel and oven base
• Hinged oven door
• Cool-to-the-touch door handle
• 6-in. adjustable stainless steel legs
• 35,000 BTU

Dimensions & Utilities

• Oven interior: 26³⁄₈ in. W x 27 in. D x 14 in. H
• Overall: 48 in. W x 34 in. D (46¹⁄₂ in. D when oven door is open) x 58 in. H
• Powered by LP gas
• 195,000 BTU
• 1-in. rear gas connection

Product Features

*Free shipping on Vulcan 48S-4B24G within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 48", (4) 30,000 BTU burners with lift-off burner heads, (1) 24" griddle, 3/4" thick plate, manual controls, 4"W front grease trough, standard oven, stainless steel front, sides, backriser & lift-off high shelf, fully MIG welded chassis, 6" adjustable legs, 195,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 48S-4B24G Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
