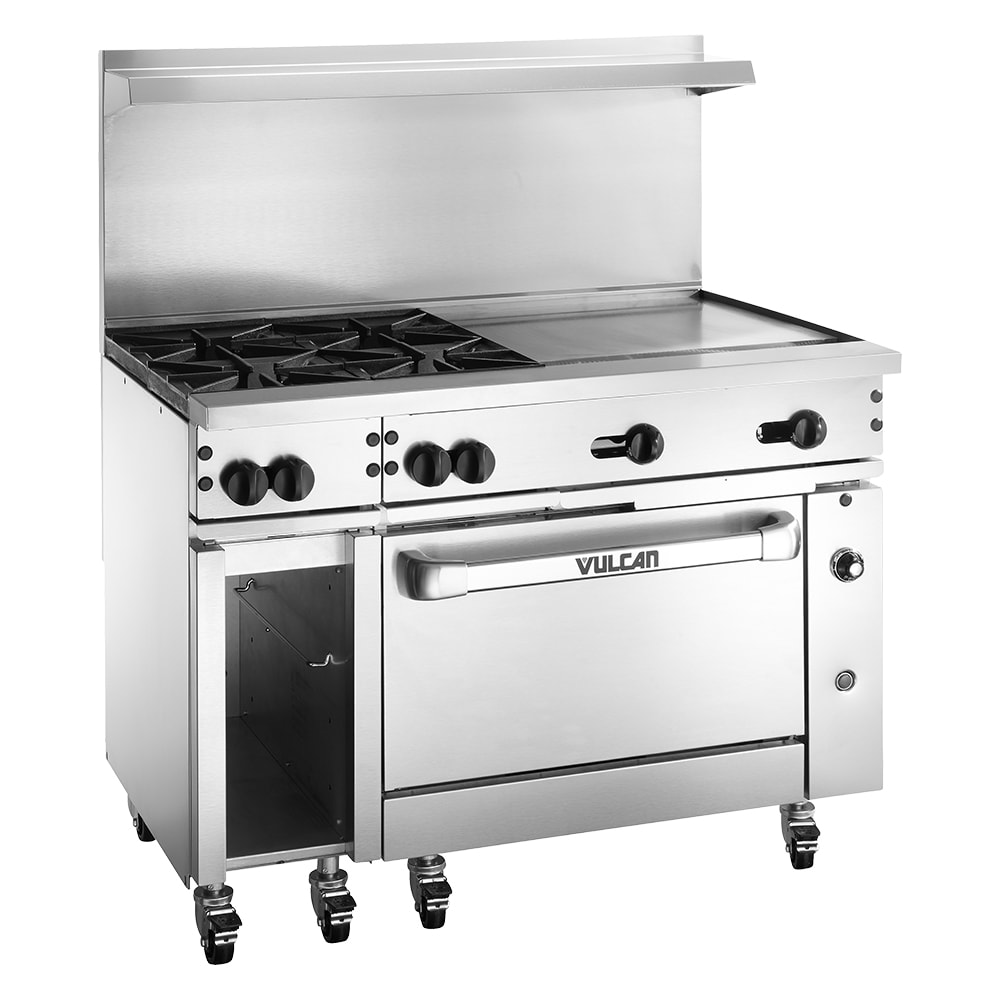

Vulcan 48C-4B24GT 48" 4 Burner Gas Range w/ Griddle & Convection Oven, Liquid Propane

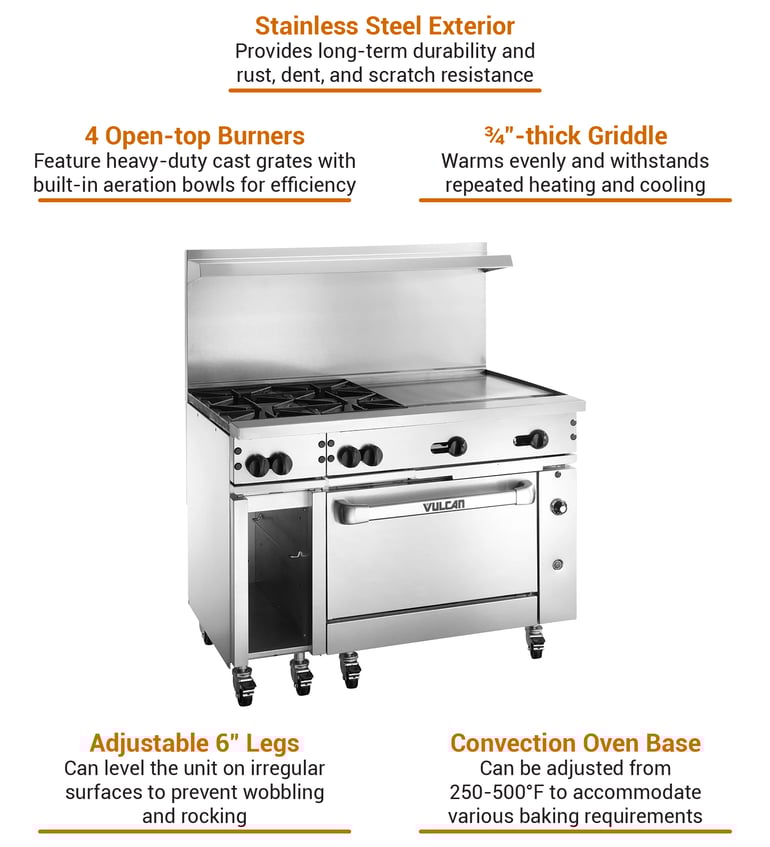

So operators can boil, simmer, saute, fry, bake, and roast ingredients using a single unit, the Vulcan 48C-4B24GT Endurance™ LP-gas-powered range features four open-top burners, a 24-inch-wide griddle, and a convection oven. To save space in compact kitchens, it measures 48 inches wide by 34 inches deep by 58 inches tall and rests on 6-inch stainless steel legs that can be raised or lowered to stabilize the unit on irregular or sloped flooring. This stainless steel range resists rust, corrosion, and wear and is fully MIG welded for lasting strength in fast-paced commercial kitchens. So ingredients, supplies, and other contents can be stored within close reach, a lift-off high shelf is positioned above the range's top.

The range's four burners each output 30,000 BTUs and feature lift-off burner heads with heavy-duty lift-off cast grates and integrated aeration bowls. Users can adjust the burners' heat with the corresponding cool-to-the-touch knobs. To reduce gas consumption, this unit uses one shrouded flashtube pilot system per two burners. On the range's right side, the ³⁄₄-inch-thick griddle plate is durable enough to endure repeated heating and cooling. The surface heat can be modified with the corresponding snap-action thermostatic controls, and to keep popping oil contained, it's encased with two side splash guards and a backriser. Between uses, oil can be extracted from the 4-inch-wide front-mounted grease trough, and crumbs and other food debris can be removed from the pull-out crumb tray.

The Vulcan 48C-4B24GT gas range's convection base quickly and thoroughly retherms, bakes, broils, and roasts dishes. Staff can set its interior temperature at a low-heat setting or from 250 to 500 degrees Fahrenheit. Its 26³⁄₈-inch-wide by 24-inch-deep by 13⁷⁄₈-inch-tall interior includes two oven racks with two rack guide sets and offers four rack positions to achieve various results; these components accommodate full-size pans inserted side to side. To ease pan insertion and removal and enhance user safety, the hinged door features a smooth spring mechanism, and its handle remains cool to the touch during baking cycles. For lasting durability and simple cleaning, the oven's base and door panel are made of porcelain.

Range Details

• Part of the Endurance collection
• Stainless steel front, sides, backriser, and high lift-off shelf for rust, scratch, and dent resistance
• MIG-welded, aluminized steel frame
• (4) 30,000-BTU open-top burners with lift-off heads
• 1 shrouded flashtube pilot ignition system per 2 burners
• 4 heavy-duty cast grates with aeration bowls
• (2) 12-in. x 12¹⁄₂-in. cast front grates
• (2) 12-in. x 14¹⁄₂-in. cast rear grates
• Cool-to-the-touch burner knobs
• 24-in.-wide griddle on right side
• ³⁄₄-in.-thick griddle plate
• Snap-action thermostatic controls
• Dual splash guards
• 4-in.-wide front grease trough
• Extra-deep pull-out stainless steel crumb tray with welded corners

Oven Details

• Uses convection heat
• Accommodates side-to-side full-size sheet pans
• Operating temperature: 250-500 degrees F
• Low-heat setting
• Includes 2 oven racks with 2 rack guide sets
• Racks can be placed in 4 positions
• Porcelain oven base and door panel
• Hinged oven door's handle remains cool to the touch during baking
• Blower motor requires field attachment
• 6-in. adjustable stainless steel legs
• 35,000 BTU

Dimensions & Utilities

• Oven interior: 26³⁄₈ in. W x 24 in. D x 13⁷⁄₈ in. H
• Overall: 48 in. W x 34 in. D (53¹⁄₂ in. D when oven door is open) x 58 in. H
• 4 A
• 115 V/60 Hz/1 ph, 6-ft. cord with plug
• Powered by LP gas
• 195,000 BTU
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 48C-4B24GT within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 48", (4) 30,000 BTU burners with lift-off burner heads, (1) 24" griddle, 3/4" thick plate, thermostatic controls, 4"W front grease trough, convection oven, stainless steel front, sides, backriser & lift-off high shelf, fully MIG welded chassis, 6" adjustable legs, 195,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 48C-4B24GT Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
