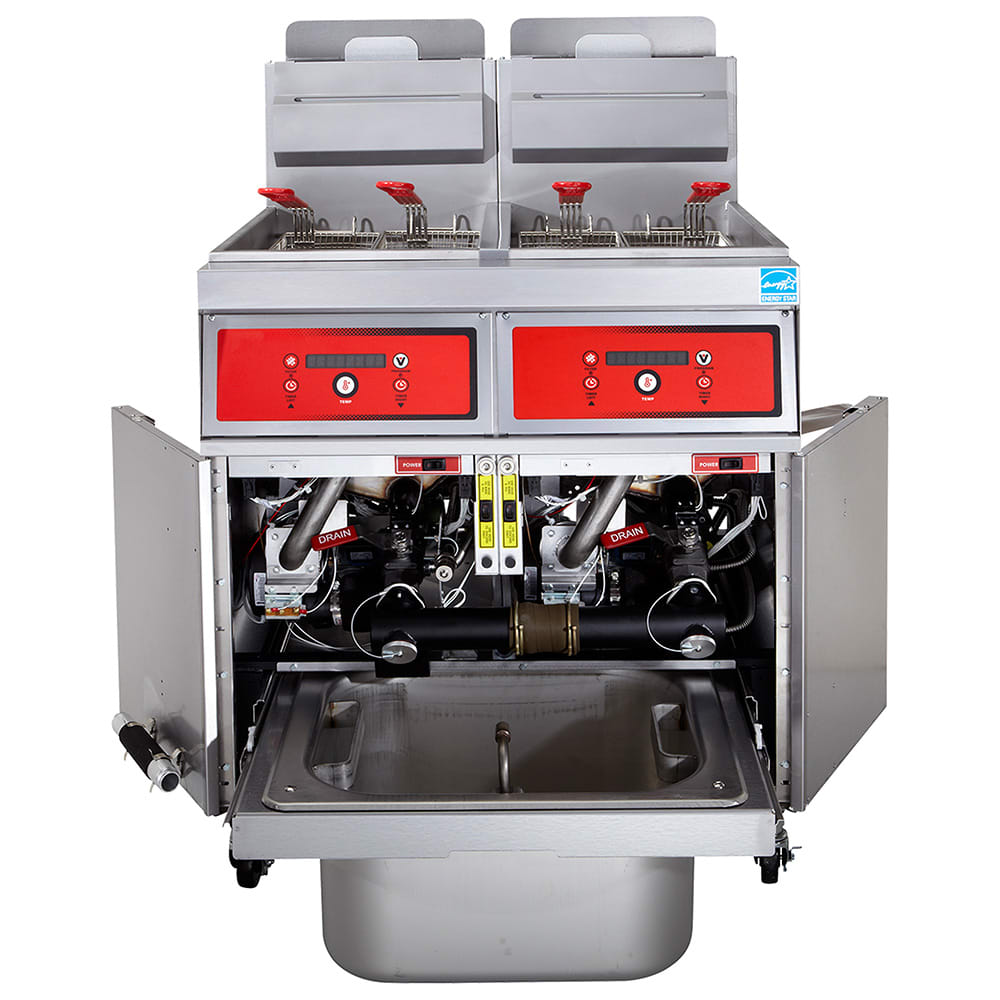

Vulcan 3VK85CF Gas Fryer - (3) 90 lb Vats, Floor Model, Natural Gas

To streamline operating the Vulcan 3VK85CF PowerFry5™ commercial natural gas fryer's frypots, each vat is equipped with independent computer controls. This allows staff to set temperatures from 200 to 390 degrees Fahrenheit, program 10 menu timers, cook with actual or compensating time, and activate one of three melt modes. To ensure the units are programmed to the correct settings, a digital display provides an accurate readout in Fahrenheit or Celsius. This unit's SoftStart™ ignition system only outputs 135,000 BTUs per hour while quickly heating oil, while its FivePass™ heat transfer system yields 78 percent thermal efficiency and 65 percent cooking efficiency. Once the unit reaches the desired heat, its ideal temperature setting retains temperatures by outputting only 18,894 BTUs per hour.

Capable of surviving high-volume use, this 63-inch-wide by 30¹³⁄₁₀₀-inch-deep by 47¹⁄₄-inch-tall unit is made of heavy-duty rust- and dent-resistant stainless steel. It's positioned on four 6-inch casters that provide smooth mobility for short distances, and two of the casters are built with locks to enhance stabilization during use. For user comfort, it provides a 36¹⁄₄-inch cooking height, and the six included fryer baskets' handles are coated with plastic to minimize heat transfer.

The Vulcan 3VK85CF high-efficiency commercial fryer's KleenScreen PLUS® filtration system can be activated twice per day with the push of a button. Located on a pull-out drawer in the unit's base, it includes a 110-pound-capacity stainless steel filtration pan that can be removed and emptied when desired. For user safety, the drain interlock valve turns off the gas burners when oil is draining. While its motor and pump circulate hot oil at 8 gallons per minute, the stainless steel mesh filter screen establishes a filtration area between 270 and 350 degrees Fahrenheit by filtering from two sides. Once oil is filtered, the oil-return tube can direct it back to the frypots, minimizing time-consuming manual labor.

Product Details

• Part of the PowerFry5 VK85 collection
• 3-battery freestanding unit
• (3) 90-lb. frypots
• 36¹⁄₄-in. working height
• Durable stainless steel cabinet, frypots, and fryer baskets
• 6 fryer baskets with plastic-coated handles (2 per frypot)
• (4) 6-in. adjustable casters (2 locking)

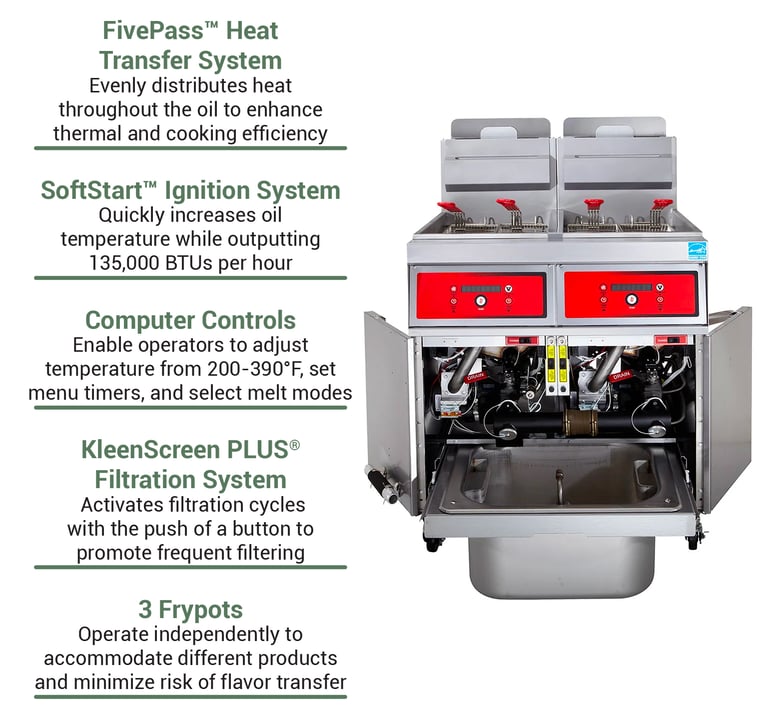

• FivePass heat transfer system yields 65 percent cooking efficiency and 78 percent thermal efficiency by effectively guiding heat through oil
• SoftStart ignition system outputs 135,000 BTUs per hour to quickly heat oil upon startup
• Idle temperature mode only outputs 18,894 BTUs per hour to maintain set temperature
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• Ships with tank brush and clean-out rod
• 1¹⁄₄-in. full-port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 90,000 BTU

Computer Controls

• Electronic ignition
• Digital character display can be set to Fahrenheit or Celsius
• Operating temperature range: 200-390 degrees F
• 10 menu timers display product name and cook time
• Items can be programmed offline using a USB interface (software included)
• Can cook with actual time or compensating time
• 3 melt modes

Filtration System Details

• Pull-out base drawer assembly
• Stainless steel mesh filter screen can filter areas from 270-350 sq. in.
• Filtration cycle can be turned on with the push of a button
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch turns off burners automatically as oil is drained
• 110-lb.-capacity filtration pan made of stainless steel
• Hands-free oil-return tube automatically adds oil back to the tanks when the drawer is closed

Dimensions & Utilities

• 63 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK85CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 63" W, (3) battery, 85-90 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 270,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 3VK85CF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	90000
Capacity (lbs)	270
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	3
Oil Capacity (lb)	270
Oil Capacity/Fryer (lb)	90
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	63
Weight	968.00
