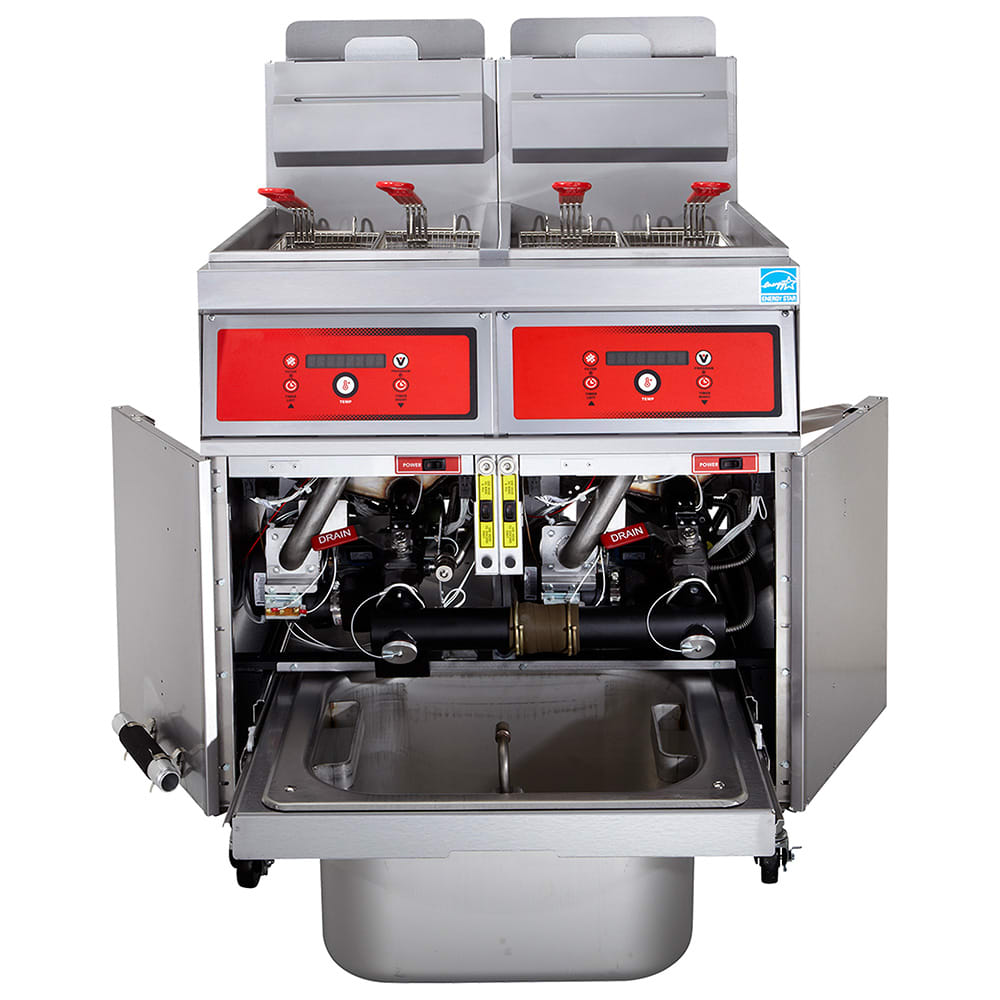

Vulcan 3VK85CF Gas Fryer - (3) 90 lb Vats, Floor Model, Liquid Propane

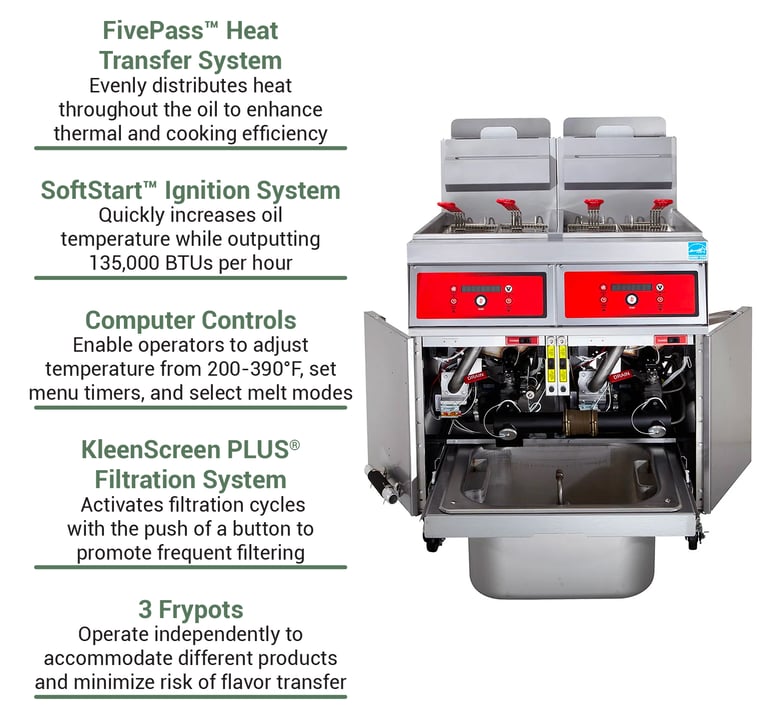

Because all three of the Vulcan 3VK85CF PowerFry5™ commercial gas fryer's frypots operate independently, they can fry products with contrasting cooking requirements simultaneously. Each vat has a corresponding computer control system, complete with 10 programmable menu timers, temperature control from 200 to 390 degrees Fahrenheit, the ability to cook with actual or compensating time, and three melt modes. A digital readout ensures the unit is set to the correct temperature in Fahrenheit or Celsius. Once the controls are set, the SoftStart™ ignition system outputs 135,000 BTUs per hour while quickly heating oil, and the FivePass™ mechanism effectively directs heat throughout the oil, yielding 65 percent cooking efficiency and 78 percent thermal efficiency. To maintain its achieved heat, the idle temperature setting only has to output 18,894 BTUs per hour.

This 63-inch-wide by 30¹³⁄₁₀₀-inch-deep by 47¹⁄₄-inch-tall unit establishes a 36¹⁄₄-inch cooking height for user comfort. The frypots each include twin fryer baskets that keep breaded foods contained as they're fried. Their handled bodies streamline lowering and lifting, and because the handles are coated with plastic, they protect users from being burned due to heat transfer. To withstand high-volume back-of-house use, its body and vats are made of durable stainless steel that resists rust, dents, and scratches. Because it's fitted with four 6-inch casters, it's simple to reposition for maintenance or cleaning.

Intended for use twice per day, the Vulcan 3VK85CF freestanding gas fryer's KleenScreen PLUS® filtration system can be activated with the push of a button. Its motor and pump circulate hot oil at 8 gallons per minute, while the stainless steel mesh filter screen provides a filtration area as large as 350 square inches. As much as 110 pounds of oil can be collected in the seamless stainless steel filtration pan, which is simple to remove and empty as needed. To eliminate manual tasks, the oil-return tube automatically guides filtered shortening back to the tanks once the filter drawer is closed.

Product Details

• Part of the PowerFry5 VK85 collection
• 3-battery freestanding unit
• (3) 90-lb. frypots
• 36¹⁄₄-in. working height
• Durable stainless steel frypots, cabinet, and fryer baskets
• 6 fryer baskets with plastic-coated handles (2 per frypotl)
• (4) 6-in. adjustable casters (2 can be locked for stability)
• FivePass heat transfer system yields 65 percent cooking efficiency and 78 percent thermal efficiency
• SoftStart ignition system outputs 135,000 BTUs per hour (half of the frypot's maximum hourly BTU output)
• Idle temperature mode only outputs 18,894 BTUs per hour to maintain set temperature
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff system
• Comes with tank brush and clean-out rod
• 1¹⁄₄-in. full-port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 90,000 BTU

Computer Controls

• Operating temperature range: 200-390 degrees F
• Digital character display can be set to Fahrenheit or Celsius
• 10 menu timers display product name and cook time
• Items can be programmed offline using a USB interface (software included)
• Electronic ignition
• Designed to cook with compensating time or actual time
• 3 melt modes

Filtration System Details

• Assembled on a pull-out base drawer
• Stainless steel mesh filter screen can filter areas from 270-350 sq. in.
• Filtration system can be activated with a button press
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch automatically disables burners as oil is drained
• 110-lb.-capacity stainless steel filtration pan included
• Hands-free oil-return tube recycles oil when the drawer is closed

Dimensions & Utilities

• 63 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK85CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 85-90 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 270,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 3VK85CF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	90000
Capacity (lbs)	270
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	3
Oil Capacity (lb)	270
Oil Capacity/Fryer (lb)	90
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	63
Weight	968.00
